FDA Medical Ce Q-Switched Ndyag Laser Beauty Equipment Clinic Picosecond Tattoo Laser Removal Machine
FDA carbon peeling skin rejuvenation Q-switched ndyag laser medical equipment clinic tattoo laser removal machineProduct Application1.Melasma/Hyerpigmentation/lentiginos/speckle/tattoo removal etc.2.port wine birthmarks/spider angioma/cherry angioma spider nevi etc3.carbon peeling treatment4.skin re......
Send Inquiry
Product Description
FDA carbon peeling skin rejuvenation Q-switched ndyag laser medical equipment clinic tattoo laser removal machine
Product Application
1.Melasma/Hyerpigmentation/lentiginos/speckle/tattoo removal etc.
2.port wine birthmarks/spider angioma/cherry angioma spider nevi etc
3.carbon peeling treatment
4.skin rejuvenation/balance uneven skin tones/shrink pores
FDA carbon peeling skin rejuvenation Q-switched ndyag laser medical equipment clinic tattoo laser removal machine | |
laser type | Q-Switched Nd YAG |
Wavelength | 1064nm,532nm |
Pulse Width | 5ns |
Pulse Energy | 500mj; 200mj |
Pulse Energy Range | 200-500mj;100-200mj |
Fluence | 0.2-16j/cm2; 0.1-6.3j/cm2 |
Frequency | 5hz |
Spot size | 2-10mm adjustable |
Alaming Beam | 635mm,<5mW |
Electrical | 00-240VAC, 50-60Hz,1200VA |
High energy Q switched Nd | 1000mj optional |
Dimension | 35.1cm*92.5cm*77.5cm (not including artculated arm) |
Weight | 40kg |
Working Principle:
The Q-switched Nd:YAG laser takes selective photothermolysis theory to treat pigment skin diseases. The target base is melanin, because of its high peak power, and the pulse width is nanosecond level, the thermal relaxation time for melanin cells and that from keratin formation is very short, so it can make the melanin particles instantaneous blasting and break them into very small fragments. Ultimately gets eliminated by the lymphatic system. Meanwhile, it does not influence the surrounding normal tissues.
Advantages
1.Flat-top hat Beam

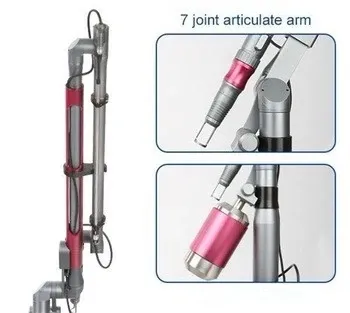

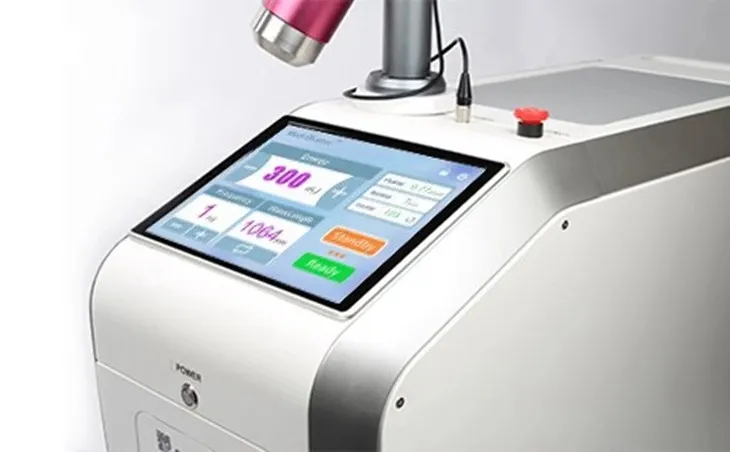

2.7 joint articulate arm &10.4 inch touch display
3.Real-time energy monitor &Auto-Cali-bration System
4.Energy density is automatically adjusted with spot size
5.Short pulse duration 5ns
6.Adjustable spot size 2-10mm
7.Stable power supply with High peak power
8.Water Filtration System
Beijing Sincoheren S&T Development co., Ltd. is one of the largest and the earliest professional hi-tech manufacturers of medical and aesthetic equipments.
We supply Intensive Pulse Light (IPL) Laser machine, CO2 Laser machine, 808nm diode Laser machine, Q-Switched ND:YAG Laser machine, cyrolipolysis machine, body slimming RF machine. etc.
We specialize in manufacturing skin\hair removal\body slimming treatment equipments. Kuma, Coolplas and Monaliza are our well-known brands.
We have our own Research & Development Department, Factory, International Sales Department, Overseas Distributors and After Sales Department. Our devices are various from IPL series, Laser series, RF series to KUMA Body Shape series, Ultrasonic Cavitation, Elite and LED-PDT, etc. We also provide OEM and ODM services based on Clients' desires
