Portable Tattoo Removal Pigmentation Removal Q Switched ND YAG Laser 532nm 1064nm 1320nm Carbon Peeling Machine
Portable Q-Switched ND YAG Laser 532nm 1064nm Picosecond Laser This portable Nd:Yag laser device is very well received on market. It configures 2 different laser therapeutic heads. One is at 1064nm targeting, it takes off black and dark blue tattoo pigment,especially for tattoo eyebrows, dark color ......
Send Inquiry
Product Description

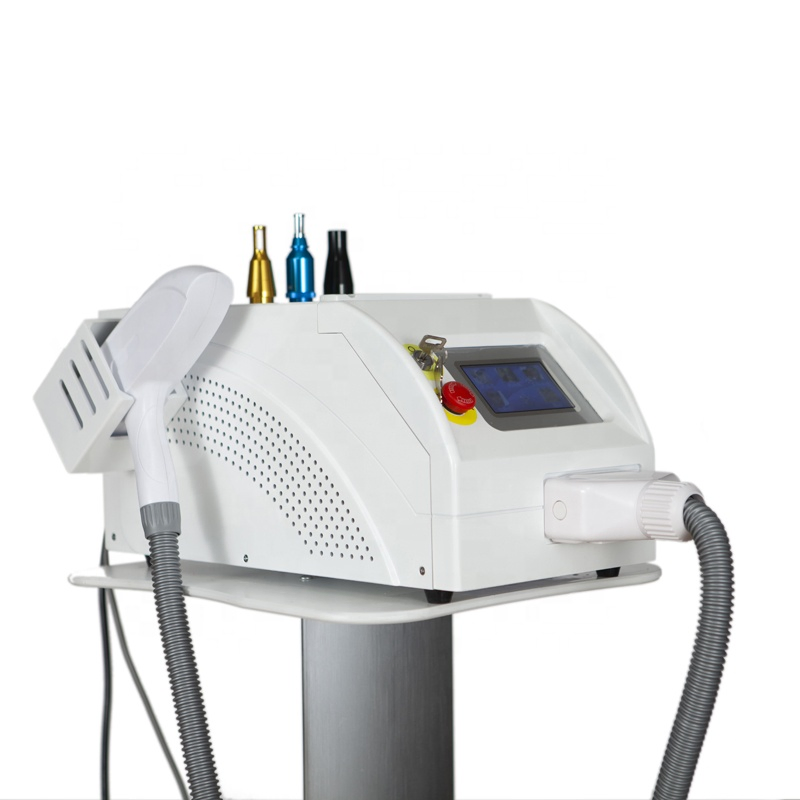

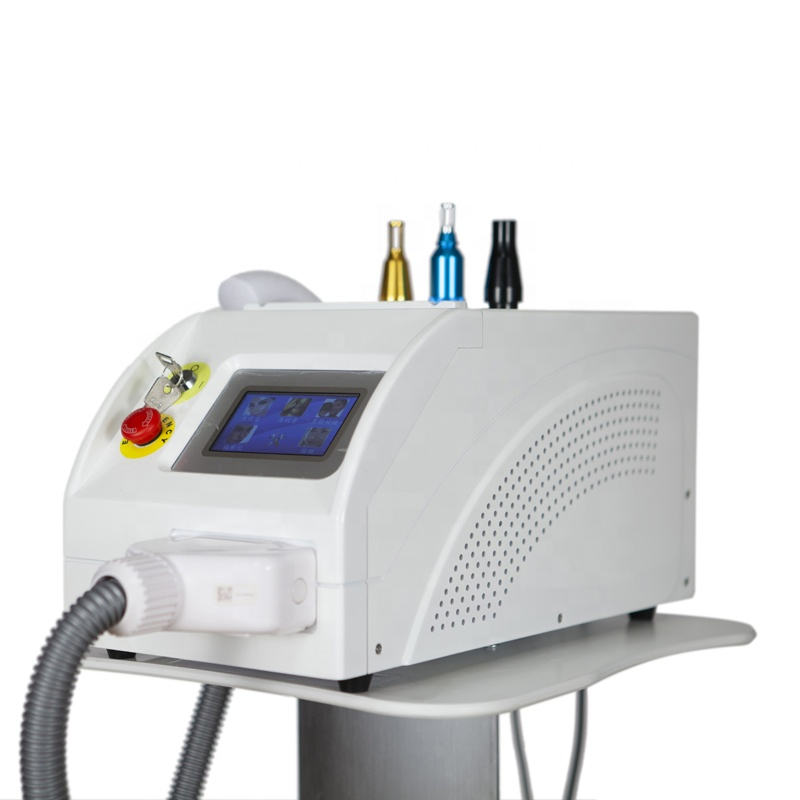

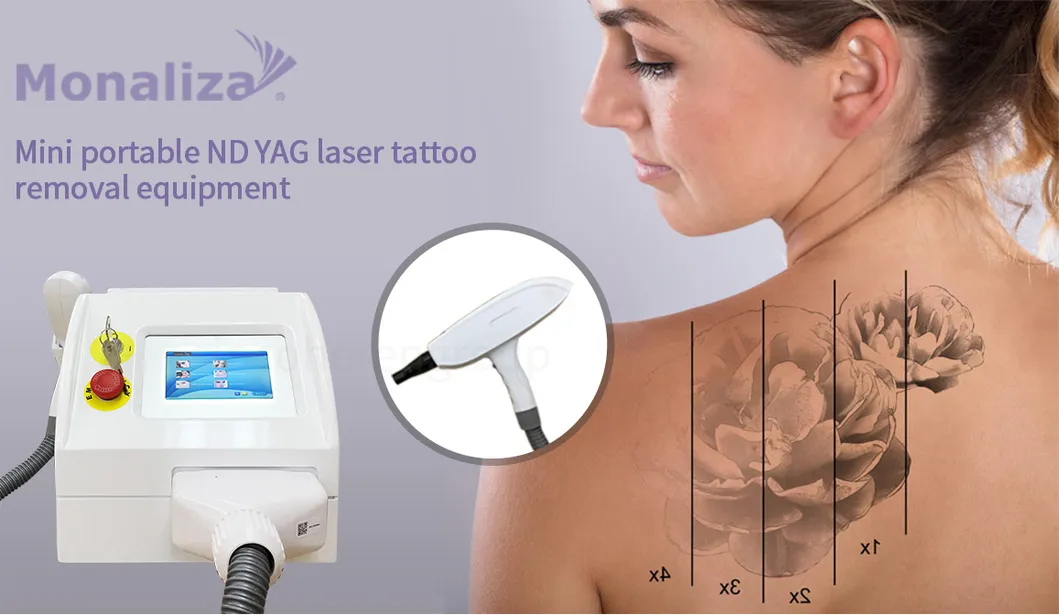

Portable Q-Switched ND YAG Laser 532nm 1064nm Picosecond Laser
This portable Nd:Yag laser device is very well received on market. It configures 2 different laser therapeutic heads. One is at 1064nm targeting, it takes off black and dark blue tattoo pigment,
especially for tattoo eyebrows, dark color around the eyes, Lentigines, flecks, age spots pigmentation etc. black pigment lesions; the other is at 532nm targeting red ink lesions.
The Q-Switched Nd: YAG Laser Tattoo Removal Device delivers very high power but very short pulses of laser light which pass through the skin to break down the particles of tattoo pigment, which are then removed by the white blood cells and the lymphatic systems.
Specification
| Light source | Q-switched Nd: YAG solid-state laser |
| Wave lengh | 064nm532m |
| Energy level | 400~1 600mJ |
| Fluence | ≤12J/cm² |
| Pulse duration | 8ns |
| Frequecy | 1,2,3,4,5.6Hz |

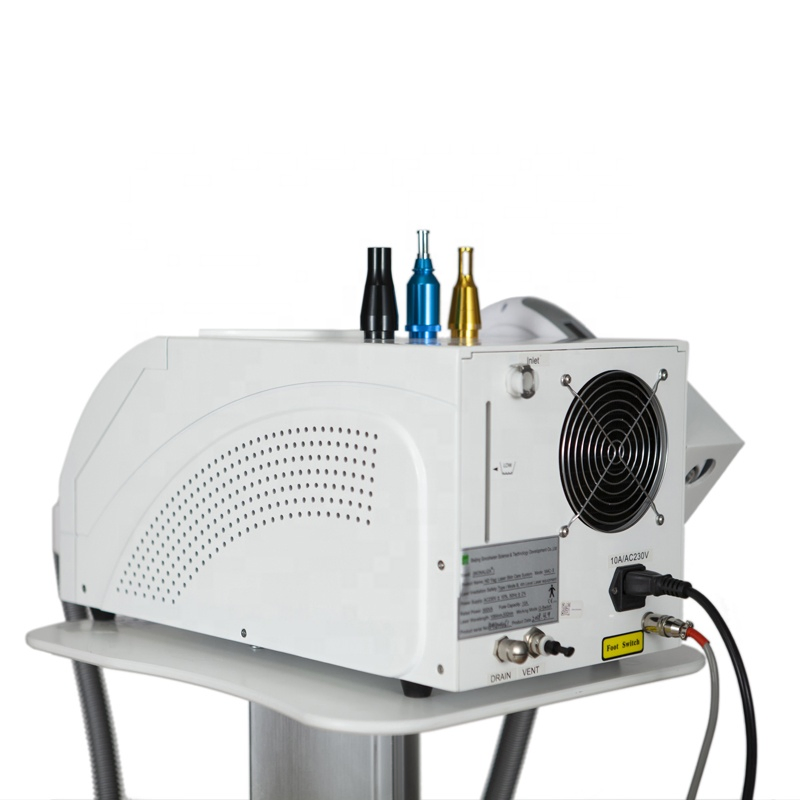

| Cooling system | Builin distilled water-circle system |
| Power requirement | 220VAC/10A or 110VAC/10A |
| Dimension | 38X20X 20cm |
| Weight | 16kg |

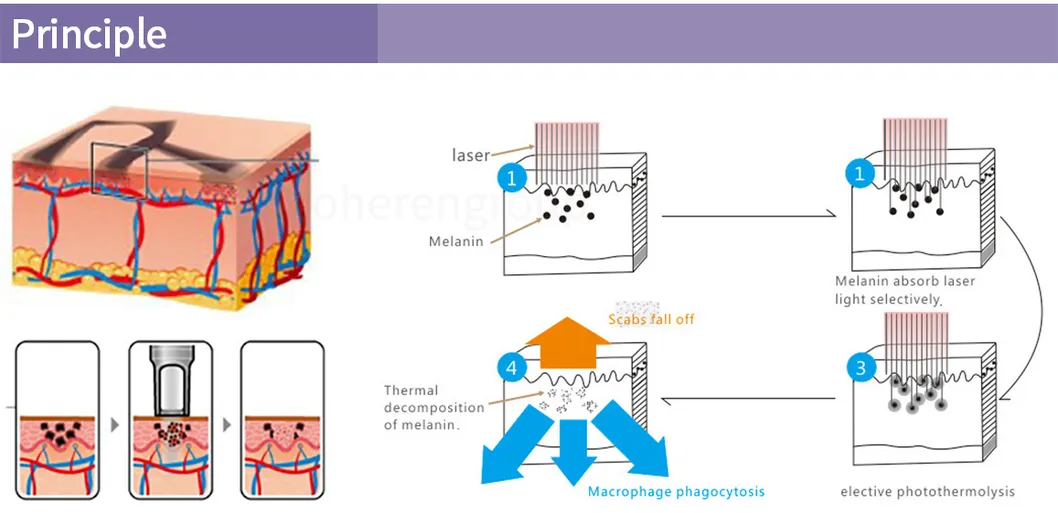

Utilizing the explosive effect of the Nd:YAG Laser, the laser lights permeate through the epidermis into dermis and take effects on pigment mass. The laser energy is absorbed by the pigment. Since the laser pulse width is extremely short in nanosecond and comes with super high energy, the pigment mass will swell quickly break to small pieces, which will be eliminated by body circulation system. Then the pigments become lighter gradually and finally disappear.

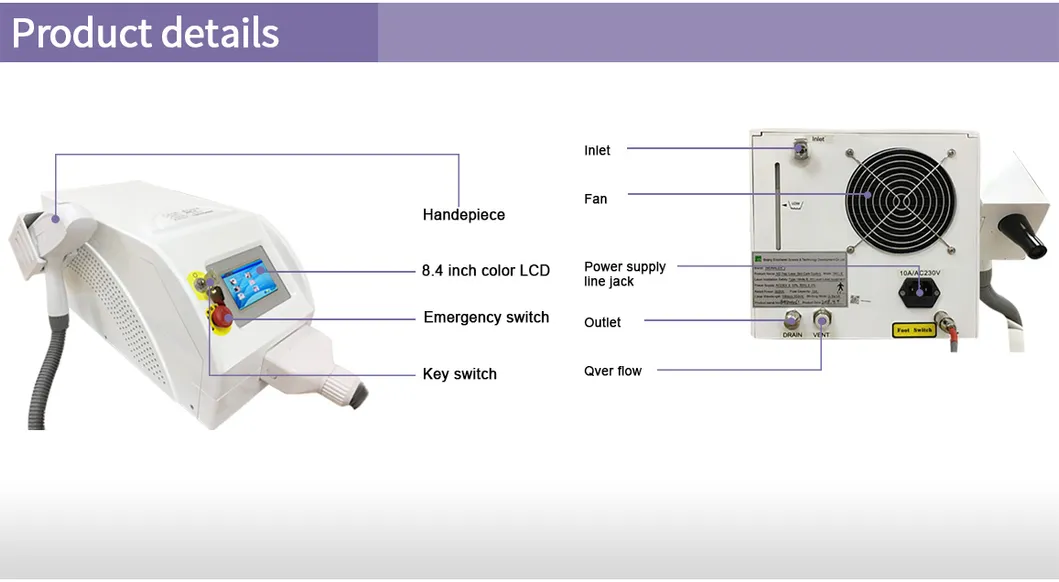

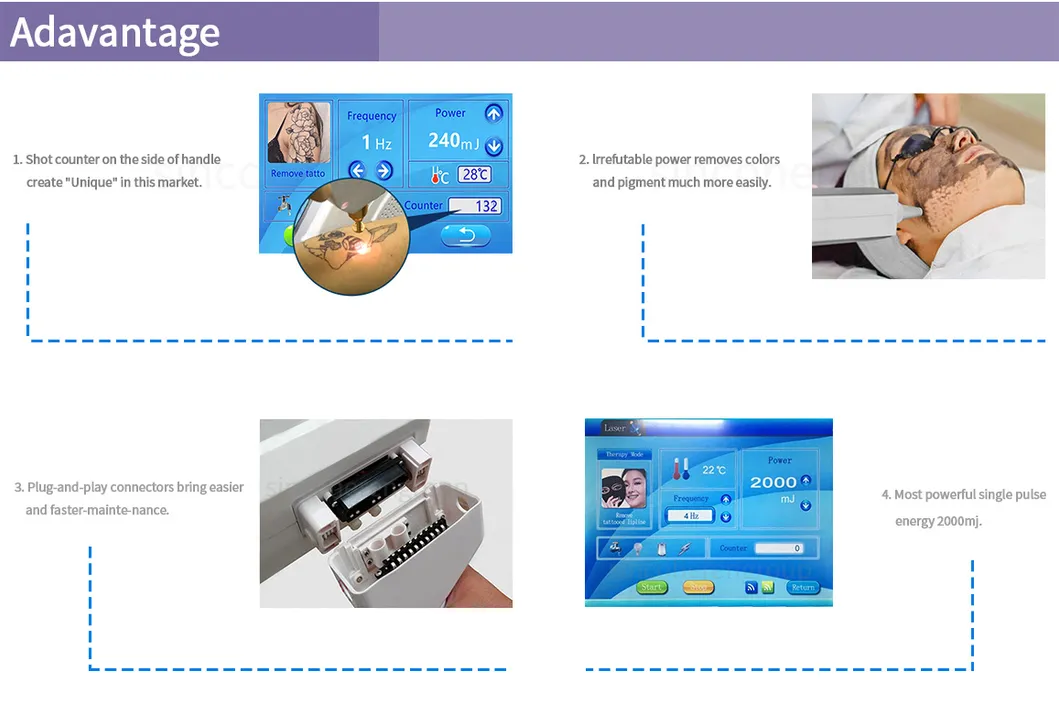

Advantage:1. Using the world's most advanced ABS insulation material, anti-interference capability, and a more stable unit
2. Mini Laser adopts magnetic pump instead of the immiscible pump.
3. Double-band free conditioning.
4. Water temperature detection, water temperature can be set free, when the water temperature is too high, and automatically stop working
5. Flow testing, when the flow is too small or stops, equipment will automatically withdraw from the work of state

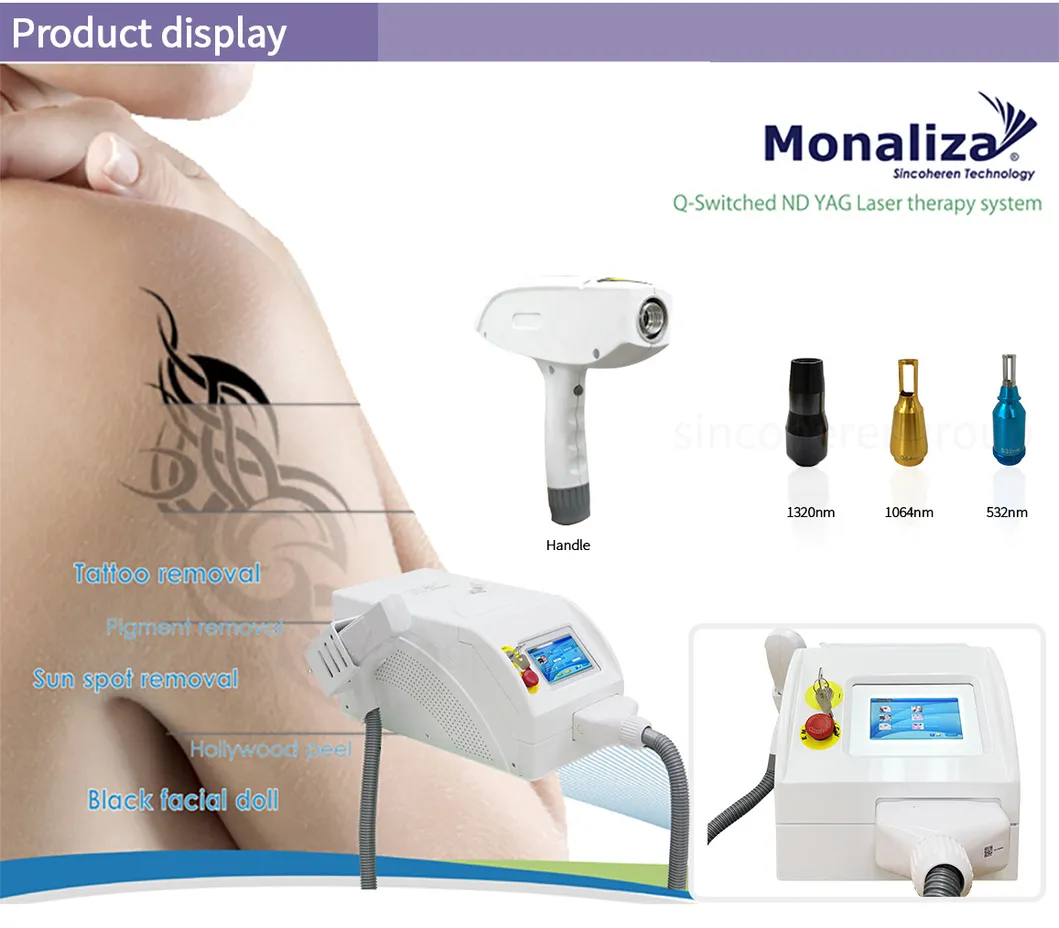

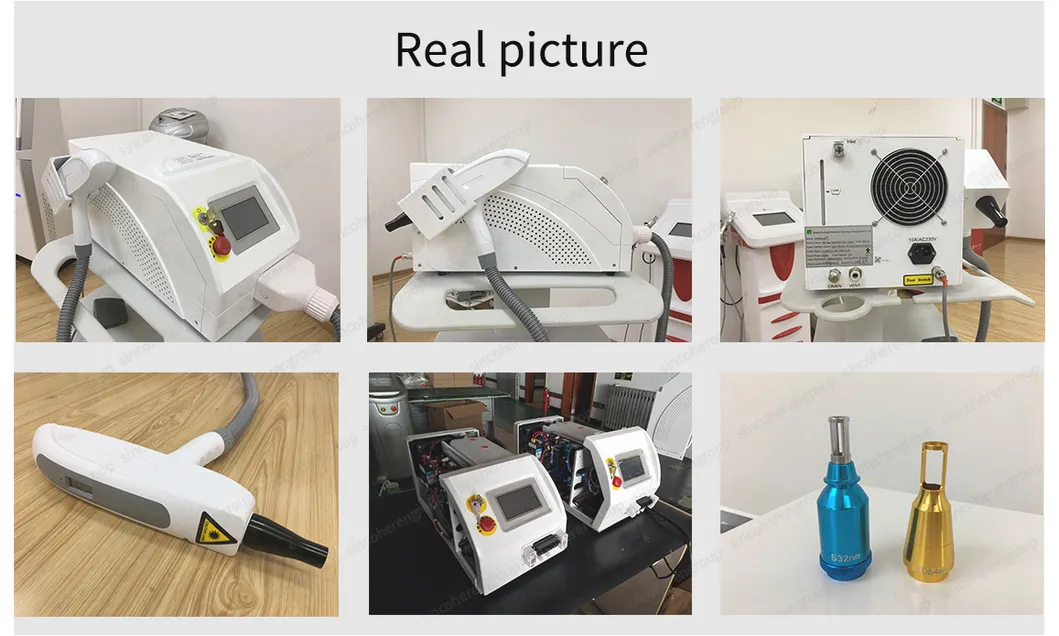

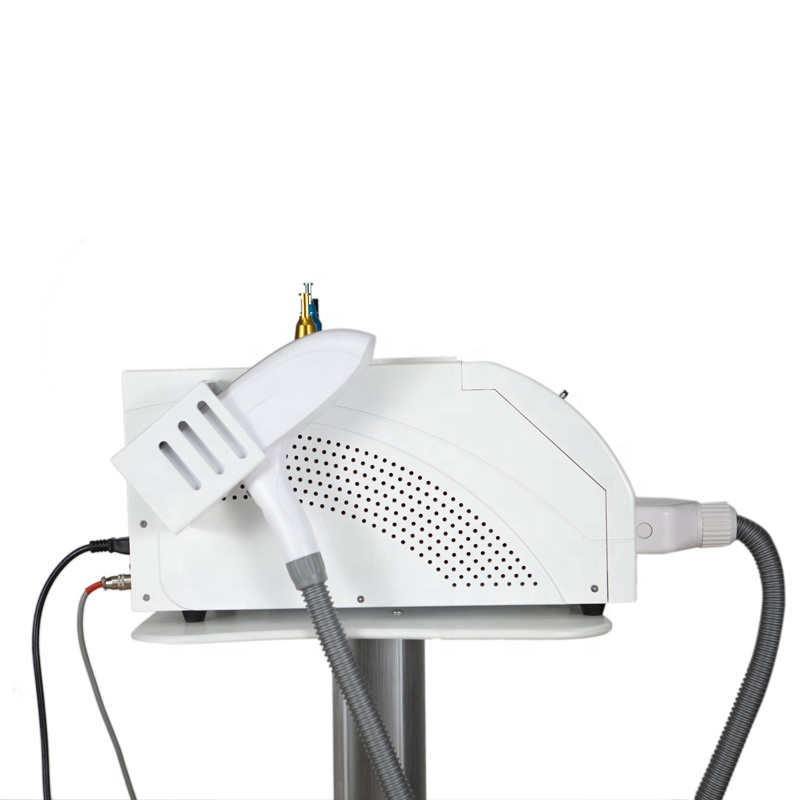

6. As for the hand pieces. There are 3 hand pieces for M4C Mini Laser: 532nm, 1064 nm and SR hand piece 1320nm filter
7. Instruction light: net imports of infrared indicator to spot more accurate treatment has greatly enhanced point utilization, and cost saving
