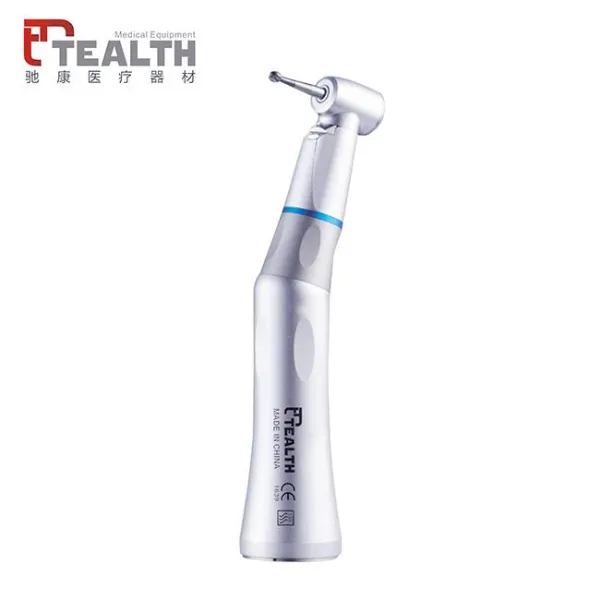

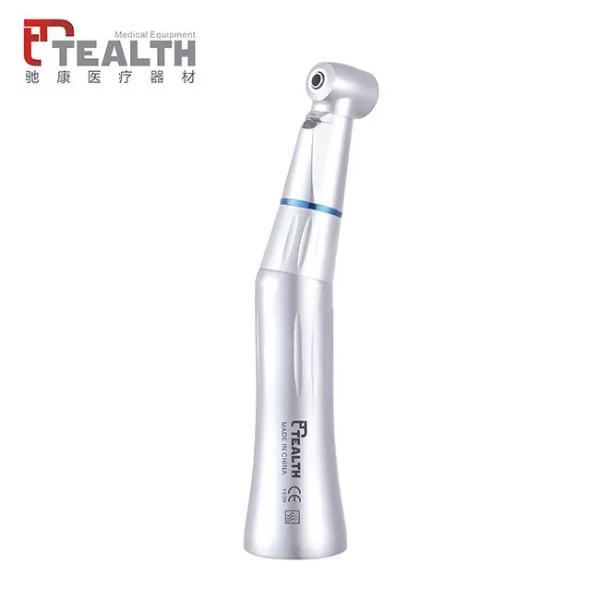

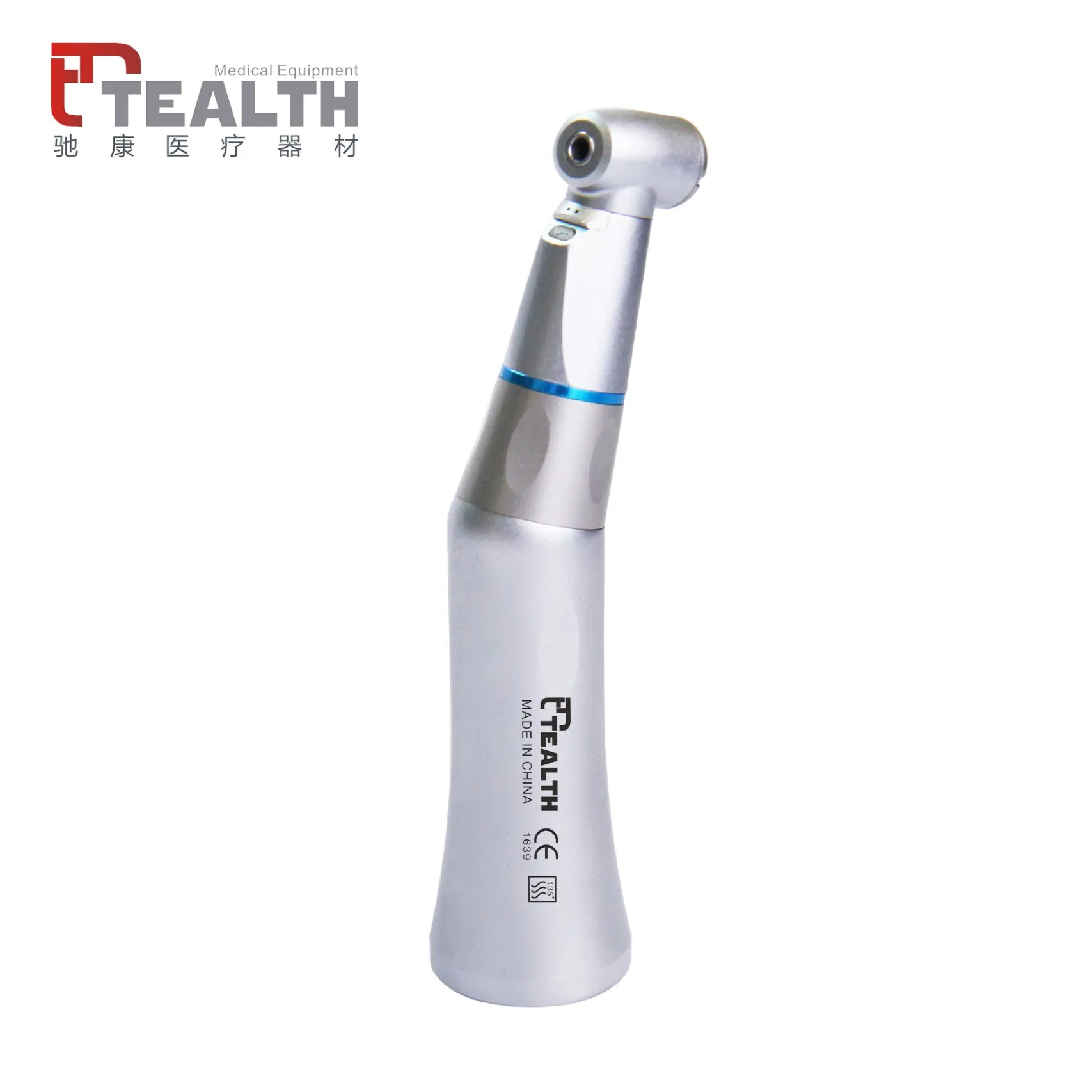

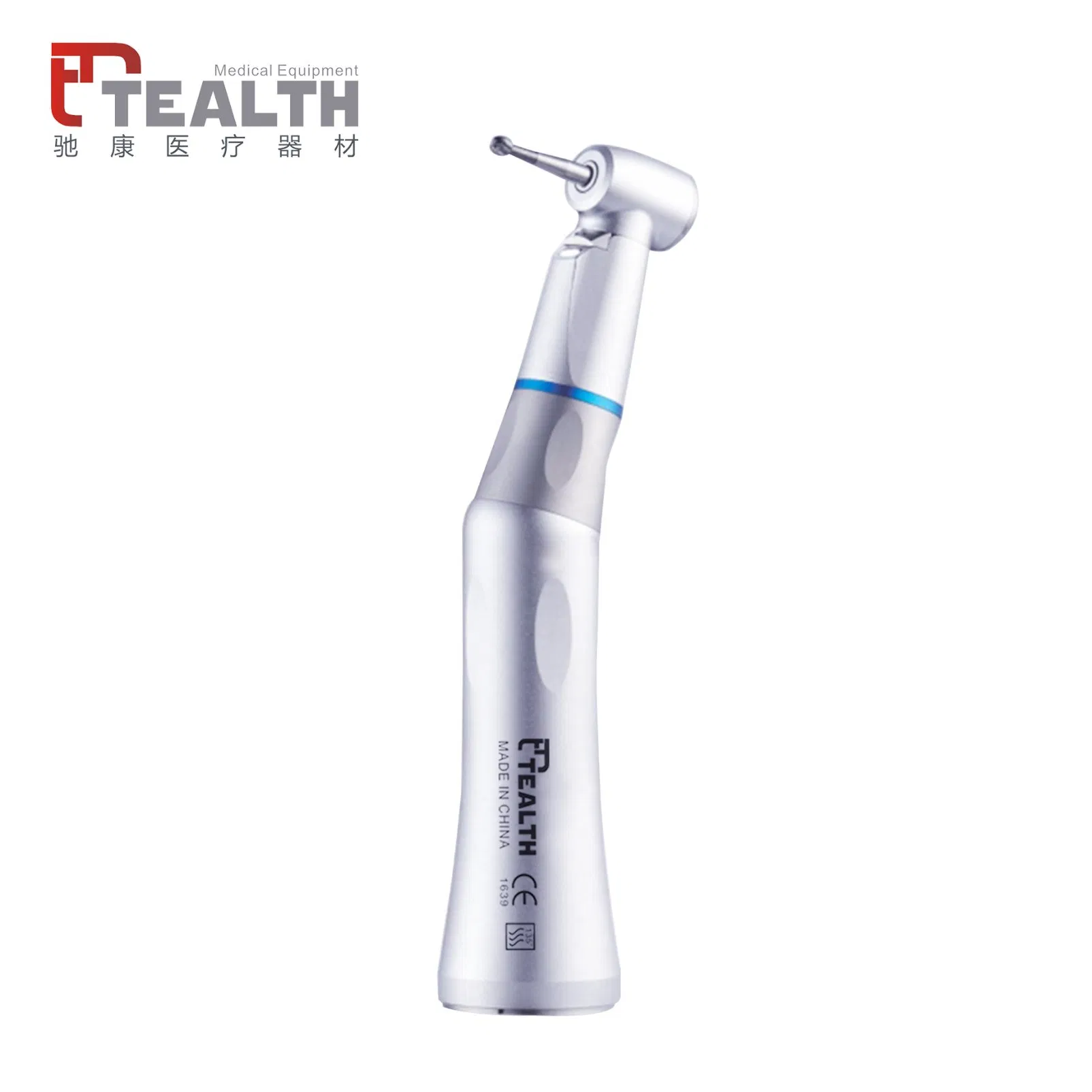

Tealth Intra Contra Angle with Fiber Optical Handpiece

Name: Low speed 1:1 fiber optic contra angle
Model : CIF-01C

Packing List:
- Push Button Fiber optic Contra Angle handpiece: 1 pcs
- Cap Spanner: 1 pcs
- English manual: 1 pcs

Features:
1.Push button chuck type,Kavo type internal head
2. Internal irrigation, perfect cooling  systerm

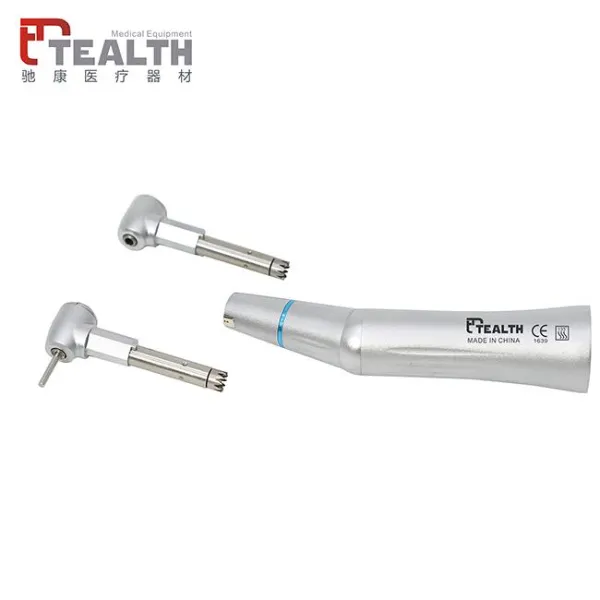

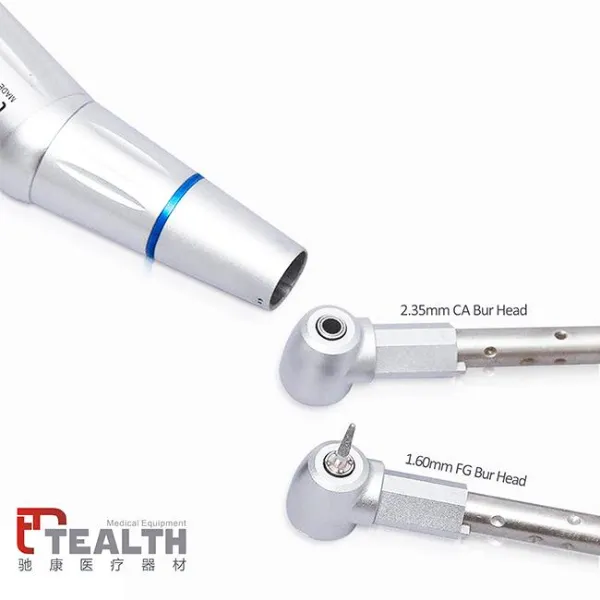

3. Match up with FG bur (Φ1.60mm) and CA bur head(Φ2.35mm)

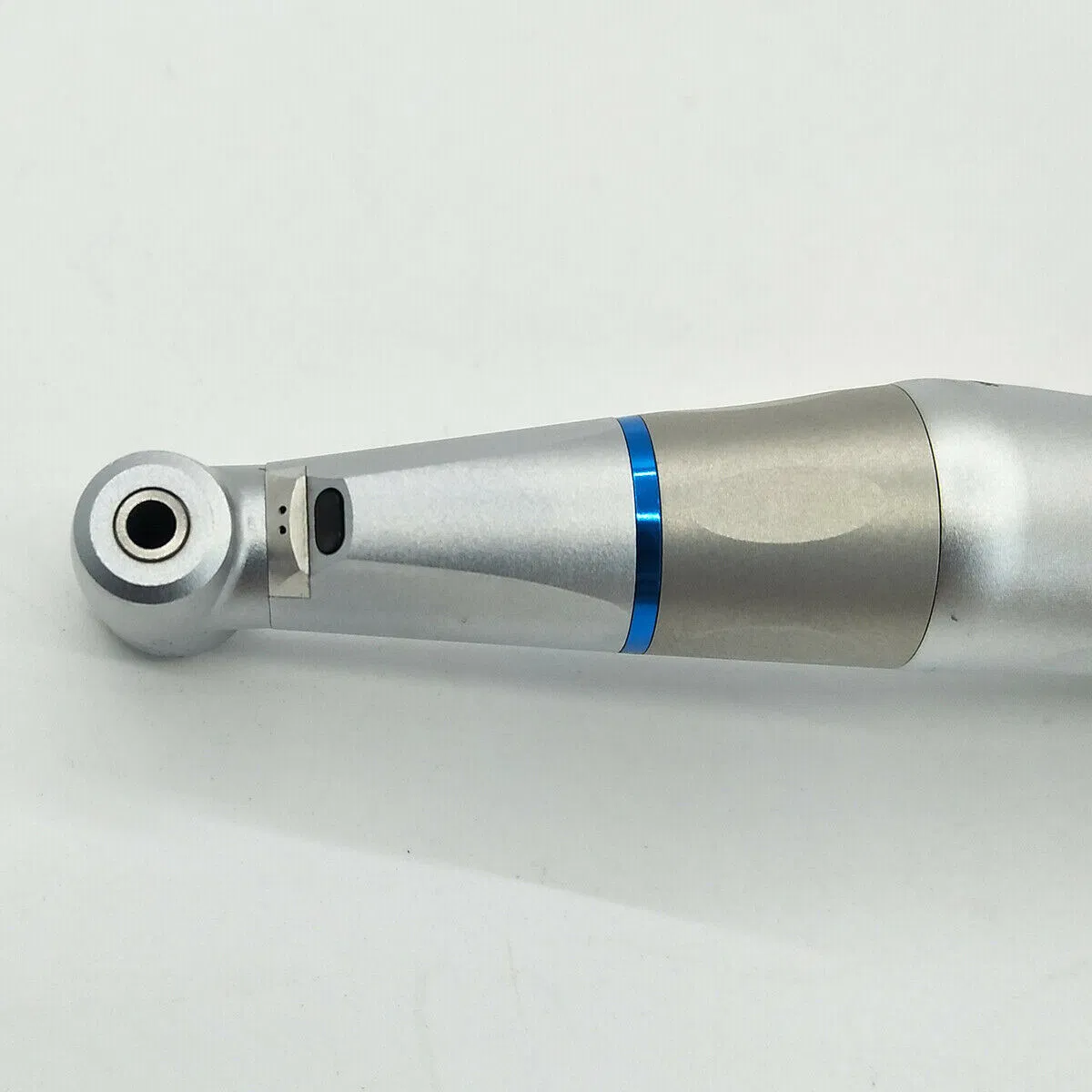

4. Fiber optic, stable light source
5. Imported bearing from Japan

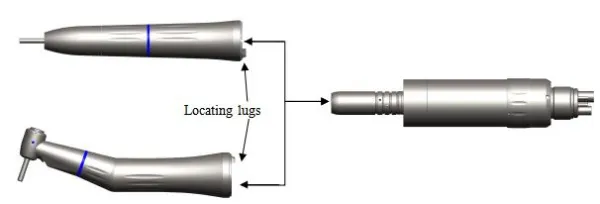

Handpiece inserting & removal
Inserting

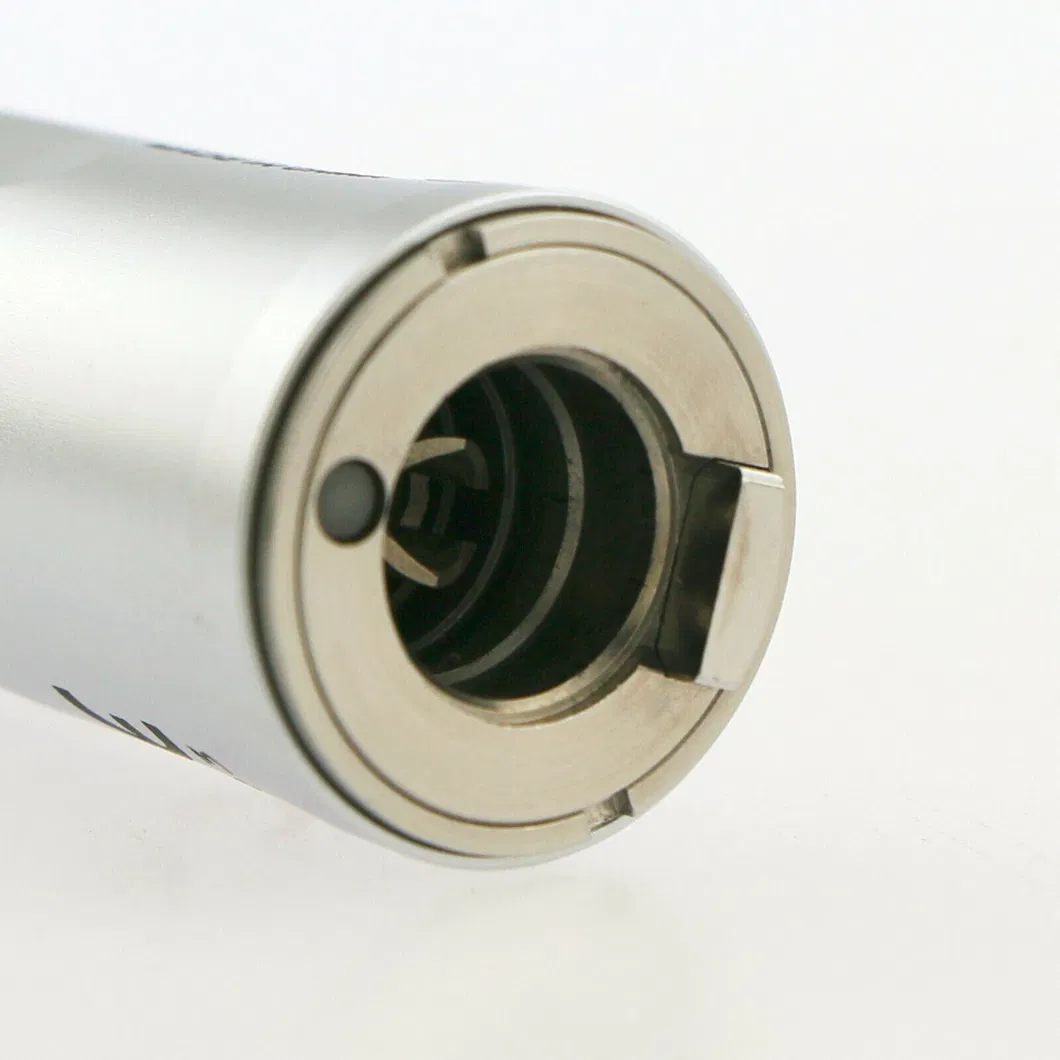

Insert the E-type handpiece onto the motor and turning all the way until it click to stop.

Removal
Grip both handpiece and motor respectively, pulling and separating.


Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
