Product Description

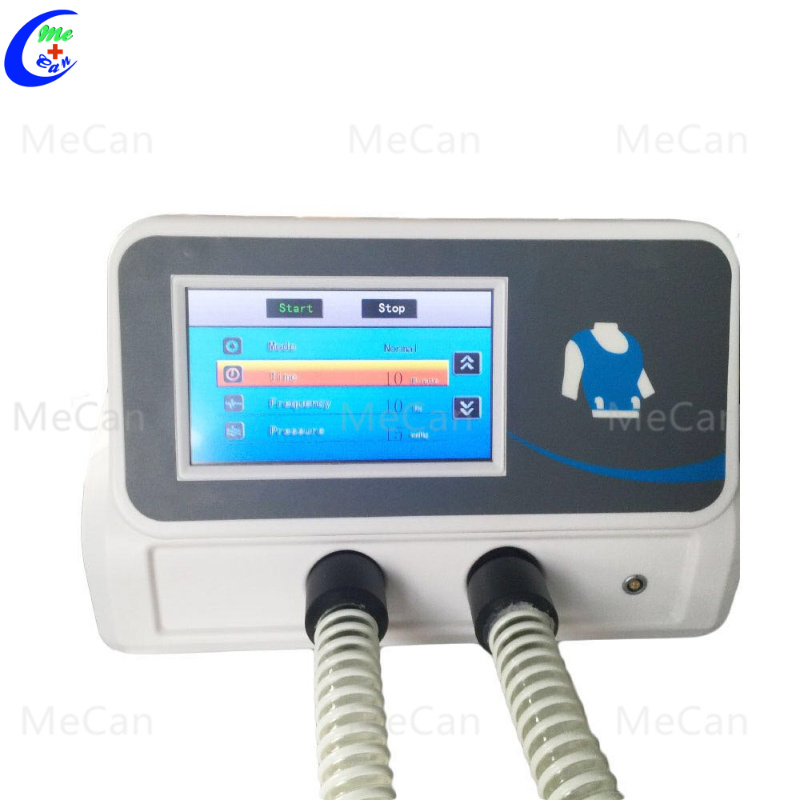

Chest Physiotherapy Vest Airway Clearance System Vest Vibrator Device
Model: MCR-V11
>> Brief Introduction
Many people with cystic fibrosis (CF) and other medical conditions use high-frequency chest wall oscillation (HFCWO) vests, otherwise known as airway clearance systems, as part of their daily airway clearance routine.
>> Three Working Mode
1.Normal Mode
Under this Mode,working frequency is 1-20Hz,the step value is 1 Hz,Tolerance 5%
2. Ladder Mode
Under this Mode,there are three types vailable. High(9-11-13-15 Hz), Medium (7-9-11-13 Hz), Low (5-7-9-11 Hz).
3. Cyclical Mode
Under this Mode,there are three types vailable.High (9-15 Hz), Medium (7-13Hz), Low (5-11 Hz).
Pressure Range: 3-30mmHg,Step Value: l mmHg,Tolerance ±2mmHg.
Workig Time: 1-99 Min,Step Value lmin,Tolerance ± 30seconds.
>> Operation guidance
Position: Any position is available, while the "Sit" position is better
Time: 2 ~ 4 times per day, 2h before meal or 2h after meal, each time 10-15mins, No over 30 mins.
Suggested Frequency: Adult: 5-22Hz, Child: 5-15Hz
Suggestd Pressure: Adult: 1.5-4.0kPa, Child: 1.5-2.5kPa (1 kPa= 7.5mmHg)
Treatment time: Adult: 1-15min, Child: 1-10min
>> What Are the Advantages and Disadvantages of HFCWO Vest Therapy?
For some, the vest offers a great alternative or addition to manual chest physiotherapy (CPT), but it' s not necessarily the best option for everyone. The decision to use HFCWO therapy or not is a choice based on personal preference and physician recommendations (see chart below).
>> How Do HFCWO Vests Work?
The goals of HFCWO treatment are the same as with any other airway clearance technique - to break up mucus and help bring it to the upper airways, where it can be coughed out or removed by suction.
The machine connected to the vest is an air compressor that delivers bursts of air to rapidly inflate and deflate the vest. This creates gentle pressure and vibration on the chest, which does three things:
1. Breaks up mucus, making it thinner
2. Creates "mini-coughs" in the lungs, which help push the mucus out
3. Makes the cilia move faster, helping them carry the loosened mucus to
the upper airways
>> Application
•AIDS
•Asthma
•Bronchiectasis
•Chronic Bronchitis
•Chronic Emphysema
•Chronic Pneumonia
•Respiratory failure
•Burn
•Cystic Fibrosis
•Geriatric Conditions
•Occupational Lung Diseases
•Postoperative
•Tracheostomy
•pulmonary atelectasis
• Coma
>> Application department
•Respiratory Medicine
•Cardiac surgery
•Thoracic surgery
•Paediatrics
•Infectious Diseases
•ICU
Neurology department
•Neurosurgery
•general surgery
•Geriatrics
•Emergency
>> Contraindication
Skin and subcutaneous infection sites, bleeding part, lung tumor, Tuberculosis, pneumothorax, Lung abscess, coagulation mechanism is abnormal, Pulmonary hemorrhage and hemoptysis, Intracardiac wall thrombus, atrial fibrillation, ventricular fibrillation, acute myocardial infarction(AMI), Patients who cannot tolerate vibration
Below conditions depends on doctor's decision use or not.
1. The operative site appears bleeding point and/stasis.
2. New blood sputum
3. The patient is highly stressed
4. Patients showed changes in heart rate, blood pressure and other vital signs
5. Head or neck injuries have not been treated stably; The patient had active bleeding and unstable hemodynamics.

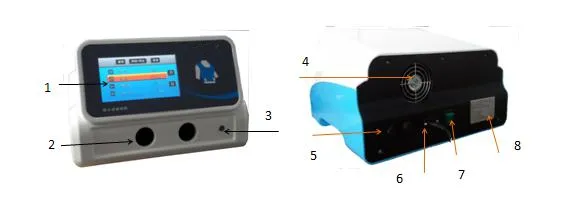

>> More Details of our Vest Vibrator Device
1. LED Screen
2. Deflate Port
3. Emergency stop connector (connect to below accessories)
4. Fan
5. Fuse socket
6. Power
7. ON/OFF
8. Label
Model: MCR-V11
>> Brief Introduction
Many people with cystic fibrosis (CF) and other medical conditions use high-frequency chest wall oscillation (HFCWO) vests, otherwise known as airway clearance systems, as part of their daily airway clearance routine.
>> Three Working Mode
1.Normal Mode
Under this Mode,working frequency is 1-20Hz,the step value is 1 Hz,Tolerance 5%
2. Ladder Mode
Under this Mode,there are three types vailable. High(9-11-13-15 Hz), Medium (7-9-11-13 Hz), Low (5-7-9-11 Hz).
3. Cyclical Mode
Under this Mode,there are three types vailable.High (9-15 Hz), Medium (7-13Hz), Low (5-11 Hz).
Pressure Range: 3-30mmHg,Step Value: l mmHg,Tolerance ±2mmHg.
Workig Time: 1-99 Min,Step Value lmin,Tolerance ± 30seconds.
>> Operation guidance
Position: Any position is available, while the "Sit" position is better
Time: 2 ~ 4 times per day, 2h before meal or 2h after meal, each time 10-15mins, No over 30 mins.
Suggested Frequency: Adult: 5-22Hz, Child: 5-15Hz
Suggestd Pressure: Adult: 1.5-4.0kPa, Child: 1.5-2.5kPa (1 kPa= 7.5mmHg)
Treatment time: Adult: 1-15min, Child: 1-10min
>> What Are the Advantages and Disadvantages of HFCWO Vest Therapy?
For some, the vest offers a great alternative or addition to manual chest physiotherapy (CPT), but it' s not necessarily the best option for everyone. The decision to use HFCWO therapy or not is a choice based on personal preference and physician recommendations (see chart below).
| Advantages | Disadvantages |
| Treatment can be done without help. | |
| Does not require any skill, so every treatment will be done correctly. | Do not suitable for the people who have wound on the body. |
| Freedom to do other things during treatment, because no special position or breathing techniques are required. | |
| Treats all lobes of the lung at once, so treatment time is shorter than manual CPT. |
>> How Do HFCWO Vests Work?
The goals of HFCWO treatment are the same as with any other airway clearance technique - to break up mucus and help bring it to the upper airways, where it can be coughed out or removed by suction.
The machine connected to the vest is an air compressor that delivers bursts of air to rapidly inflate and deflate the vest. This creates gentle pressure and vibration on the chest, which does three things:
1. Breaks up mucus, making it thinner
2. Creates "mini-coughs" in the lungs, which help push the mucus out
3. Makes the cilia move faster, helping them carry the loosened mucus to
the upper airways
>> Application
•AIDS
•Asthma
•Bronchiectasis
•Chronic Bronchitis
•Chronic Emphysema
•Chronic Pneumonia
•Respiratory failure
•Burn
•Cystic Fibrosis
•Geriatric Conditions
•Occupational Lung Diseases
•Postoperative
•Tracheostomy
•pulmonary atelectasis
• Coma
>> Application department
•Respiratory Medicine
•Cardiac surgery
•Thoracic surgery
•Paediatrics
•Infectious Diseases
•ICU
Neurology department
•Neurosurgery
•general surgery
•Geriatrics
•Emergency
>> Contraindication
Skin and subcutaneous infection sites, bleeding part, lung tumor, Tuberculosis, pneumothorax, Lung abscess, coagulation mechanism is abnormal, Pulmonary hemorrhage and hemoptysis, Intracardiac wall thrombus, atrial fibrillation, ventricular fibrillation, acute myocardial infarction(AMI), Patients who cannot tolerate vibration
Below conditions depends on doctor's decision use or not.
1. The operative site appears bleeding point and/stasis.
2. New blood sputum
3. The patient is highly stressed
4. Patients showed changes in heart rate, blood pressure and other vital signs
5. Head or neck injuries have not been treated stably; The patient had active bleeding and unstable hemodynamics.
>> More Details of our Vest Vibrator Device
1. LED Screen
2. Deflate Port
3. Emergency stop connector (connect to below accessories)
4. Fan
5. Fuse socket
6. Power
7. ON/OFF
8. Label
