CE Certified Advanced Full Auto Steam Autoclave (MJ-78A)
Our full automaticity autoclave is high pressure steam sterilizing style with automaticity.It can be widely used for disinfection, sterilization and dissolution medium in hospitals, research institutes and the lab, etc. Back of the AutoclavePerfect Functions:......
Send Inquiry
Product Description
Our full automaticity autoclave is high pressure steam sterilizing style with automaticity.It can be widely used for disinfection, sterilization and dissolution medium in hospitals, research institutes and the lab, etc.

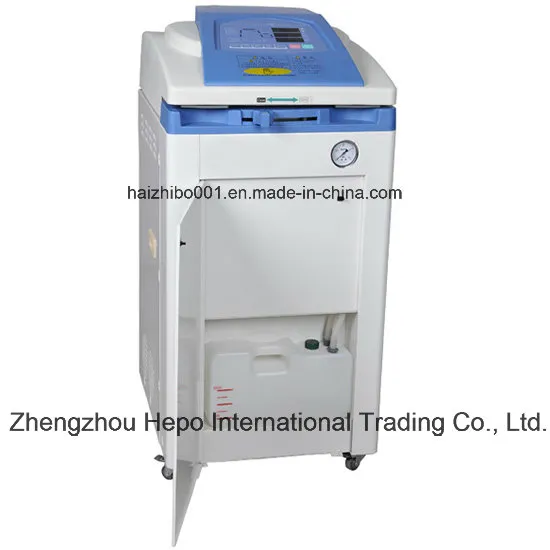

Back of the Autoclave
Perfect Functions:
1)The system is designed with the self-checking function of safety status. Pot cover can not be opened when the electricity is cut off.
2)The system is designed with the safe startup temperature and pressure self-sensing joint lock device. When the temperature in the sterilization cavity is below 80º C, and the pressure in the cavity is zero, pot cover can be opened. Otherwise, locking institution will automatically lock the pot in case of any accidents arising from improper operations, such as scald and scorching.
3)Over-temperature protection: High-precision temperature sensor and over-temperature protection control system guarantee that the system will stop heating and give an alarm when the temperature is abnormal. In addition, mechanical over-temperature protector possesses the double over-temperature protection functions.
4)Over-pressure protection: High-precision pressure sensor and over-pressure protection system guarantee that the system will open the valve to release the pressure and give an alarm when the temperature is abnormal. The other, mechanical pressure safety valve possesses the double over-voltage protection functions.
5)Protection against dry burning: When there is a lack of water for sterilization, the system will assume that the heater is abnormal, and automatically stop the operation of the heater.
Intelligence Autoclave:
1)Self-checking system: Be able to check the quality of sensor, whether there is short circuit or open circuit, and whether the chip of control panel is damaged or not. In the case of wrong operation or failure, it will display failure code to remind users.
2)Zero pollution of exhaust: Possess two gas collecting bottles. Sterilization steam is condensed for two times to ensure zero exhaust of steam, thus preventing sterilization steam from entering the lab and polluting the environment.
3) Intelligent computer control system not only realizes the fully automatic control of the sterilization process, but also makes sterilization safer and more repeatable.

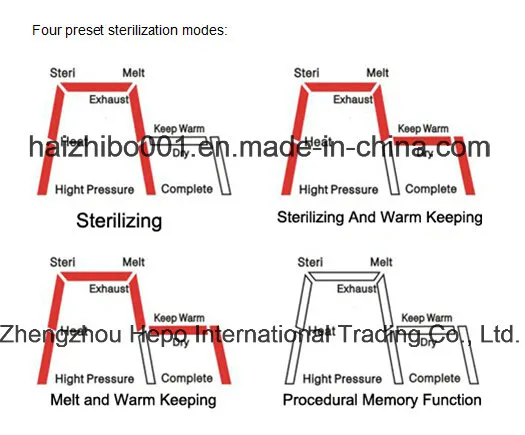

4)Four preset sterilization modes are designed for solid samples, liquid samples, and agar.
5)Memory storage system: Users can set their own sterilization parameters.
6)Saturated steam detection: The system automatically detects the exhaust of cool air to produce the sterilization environment of pure steam and further guarantee the optimum sterilization effect.
7) Automatic exhaust control: Possess the modes of full exhaust, micro-exhaust, and non-exhaust so as to meet sterilization requirements of various samples.
8)Timing startup function: Preset the timing program (1-99 hours) to enable the sterilizer to automatically start up the sterilization according to the preset time.
Interface control Systems
1)Automatically display the latest sterilization program after the startup. Start up the sterilizer with the click of the START button.
2)Possess status flow chart, showing the current sterilization mode, sterilization status, and completed sterilization program. Programs to be processed are designed with the countdown function, making the residual time extremely clear.
3)Users can inquire concrete parameters of the current program with the click of the CONFIRM button.
Optional Items: Article temperature sensor, printing function.
Technical Parameters:
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
More details can refer to our HEPO INTERNATIONAL official website or contact with our Sales Engineer for getting it.
Back of the AutoclavePerfect Functions:
1)The system is designed with the self-checking function of safety status. Pot cover can not be opened when the electricity is cut off.
2)The system is designed with the safe startup temperature and pressure self-sensing joint lock device. When the temperature in the sterilization cavity is below 80º C, and the pressure in the cavity is zero, pot cover can be opened. Otherwise, locking institution will automatically lock the pot in case of any accidents arising from improper operations, such as scald and scorching.
3)Over-temperature protection: High-precision temperature sensor and over-temperature protection control system guarantee that the system will stop heating and give an alarm when the temperature is abnormal. In addition, mechanical over-temperature protector possesses the double over-temperature protection functions.
4)Over-pressure protection: High-precision pressure sensor and over-pressure protection system guarantee that the system will open the valve to release the pressure and give an alarm when the temperature is abnormal. The other, mechanical pressure safety valve possesses the double over-voltage protection functions.
5)Protection against dry burning: When there is a lack of water for sterilization, the system will assume that the heater is abnormal, and automatically stop the operation of the heater.
Intelligence Autoclave:
1)Self-checking system: Be able to check the quality of sensor, whether there is short circuit or open circuit, and whether the chip of control panel is damaged or not. In the case of wrong operation or failure, it will display failure code to remind users.
2)Zero pollution of exhaust: Possess two gas collecting bottles. Sterilization steam is condensed for two times to ensure zero exhaust of steam, thus preventing sterilization steam from entering the lab and polluting the environment.
3) Intelligent computer control system not only realizes the fully automatic control of the sterilization process, but also makes sterilization safer and more repeatable.
4)Four preset sterilization modes are designed for solid samples, liquid samples, and agar.
5)Memory storage system: Users can set their own sterilization parameters.
6)Saturated steam detection: The system automatically detects the exhaust of cool air to produce the sterilization environment of pure steam and further guarantee the optimum sterilization effect.
7) Automatic exhaust control: Possess the modes of full exhaust, micro-exhaust, and non-exhaust so as to meet sterilization requirements of various samples.
8)Timing startup function: Preset the timing program (1-99 hours) to enable the sterilizer to automatically start up the sterilization according to the preset time.
Interface control Systems
1)Automatically display the latest sterilization program after the startup. Start up the sterilizer with the click of the START button.
2)Possess status flow chart, showing the current sterilization mode, sterilization status, and completed sterilization program. Programs to be processed are designed with the countdown function, making the residual time extremely clear.
3)Users can inquire concrete parameters of the current program with the click of the CONFIRM button.
Optional Items: Article temperature sensor, printing function.
Technical Parameters:
| Model | MJ-54A | MJ-78A |
| Internal * diameter | 370*508 | 370*730 |
| Volume in liters(L) | 54 | 78 |
| Material of inner container | SUS304 | |
| Max temperature and pressure | 135degree/0.24MP | |
| Scope of temperature | 40-135degree | |
| Sterilizing temperature | 105-135degree | |
| Melt temperature | 60-100degree | |
| Keeping warm temperature | 40-60degree | |
| Time set scope | Sterilizing, melt: 0 minute to 4 hours; continuous warm:72 hours; preset sterilizing time: 1 to 99 hours | |
| Control | Microprocessor control, figure display | |
| Operation model | A. Sterilizing; B. Sterilizing-Keeping warm; C. Melt-Keeping warm; D. Setting parameters | |
| Exhaust way | All exhaust, micro exhaust, no exhaust | |
| Cooling device | Independent air cooling system makes cooling fast | |
| Safety device | Pressure safety valve, dry burning prevention, safety interlock, hatch cover close checking system,overpressure detection, overtemperature detection, residual current circuit breaker | |
| (50/60HZ)Power | Single phase AD 220V, 50-60HZ common power supply (over 16A) | |
| Accessories | Standard model: water-stop sheet, discharge hose, stainless steel basket , collection bottle for phlegma | |
| External dimensions | L*W*H(520*612*840) | L*W*H(520*612*1070) |
| Weight | 79KG | 120KG |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
More details can refer to our HEPO INTERNATIONAL official website or contact with our Sales Engineer for getting it.
