2021 Home Pregnant Doppler Baby Heart Rate Monitor Pocket Doppler Fetal Doppler Ultrasound Baby Heartbeat Rate Detector
Acurio-Fetal Doppler-Medical Equipment Portable Pocket Handheld Home Preganancy Fetal Heart Rate Monitor Doppler About Fetal DopplerEssentiality of Fetal DopplerModern medicine proves that the asphyxia, fetal distress and umbilical cord around neck(25% of pregnant has such situation) will affect the......
Send Inquiry
Product Description
Acurio-Fetal Doppler-Medical Equipment Portable Pocket Handheld Home Preganancy Fetal Heart Rate Monitor Doppler
Essentiality of Fetal Doppler
Modern medicine proves that the asphyxia, fetal distress and umbilical cord around neck(25% of pregnant has such situation) will affect the normal growing development of fetal, sometimes there will be dangerous to the fetus, even to the mother, and these symptoms will make the fetal heart rate changed abnormally, so the fetal heart rage gives an indication of fetal well-being.Fetal monitoring tests fetal heart rate changes by listening to fetal heart beat sound mainly, the normal value of fetal heart rate is 110-160bpm.
Fetal heart rate monitoring is a powerful guarantee to improve fetal safety.

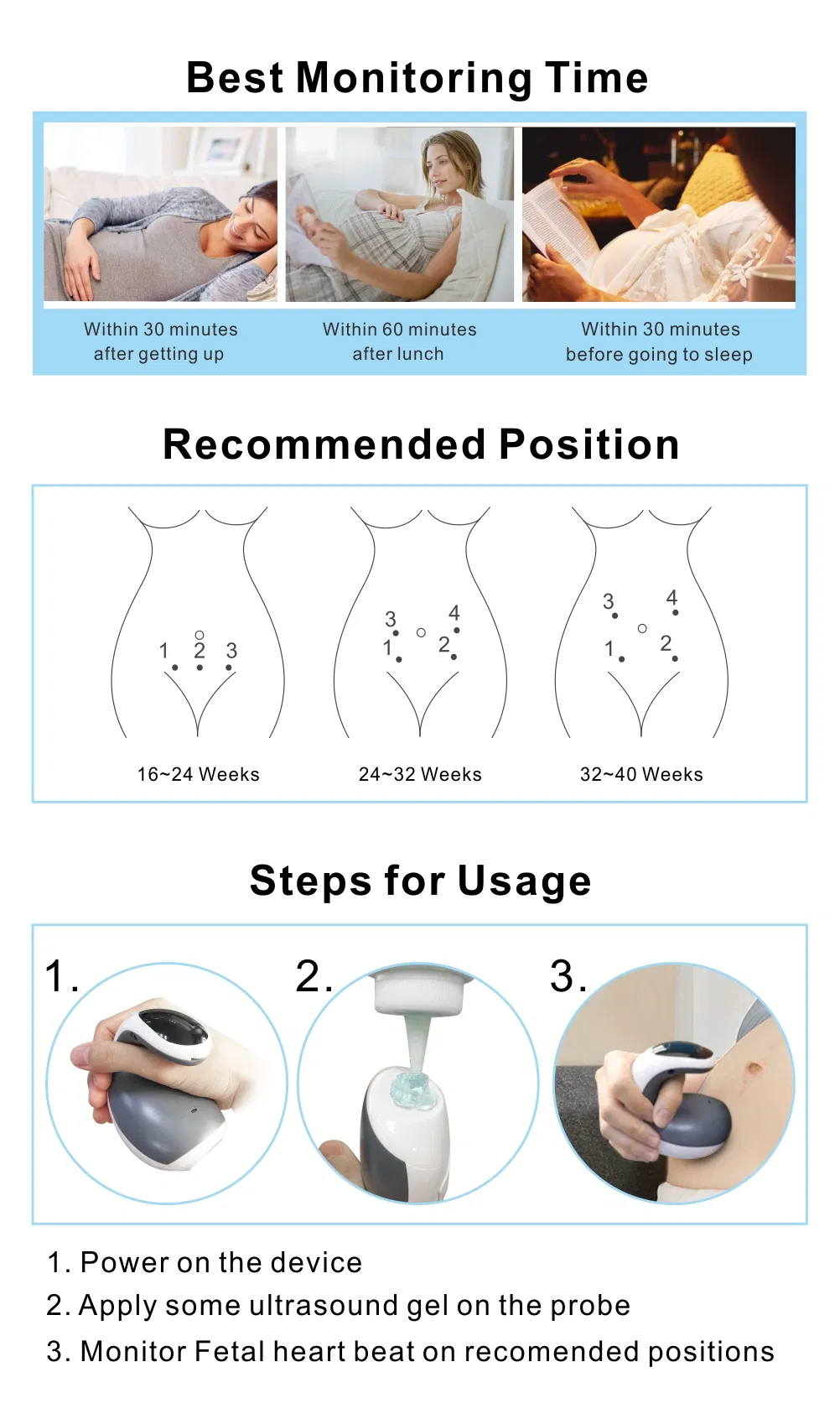

If conditions permit, pregnant women over 16 weeks are recommended to listen to the fetal heart sound for 1-2 minutes per time, three times per day(within 30 minutes after getting up, within 60 minutes after lunch, and within 30 minutes going to sleep).
Ultrasound gel, water or edible oil should be daubed on the probe while using, and the probe should be placed directly on the abdominal skin.

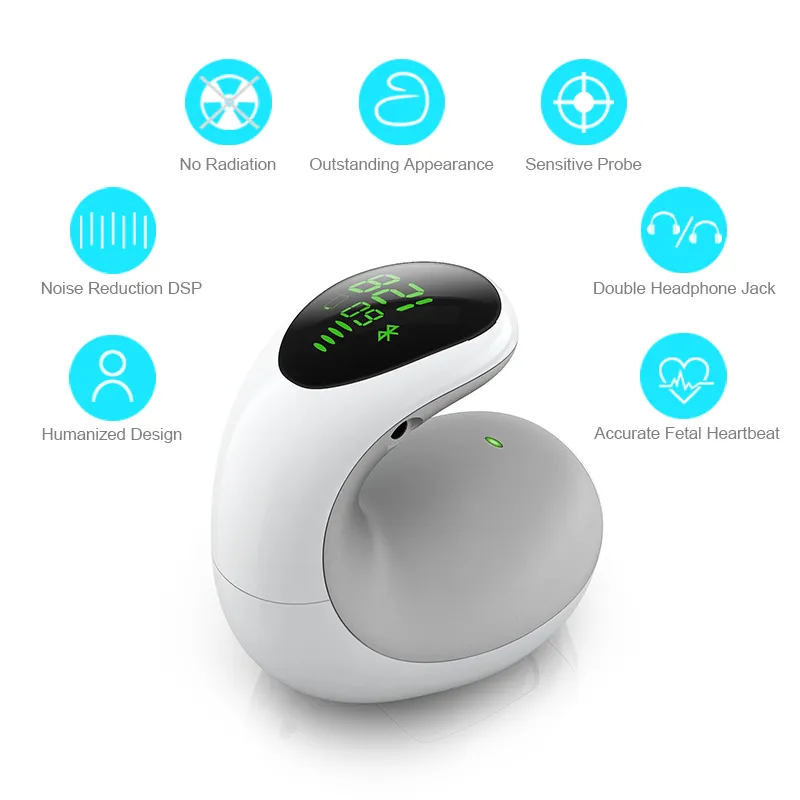

Features
Sprout Concept

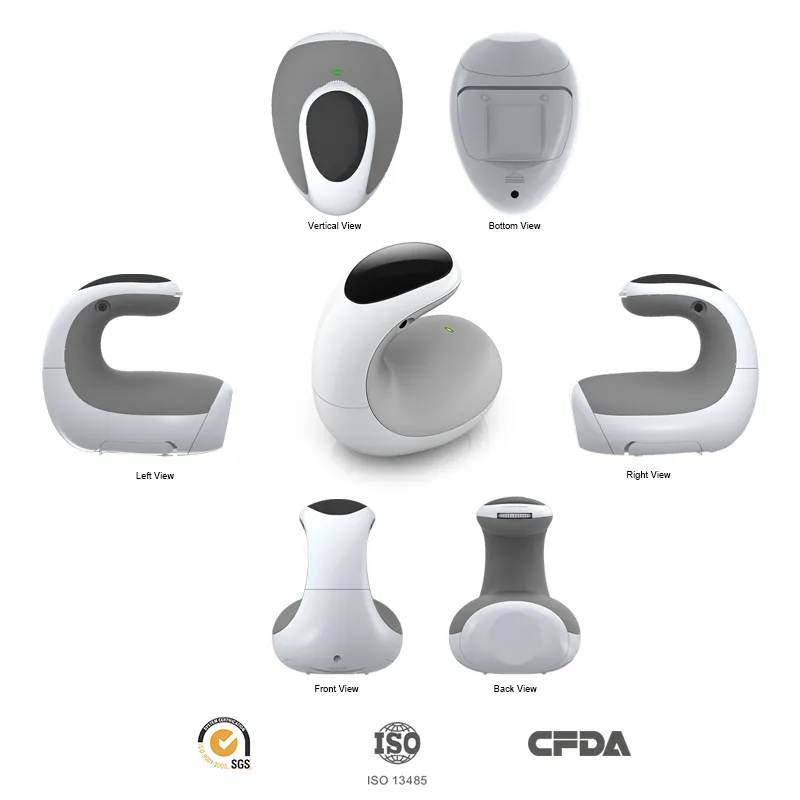

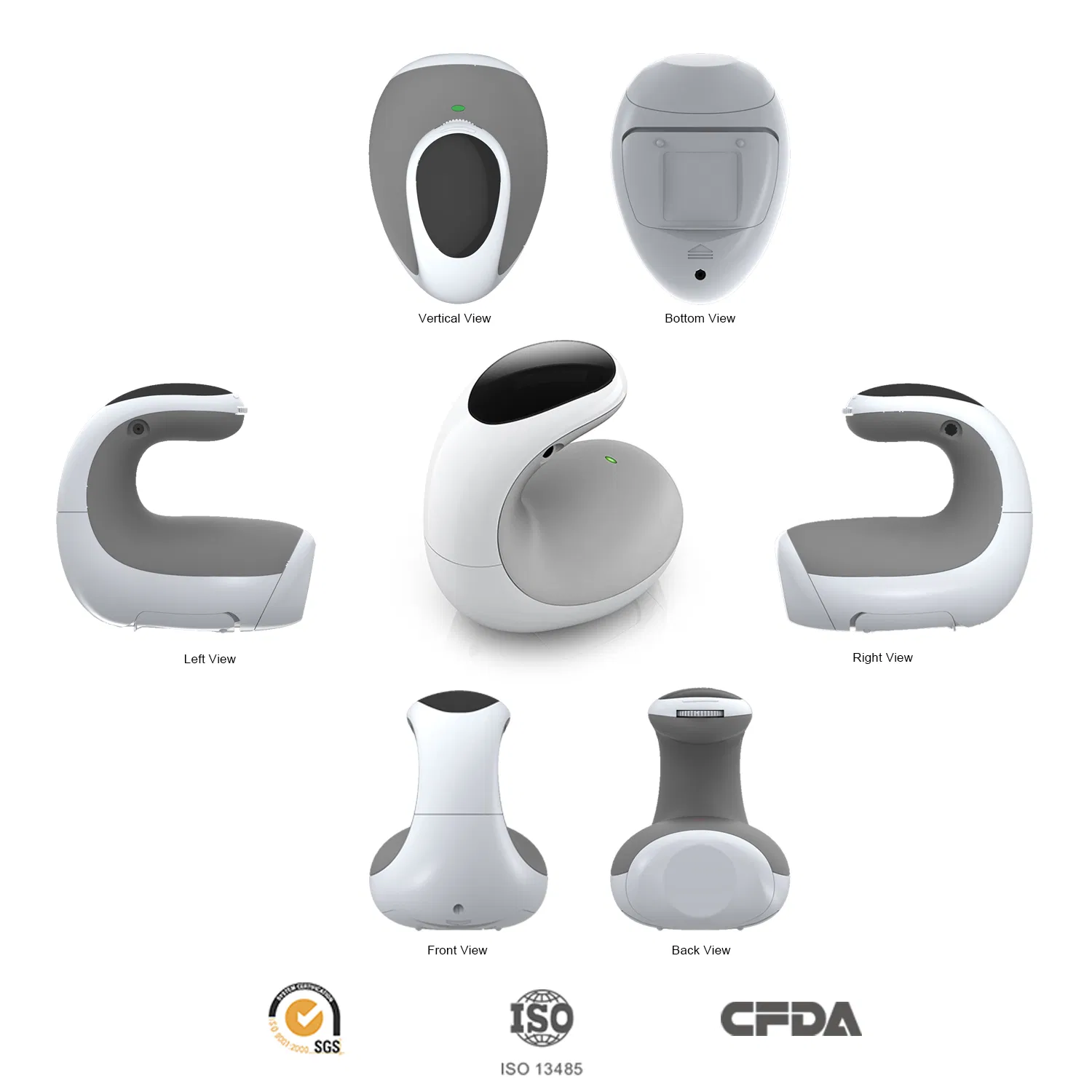

The design concept of this product comes from "Sprout", Our designer give this product a cute and vivid image, just like a fetus that thrives in mother's womb.
Ergonomic Design
We integrate main unit and probe humanely, so that pregnant woman can complete the operation with one hand, and then free up the other hand to provide more support and protection to their body.
Accurate Detection
The high sensitive doppler probe and DSP calculating techniques, provides accurate fetal heart rate detection.

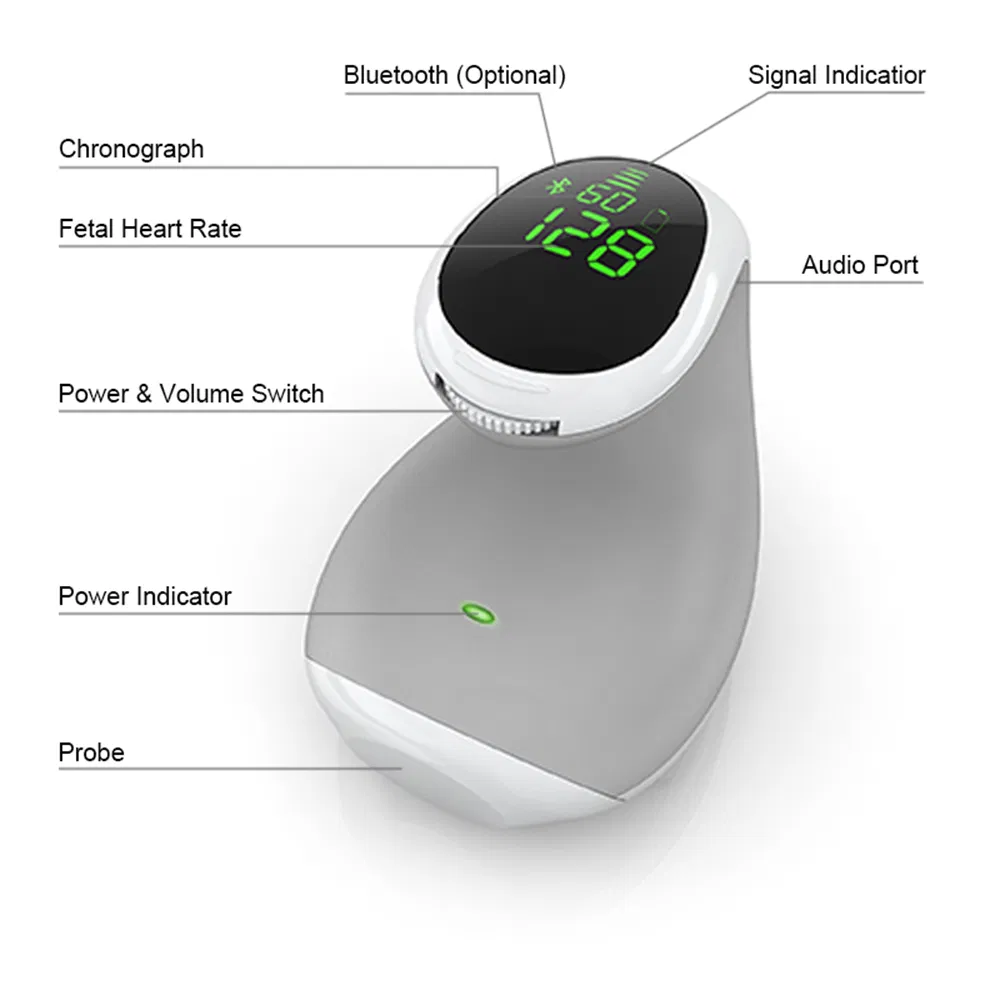

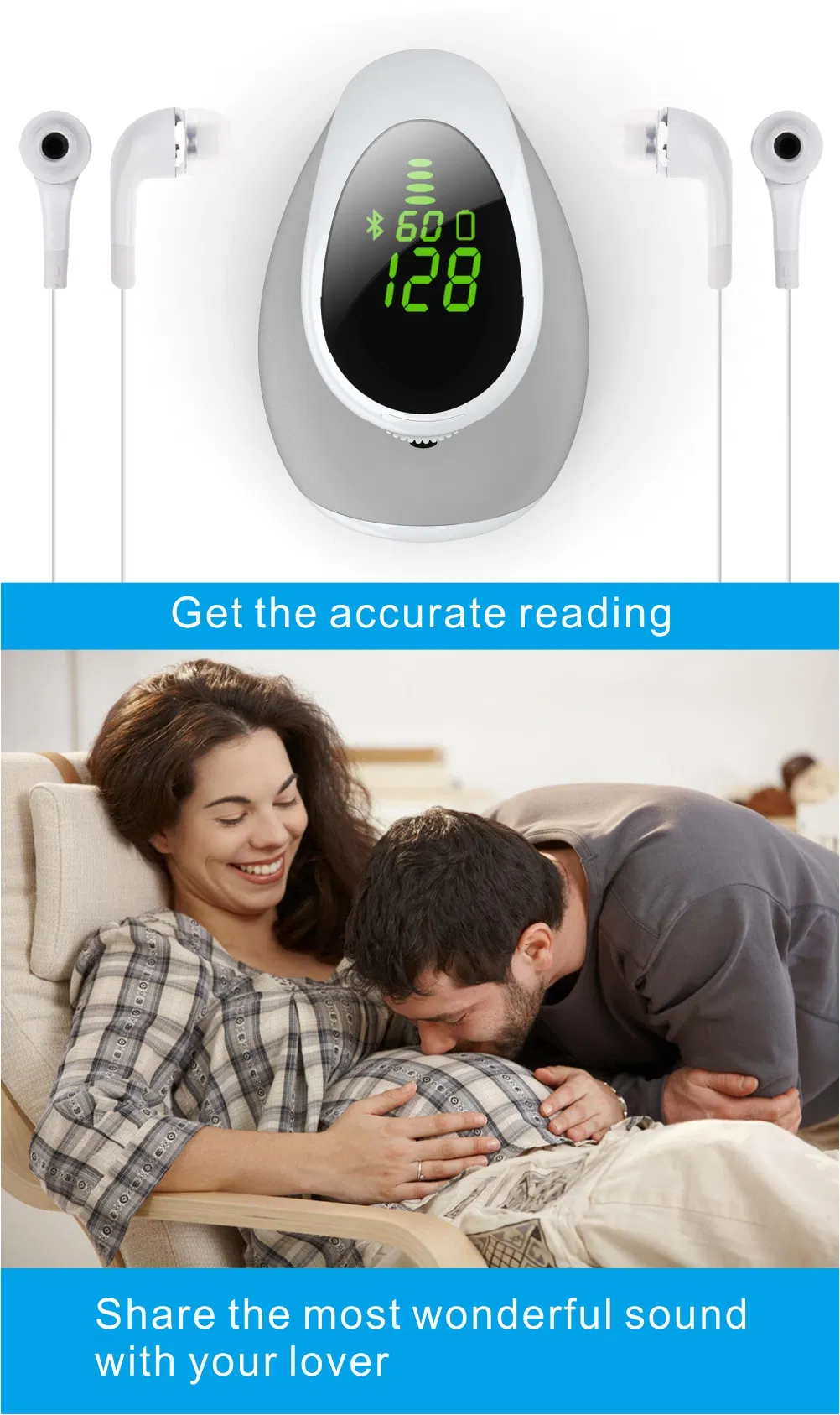

Clear Display & Double Audio Ports
An LED display provides clear readings to user at the most suitable angle, and double audio ports allow the user to share the most wonderful sound.
Widely Us
It is applicable to hospital, clinic and home self-check. And it is an essential gift for expectant mothers.
Lightweight & Portable
The product is compact in size, light in weight, convenient in carrying and powered by a 9V alkaline battery.
| Product Name | Pocket Fetal Doppler |
| Model | AF-708C |
| Display | LED |
| FHR Performance | Integrative Sensitivity: ≥90db |
| FHR Measuring Range: 50~210BPM | |
| Accuracy: ±2BPM | |
| Ultrasound Probe | Working Frequency: 2.5MHz±15% |
| Working Mode: Continuous Wave Doppler | |
| Spatial-peak Temporal-peak Intensity: <21.7kPa | |
| Ultrasonic Output Intensity: <10mW | |
| Effective Radiating Area of Transducer: 157mm²±15% | |
| Acoustic Parameters | IOB: < 20mW/cm² |
| P-: <1MPa | |
| ISPTA: < 100mW/cm² | |
| Measuring Time | 1 minute |
| Working Environment | Temperature: +5ºC~+40ºC |
| Humidity: 15%~85% | |
| Atmospheric Pressure: 86kPa~106kPa | |
| Transport and Storage Environment | Temperature: -20ºC~+55ºC |
| Humidity: 10%~93% | |
| Atmospheric Pressure: 86kPa~106kPa | |
| Safety Type | Internal power supply, Type BF applied part |
| Product | Product Size: 104*72.5*98 mm |
| Net Wight: 97g±5g(excluding batteries) | |
| Unit Package: 135*135*91mm | |
| Carton | Carton Size: 425*422*382mm |
| QTY/Carton: 30pcs | |
| G.W./Carton: 4.5KG |

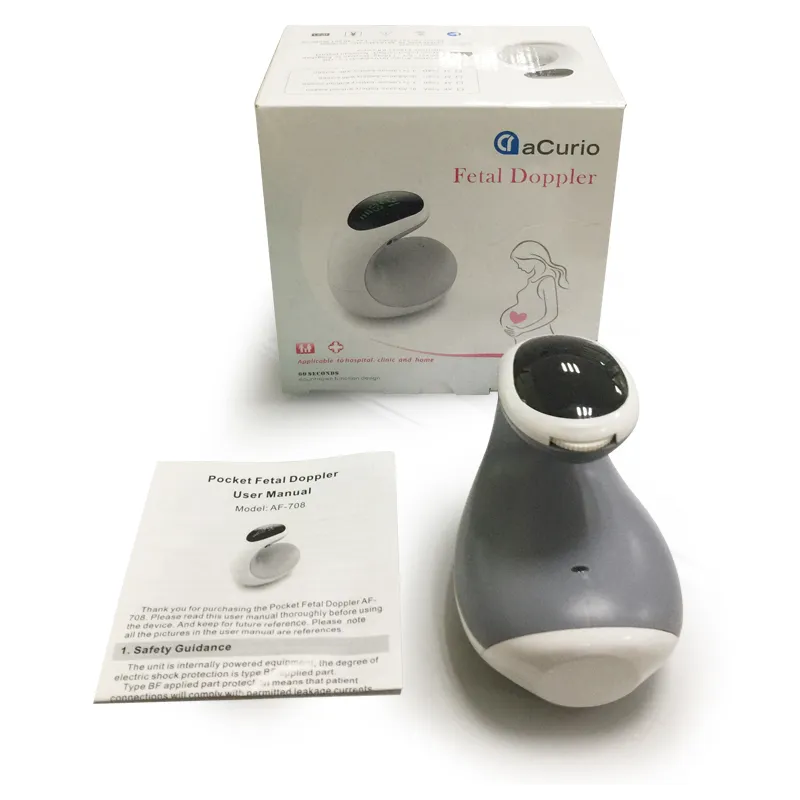

Packing list
Standing packing:
*User Manual 1pc
*Fetal Doppler Device 1pc
Optional:
*AA Battery
Standing packing:
*User Manual 1pc
*Fetal Doppler Device 1pc
Optional:
*AA Battery
