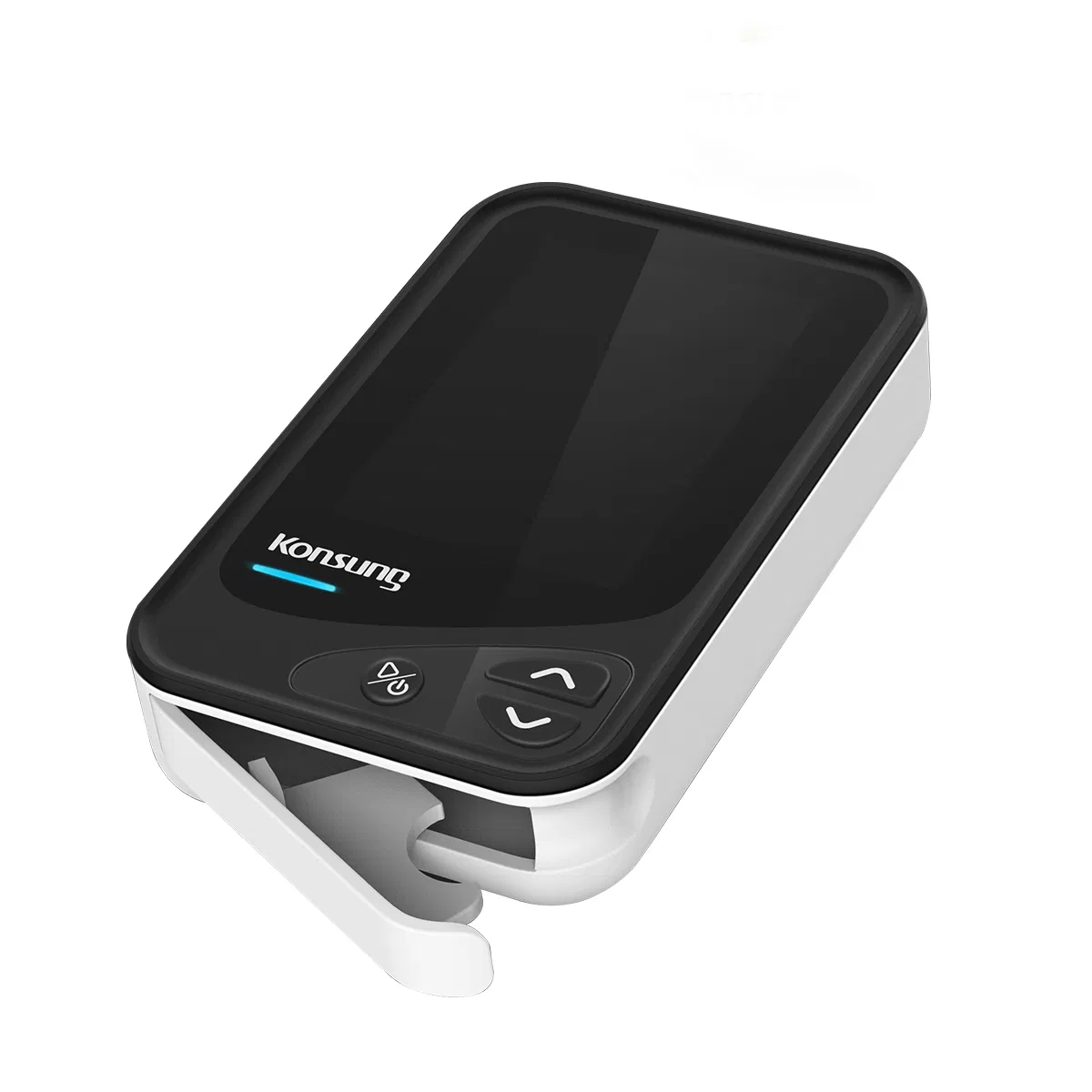

CE Approved H7 Professional Poct Hemoglobin Analyzer Hba1c Meter for Medical Use
Jiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen. Konsung's main products include multi-parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure ......
Send Inquiry
Product Description
Jiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen. Konsung's main products include multi-parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure monitor, wearable health equipment ...
I. Product Description

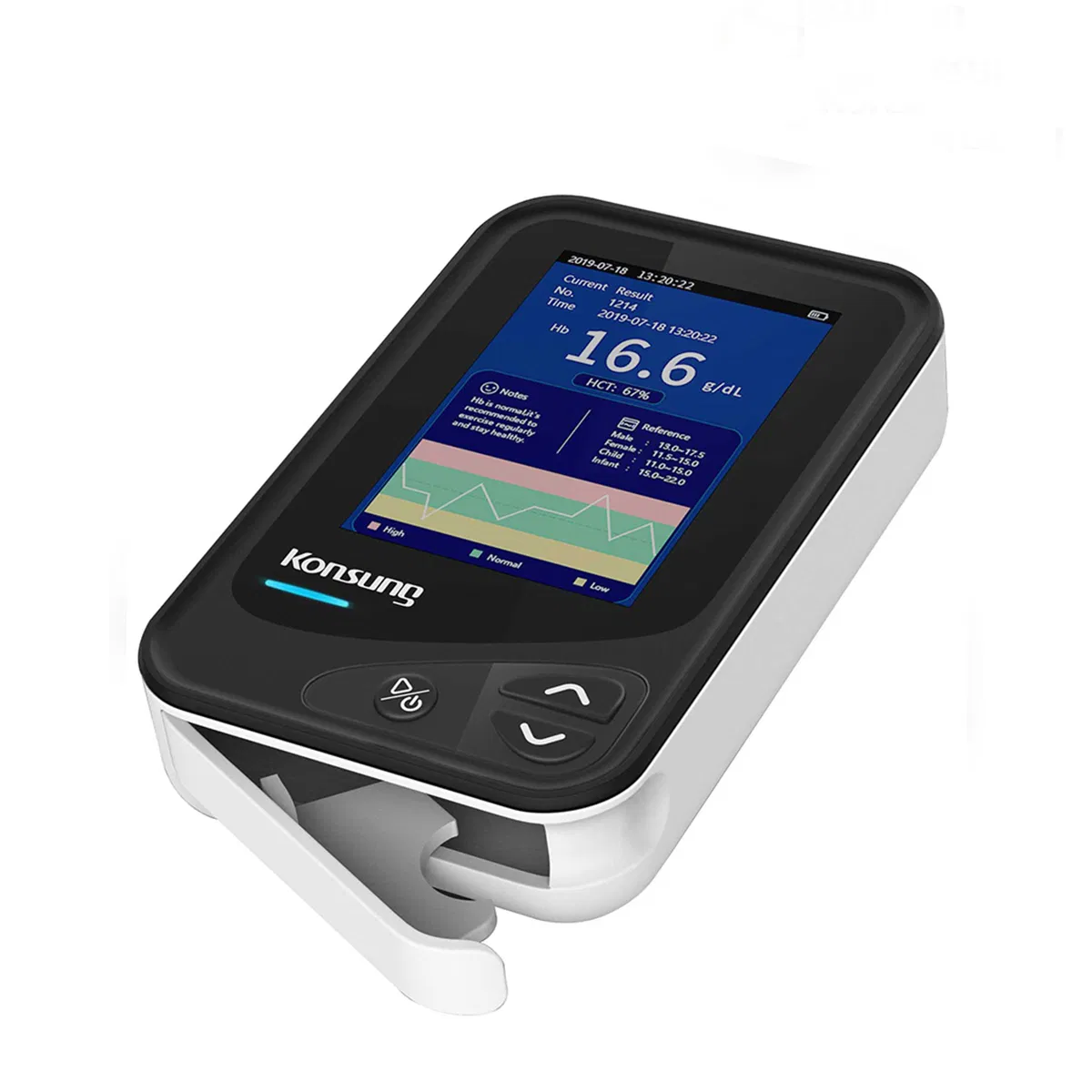

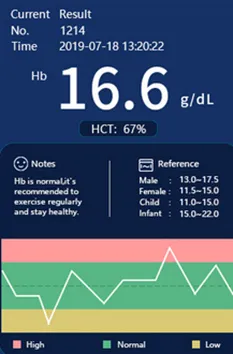

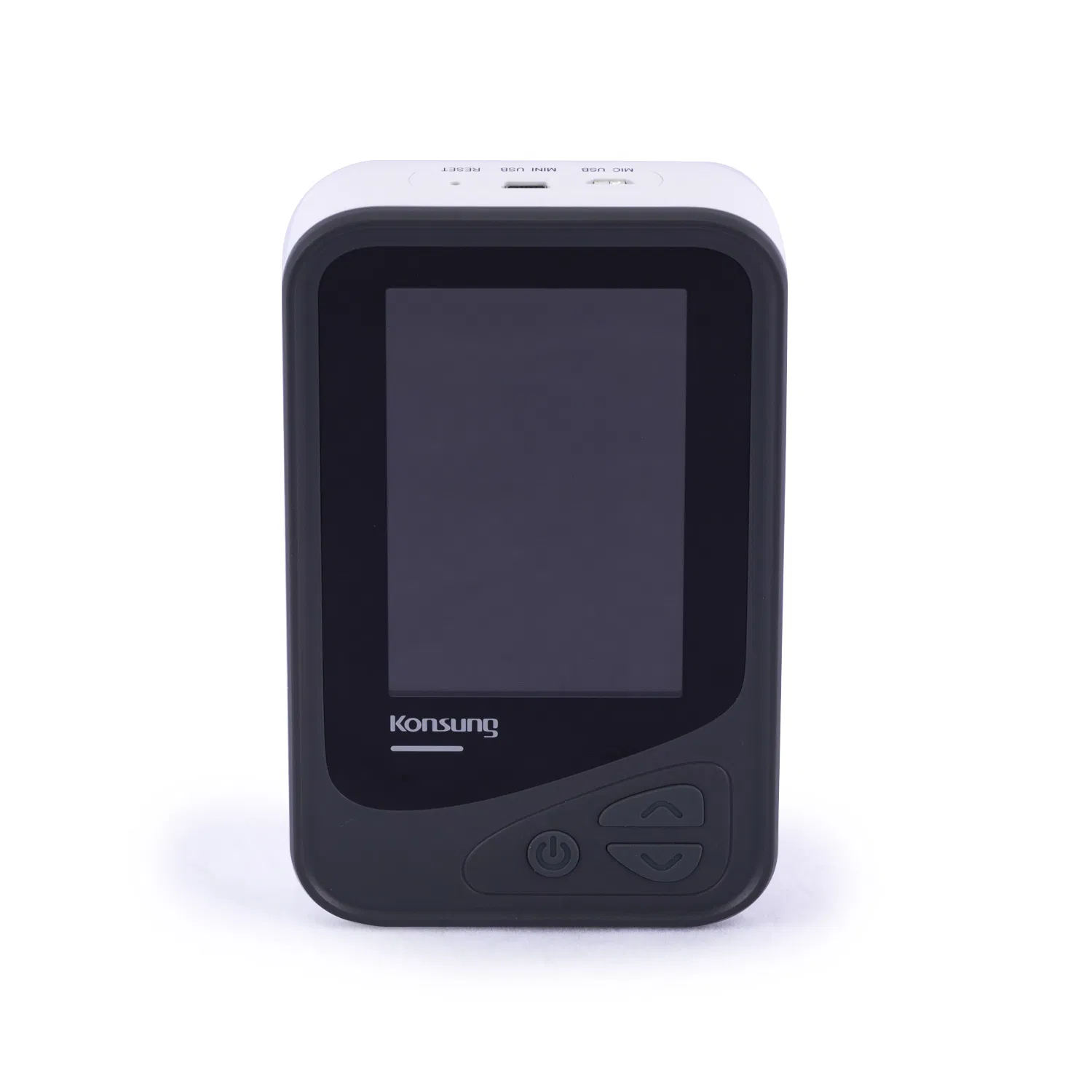

Smart TFT color screen
True color screen, intelligent voice, humanized experience, data changes are always at hand
ABS+PC material is hard, wear resistant and antibacterial
White appearance is not affected by time and use, and highly in antibacterial properties
Precision test result
The precision of our hemoglobin analyzer CV≤1.5%, because adopted by quality control chip for the internal quality control.

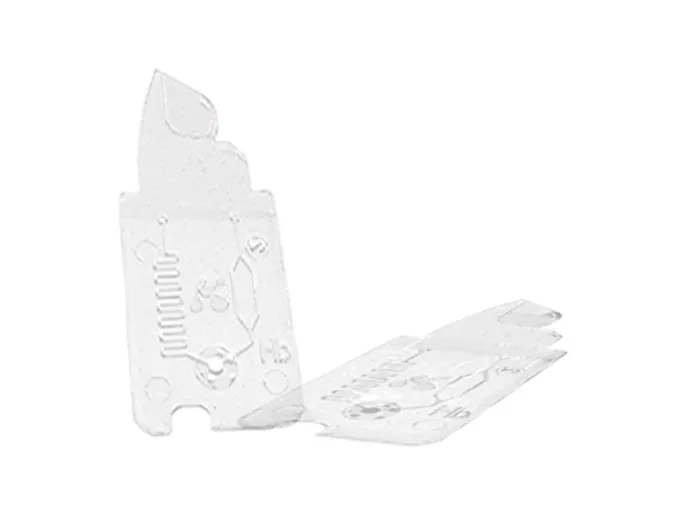

Unique Microfluidics, the top domestic craft
Unique disposable microfluidic chip, one-time use, completely eliminate carry pollution

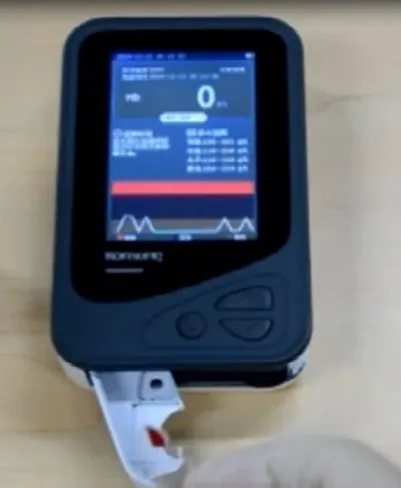

Small volume of blood test
7μL of blood volume is enough to support one test.

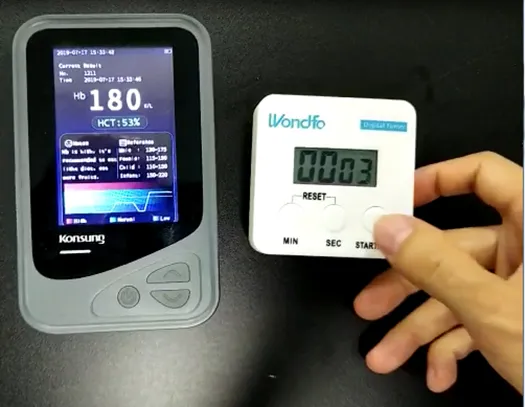

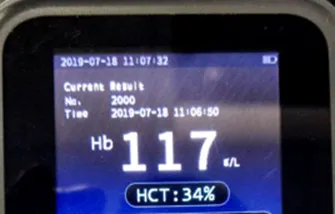

Get test result within 3 seconds
Within 3seconds, HB analyzer will show your results on the big TFT display.
Big data storage
It can support storage of 2000 results.
Large physical button, permanent magnet suction feedback processing unit
After millions of tests, button is still as sensitive as ever
II. Technique Parameter
III. Configuration
IV.Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
V.Exhibition
I. Product Description
Smart TFT color screen
True color screen, intelligent voice, humanized experience, data changes are always at hand

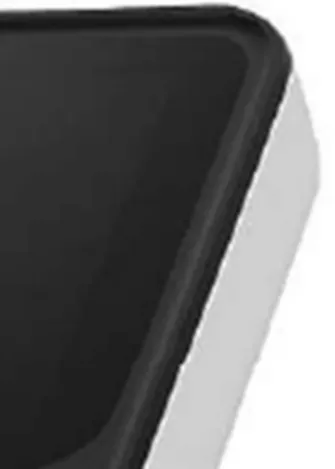

ABS+PC material is hard, wear resistant and antibacterial
White appearance is not affected by time and use, and highly in antibacterial properties

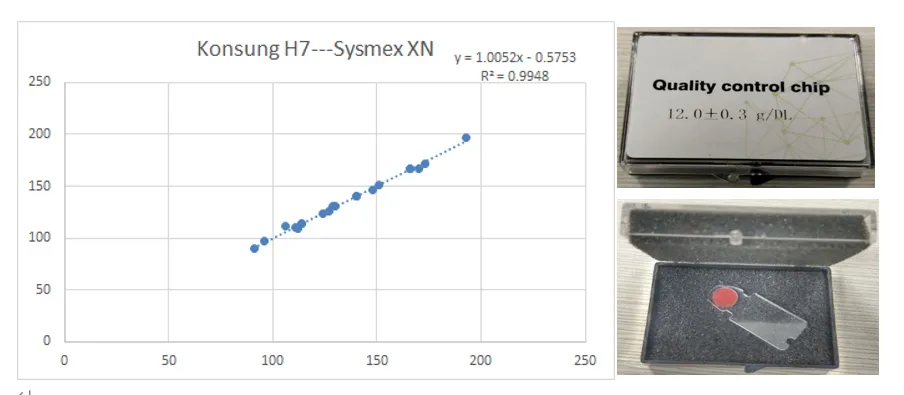

Precision test result
The precision of our hemoglobin analyzer CV≤1.5%, because adopted by quality control chip for the internal quality control.
Unique Microfluidics, the top domestic craft
Unique disposable microfluidic chip, one-time use, completely eliminate carry pollution
Small volume of blood test
7μL of blood volume is enough to support one test.
Get test result within 3 seconds
Within 3seconds, HB analyzer will show your results on the big TFT display.
Big data storage
It can support storage of 2000 results.

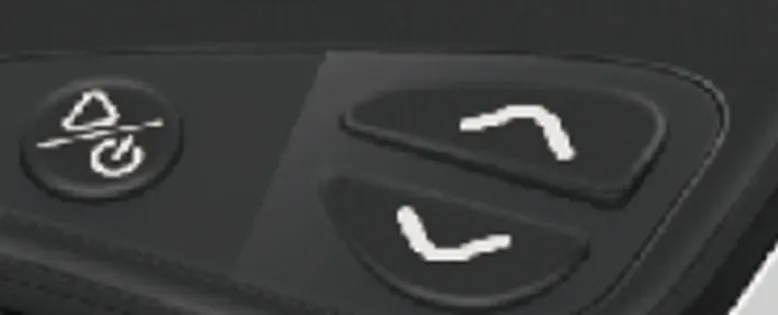

Large physical button, permanent magnet suction feedback processing unit
After millions of tests, button is still as sensitive as ever
II. Technique Parameter
| Principle | Microfluidic and spectrophotometry with scattering compensation technology | |
| Calibration | Factory calibrated; needs no further calibration | |
| Blood sample | Material | Capillary /venous whole blood |
| Volume | 7μL | |
| Parameters | Hemoglobin | √ |
| HCT | √ | |
| Measurement range | Hemoglobin | 0-25.6 g/dL |
| HCT | N/A | |
| Results | ≤3s | |
| Memory | 2000 test results | |
| Precision | CV≤1.5% | |
| Accuracy | ≤3% | |
| Operating Conditions | 15°C~35°C ; ≤85% RH | |
| Storage condition | Device | -20°C~60°C ; ≤90% RH |
| Test chip/strip | 2°C~35°C ; ≤85% RH | |
| Shelf life | Device | Three years (about 20 samples per day) or 22,000 tests |
| Test chip/strip | 2 years when opened canister | |
| Power Source | AC Adapter | √ |
| Battery | rechargeable lithium battery | |
| Interface | USB, Bluetooth, wifi, printer | |
| Dimension | 130mm × 82mm × 31.5mm | |
| Weight | 220g (built-in battery included) | |
| Use convenience | fill blood in chip directly | |
III. Configuration
| NO. | Description | Quantity (pcs) |
| 1 | Hemoglobin analyzer | 1 |
| 2 | Power | 1 |
| 3 | Cable | 1 |
| 4 | Test chip | 50 |
| 5 | Instruction | 1 |

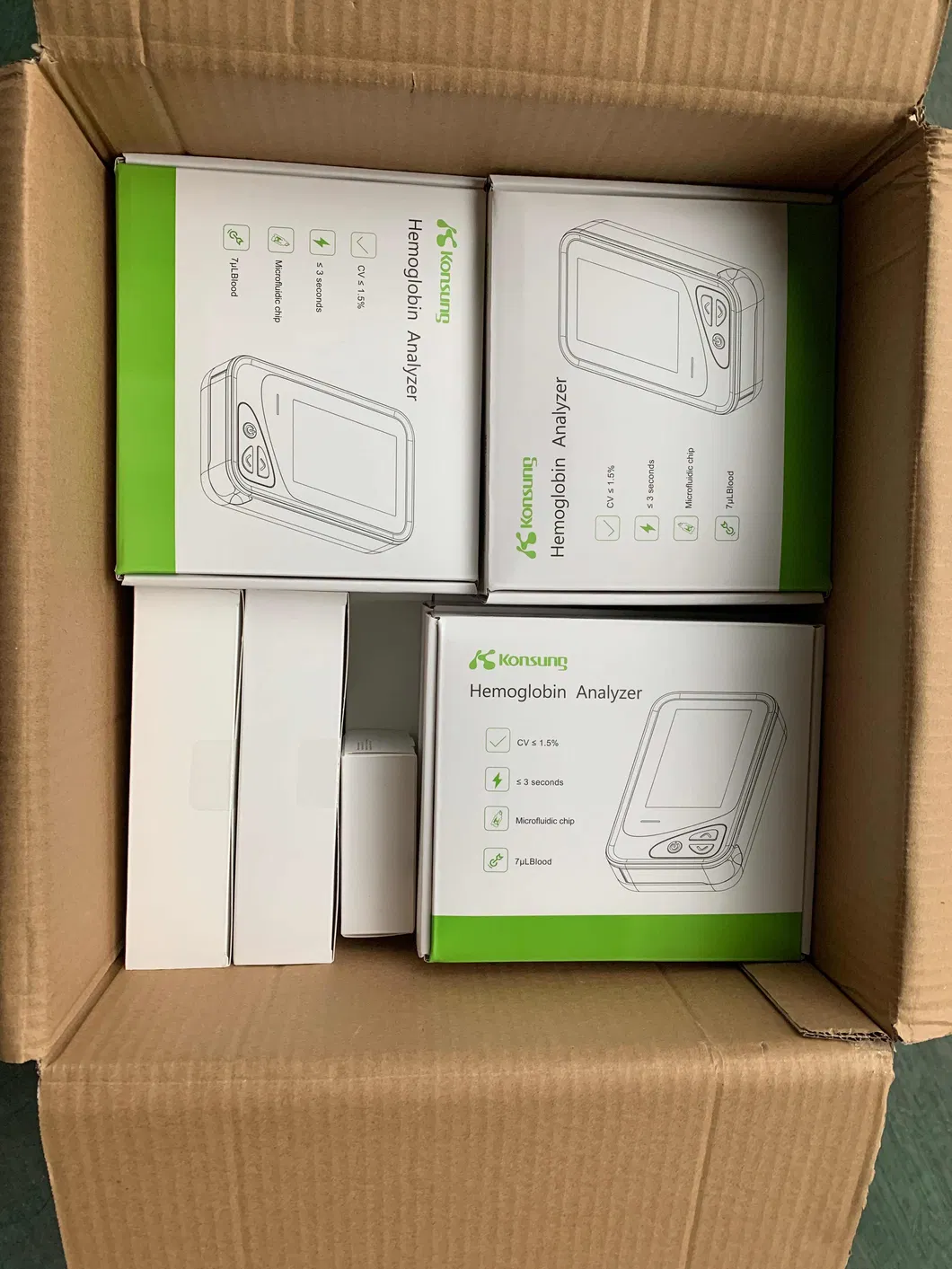

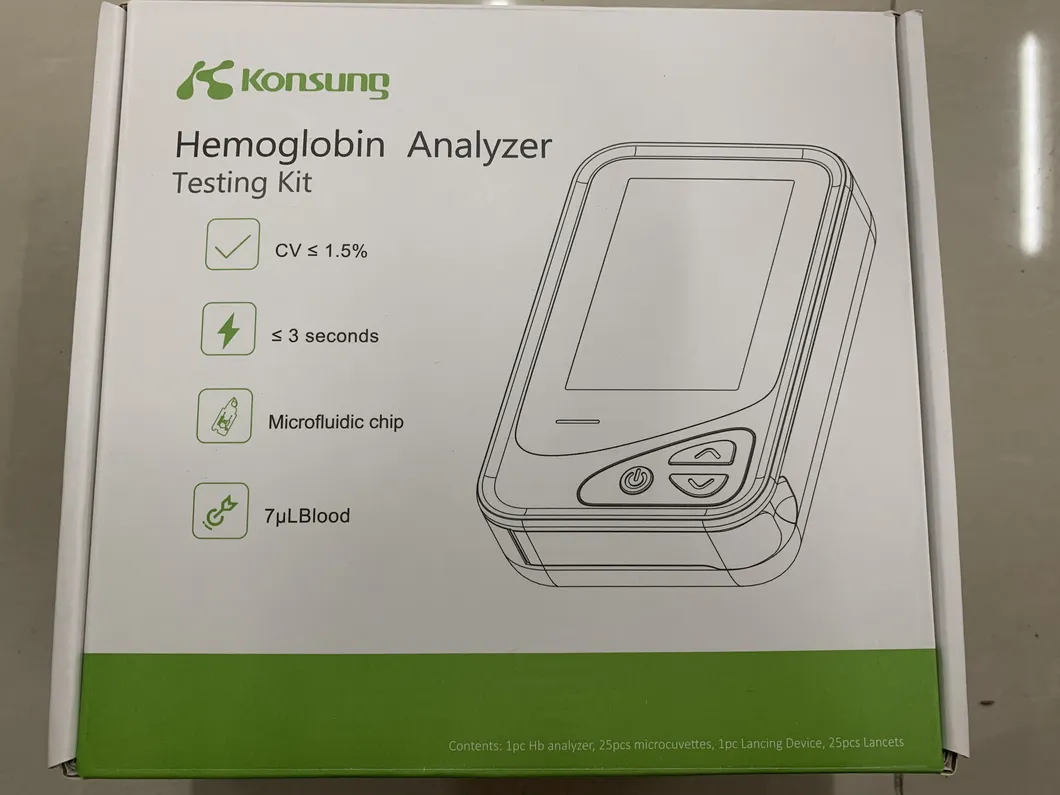

IV.Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
V.Exhibition
