3.5& rdquor ; TFT LCD Display Portable Ent Endoscope Mslvl1r
Portable ENT scope for sales-MSLVL1R MSLVL1R Specifications Main Specifications:ProbeOuter diameter/forward view/ AL-58A φ5.8mm with working channel:2.2mmm / 5.8mm2.2AL-48A φ4.8mm with working channel:1.5mmm / 4.8mm1.5AL-38A φ3.8mm with working channel:0.6mmm / 3.8mm0.6A......
Send Inquiry
Product Description
Portable ENT scope for sales-MSLVL1R

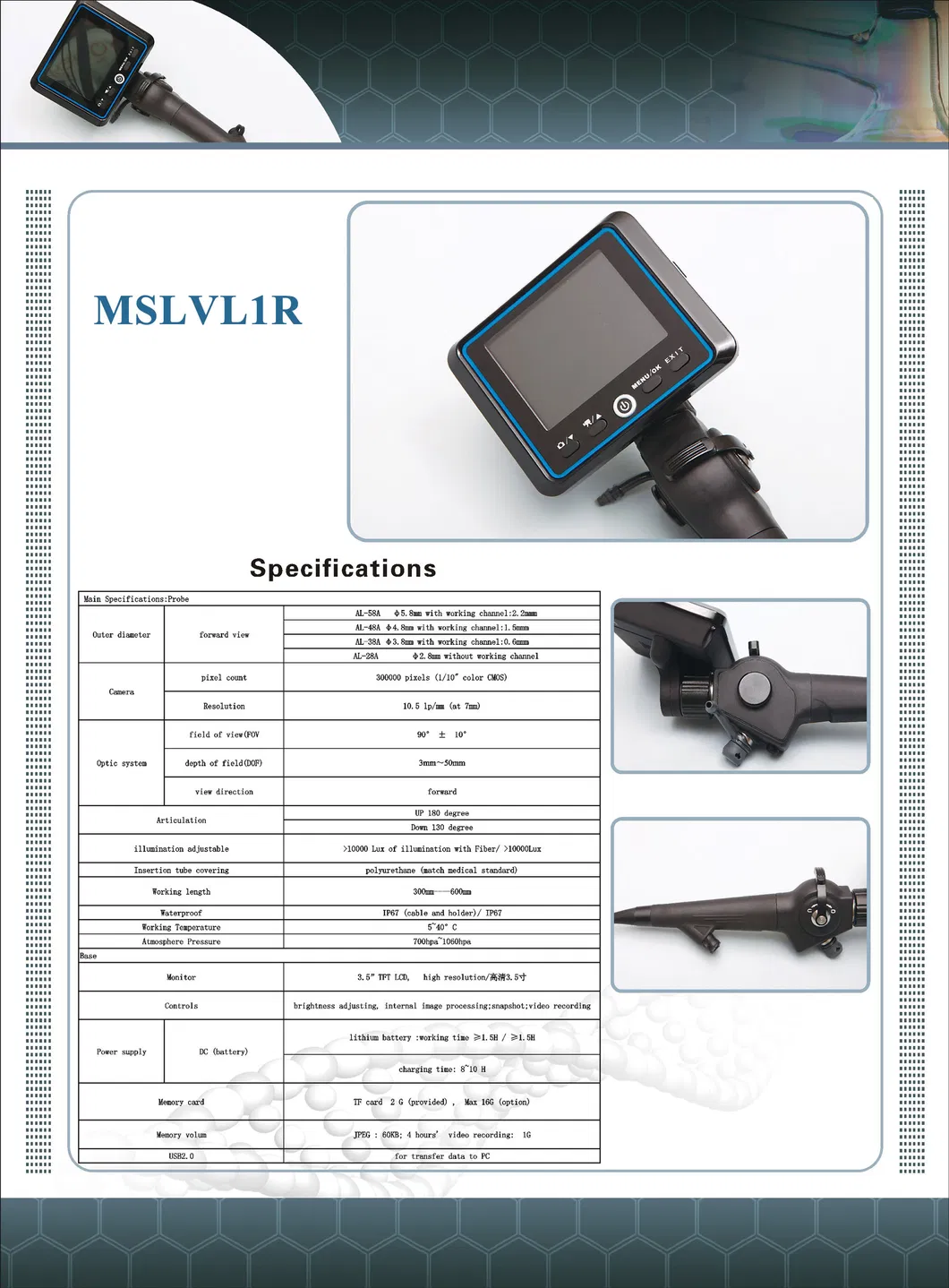

| MSLVL1R Specifications | |||
| Main Specifications:Probe | |||
| Outer diameter/ | forward view/ | AL-58A φ5.8mm with working channel:2.2mmm / 5.8mm2.2 | |
| AL-48A φ4.8mm with working channel:1.5mmm / 4.8mm1.5 | |||
| AL-38A φ3.8mm with working channel:0.6mmm / 3.8mm0.6 | |||
| AL-28A φ2.8mm without working channel/ 2.8mm | |||
| Camera | pixel count/ | 300000 pixels (1/10" color CMOS)/30 | |
| analysis/ | 10.5 lp/mm (at 7mm) | ||
| Optic system | field of view(FOV)/ | 90° ± 10° | |
| depth of field(DOF)/ | 3mm~50mm | ||
| view direction/ | forward/ | ||
| Articulation/ | UP 180 degree | ||
| Down 130 degree | |||
| illumination adjustable/ | >10000 Lux of illumination with Fiber/ >10000Lux | ||
| Insertion tube covering/ | polyurethane (match medical standard)/ | ||
| Working length/ | 300mm----600mm | ||
| Waterproof/ | IP67 (cable and holder)/ IP67() | ||
| Working Temperature/ | 5~40°C | ||
| Atmosphere Pressure / | 700hpa~1060hpa | ||
| Base | |||
| Monitor/ | 3.5"TFT LCD, high resolution/3.5 | ||
| Controls/ | brightness adjusting, internal image processing;snapshot;video recording/,, | ||
| Power supply/ | DC (battery)/ | lithium battery :working time ≥1.5H / ≥1.5H | |
| charging time: 8~10 H | |||
| Memory card/ | TF card 2 G (provided) , Max 16G (option) | ||
| Memory volume/ | JPEG : 60KB; 4 hours' video recording: 1G | ||
| USB2.0 | for transfer data to PC | ||
