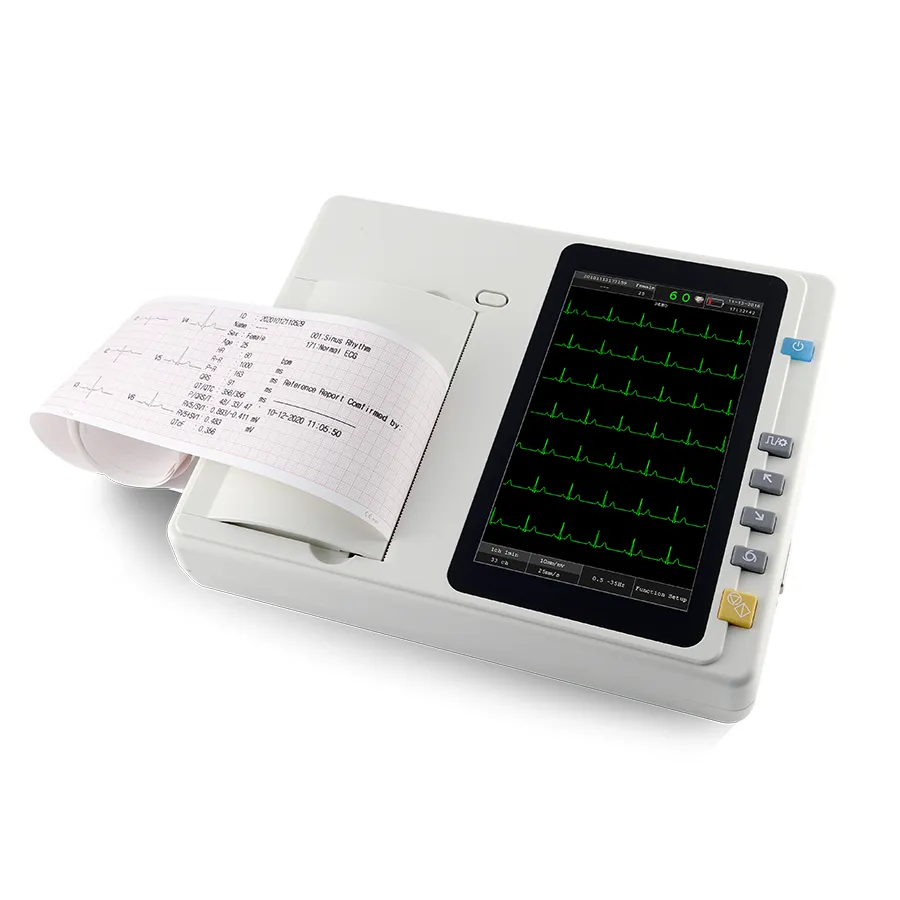

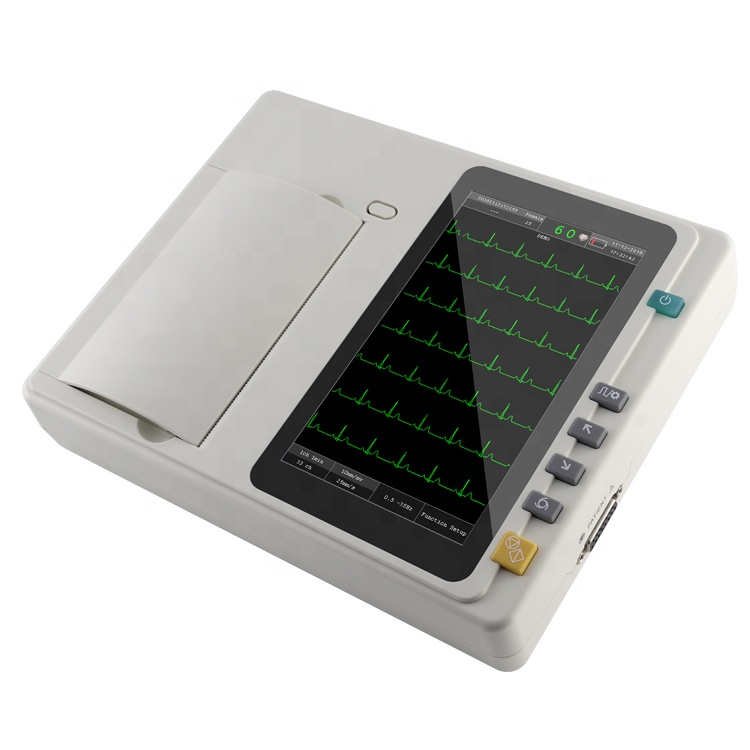

China 6 Channel ECG Machine, Electrocardiograph, Touch Screen ECG Machine

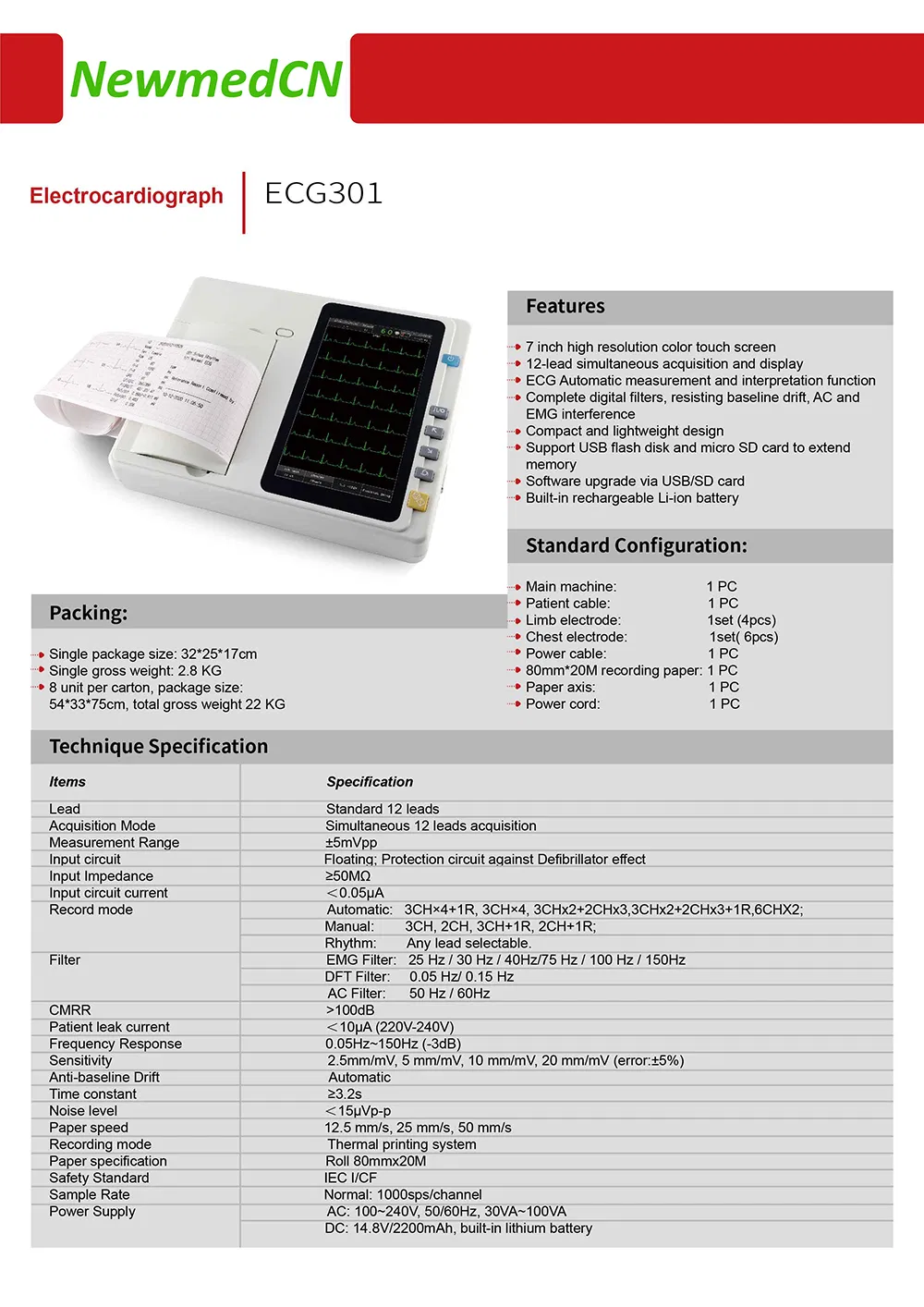

Product Description

Features: 7 "display touch screen, Support Ecg analysis capabilities
Lead: standard 12 leads
lead acquisition: synchronously 12 leads
Input circuit: Floating; Protection circuit against Defibrillator effect
Input Impedance: ≥50MΩ
Input circuit current: ≤0.0.05μA
Record mode: Automatic: 3CH×4+1R, 3CH×4,
3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;
Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;
Rhythm: Any lead selectable.
Filter: EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/ 0.15 Hz
AC Filter: 50 Hz / 60Hz
CMRR: >100dB
Patient current leakage: <10μA
Input Circuit Current: <0.05µA
Frequency Response: 0.05Hz~150Hz (-3dB)
Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Anti-baseline Drift: Automatic
Time constant: ≥3.2s
Noise level: <15μVp-p
Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode: Thermal printing system
Paper specification: Sun-7031:80mmx20m paper rollSun-7062:120mmx20m paper roll
LCD display: 7" graphic LCD
Safety classification: IEC60601-1 class I, type CF
Power supply: AC: 100~240V, 50/60Hz, 30VA~100VA
Fuse: AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag
6 Channel ECG Machine, Electrocardiograph, Touch Screen ECG Machine
