aCurio AF- 708C Original Design Sprout Pocket Fetal Doppler for Fetus Fetal Baby Heartbeat Detection with One Hand Operation
Essentiality of Fetal DopplerEssentiality of Fetal DopplerModern medicine proves that the asphyxia, fetal distress and umbilical cord around neck(25% of pregnant has such situation) will affect the normal growing development of fetal, sometimes there will be dangerous to the fetus, even to the mothe......
Send Inquiry
Product Description
Essentiality of Fetal Doppler
Modern medicine proves that the asphyxia, fetal distress and umbilical cord around neck(25% of pregnant has such situation) will affect the normal growing development of fetal, sometimes there will be dangerous to the fetus, even to the mother, and these symptoms will make the fetal heart rate changed abnormally, so the fetal heart range gives an indication of fetal well-being.Fetal monitoring tests fetal heart rate changes by listening to fetal heart beat sound mainly, the normal value of fetal heart rate is 110-160bpm.
Fetal heart rate monitoring is a powerful guarantee to improve fetal safety.

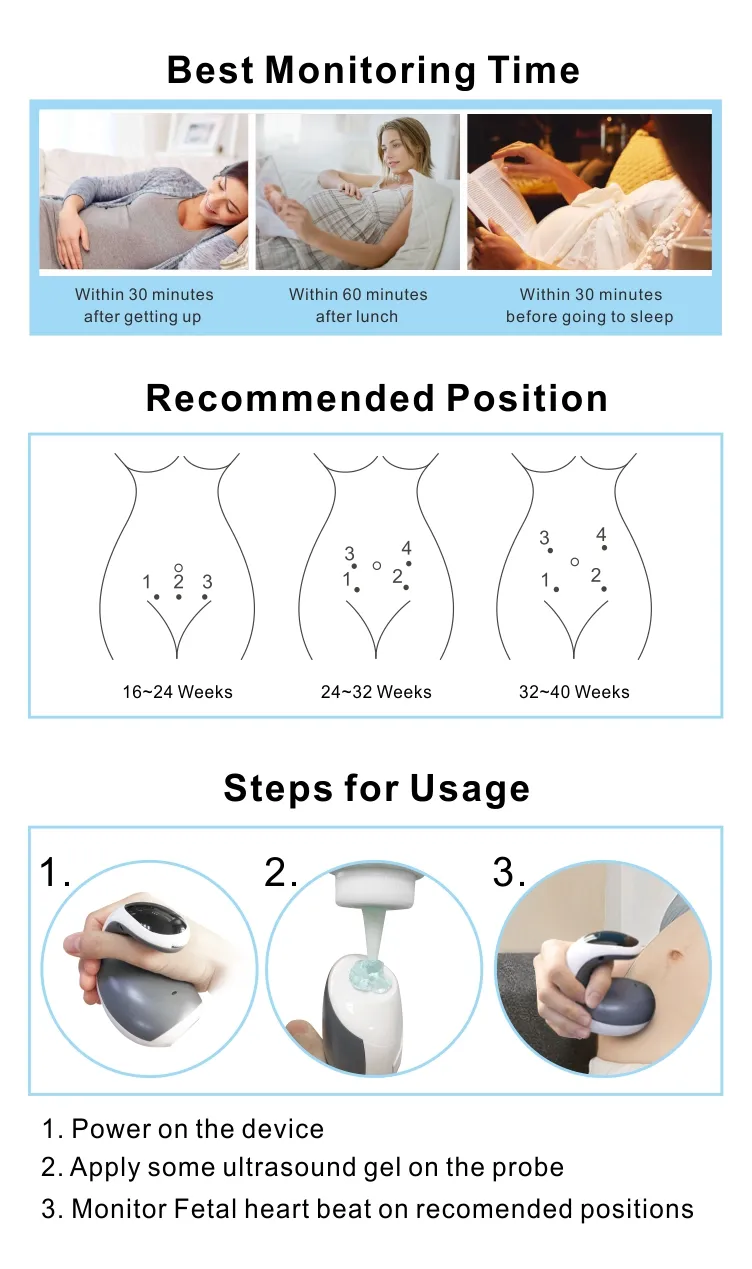

If conditions permit, pregnant women over 16 weeks are recommended to listen to the fetal heart sound for 1-2 minutes per time, three times per day(within 30 minutes after getting up, within 60 minutes after lunch, and within 30 minutes going to sleep).

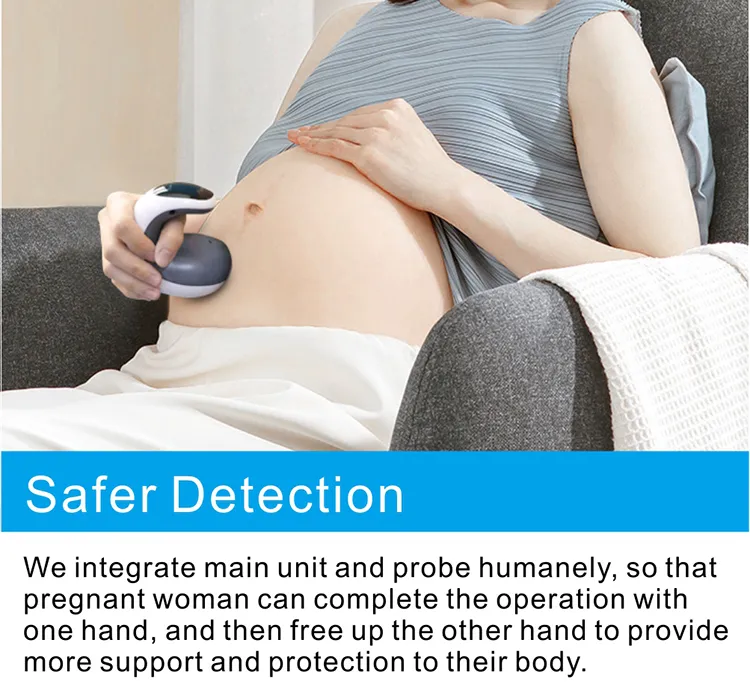

Ultrasound gel, water or edible oil should be daubed on the probe while using, and the probe should be placed directly on the abdominal skin.
Features
Safe & ReliableThe Acurio AF-706 Fetal Doppler which is CE and CFDA approved, and is manufactured strictly according to ISO13485 system requirements. Safe & reliable is Acurio's top priority.
Accurate Detection
The high sensitive doppler probe and DSP calculating techniques, provides accurate fetal heart rate detection.

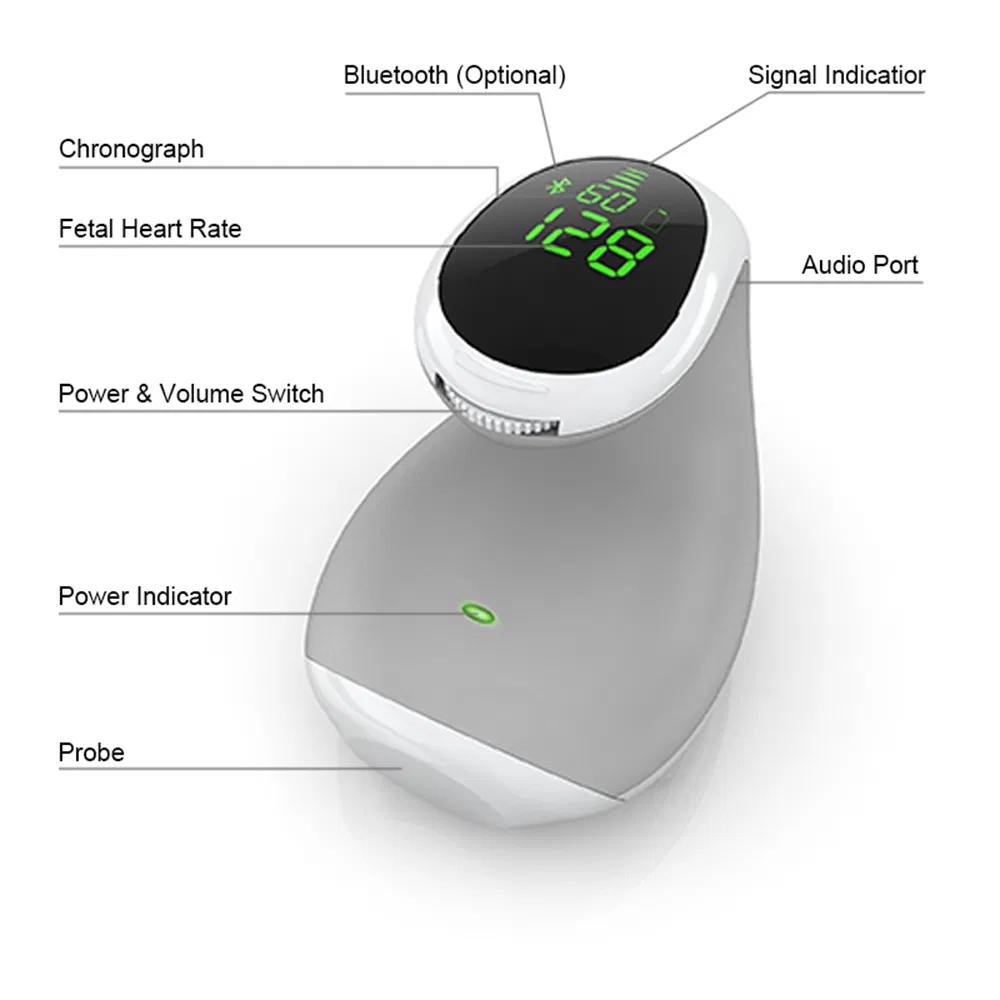

User-Friendly Design
Built-in speaker provides clear sound of fetal heartbeat, a audio output jack allows you to listen the fetal heartbeat through a earphone/headphone. And you can also get the fetal heart rate reading and waveform from a 1.7inch TFT color display.
Widely Use
It is applicable to hospital, clinic and home self-check. And it is an essential gift for expectant mothers.
Lightweight & Portable
The product is compact in size, light in weight, convenient in carrying and powered by 2 AA alkaline batteries.
| Product Name | Pocket Fetal Doppler |
| Model | AF-706 |
| Display | 1.7 inch Color TFT |
| FHR Performance | Integrative Sensitivity: ≥90db |
| FHR Measuring Range: 50~210BPM | |
| Accuracy: ±2BPM | |
| Speaker Power: 0.5W | |
| Ultrasound Probe | Working Frequency: 2.5MHz±15% |
| Working Mode: Continuous Wave Doppler | |
| Spatial-peak Temporal-peak Intensity: <21.7kPa | |
| Ultrasonic Output Intensity: <10mW | |
| Effective Radiating Area of Transducer: 157mm²±15% | |
| Acoustic Parameters | IOB: < 20mW/cm² |
| P-: <1MPa | |
| ISPTA: < 100mW/cm² | |
| Measuring Time | 1 minute |
| Working Environment | Temperature: +5ºC~+40ºC |
| Humidity: 15%~85% | |
| Atmospheric Pressure: 86kPa~106kPa | |
| Transport and Storage Environment | Temperature: -10ºC~+55ºC |
| Humidity: 10%~93% | |
| Atmospheric Pressure: 86kPa~106kPa | |
| Safety Type | Internal power supply, Type BF applied part |
| Product | Product Size: 41*93*143 mm |
| Net Wight: 170g±5g(excluding batteries) | |
| Unit Package: 205*135*70mm | |
| Carton | Carton Size: 425*422*382mm |
| QTY/Carton: 30pcs | |
| G.W./Carton: 6.5KG |

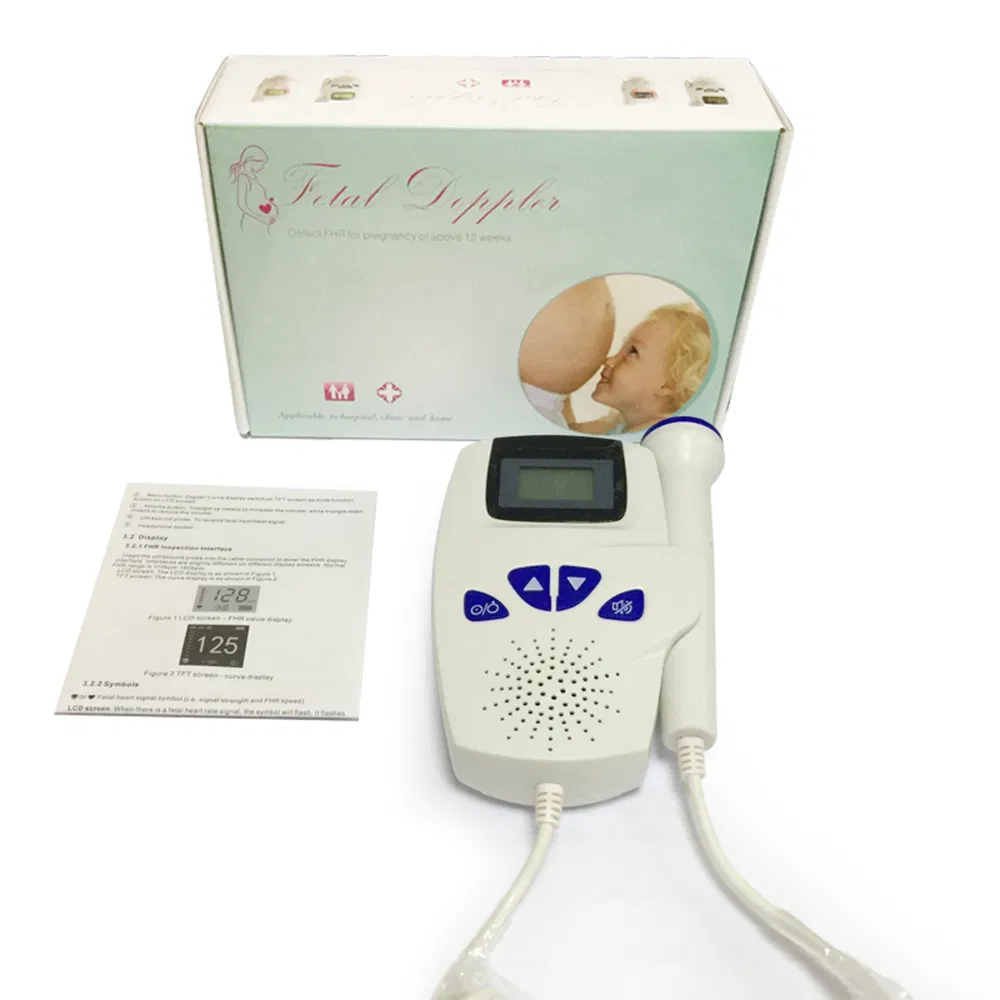

Fetal Doppler 1pc
User Manual 1pc
Optional:
4*AA Battery
