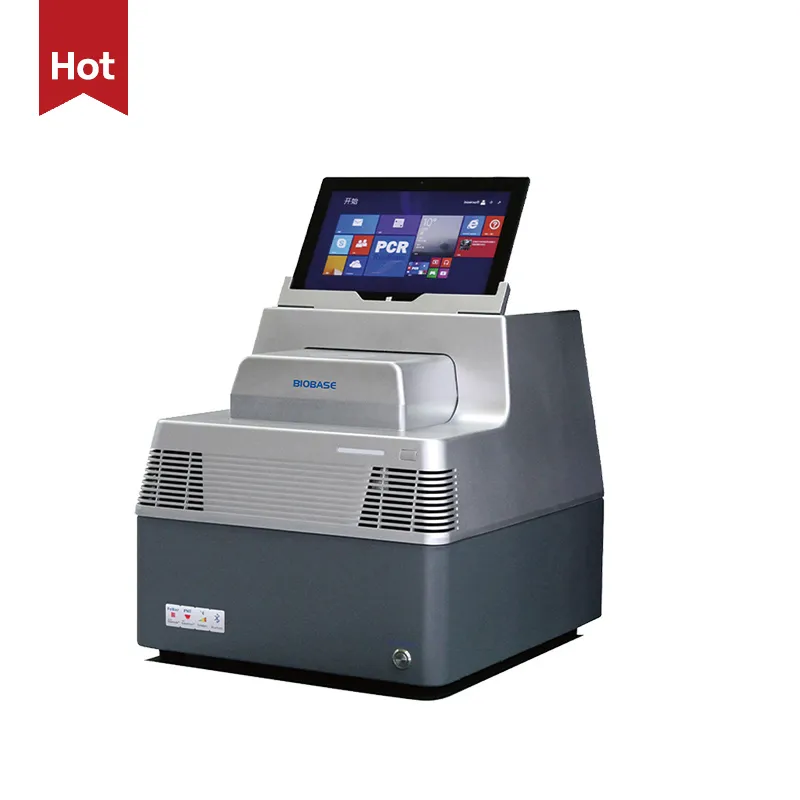

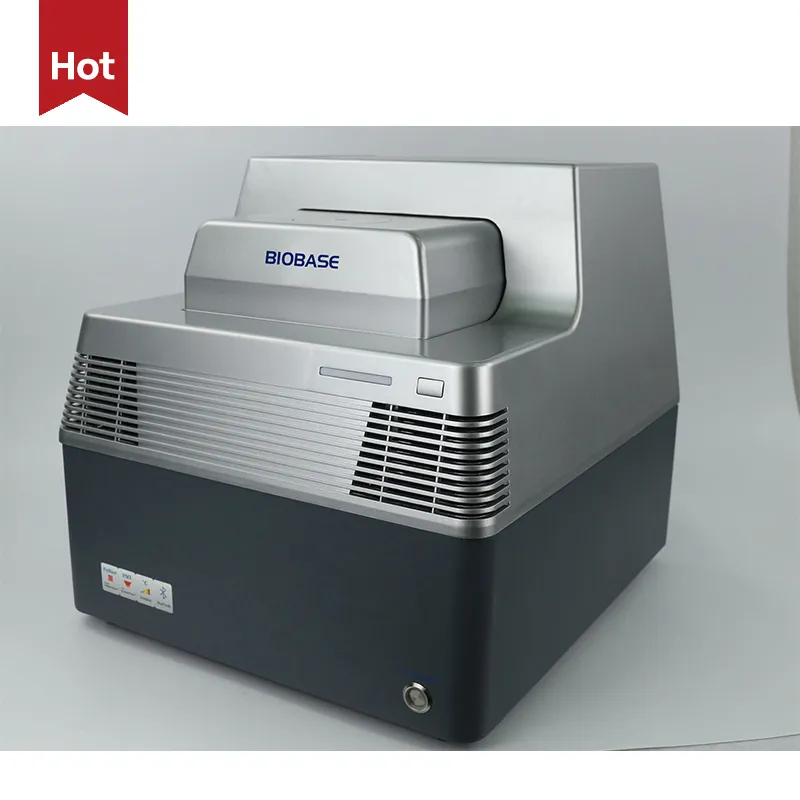

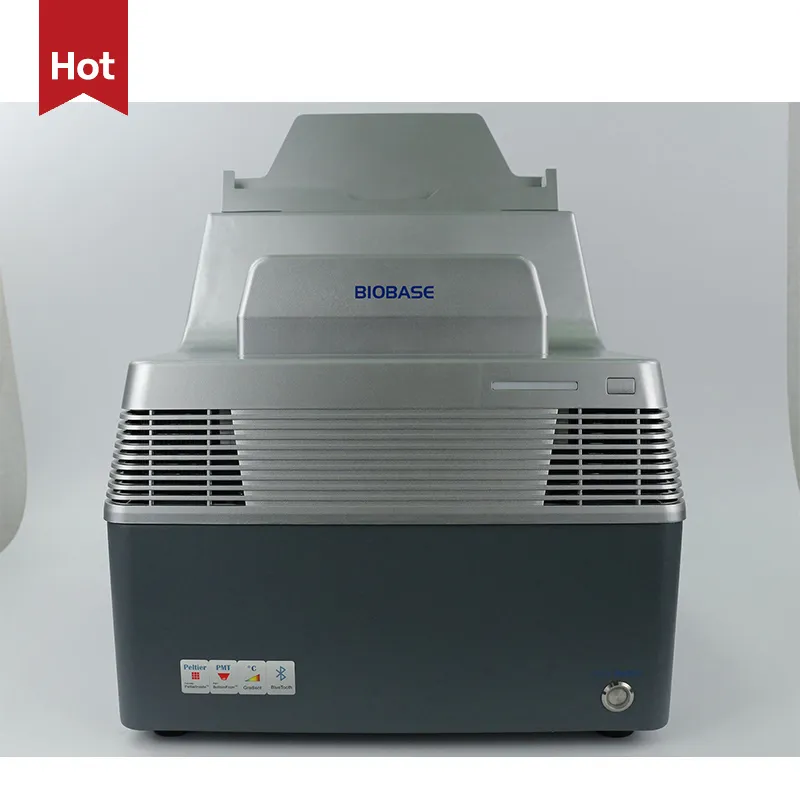

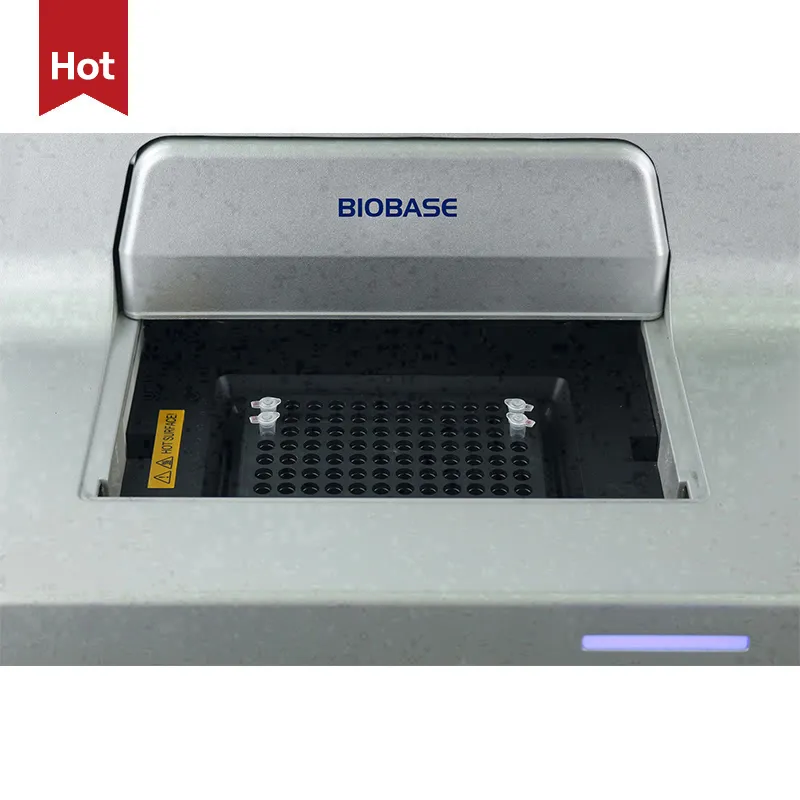

Biobase Gene Test Analyzer Fluorescence Quantitative Real-Time PCR

Product Name

Fluorescence Quantitative PCR Detection System

Model

BK-96P

Sample Capacity

96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube(Transparent Bottom)

Reaction system

5~100μl

Dynamics Range

1-1010

Medical instrument registration certificate

G.X.Z. 20153400273

Excitation Wavelength

300-800nm

Emission Wavelength

500-800nm

Detection path

F1

F2

F3

F4

F5

F6

Suitable probe.dye

FAM,SYBR GREEN I

HEX/VIC/TET/JOE/CY3/NED/TAMRA

ROX,TEXAS-RED

Cy5

Cy5.5

Reserved path

Excitation wavelength

300~800nm

Detection wavelength

500~800nm

Module temp. range

4-105ºC(resolution:0.1ºC) withSOAK Low Temp.storage Function

RampRate

4.0ºC/s(max)

Temp. Control accuracy

±0.1ºC

Temp. uniformity

≤ ±0.3ºC

Temp. control mode

Block mode andTube Mode

(Automaticcontrolbasedonliquid level)

Operation mode

Continuous operation

Gradient Temp. Range

1-36ºC

Hot-lid Temp. Range

30-110ºC(Adjustable, Defaultby105ºC and Automatic Hot-lid)

FluorescenceintenseDetection Repeatability

5%

Scanning Mode

Full plate scanning and designated line scanning

Programming

Max 20 Segments for Each Program, Max 99 Cycles

Operation Mode

Continuous

Scanning time

5.5s

Special function

Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc

Operation system

Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012

Power supply

100-240V 50/60Hz 600W

Dimension(L*W*H)

410*386*352mm

Port method

SupportUSBandRS232data port andBluetoothport

Packing size

720*680*640mm

Gross weight

55KG
