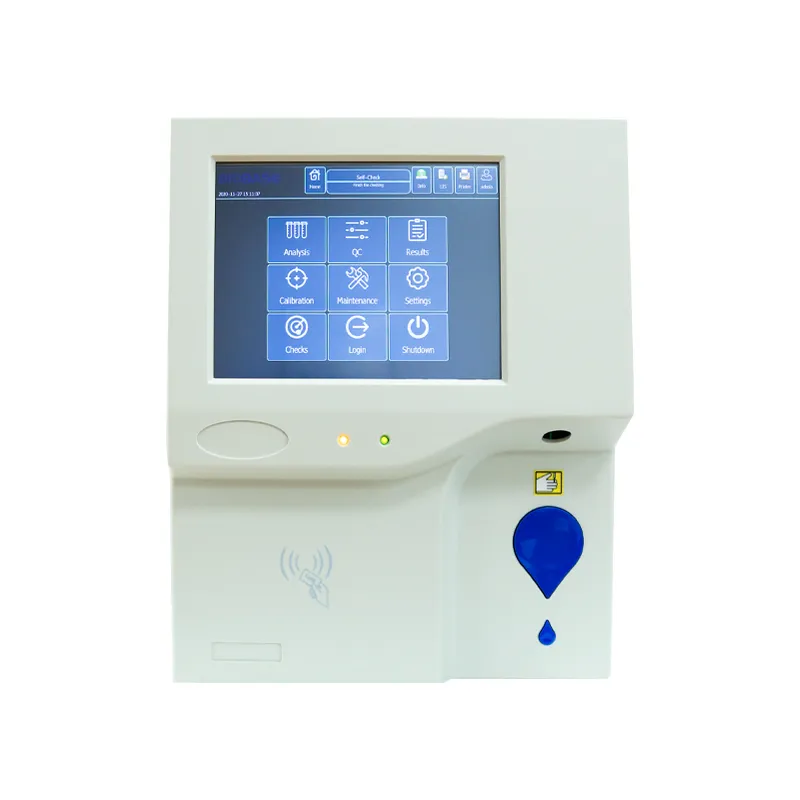

Biobase Open System 60t/H Automatic Hematology Analyzer with Reagent
Product DescriptionHematology AnalyzerTouch Screen display3-part differentiation of WBC21 parameters + 3 histogramsThroughput: 60 samples per hour Detailed Photos FeaturesTouch Screen display3-part differentiation of WBC21 parameters + 3 histogramsThroughput: 60 samples per hour ModelBK-5000Throug......
Send Inquiry
Product Description
3-part differentiation of WBC
21 parameters + 3 histograms
Throughput: 60 samples per hour
Touch Screen display
3-part differentiation of WBC
21 parameters + 3 histograms
Throughput: 60 samples per hour
Model | BK-5000 | ||
Throughput | 60 tests/hour | ||
Measuring Principle | Coulter principle Colorimetry hemoglobin determination | ||
Parameters
| WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB, HCT,MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC | ||
Histograms | 3 Histograms (including WBC, RBC, PLT) | ||
Sampler Volume | Predilute 20μl Whole blood 10μl | ||
Display | 8" color touch screen display | ||
Intelligent reagent management function | Reagent information and residual display | ||
Carryover | WBC≤1.5% RBC, HGB<1.0% , PLT≤2% | ||

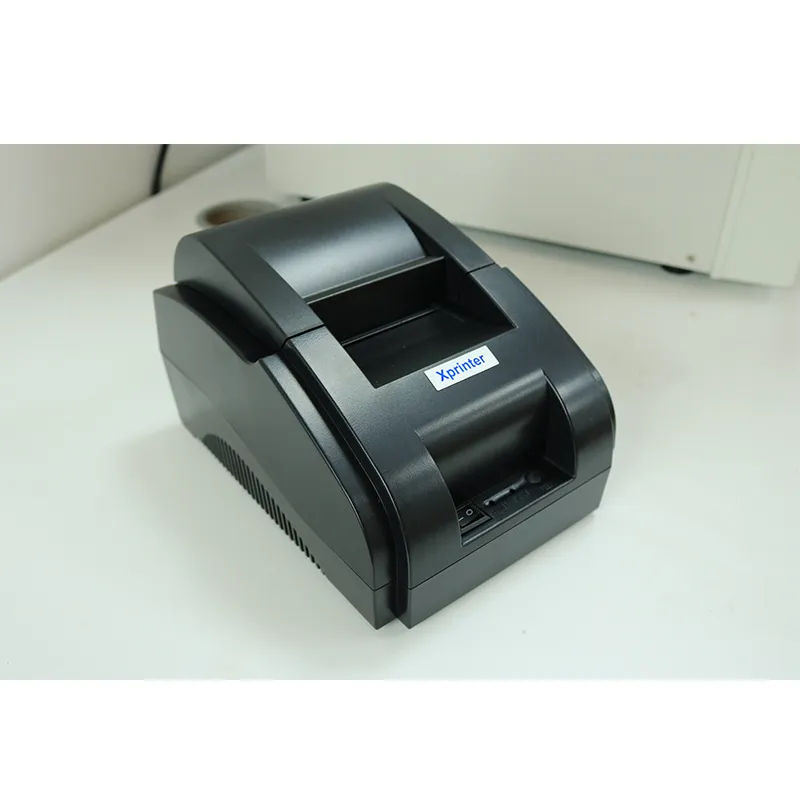

Printer | External printer | ||

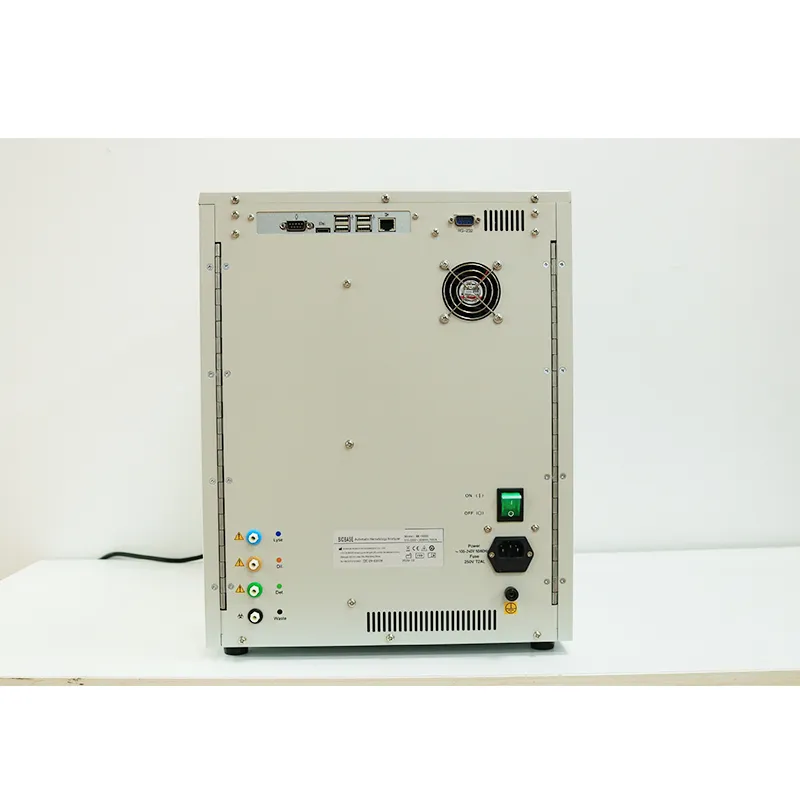

Input and output | 1 RS232 , keyboard , Mouse, 4USB, LAN | ||
Performance
| Parameter | Linearity range | Precision (CV%) |
WBC(109/L) | 0.0-100.0 | 2.0 (4.0-10.0) | |
RBC(1012/L) | 0.00-9.99 | 1.5 (3.50-5.50) | |
HGB(g/L) | 0-300 | 1.0 (110-160) | |
PLT(109/L) | 0-1000 | 5.0 (100-300) | |
Option | Barcode scanner, LIS | ||
Operating Environment | Temperature 10-35 oC Humidity≤90% | ||
Power Supply | AC110/220V±10%, 60/50 Hz | ||
Package Size(mm) | 630*600*700 | ||
Gross Weight(kg) | 25 | ||
Reagent Package Size(mm) | 390*280*260 | ||
Reagent Gross Weight(kg) | 13 | ||
