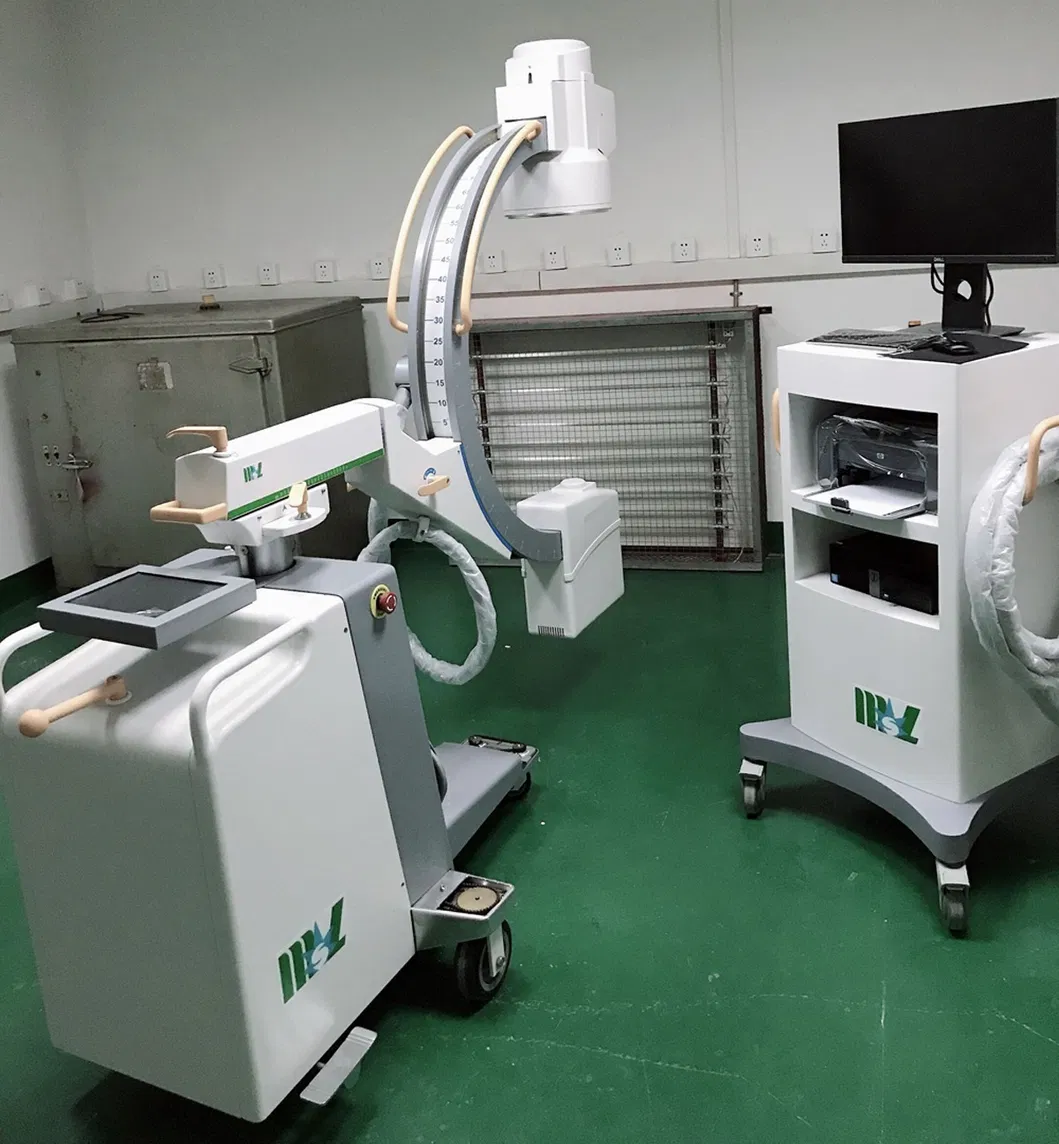

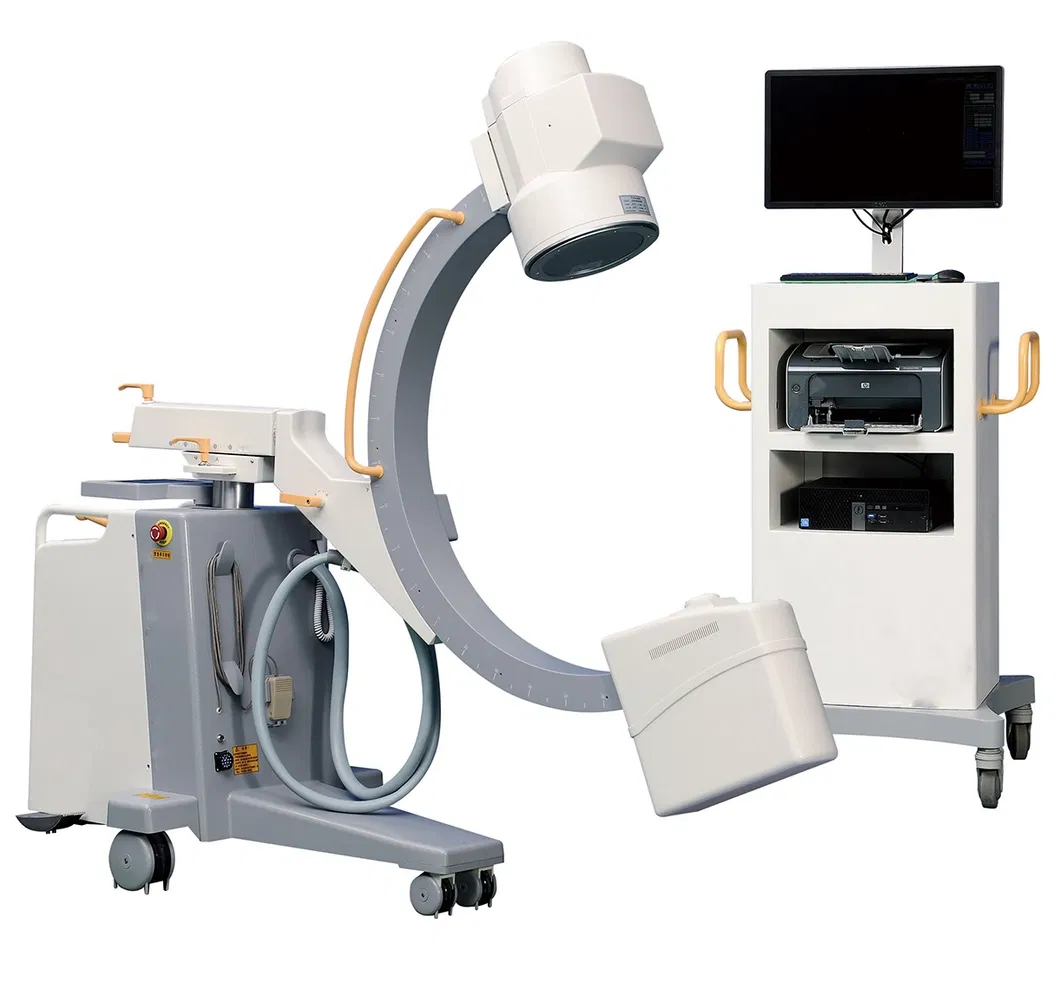

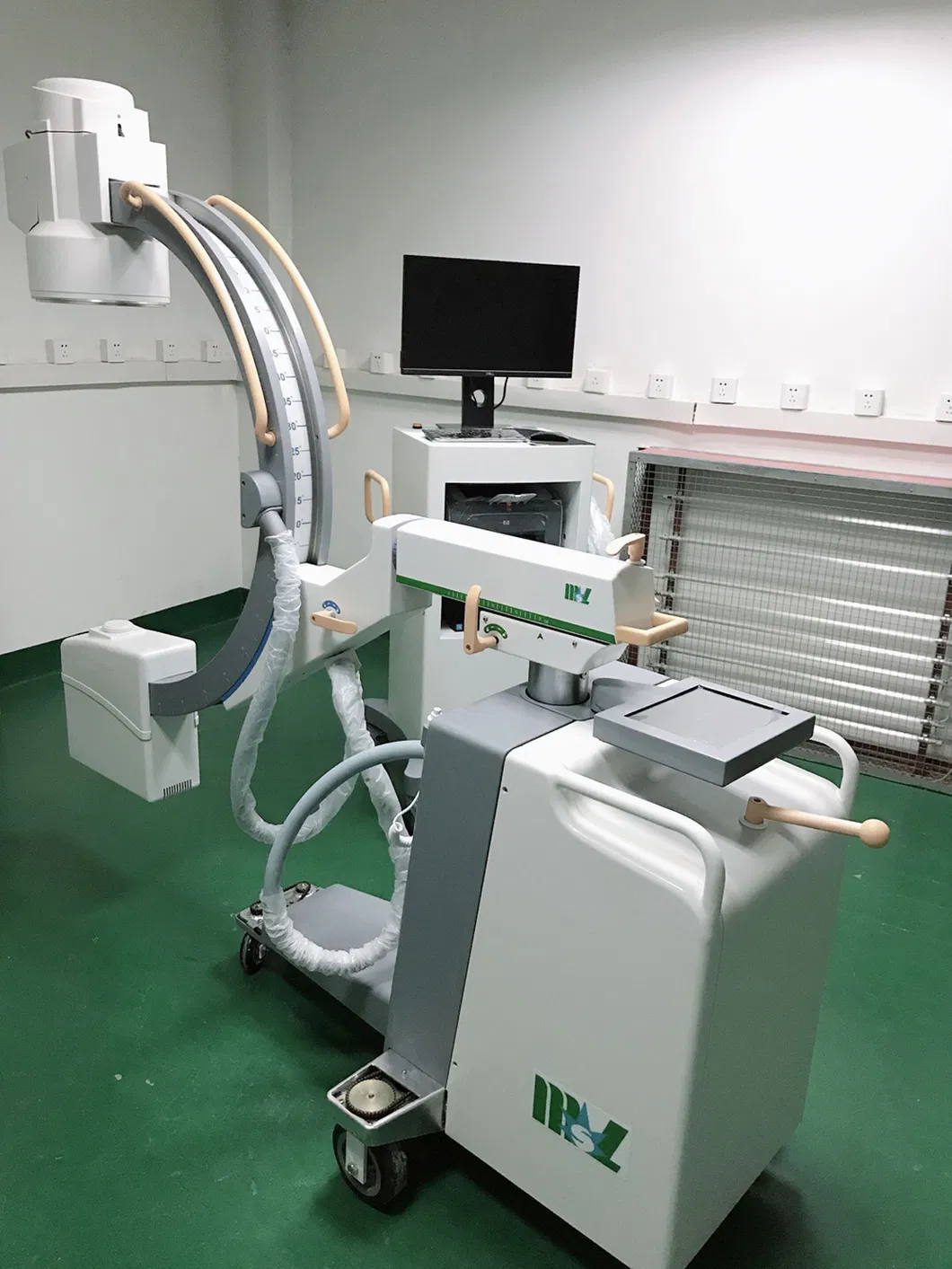

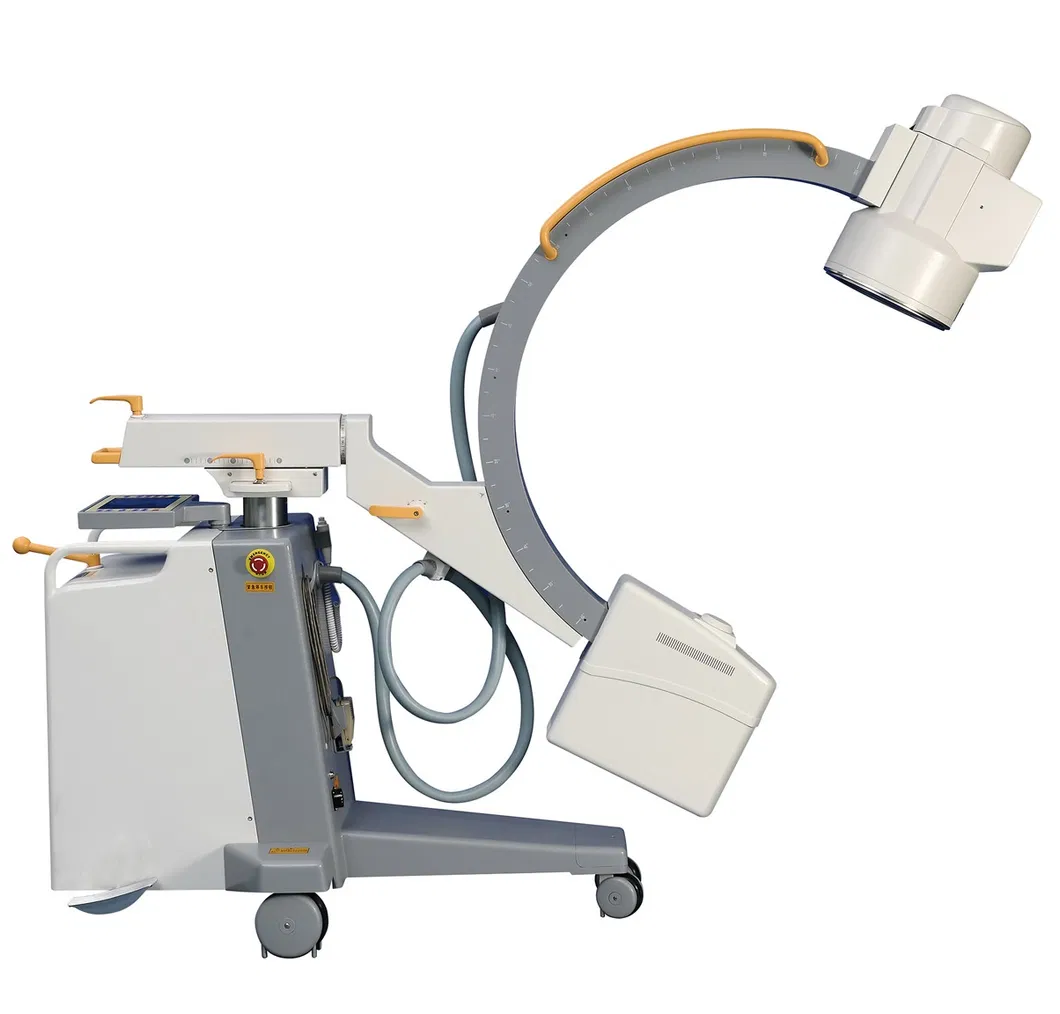

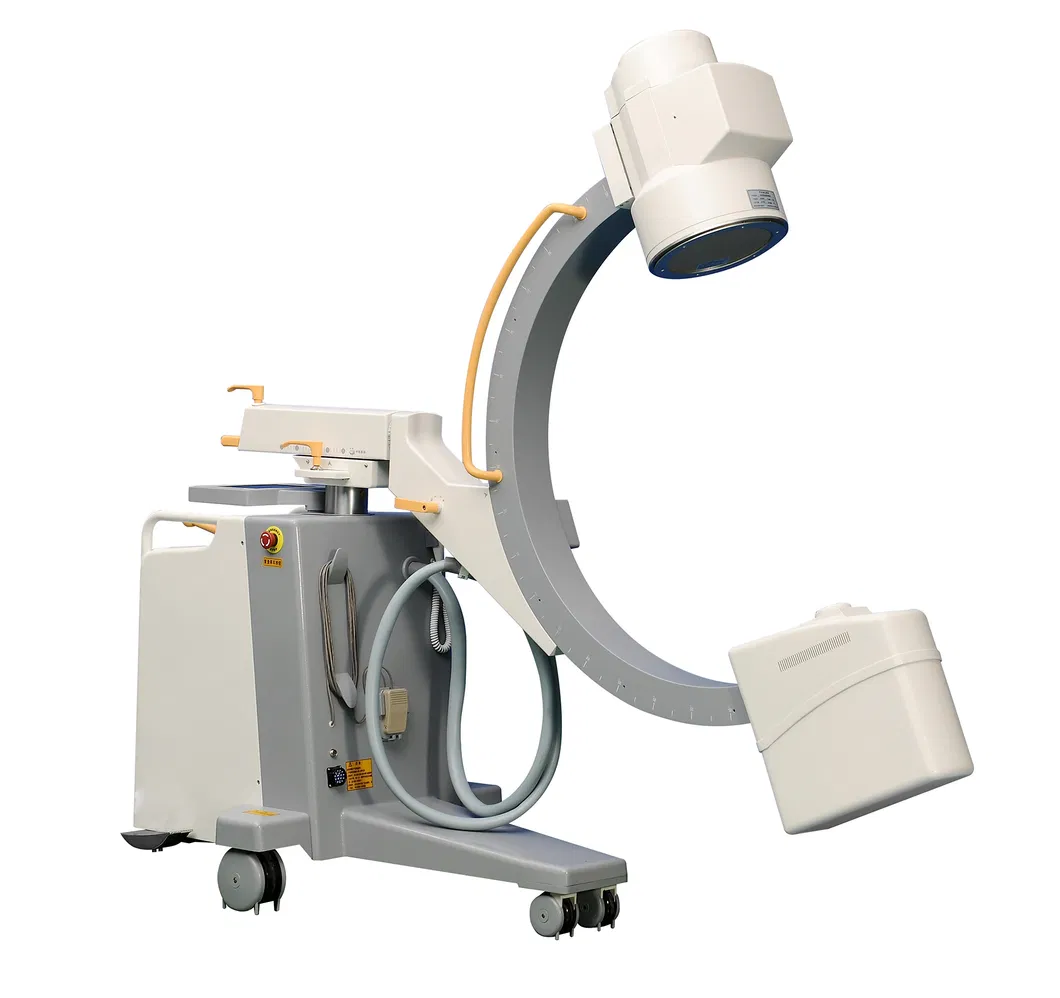

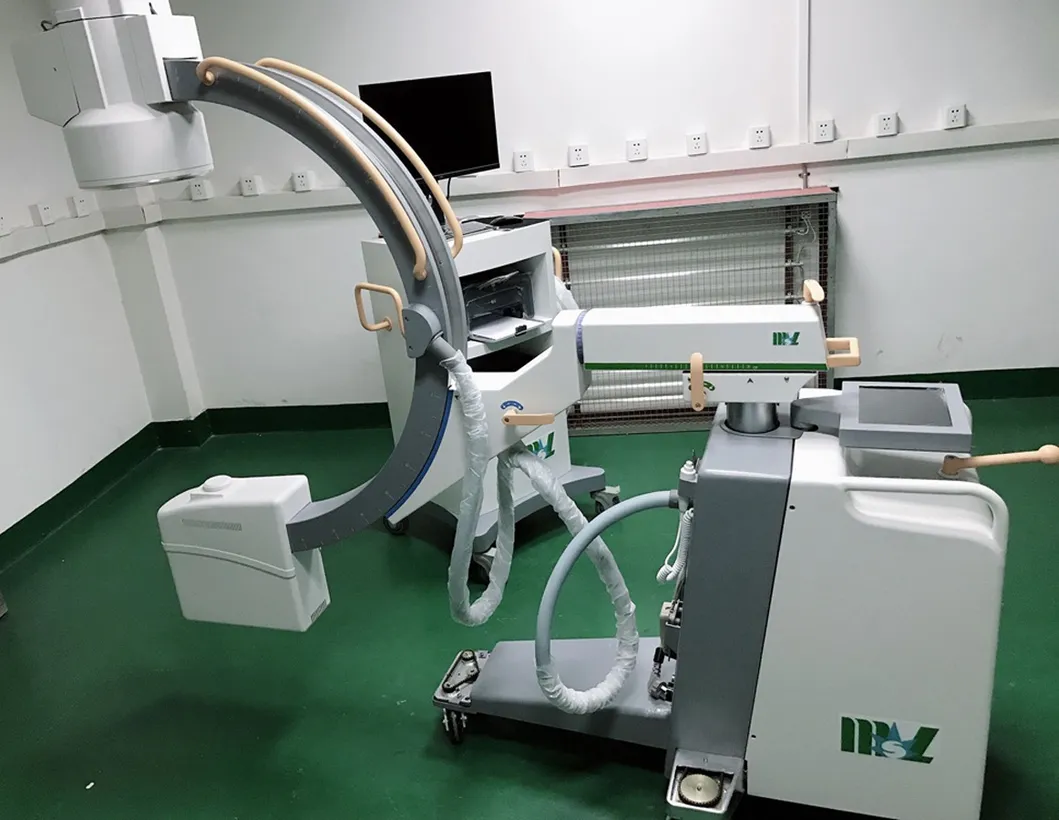

C-Arm X-ray Machine Fluoroscopic Intraoperative Imaging Intensifier

Product Description

MSLCX37 High Frequency C-arm X-ray

Fluoroscopic Intraoperative Imaging Intensifier

Widely use in operating room, X-ray department, emergency room, intervention and peripheral angiography. General surgery, urology, chest, trauma, spine surgery, abdominal surgery, orthopedics, bone reduction and fixation, endoscopy and surgery. Intervertebral disc angiography and angioplasty.

1) With HF & HV generator, inverter, and High quality image intensifier, the X-ray generator can work stably. It also reduces the damage for the doctors caused by radiation.

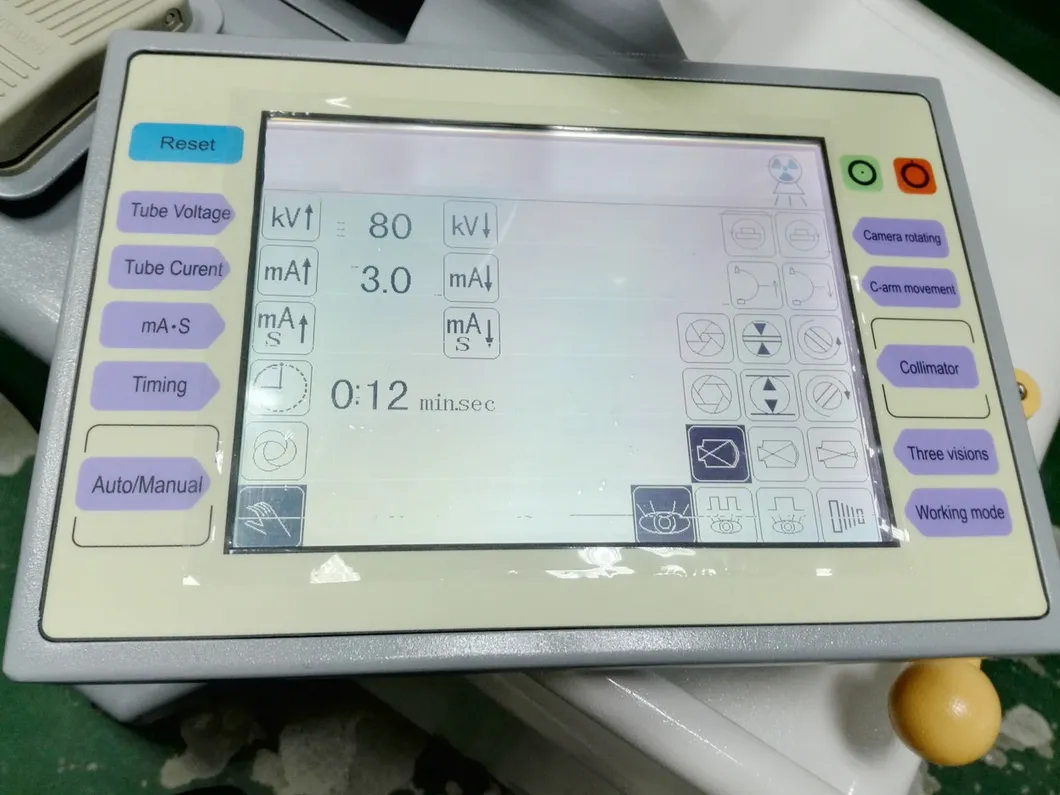

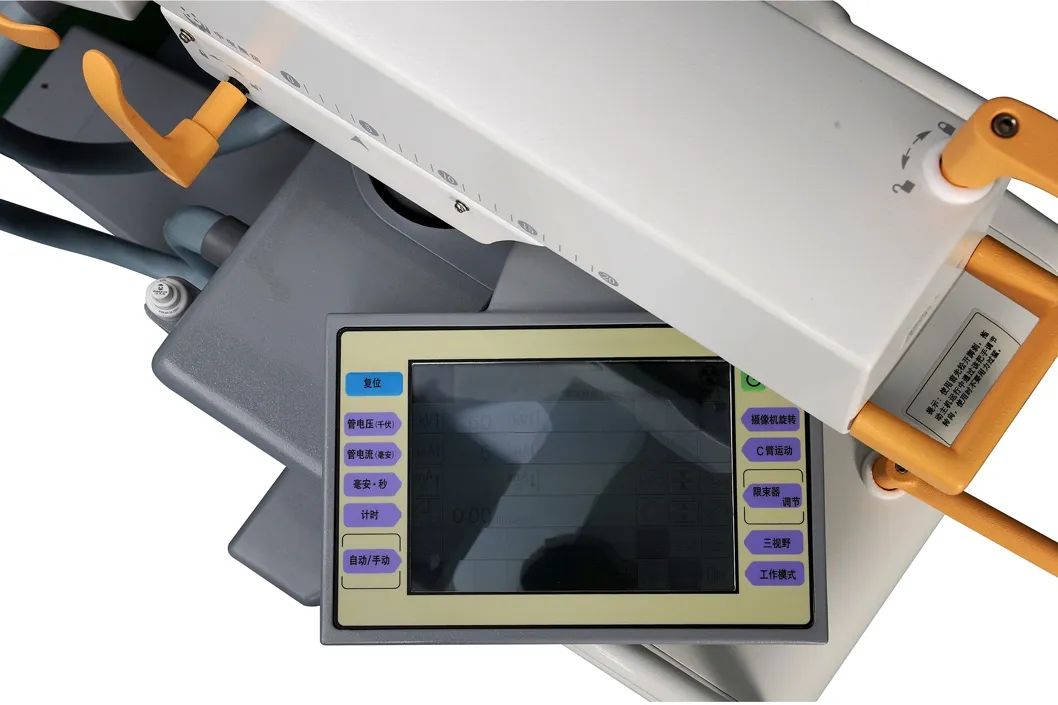

2) 10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized. Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis.

3) Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.

4) With a steering handle, it can adjust the direction quickly when moving. And parallel movement function is also available.

5) Equipped with unique block line wheels, it can avoid accident when the machine moves.

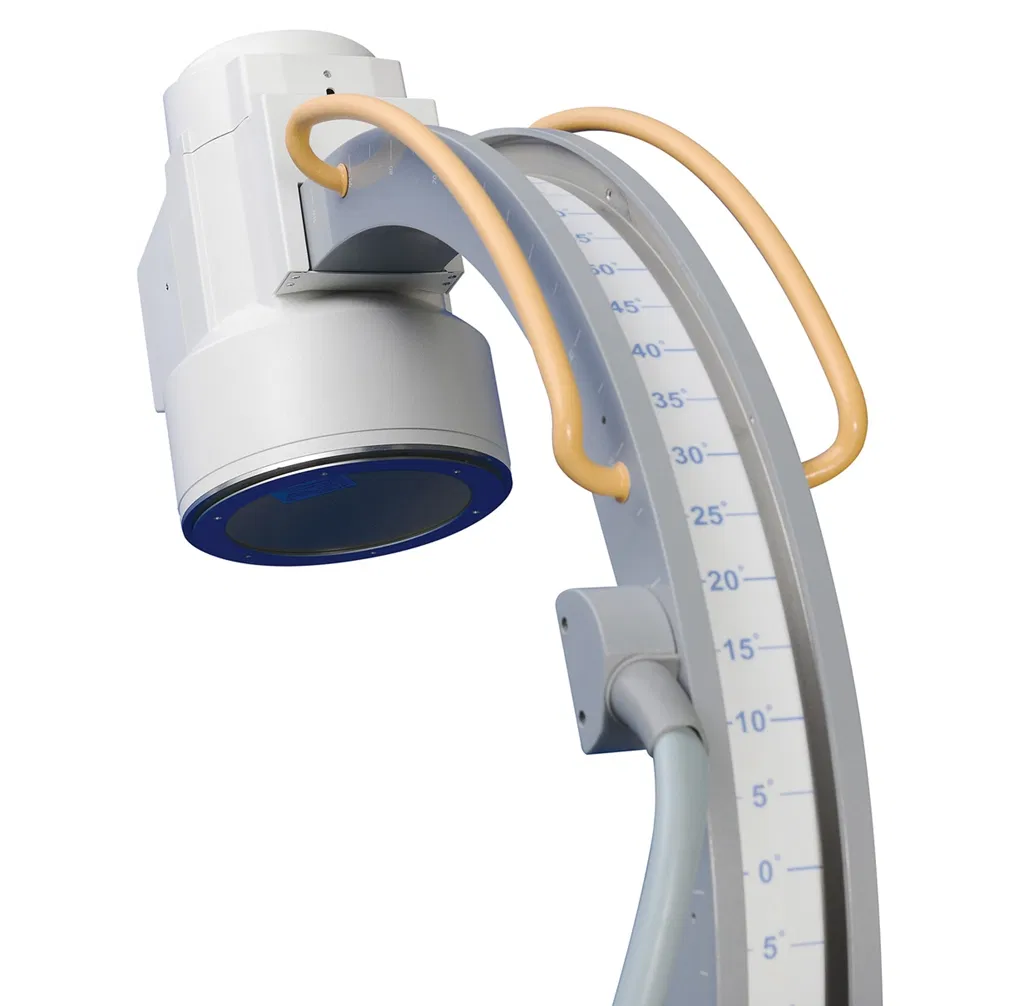

6) Large free space in arc: the space can reach 800mm,which is convenient for operation.

7) 9"/6"/4.5" three fields of vision: it facilitates diagnosis of partial enlargement.

8) CCD camera with rotation function:range of camera rotation:360°.

9) Original Korean linear slide rail can make the the movement of the machine flexibly.

10) Applied with Relay of famous brand, the noise can be reduced and the life time of the equipment can be increased.

HF generator	120KV,5KW,40KHz
Fluoroscopy mode	Fluoroscopy mode40~120kv0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~120kv 0,5-5mA Boost fluoroscopy 40~120kV 5~10mA; Photography 40~120kV 1~250mAs
X- ray tube	Dual-focus Rotating anode:0.3mm/0.6mm

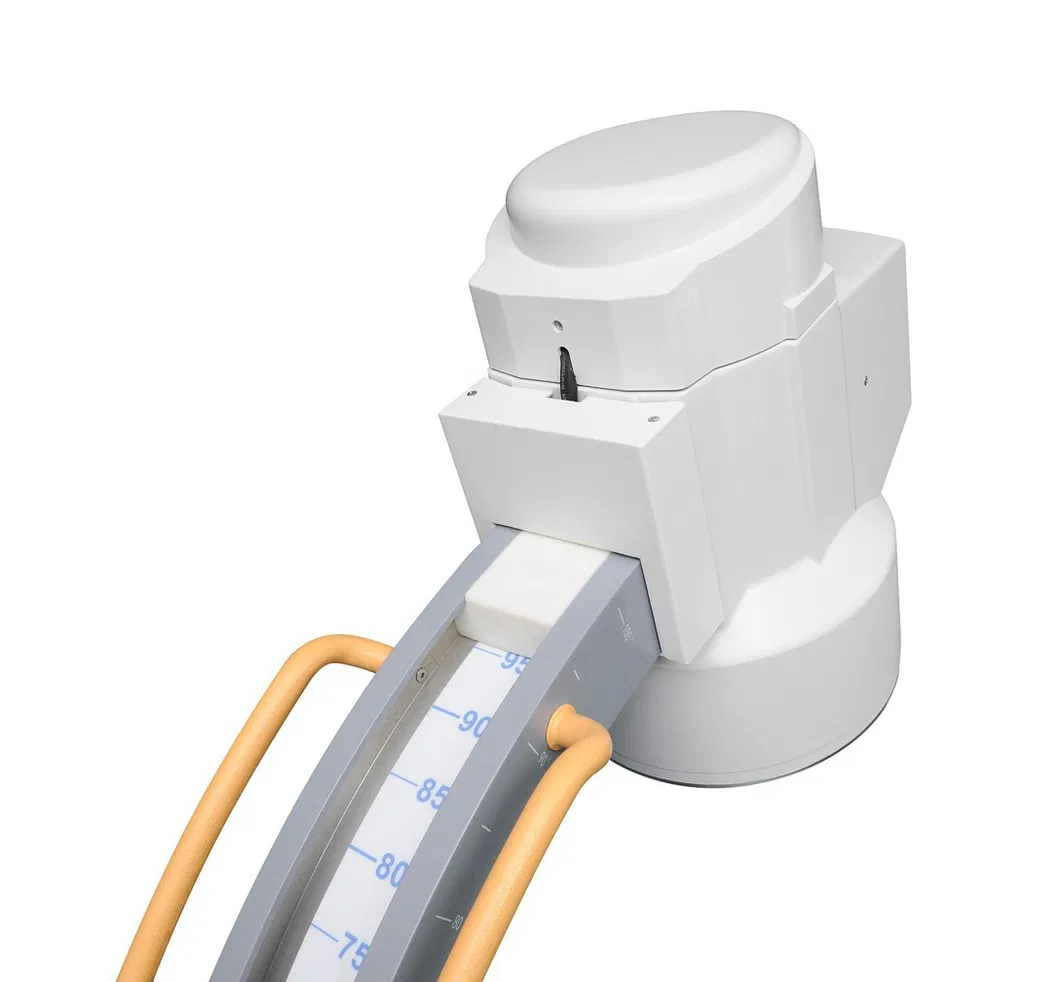

Image intensifier	Three fields of vision 9, 6, 4.5
CCD camera	1.05 million output pixels, 360° rotation
Image system	Recursive Noise Reduction Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison With DICOM 3.0, connect to PACS system
Mechanical motion specifications	Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180°
C-arm dimension	Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm800mm1850mm Image system: 750mm530mm1680mm

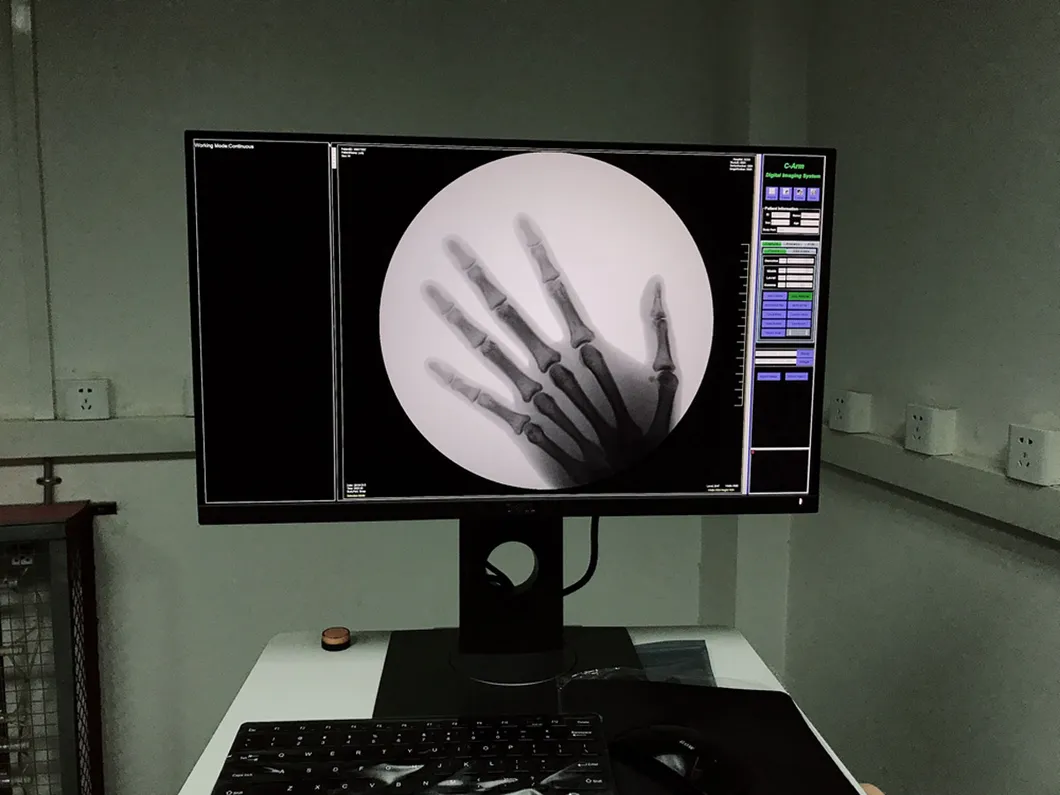

Standard configuration	High resolution CCD camera:1set x-ray generator:1set 9" image intensifier:1set image processor: 1set 23'' LCD high definition display: 1 set Mobile stand :1 set

	Item	Quantity
1	5KW high frequency X-ray generator, X-ray tube	1 set
2	9'',6'', 4.5'' three fields of vision image intensifier	1 set
3	1Kx1K CCD camera, 360° rotation	1 set
4	10.4'' touch screen interface control board	1 set
5	Grid (JPI Korea)	1 set
6	Japan imported Relay	1 set
7	Korea imported linear slide rail	1 set
8	23'' LCD high definition display	1 set
9	Work station (with software) with DICOM 3.0	1 set
