Sw-6000 China Top Quality Ophthalmic Equipment Corneal Topography

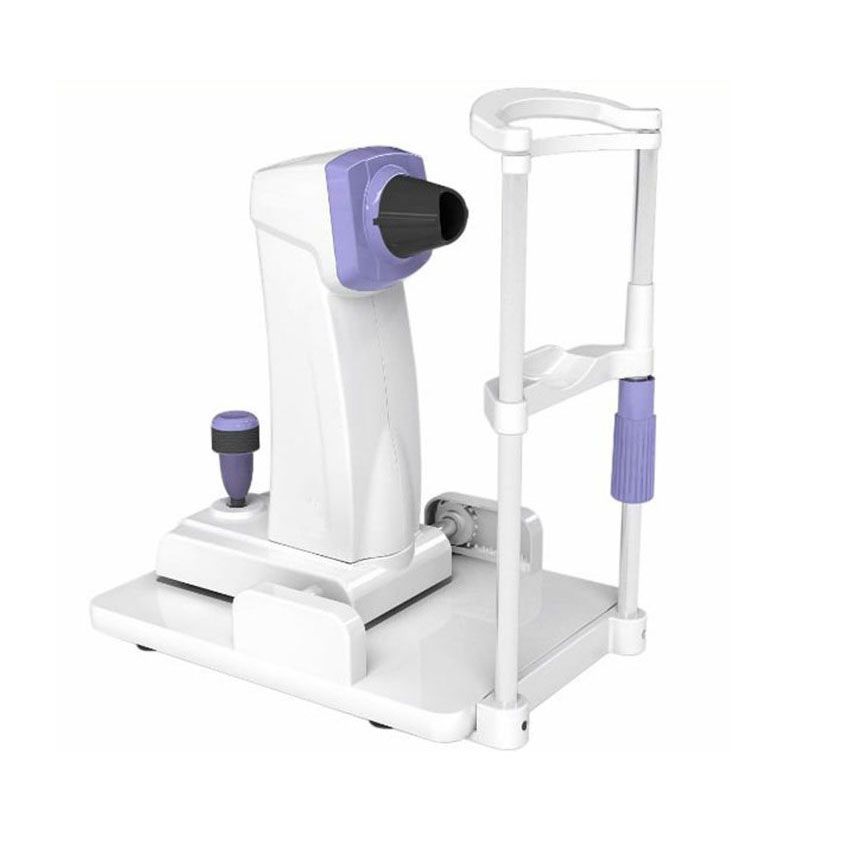

Corneal Topography
Model:SW-6000

Technical data
: By PLACIDO cone, 31 rings, a total of 7936 points. Through calculation and analysis, used in the clinical diagnosis of corneal astigmatism, quantitative analysis of corneal shape, display the corneal curvature by data or different colors, can display axial curvature map, tangential curvature map, height map, simulated corneal lens map and corneal 3D map. Can be used in preoperative examination and postoperative effect evaluation of corneal refractive surgery, can guide wearing contact data lens, to improve the accuracy of adaptive contact lens.

Measuring method: Placido cone
Coverage: 10.91mm(Diameter)
Measuring range for curvature radius: 5.5mm-10.0mm
Diopter range: 33.75D-61.36D
Precision: ± 0.02mm
Placido rings: 31 rings
Measurement points: 7, 936 points

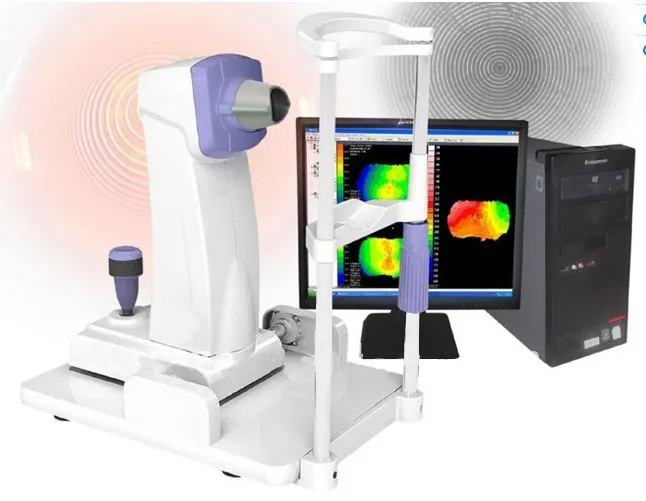

Display axial curvature map, tangential curvature map, elevation map, imitated keratoscope map and 3D cornea map
Image output: High-quality color inkjet printer
Adjust range: Left/right 86mm; Forward/backward 40mm; Up/down 30mm; Chinrest 5omm
Cornea contact lenses fitting function
Keratoconus detecting function
