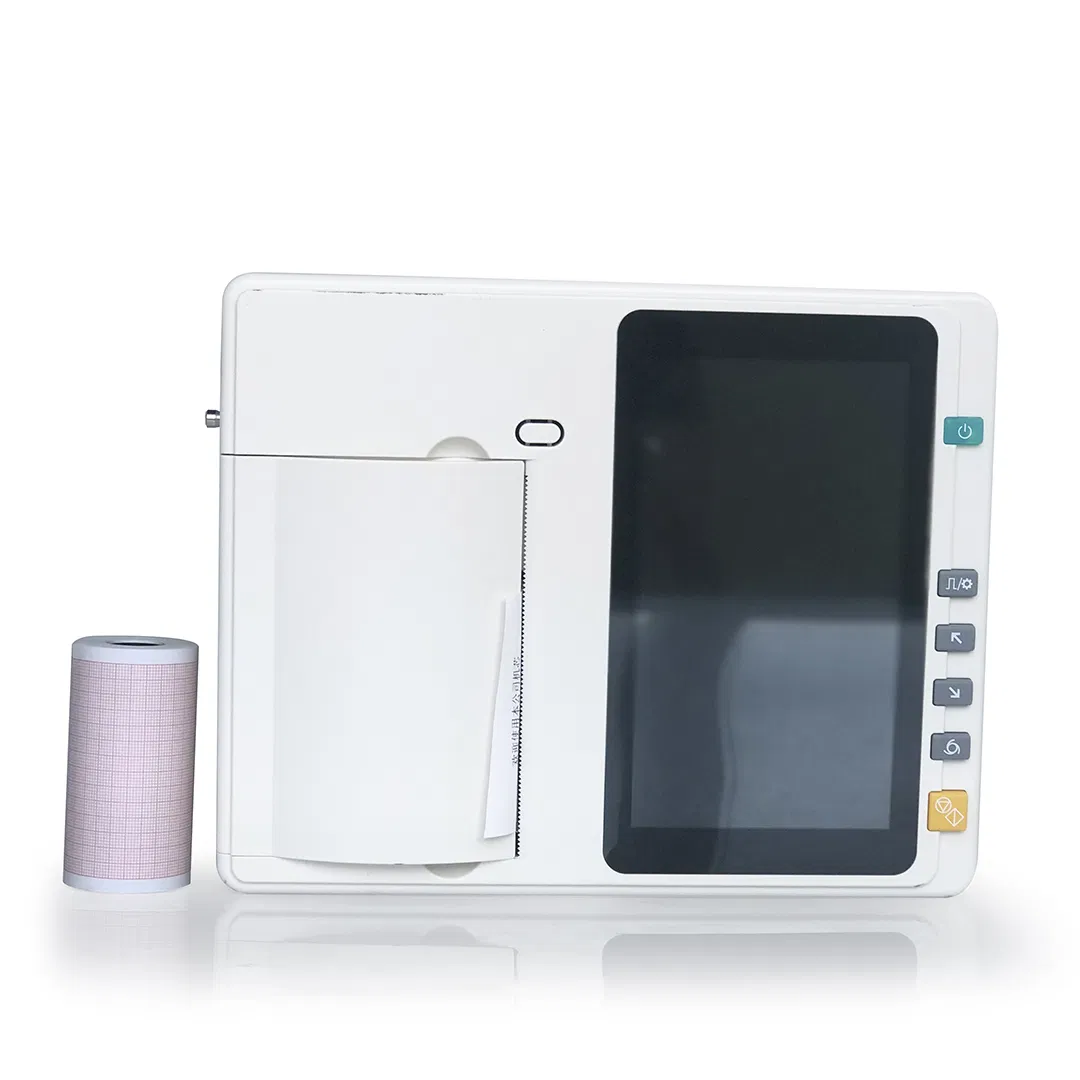

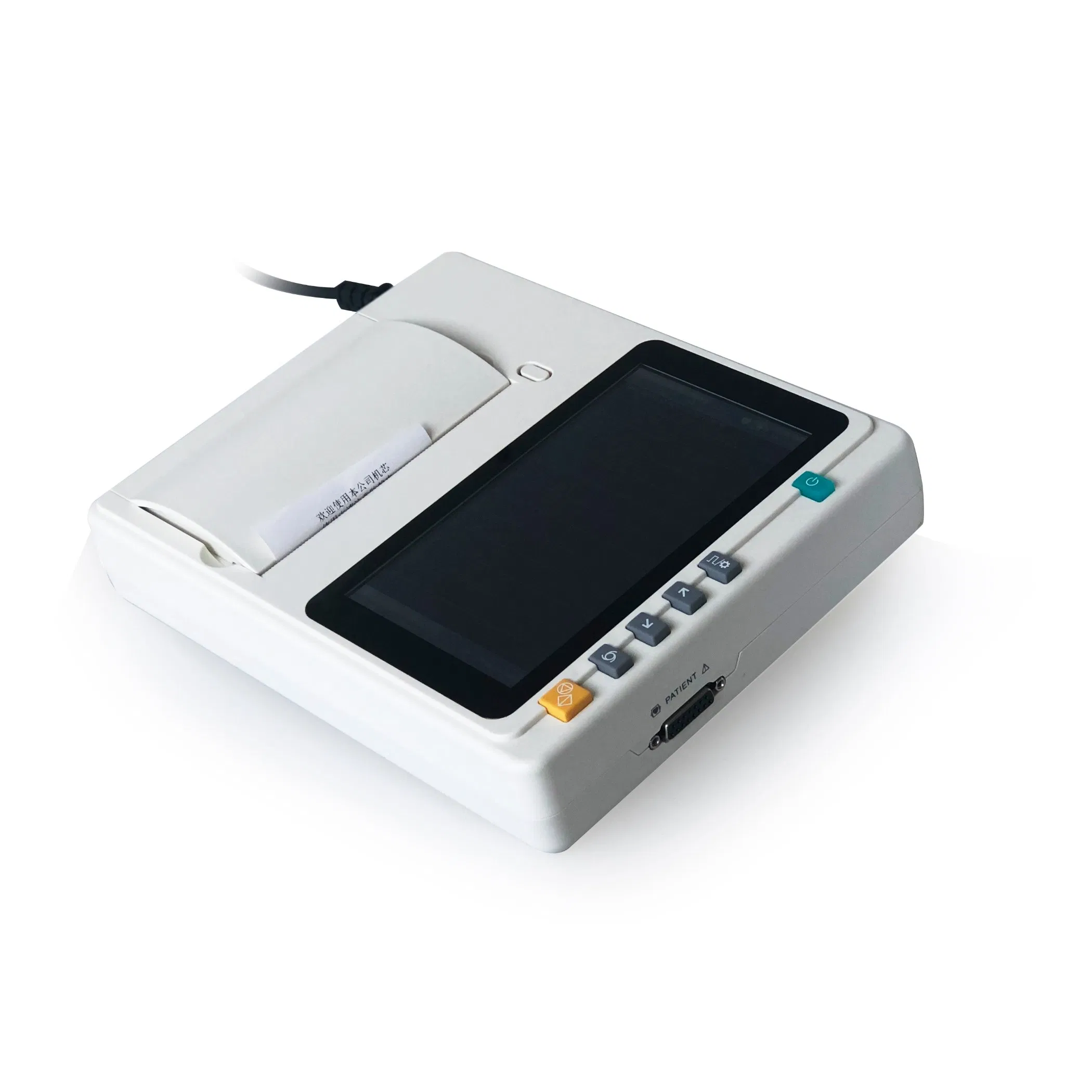

CE Approved Long Life 10 Channel Touch Screen ECG Device with Built-in Printer for Medical Supply
Company IntroductionJiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen. Konsung's main products include multi-parameter monitor, mobile health monitor, urine analyzer, oxygen concentra......
Send Inquiry
Product Description
Company Introduction
Jiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen. Konsung's main products include multi-parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure monitor, wearable health equipment ...
Highlights
i. 7 in LCD screen, touch operation
ii. 12 leads simultaneous acquisition
iii. Advanced algorithm for automatic measurements and interpretation
iv. Built-in high-resolution thermal printer with 10-channel report printing
v. Large internal memory which can be enlarged by USB flash disk Patients save/replay
Parameters
Configuration
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
FAQ
1. How does it record an electrocardiogram (ECG)?
ECG includes three electrodes to ensure measurement accuracy. Two electrodes are discreetly integrated inside the main body of the watch, and the third electrode is in the stainless steel bezel of the watch. Users simply need to touch both sides of the bezel to start recording ECG anytime and anywhere.
2. What is the benefit of having an ECG on the wrist?
When a user feels symptoms such as palpitation, users can place his hand on his watch and in 30 seconds, ECG will record an electrocardiogram by detecting your cardiac electrical signals. After the measurement, Move ECG vibrates to notify users that the reading is complete.
3. How can I see the results?
After 30 seconds of measurement, ECG vibrates to notify users that the reading is complete. Where it displays if the heart is beating in a normal pattern or whether there are signs. Additionally, users can find a detailed graph in Health Mate of their long-term heart rate trends and ECG records.
4. How can I share my results or act on it?
Data collected by Move ECG and visualized in Health Mate can easily be shared with a doctor or healthcare professional, which can help assist with early diagnosis and prevention.
5. What is the difference between ECG machine and patient monitor?
Patient monitor and ECG machine can detect ECG, but there is still a big difference between the two, first of all, the patient
monitor is mainly to monitor heart rate, breathing, oxygen saturation, and it is a dynamic monitoring. Patient monitor will show that the ECG waveform is constantly changing, generally there is no storage function. If an abnormality occurs during the custody process, an alarm will be alarm immediately. The ECG machine in the 24-hour dynamic electro-electrogram test, the 24-hour heartbeat is recorded, and then analyze the specific situation, and there a powerful storage function.
Jiangsu Konsung Bio-medical Science and Technology Co., Ltd established in 2005. Konsung has a production base in Danyang, Jiangsu, and R&D center in Shenzhen. Konsung's main products include multi-parameter monitor, mobile health monitor, urine analyzer, oxygen concentrator, blood pressure monitor, wearable health equipment ...
Highlights

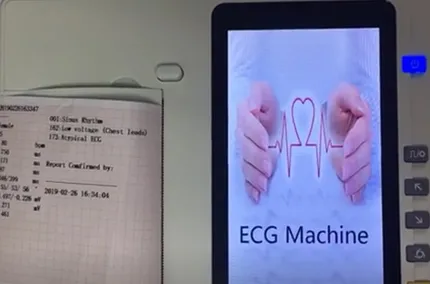

i. 7 in LCD screen, touch operation
ii. 12 leads simultaneous acquisition
iii. Advanced algorithm for automatic measurements and interpretation

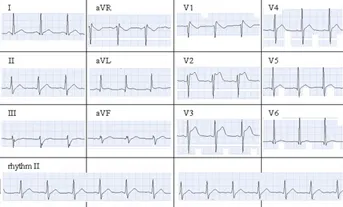

iv. Built-in high-resolution thermal printer with 10-channel report printing

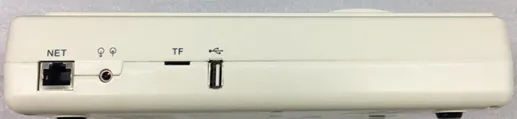

v. Large internal memory which can be enlarged by USB flash disk Patients save/replay
Parameters
| Product Name | ECG machine |
| Lead | standard 12 leads |
| Measurement range | ±5mVpp |
| Time constant | ≥3.2s |
| Frequency response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV |
| Input Impedance | ≥50MΩ |
| Input Impedance | <0.05μA |
| Noise level | <15μVp-p |
| Patient current leakage | <10μAv(220V-240V) |
| Recording way | Thermal printing system |
| Recording Paper | Roll 80×20M |
| Paper Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Sample rate | 1000sps/channel |
Configuration
| Description | Qty (pcs) |
| Hosts | 1 |
| ECG Lead Wire | 1 |
| Power cable | 1 |
| Instruction | 1 |
| Thermal printing paper | 1 |
| Limp clip | 4 |
| Chest suction ball | 6 |
| Ground cable | 1 |

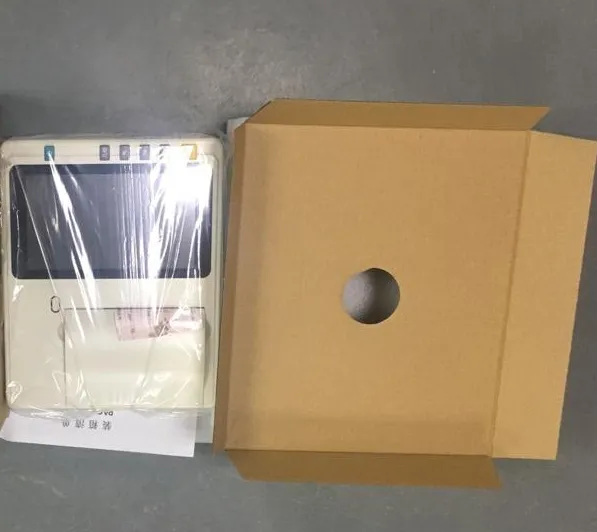

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
FAQ
1. How does it record an electrocardiogram (ECG)?
ECG includes three electrodes to ensure measurement accuracy. Two electrodes are discreetly integrated inside the main body of the watch, and the third electrode is in the stainless steel bezel of the watch. Users simply need to touch both sides of the bezel to start recording ECG anytime and anywhere.
2. What is the benefit of having an ECG on the wrist?
When a user feels symptoms such as palpitation, users can place his hand on his watch and in 30 seconds, ECG will record an electrocardiogram by detecting your cardiac electrical signals. After the measurement, Move ECG vibrates to notify users that the reading is complete.
3. How can I see the results?
After 30 seconds of measurement, ECG vibrates to notify users that the reading is complete. Where it displays if the heart is beating in a normal pattern or whether there are signs. Additionally, users can find a detailed graph in Health Mate of their long-term heart rate trends and ECG records.
4. How can I share my results or act on it?
Data collected by Move ECG and visualized in Health Mate can easily be shared with a doctor or healthcare professional, which can help assist with early diagnosis and prevention.
5. What is the difference between ECG machine and patient monitor?
Patient monitor and ECG machine can detect ECG, but there is still a big difference between the two, first of all, the patient
monitor is mainly to monitor heart rate, breathing, oxygen saturation, and it is a dynamic monitoring. Patient monitor will show that the ECG waveform is constantly changing, generally there is no storage function. If an abnormality occurs during the custody process, an alarm will be alarm immediately. The ECG machine in the 24-hour dynamic electro-electrogram test, the 24-hour heartbeat is recorded, and then analyze the specific situation, and there a powerful storage function.
