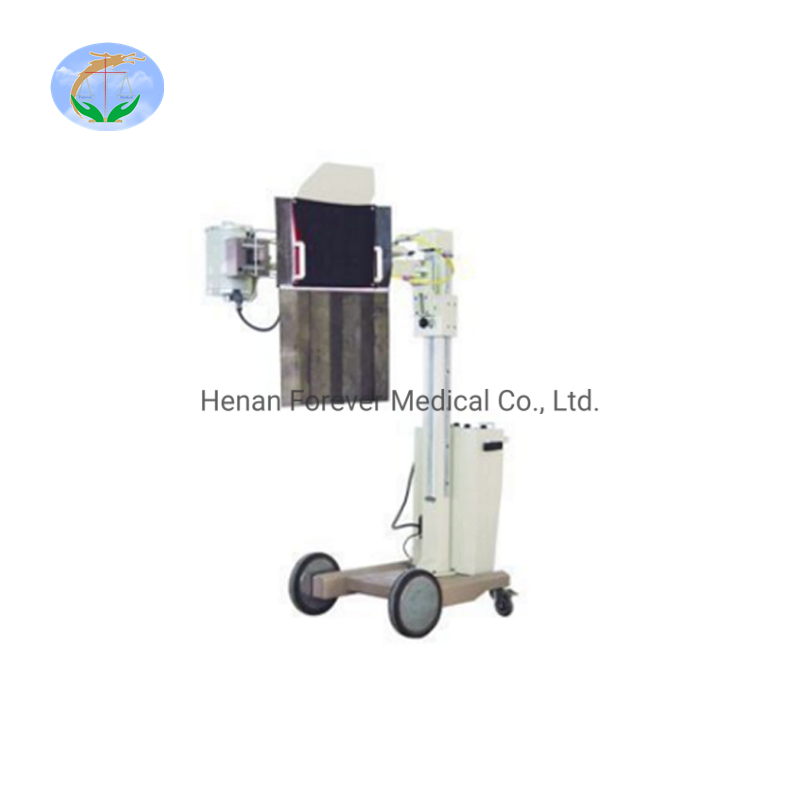

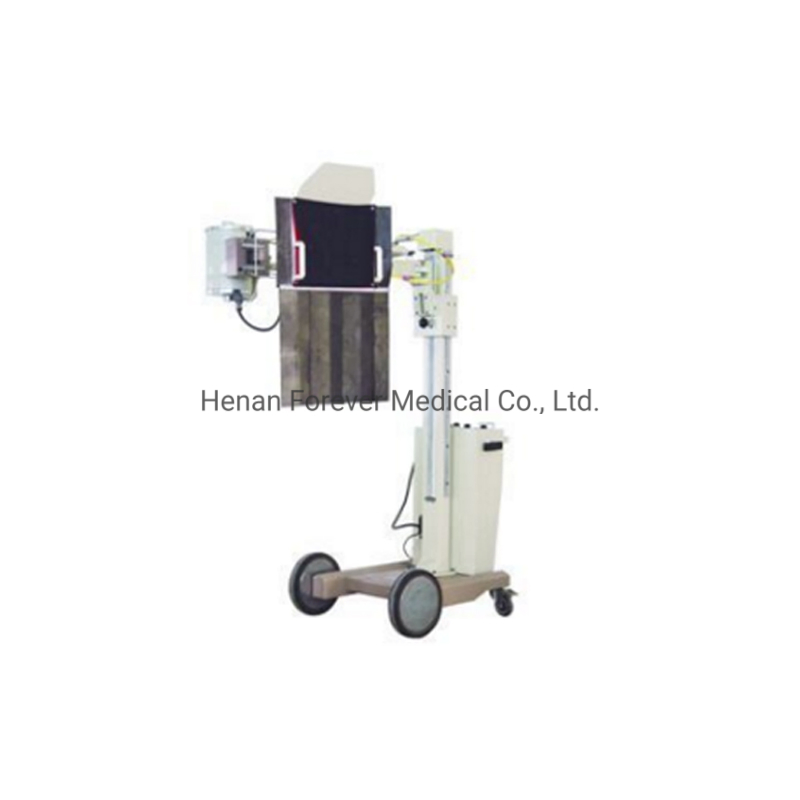

China Supply Better Price Hospital Medical Digital X-ray Machine Medical Diagnostic Radiography System

Product Description

X-ray generator is combined.
Single focus, bridge rectification.
It is precise, safe, reliable and flexible.

1. Can be used in ward and emergency treatment room for

fluoroscopy and radiography.
2. X-ray generator is combined.
3. Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.
5. A wireless remote control device (control range ≥ 5 m) is used

X-ray generator	Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
Max rated capability	Fluoroscopy:75kVp, 30mA Radiography:90kVp,50mA
Power supply	Voltage	180~ 240V
	Frequency	50Hz
	Power	not lower than 3.5kVA
	Resistance	not larger than 0.4Ω
Voltage adjustment range of x-ray tube	45~ 90kVp (divided into 10 steps)
Range of the timer	0.08~ 6.3 s
Fluorescent screen size	280 mm× 350 mm
Distance between the focus to the screen	620 mm
Tube head carriage movement range	vertical: 950 mm horizontal: 160 mm
The rotation angle of tube head carriage	60°
The rotation angle of the controller and the accessory case	60°
Specification of X-ray tube	Model XD3-3.5/100 fixed anode, single focus 2.6mm
Transport dimension,Weight	1175×870×2050(mm),(NET)150kg/(GROSS)244kg
