Home > Products > Medical Diagnosis Equipment > Compatible Datex Ohmeda 545316 ECG Leadwire with IEC Clip

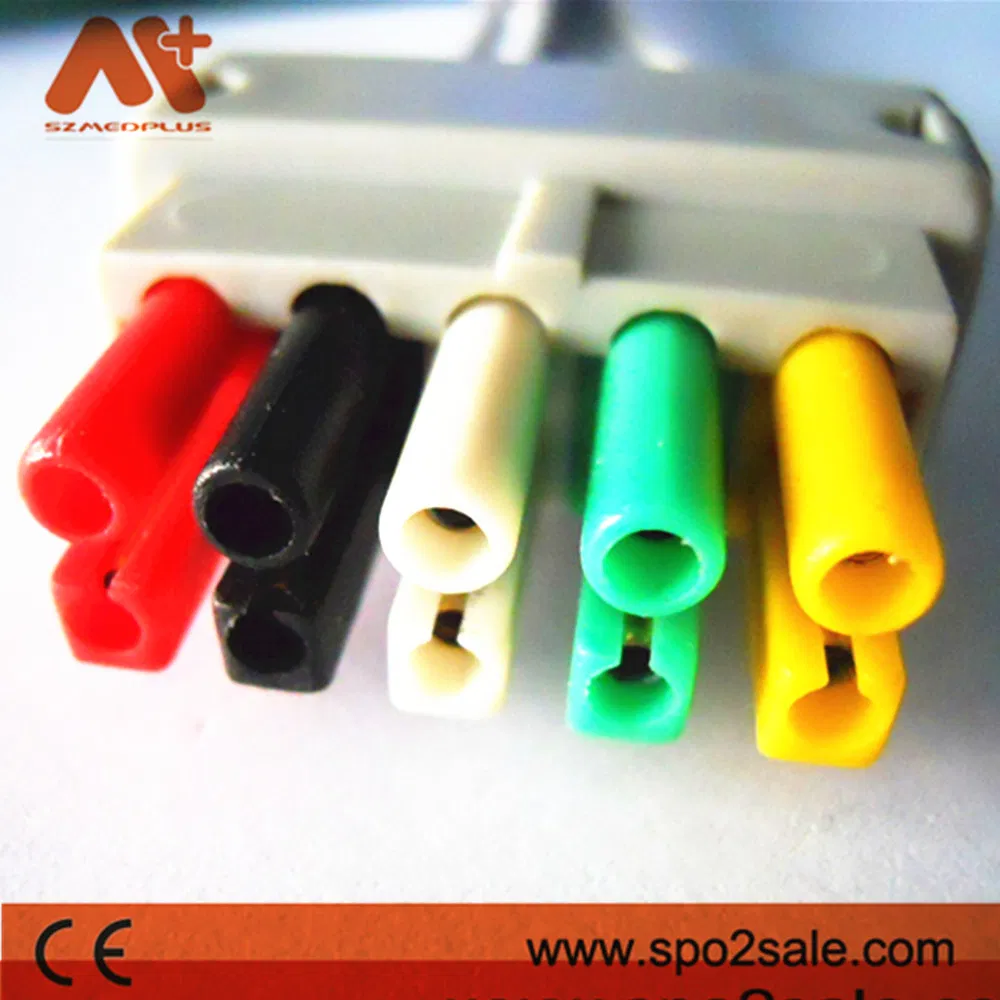

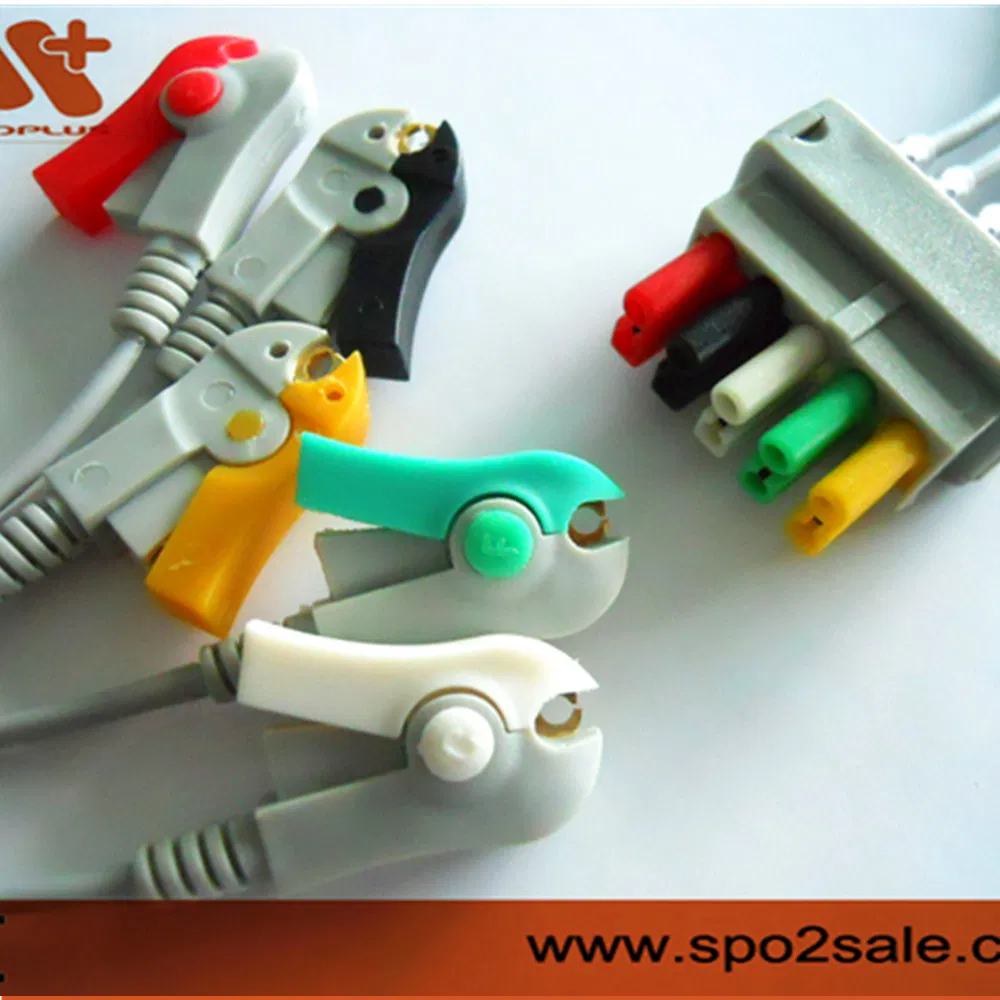

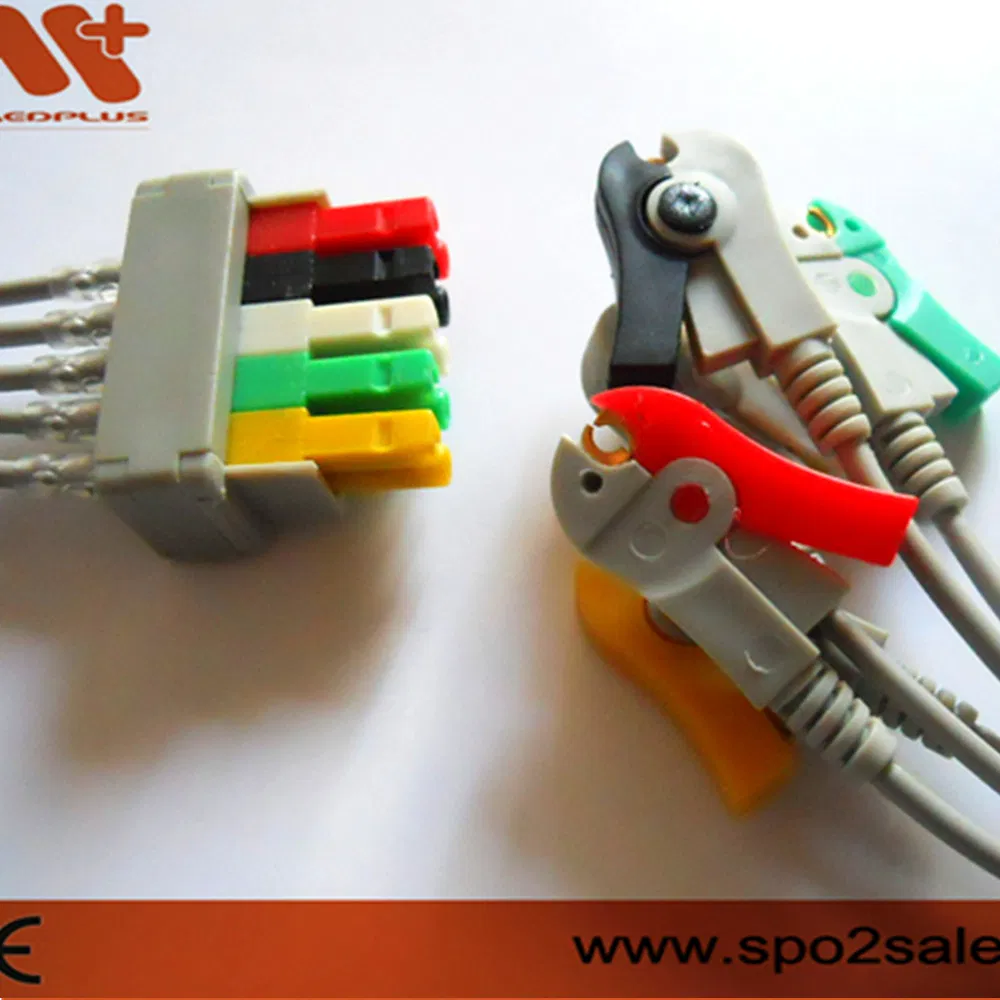

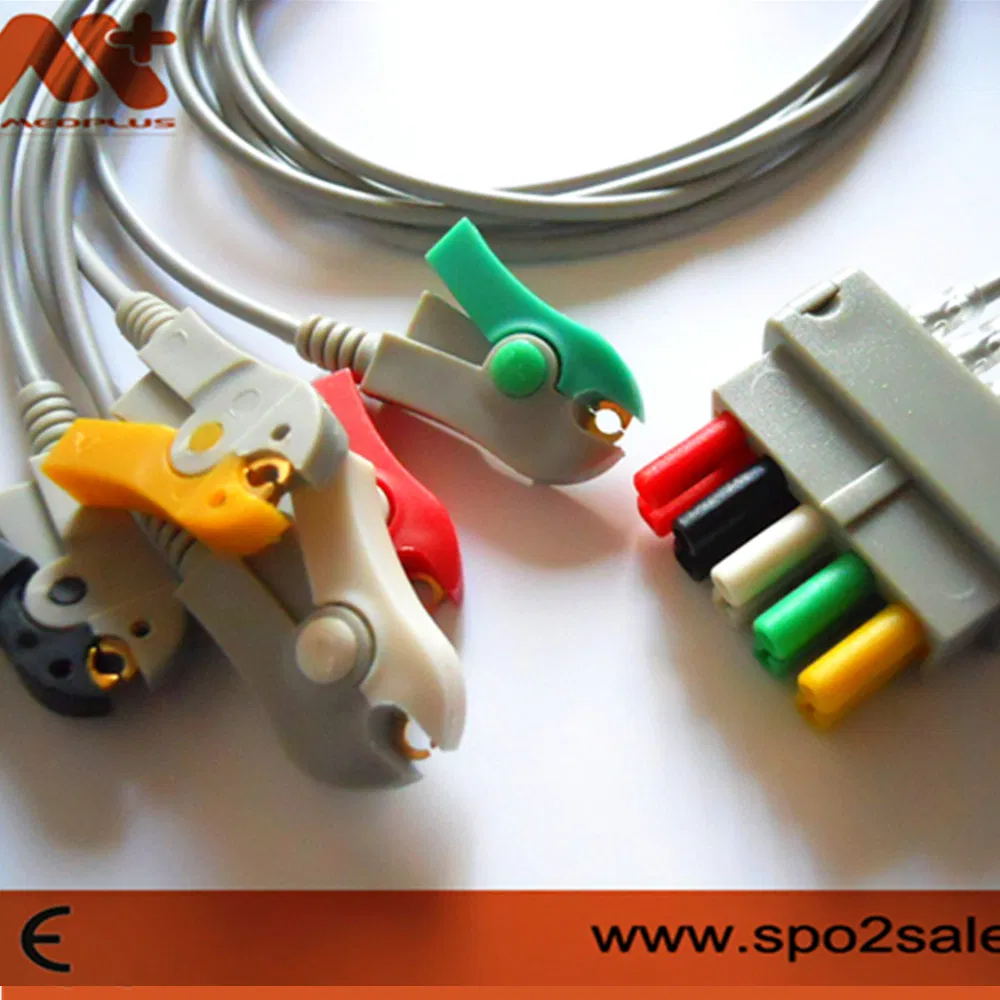

Compatible Datex Ohmeda 545316 ECG Leadwire with IEC Clip
Compatible Datex Ohmeda 545316 ECG Leadwire with IEC clipOEM:Datex Ohmeda: 545316Compatible with: AS/3, CS/3, Light, S/5, Satliteplus, Cardiocap/5, Cardiocap I, Cardiocap IIproducts parameters: 1. Biocompatibility: All patient contact materials are latex free; 2. Storage and Transport Environment: ......
Send Inquiry
Product Description
Compatible Datex Ohmeda 545316 ECG Leadwire with IEC clip
OEM:
Datex Ohmeda: 545316
Compatible with: AS/3, CS/3, Light, S/5, Satliteplus, Cardiocap/5, Cardiocap I, Cardiocap II
products parameters:
1. Biocompatibility: All patient contact materials are latex free;
2. Storage and Transport Environment: -5°C~+40°C;
3.Humidity: Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa;
4. Operating Temperature: 0°C~+40°C (32 to 104°F);
5. Shipment: DHL/FedEx/EMS/TNT/UPS, As your request
Technical Specifications:
SZMEDPLUS offer:
Payment:
Transportation Methods:
warranty:
1, Reusable spo2 sensors are carried 12 months warranty to repair for free due to the quality problems since ex-factory;
2, ECG cable and leadwires, spo2 adapter cable, EKG cable are carried 6 months for free (excluding disposable spo2 sensor), but including the misuse, negligence or accidents causing from the buyer.
Return:
For all warranty return items, prior authorization to return merchandise must be obtained by contacting SZMEDPLUS. If the items are not covered under warranty, customer is responsible for all shipping fee 25% restocking fee.
Contact information:
Company:Shenzhen Medplus Accessory Co.,LTD
Saler: Jenie Wei
OEM:
Datex Ohmeda: 545316
Compatible with: AS/3, CS/3, Light, S/5, Satliteplus, Cardiocap/5, Cardiocap I, Cardiocap II
products parameters:
1. Biocompatibility: All patient contact materials are latex free;
2. Storage and Transport Environment: -5°C~+40°C;
3.Humidity: Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa;
4. Operating Temperature: 0°C~+40°C (32 to 104°F);
5. Shipment: DHL/FedEx/EMS/TNT/UPS, As your request
Technical Specifications:
| Category | ECG |
|---|---|
| Certifications | CE, ISO13485 |
| Latex-free | Yes |
| Lead Cable Color | Gray |
| Lead Cable Diameter | 4 mm |
| Lead Cable Material | TPU Jacket |
| Lead Color Coding | IEC |
| Lead Number | 5 lead |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Adult/Pediatric |
| Proximal Connector | Twin Pin Connector |
| Sterile | No |
| Total Cable Length | 3.5M |
| Cable Color | Gray |
| leadwires Cable Length | 1m |
| Cable Material | TPU Jacket |
| Warranty | 6 months |
| Weight | 0.1kg |
SZMEDPLUS offer:

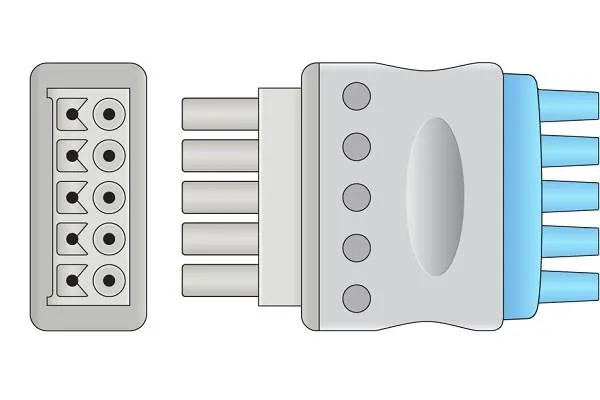

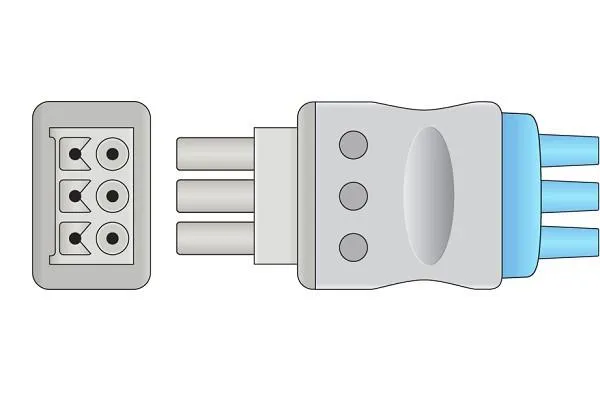

| P/N | Description | Instrument connector |
| MPC-DX3SI | 3-Lead Snap IEC |  |
| MPC-DX3SA | 3-Lead Snap AHA | |
| MPC-DX3CI | 3-Lead Clip IEC | |
| MPC-DX3CA | 3-Lead Clip AHA | |
| MPC-DX5SI | 5-Lead Snap IEC |  |
| MPC-DX5SA | 5-Lead Snap AHA | |
| MPC-DX5CI | 5-Lead Clip IEC | |
| MPC-DX5CA | 5-Lead Clip AHA |
Payment:
Transportation Methods:
warranty:
1, Reusable spo2 sensors are carried 12 months warranty to repair for free due to the quality problems since ex-factory;
2, ECG cable and leadwires, spo2 adapter cable, EKG cable are carried 6 months for free (excluding disposable spo2 sensor), but including the misuse, negligence or accidents causing from the buyer.
Return:
For all warranty return items, prior authorization to return merchandise must be obtained by contacting SZMEDPLUS. If the items are not covered under warranty, customer is responsible for all shipping fee 25% restocking fee.
Contact information:
Company:Shenzhen Medplus Accessory Co.,LTD
Saler: Jenie Wei
