Cve -1300 Colono Videoscope Endoscopy
Medical Colono Videoscope Endoscopy Machine CVE-1300Excellent Optical SystemSuper-high Resolution: With 440K pixels of Color Charge Coupled Device (CCD), makes you enjoy top class of image quality and reflects high-definitions and perfect color. Circu......
Send Inquiry
Product Description

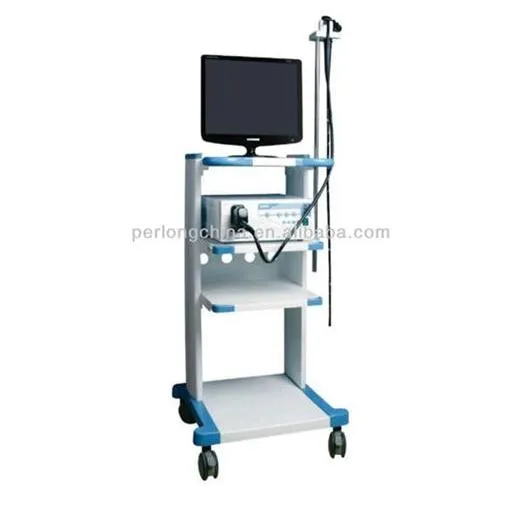

Medical Colono Videoscope Endoscopy Machine CVE-1300
Excellent Optical System
Super-high Resolution: With 440K pixels of Color Charge Coupled Device (CCD), makes you enjoy top class of image quality and reflects high-definitions and perfect color.
Circular image makes observation clear.
Both big and small images display, picture in picture feature makes observation easier.
Completely waterproof design
VME series can be immersed completely into detergent solution when cleaning and disinfection.
Convenient Leakage Tester can promptly confirm whether endoscopes damage to prevent from deep damage by water.
Innovated Control Body makes comfortable feelings and more flexible operation.
To release operator pressure by angle operation, traction chain structure, and flexible bending section.
The durability of whole equipment is improved by long life design of bending section.
It is becoming from soft to rigid from the distal end of insertion tube, which allows operator to insert while applied freely and minimizes patients' pain.
Diameter of insertion tube13mm
Diameter of distal-end13.4mm
Working length1330mm
Diameter of instrument channel3.2mm
Field of view120°
Depth of field3-100mm
Center Resolution≥ 7.41 Lp/mm
Angulations180° Up/Down, 160° Right/Left
Water flow≥ 45ml/min
Air flow≥ 800ml/min
Suction flow≥ 400ml/min
Excellent Optical System
Super-high Resolution: With 440K pixels of Color Charge Coupled Device (CCD), makes you enjoy top class of image quality and reflects high-definitions and perfect color.
Circular image makes observation clear.
Both big and small images display, picture in picture feature makes observation easier.
Completely waterproof design
VME series can be immersed completely into detergent solution when cleaning and disinfection.
Convenient Leakage Tester can promptly confirm whether endoscopes damage to prevent from deep damage by water.
Innovated Control Body makes comfortable feelings and more flexible operation.
To release operator pressure by angle operation, traction chain structure, and flexible bending section.
The durability of whole equipment is improved by long life design of bending section.
It is becoming from soft to rigid from the distal end of insertion tube, which allows operator to insert while applied freely and minimizes patients' pain.
Diameter of insertion tube13mm
Diameter of distal-end13.4mm
Working length1330mm
Diameter of instrument channel3.2mm
Field of view120°
Depth of field3-100mm
Center Resolution≥ 7.41 Lp/mm
Angulations180° Up/Down, 160° Right/Left
Water flow≥ 45ml/min
Air flow≥ 800ml/min
Suction flow≥ 400ml/min
