Full Digital Professional Digital Ultrasound Scanner Trolley Price
M-B350T Full Digital Trolley Ultrasound Scanner -- 80 elements'M-B370T Full Digital Trolley Ultrasound Scanner -- 96 elements'First-class digital imaging technology, more clearer image: Full-digital beam imaging technologyReal-time dynamic receiving focus point by pointReal-time dynamic soun......
Send Inquiry
Product Description

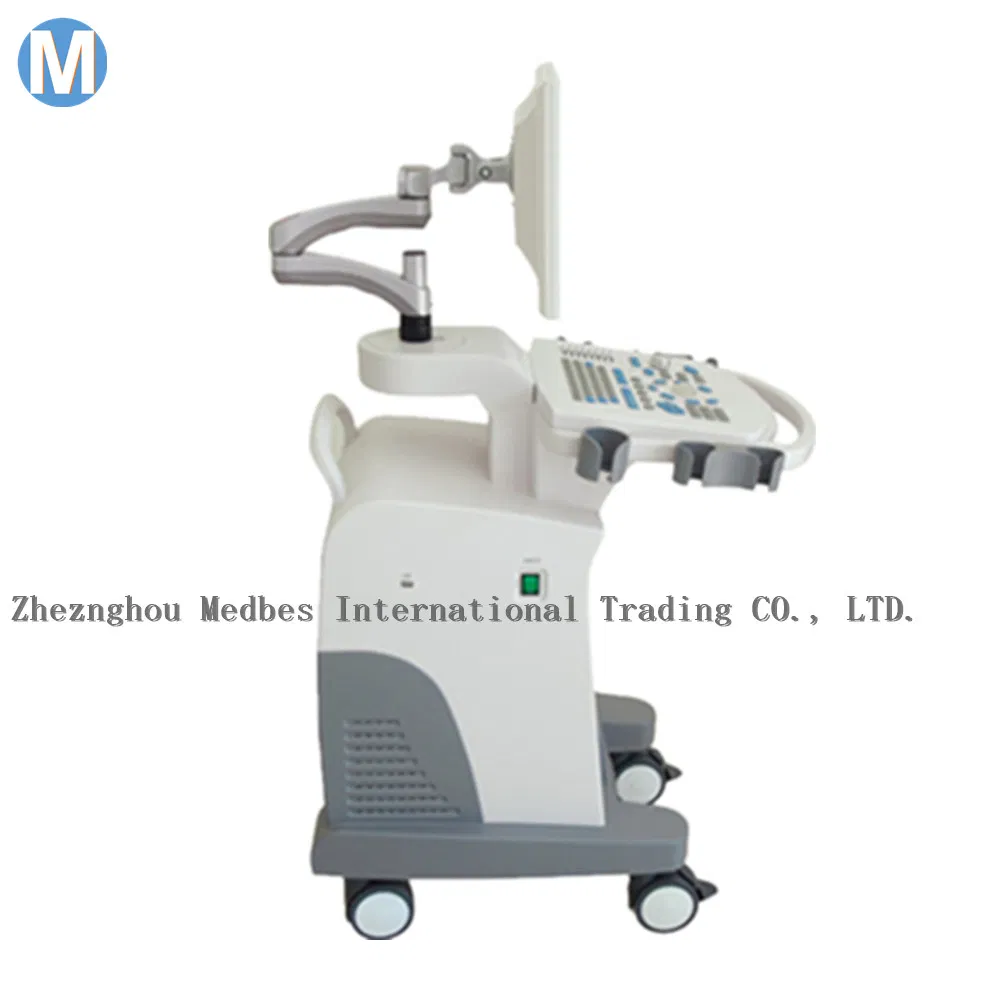

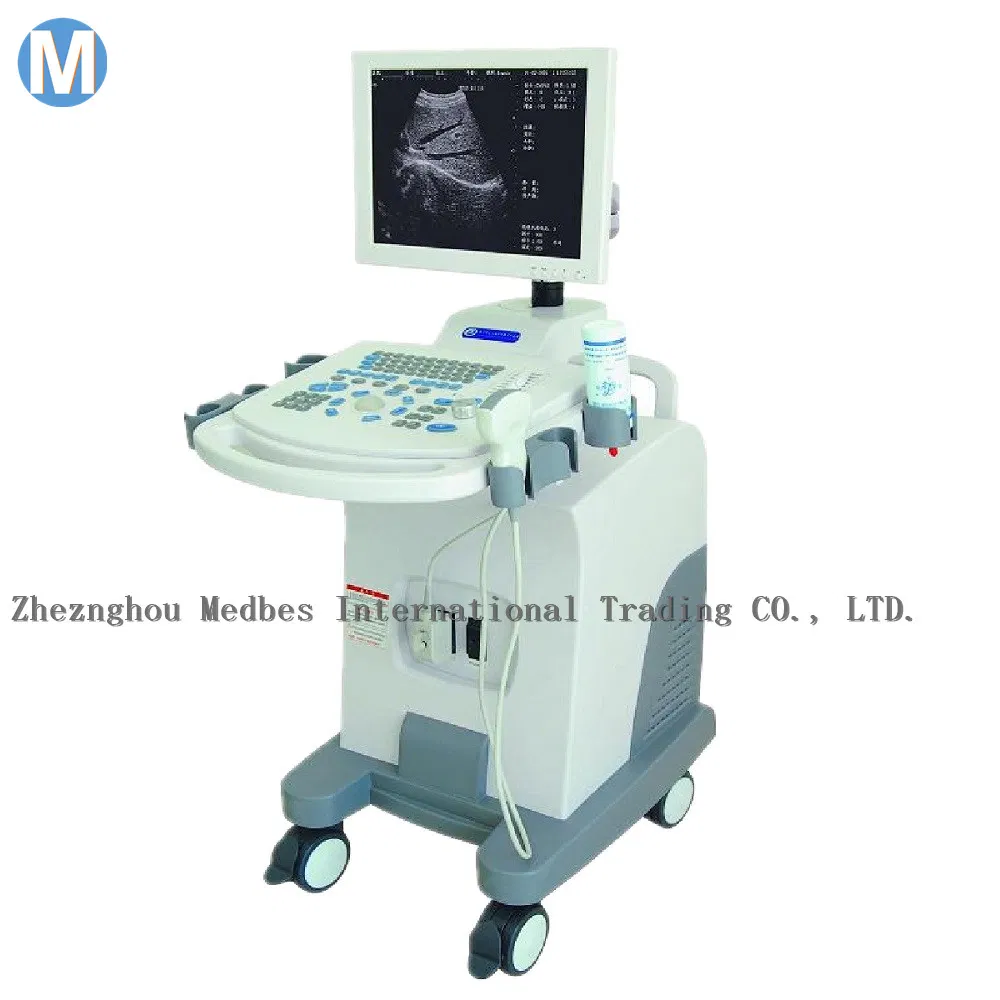

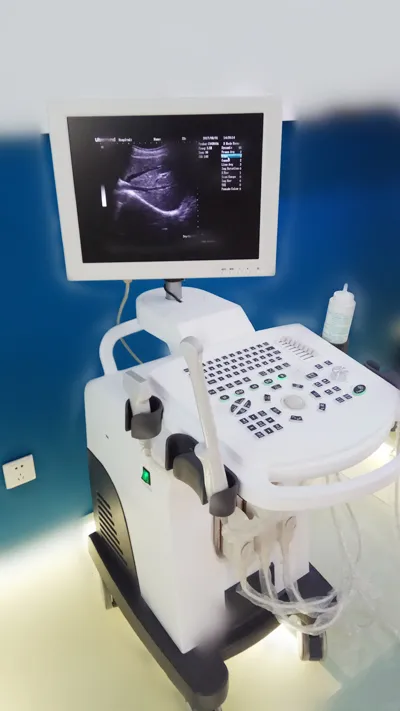

M-B350T Full Digital Trolley Ultrasound Scanner -- 80 elements
'M-B370T Full Digital Trolley Ultrasound Scanner -- 96 elements'
First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
THI and Histogram function
Support OB Report
Support: Chinese/English/Spanish/French/Portuguese/Russian/
Flexible and convenient operating system:

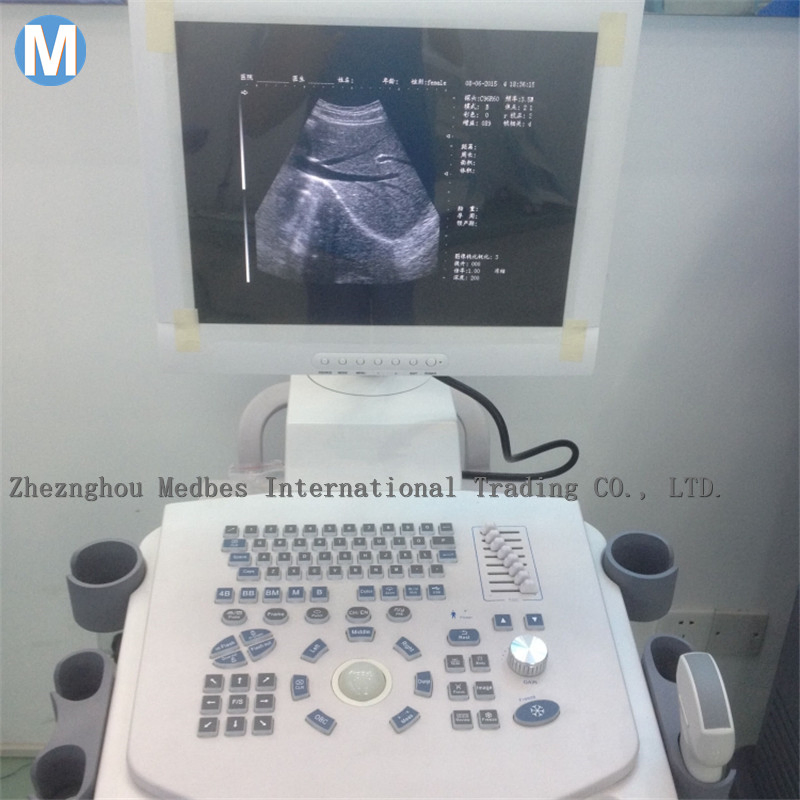

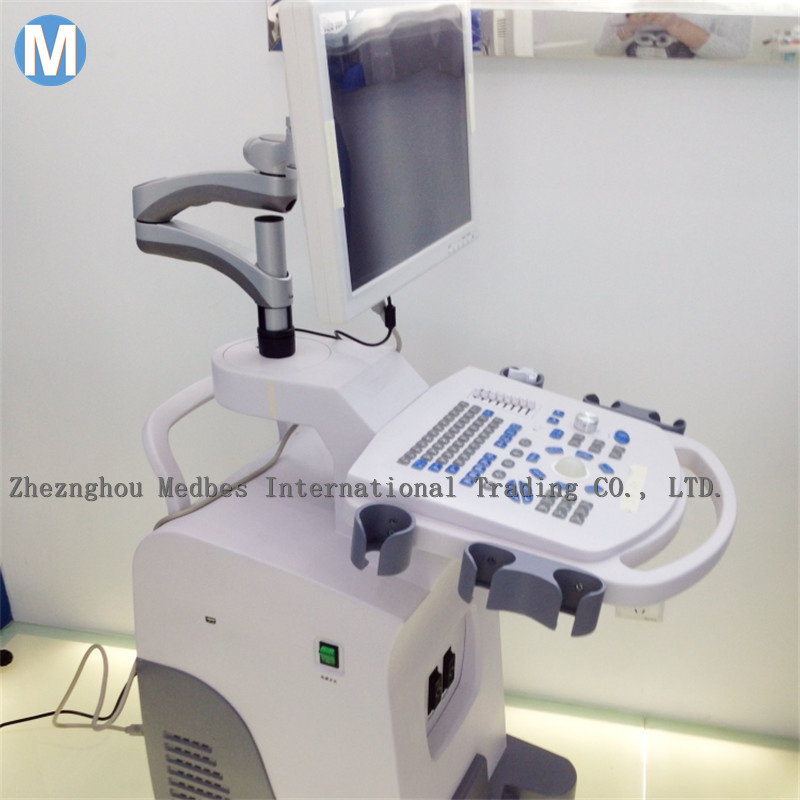

15 inch LED liquid crystal display, angle range is more flexible to adjust

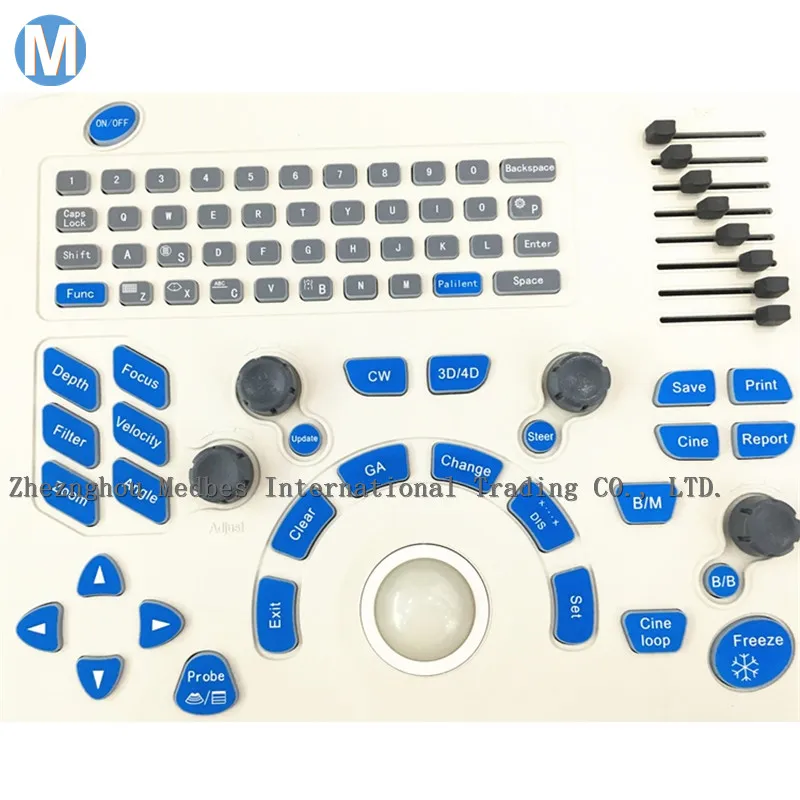

Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop, image can display circularly and automatically.
'M-B370T Full Digital Trolley Ultrasound Scanner -- 96 elements'
First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
THI and Histogram function
Support OB Report
Support: Chinese/English/Spanish/French/Portuguese/Russian/
Flexible and convenient operating system:
15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop, image can display circularly and automatically.
Specifications:

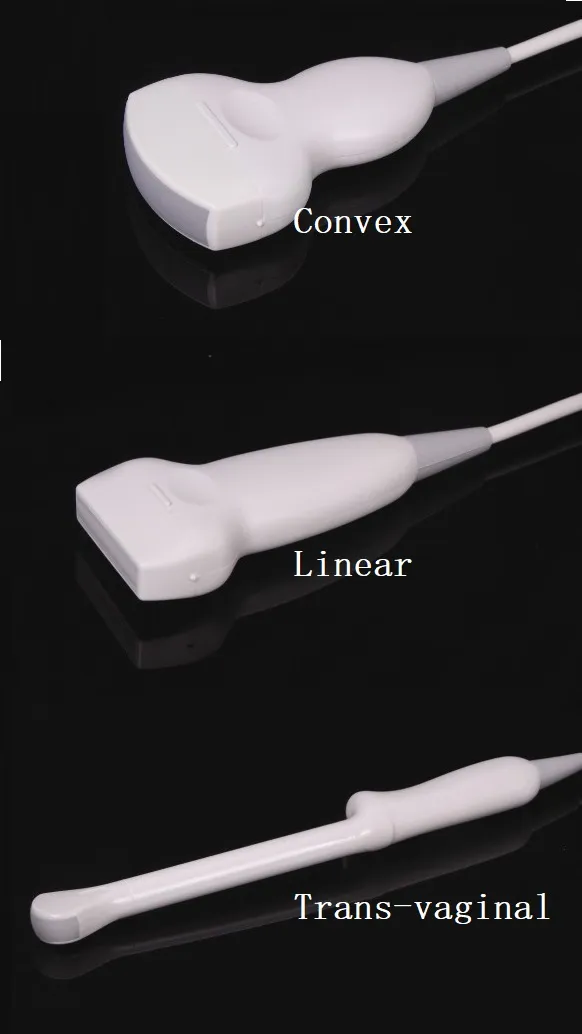

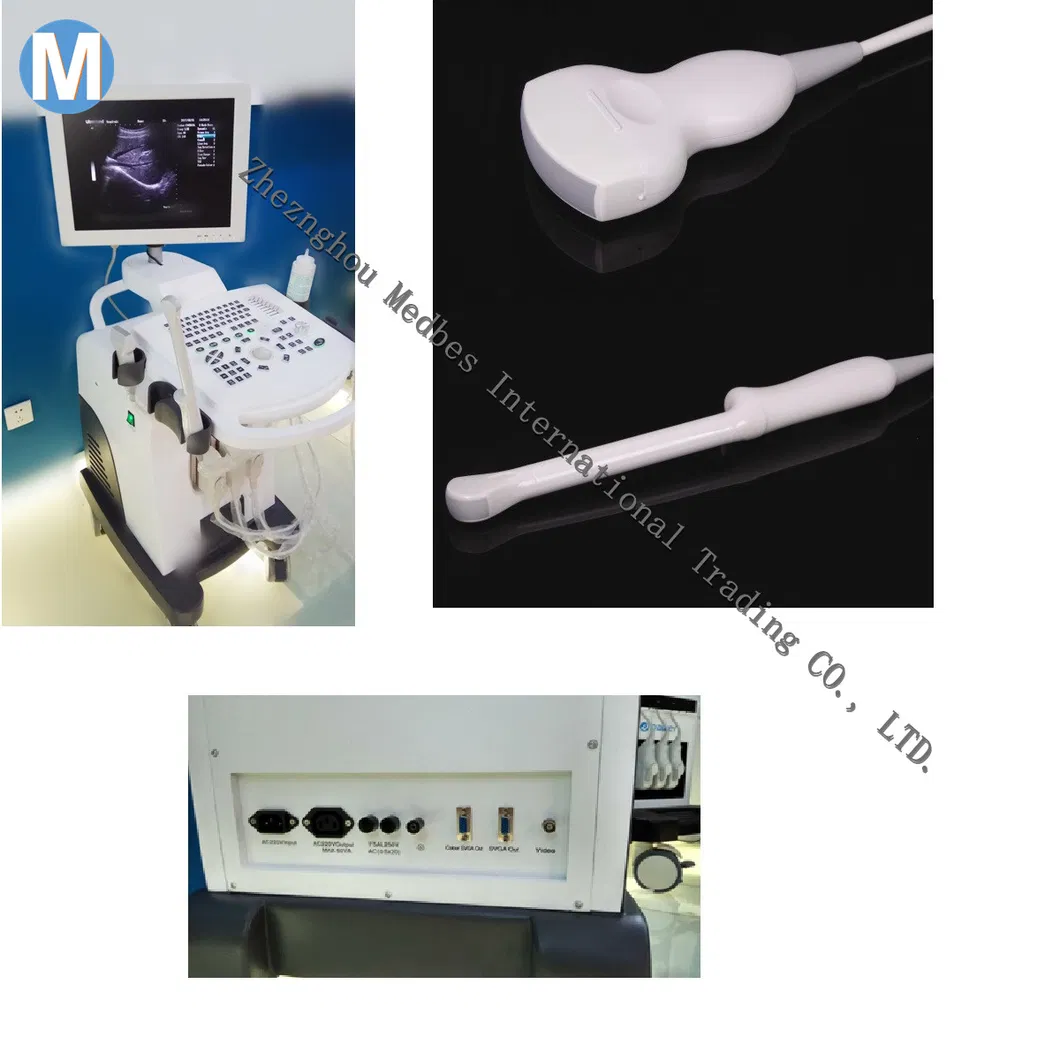

Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level
(126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm)
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level (35,42,49,62,69,76,83,90,97,104mm)
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level (62,69,76,83,90,97,104,111,125,139mm)
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level (62,69,83,97,111,125,139,152,166,180mm)
Upgraded Data sheet:

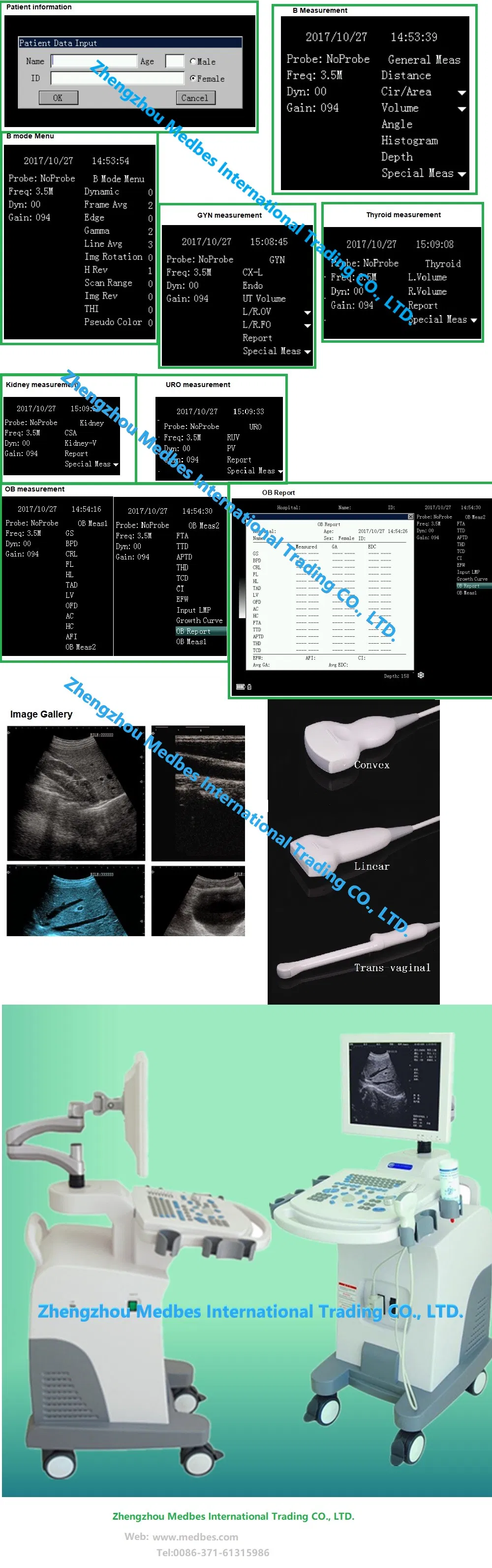

Patient information

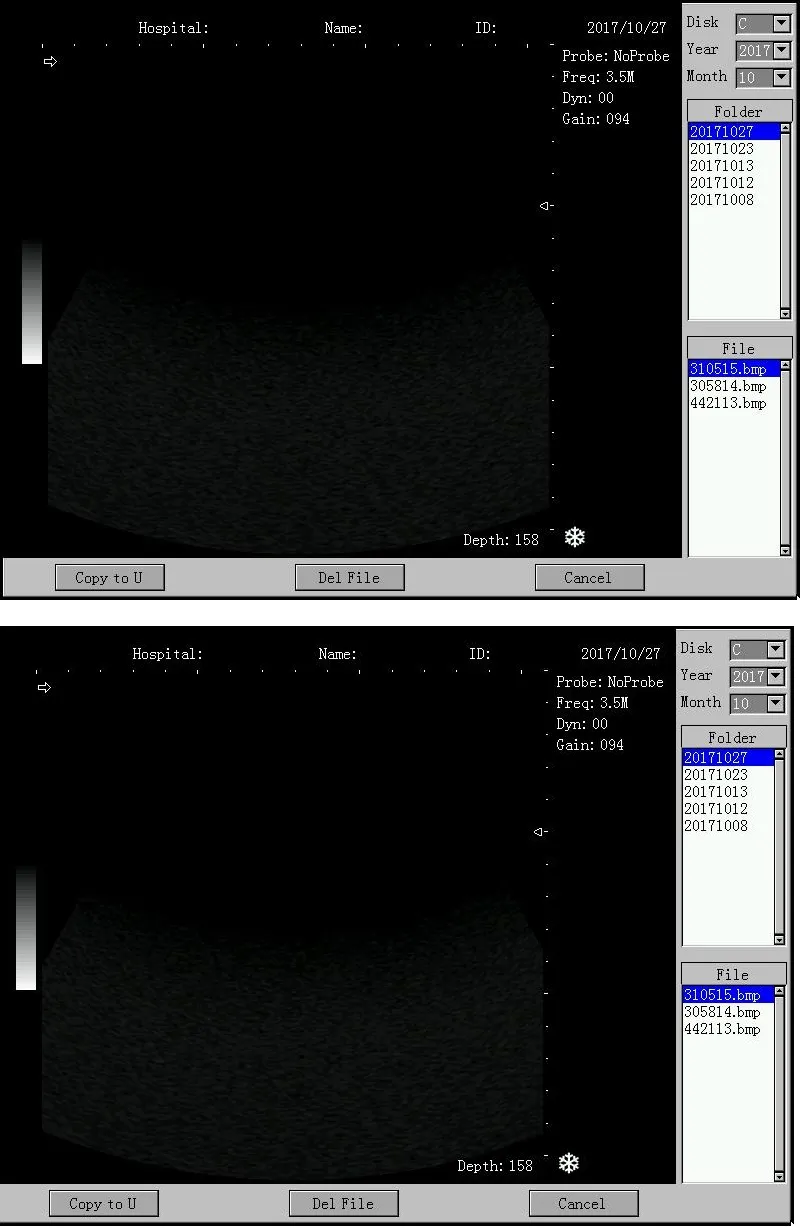

Image transfer:

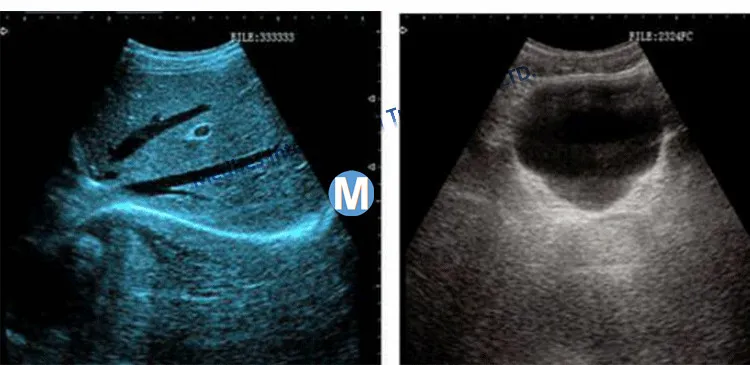

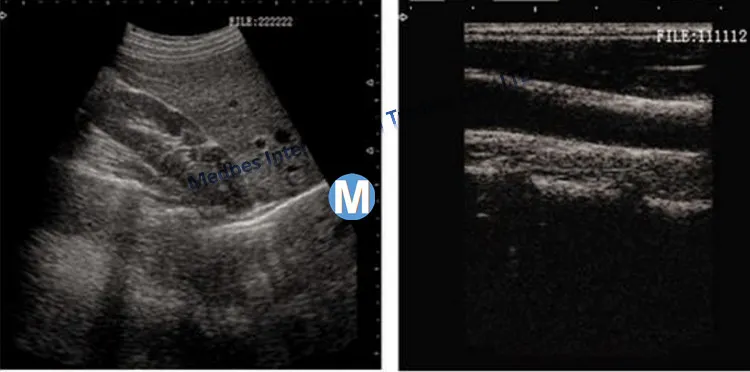

Pictures:
| Probe Depth | 16 levels |
| Probe Frequency | 5 levels |
| Main gain | 0-100% |
| 8 TGC | adjustable |
| Focus | 4 |
| Image storage | 4920 images |
| Pseudo color | 0-7 |
| Scanning area(angle) | 3 levels |
| Edge enhancement | 0-3 |
| Linear correlation | 0-5 |
| Gamma correction | 0-7 |
| Frame correlation | 0-3 |
| Dynamic range | 0-135 |
| Cine loop | 512 frames |
| Body mark | 97 kinds |
| U Disk support | FAT32 format |
| Image reversal | up/down, left/right, black/white |
| Measurement | General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement |
| OB-1 | GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI |
| OB-2 | FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve |
Various Probes (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level
(126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm)
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level (35,42,49,62,69,76,83,90,97,104mm)
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level (62,69,76,83,90,97,104,111,125,139mm)
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level (62,69,83,97,111,125,139,152,166,180mm)
Upgraded Data sheet:
Patient information
Image transfer:
Pictures:
