Functional Biometer & Pachymeter Eye Ultrasound Scanner Machine
Biometer & Pachymeter OD1-AParemeters: 1. Triangular model, portable and firm.2. 5.7 "inch color LED touch screen.3. Standard workstation software, easily for transfer and manage data.4. Free software upgrade via USB interface.5. Built-in thermal printer,information output conveniently.6. I......
Send Inquiry
Product Description

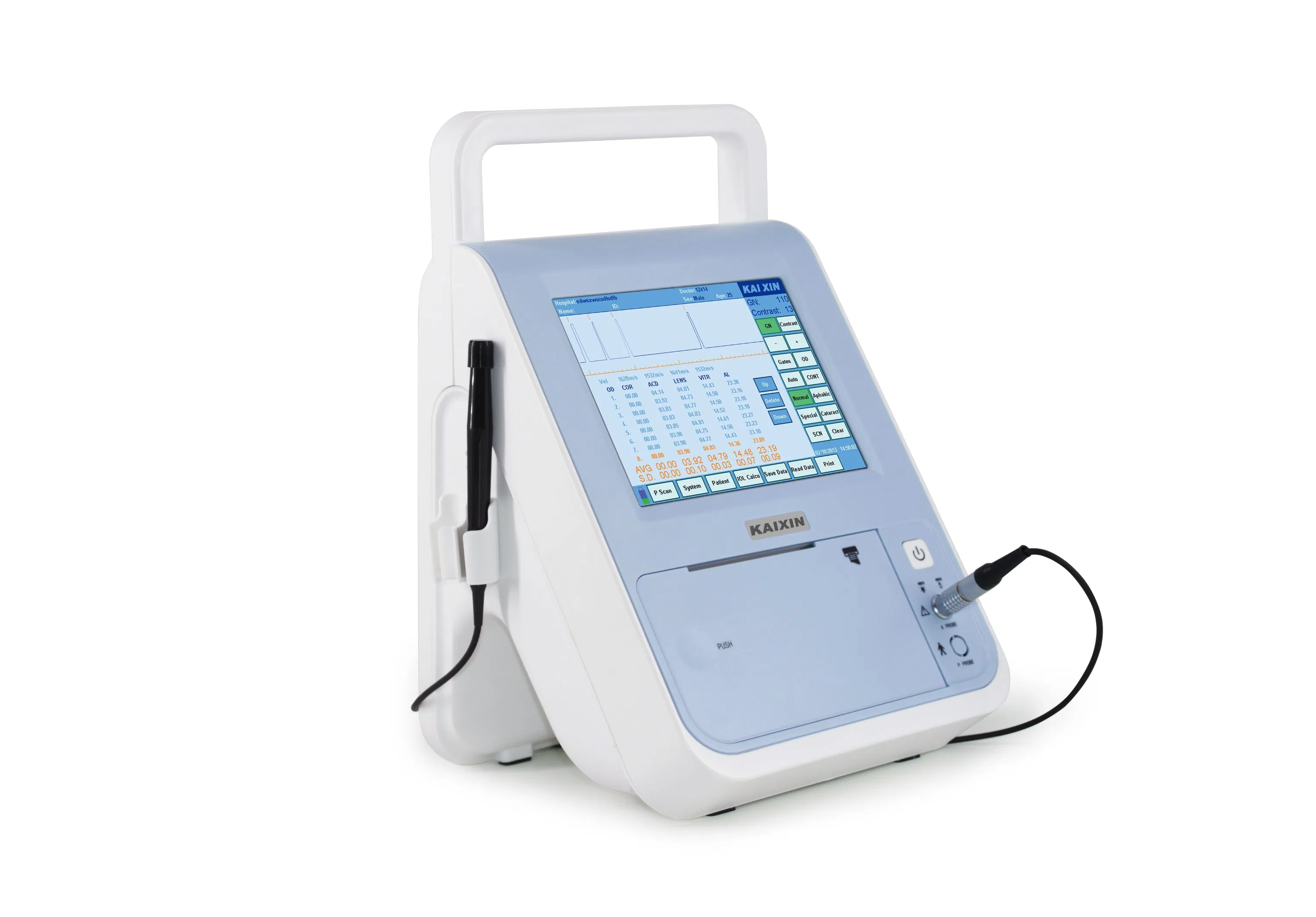

Biometer & Pachymeter OD1-A
Paremeters: 1. Triangular model, portable and firm.
2. 5.7 "inch color LED touch screen.
3. Standard workstation software, easily for transfer and manage data.
4. Free software upgrade via USB interface.

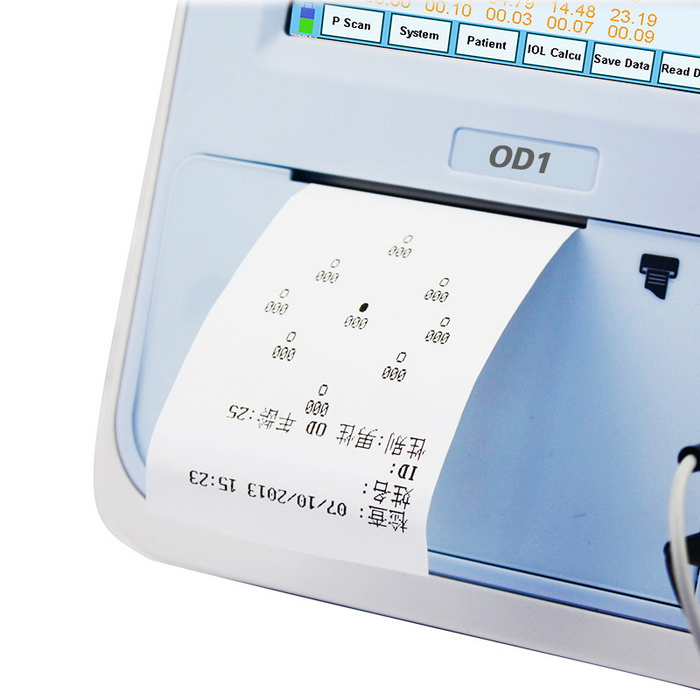

5. Built-in thermal printer,information output conveniently.
6. Internal optional battery, practical for out-clinic diagnose.
7. Probe Frequency: 10 Mhz
8. Resolution: 0.01mm
9. Accuracy: ±0.02mm
10. Gain adjustable: 0-120dB
11. Measurement range: 15~35 mm (vel 1640m/s)
12. Measurements: ACD, Lens, Vitreous, and AXL
13. Examination modes: Normal, Aphakic, pseudophakic and dense cataract
14. Measurement mode: immersion and contact , auto and manual
15. IOL formulas: SRK-II,SRK-T,BINKHORST,HOLLADAY,HOFFER-Q,HAIGIS
16. Power requirement: AC 100-240V 50-60Hz | Rate power: <= 45 VA
17 Dimension: 200*168*165(mm,L*W*H)
Standard configuration:
| 1 | Main unit. |
| 2 | 10.0MHz A probe. |
| 3 | Adapter. |
| 4 | Gage block for calibration. |
| 5 | Touch screen pen. |
Optional Configuration:
| 1 | Lithium battery |
| 2 | Battery charger. |
| 3 | Footswitch |
| 4 | Prager shell for Immersion |
