Hc-B025b Laboratory Equipment Gel Ducoment Imaging System Gel Documentation System
HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System Product DescriptionFeatures for HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System :Technical specificationsEffective pixels: 1280×1024Pixel density: 10 bitPixel size: 5.4&am......
Send Inquiry
Product Description
HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System
Features for HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System :
Technical specifications Effective pixels: 1280×1024 Pixel density: 10 bit Pixel size: 5.4×5.4(um) Resolution: 1.4 megapixels Signal to noise ratio: ≥56db Sensitivity: Can detect the double chain DNA of EB staining below 20pg. Camera: low illumination and high resolution digital CCD Zoom lens: F=1:1.2,2/3 inch 6 times zoom lens Filter: 590(nm) UV light transmission area(W×L): 250×200(mm) Visible light transmittance area(W×L): 250×210(mm) Transmission UV wavelength: 302(nm) Reflectance UV wavelength: 254,365(nm) Transmission UV lamp power:302nm(8W) Reflectance UV lamp power: 254nm(11W),365nm(11W) Volume(L×W×H): 470×405×820(mm) Weight: 29.0kg |
Characteristic feature
• CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse, whole-screen display and simple to operate:
• Six time zoom lens and simple to enlarge and shrink gel photos.
• The center position indicator, which can ensure the gel is placed in the center position.
• Intelligent control box:
• You can realize the control of the zoom, focus, aperture, UV light and white light through panel key.
• Safety function for your eyes that automatically shuts down the UV light when the door is opened and reactivates the UV light when the door is shut.
• Timed shut down: The UV light protection system automatically shuts down the lights after 15 minutes to maximize the life of lamp and vitreous.
• The zoom lens is protected with RS232 interface.
• Drawer-style gel platform, convenient to observe, operate, and cutting gel.
• Transferring plate changes UV-light into white-light.
• Using a multi-layer gel-filter effectively filters background noise.
• You can realize the control of the zoom, focus, aperture, UV light and white light through computer mouse.
• Regular and reliable system convenient to maintain and exchange parts.

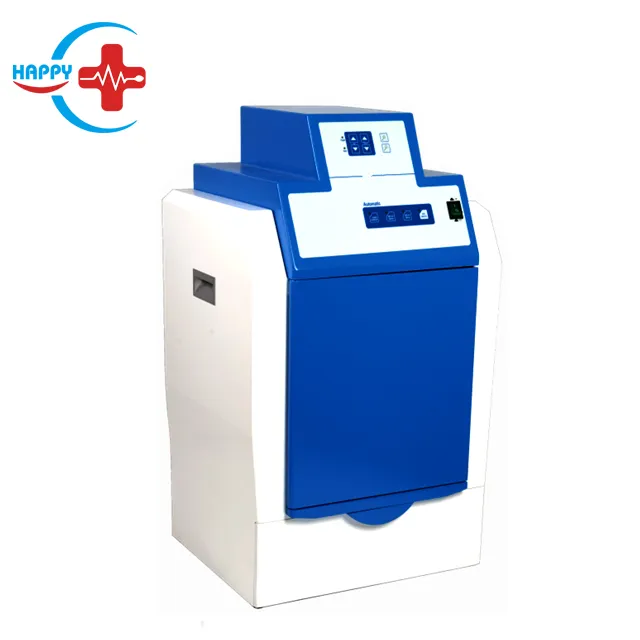

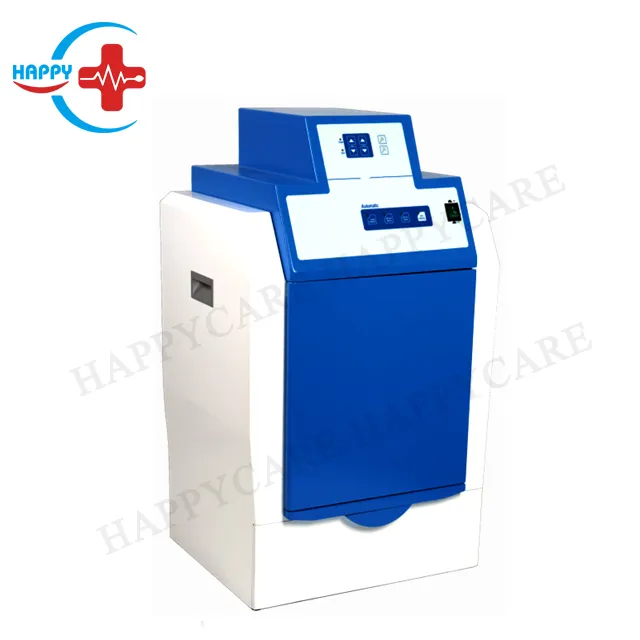

Pictures for HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System :
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System product, What's the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-B025B Laboratory Equipment Gel Ducoment Imaging System Gel documentation System , we provide 12 months warranty.
4. What's your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
