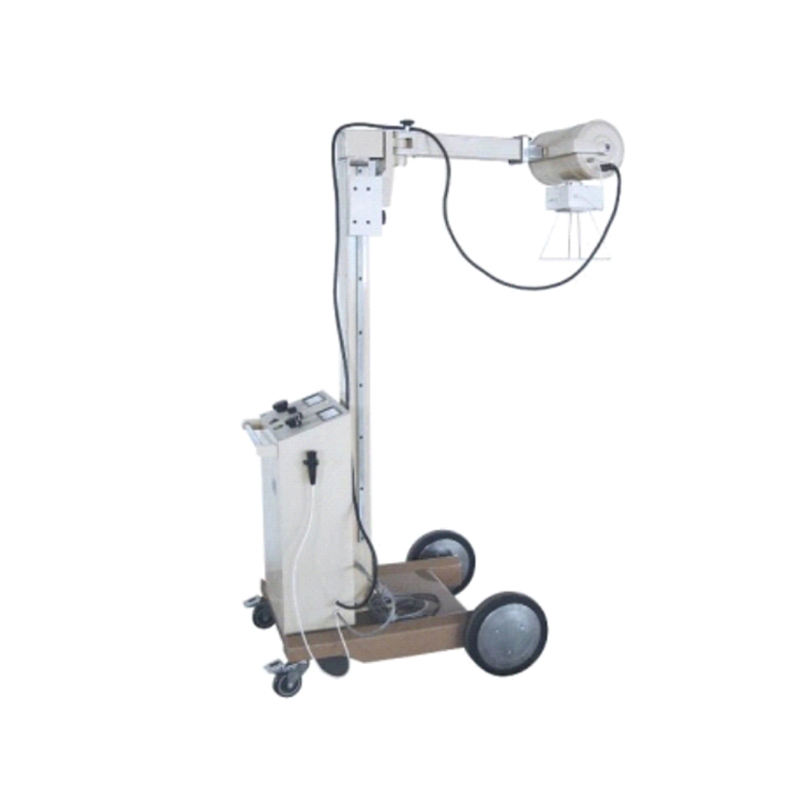

Hospital Mobile Portable Medical X-ray Machine Imaging Diagnostic Equipment
GENERAL 1. Used in ward and emergency treatment room for radiography.2. Combined X-ray generator.3. Single focus, bridge rectification.4. It is precise, safe, reliable and flexi......
Send Inquiry
Product Description
GENERAL
1. Used in ward and emergency treatment room for radiography.
2. Combined X-ray generator.
3. Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.
5. Remote control device (control range ≥5m) is used.
Main Technical Parameter
X-ray generator | Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. | ||||
Max rated capacity | Current | 15mA | 30mA | 60mA | 100mA |
Voltage | 90kvp | 90kvp | 90kvp | 80kvp | |
Time | 6.3s | 6.3s | 2.0s | 3.2s | |
Power supply | Voltage: 180~240V Frequency:50Hz Power: not lower than 7kVA Resistance: not larger than 0.4Ω | ||||
Voltage adjustment range of X-ray tube | 50~90kVp | ||||
Range of the timer | 0.08~6.3s | ||||
Distance between the focus to the ground | 700~1780mm | ||||
X-ray tube focus transverse rotation | ± 60° | ||||
Specification of X-ray tube | Model XD4 2.9/100 fixed anode, single focus 1.8/4.3mm | ||||
Transport dimension (L×W×H) (mm) | 1230×900×2050 | ||||
Weight(kg) | Net:159/Gross:256 | ||||
