Hospital Portable Medical Ultrasound Scanner 3D 4D Color Doppler Machine

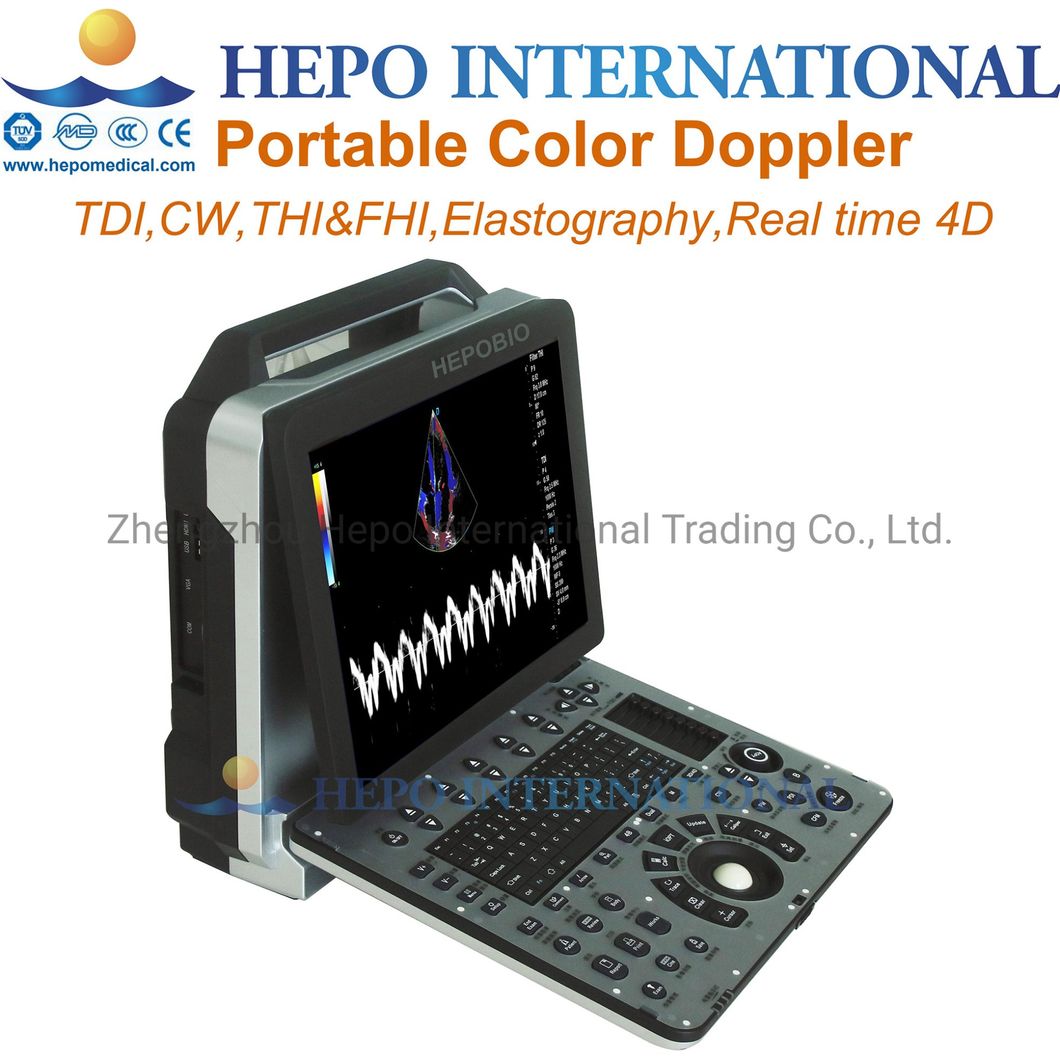

HP-UC600P2 Full Digital Portable Color Doppler using familiar PC system makes the system intuitive and easy to use.The flexible design allows system to be used conveniently.Two probes can be used at same time,portable style,much easy for carry and operation.Advance 4D professional software,make it i......
Send Inquiry
Product Description
HP-UC600P2 Full Digital Portable Color Doppler using familiar PC system makes the system intuitive and easy to use.The flexible design allows system to be used conveniently.Two probes can be used at same time,portable style,much easy for carry and operation.Advance 4D professional software,make it is he best choice for clinical or hospitals.
Main Features:
1, High resolution medical LED monitor;
2, Light weigh design, the net weight is 6.5KG, easy to take;
3, Built-in floating standard keyboard and backlit keyboard design;
4, Unique design for power key and reset key;
5, Based on PC platform, have abundant peripheral, can upgrade the system according to the customer requirement and be compatible with a various of printers;

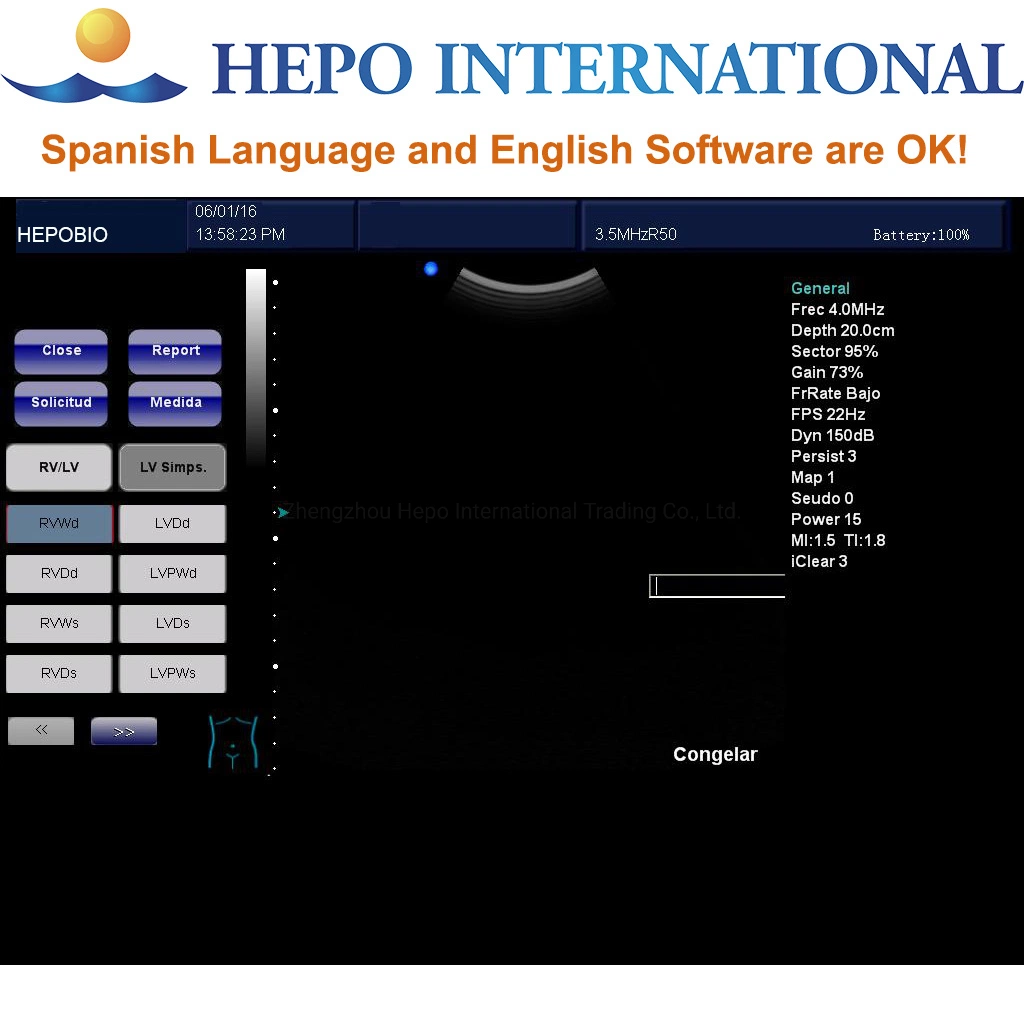

6, Multi-language software for choose (Chinese, English, Spanish, Russian, Persian and French);
7, Friendly user's operation interface;
8, Crystal clear 2D image and sensitive Color Doppler blood flow imaging system ;
9, Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours;
10, Built-in SSD (Solid State Disc) improves the stability and reading speed;
11, Can be matched with several kinds of probes (such as convex probe, linear probe, transvaginal probe, phased array probe…);

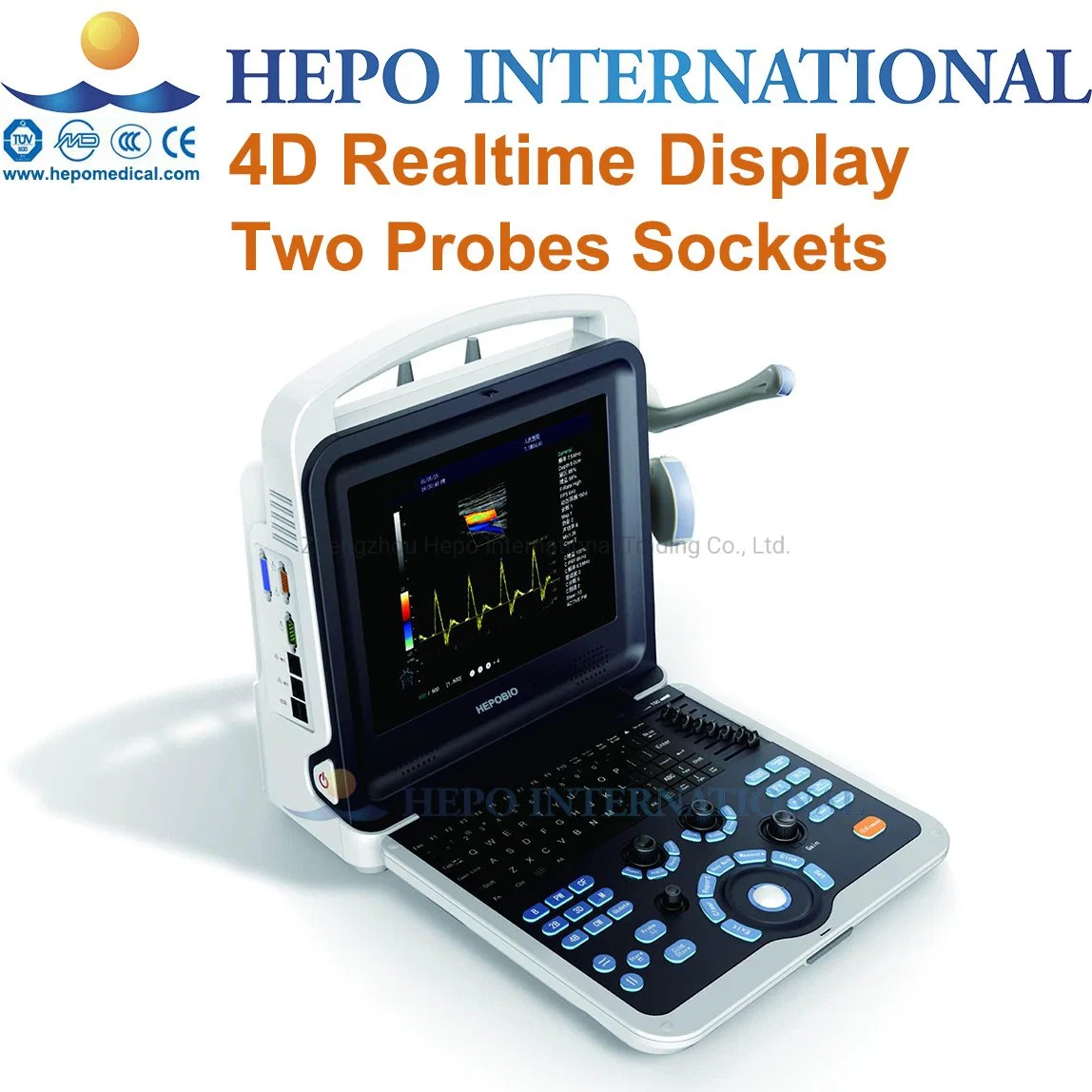

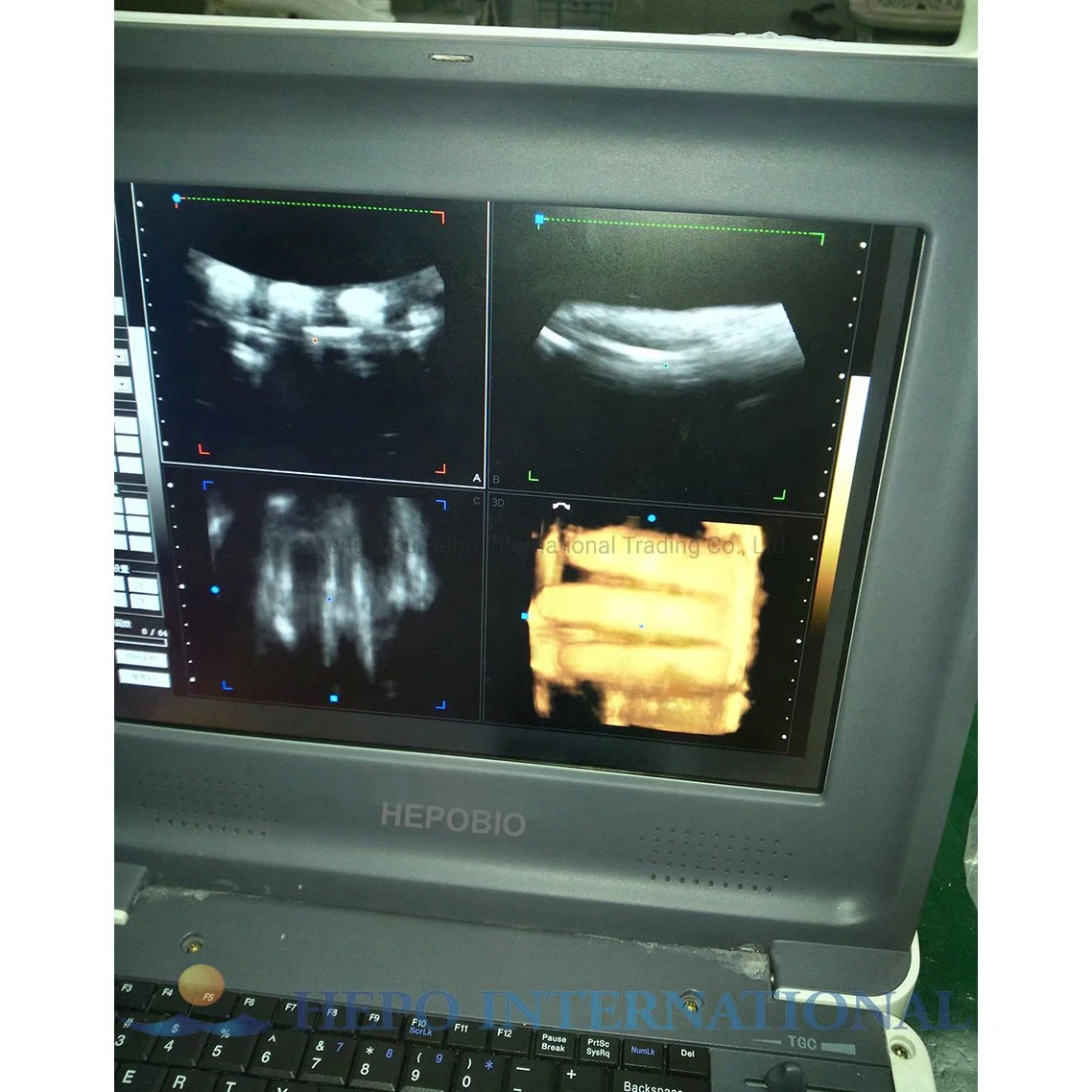

12, Can be updated to 4D (option);
13, Support remote wireless image transmission,based on PC platform and ANDROID system (option).
Technical specifications:
| Displaying mode | B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW,4D |
| Signal processing: | Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
| Image processing: | THI PSHI TM broadband multi-frequency harmonic image Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization Storage: Direct date transfere to U disk or PC Remote: Realtime remote MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing Trapezoid Image (Option) Real time 4D imaging (Option) |
| General measurement | B mode-distance, circumference, area, volume, angle, area Red, Diam Red M mode- distance, time, velocity, heart rate |
| Abdomen measurement | Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen |
| OB packages | EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength. |
| Gynecological packages | Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth |
| Urology packages | Left/right kidney measurement, Volume, Cortex |
| Small parts Measurement | Left/ right thyroid, volume, Isthnus and calculating report |
| Cardiac Measurement Package | Heart rate, Valve speed, LV, aortic, mitral, ventricular |
| Skeletal & Muscles | Skeletal & Muscles, distance, area, Hip angle |
| Vascular | Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA |
| Scanning depth | ≥300mm |
| Body mark | Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts |
| Cine loop | Automatically & manually |
| Image storage format | BMP, JPEG, PNG |
| Input/output ports | VGA, HSUSB, Dicom, DVI, COM |
| Standard Configuration | Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 probe connectors, User's Manual, hard disk (SSD),built-in li-ion battery |
| Options | 6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer, biopsy kit,aluminum case |
Probes Details
| Configuration | Probes | 5 Steps Multi-frequency | Image |
| Standard: | 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz | |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz | ||
| Options: | Rectal probe micro-convex probe phased array probe 4D volume probe | ||
HP-UC320 Updated THI Cardiac Portable Color Doppler
HEPOBIO Medical 4D Trolley Color Doppler- HP-UC900Ei

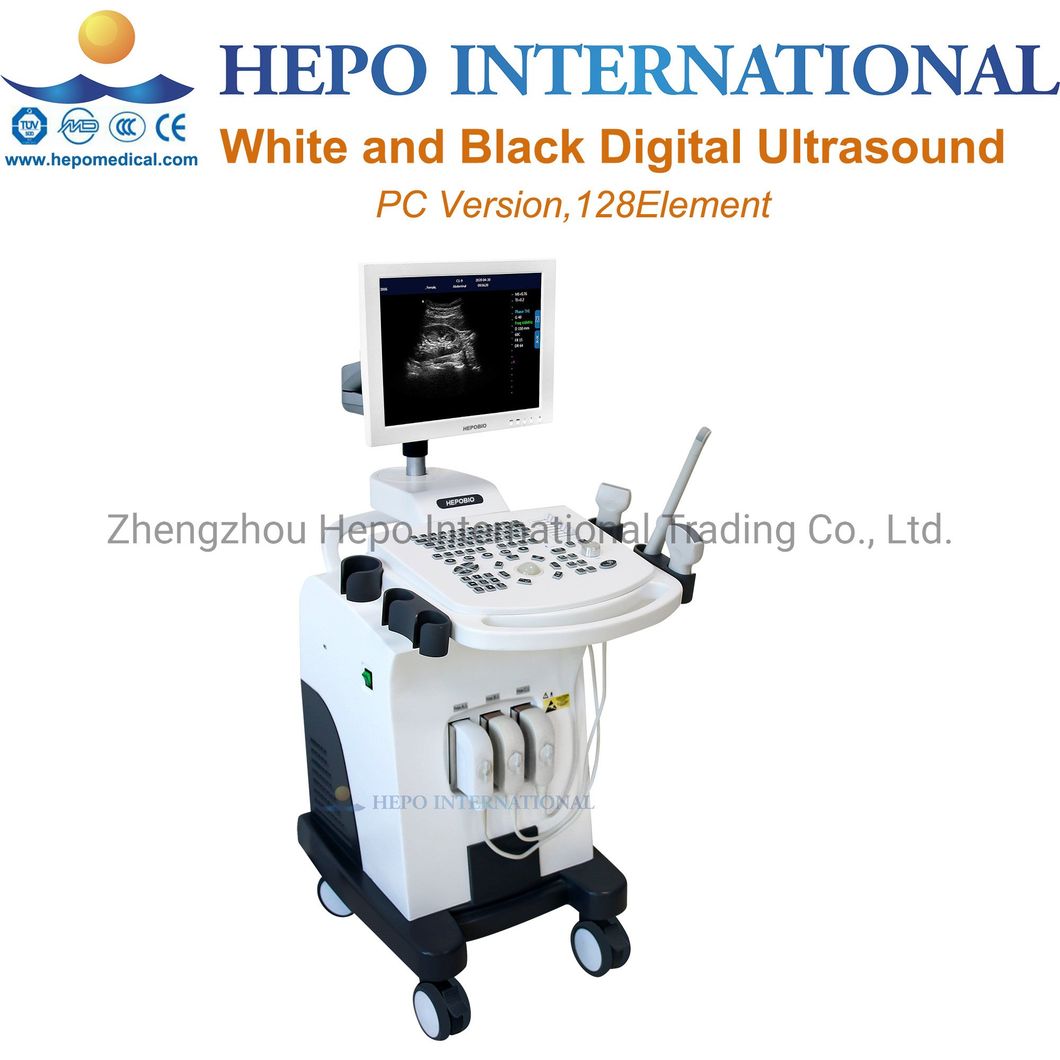

Hospital PC verstion Black and White Ultrasound Scanner Machine- HP-UC310
Clinic Portable PC version Black and Whilte Ultrasound Machine-HP-UC520

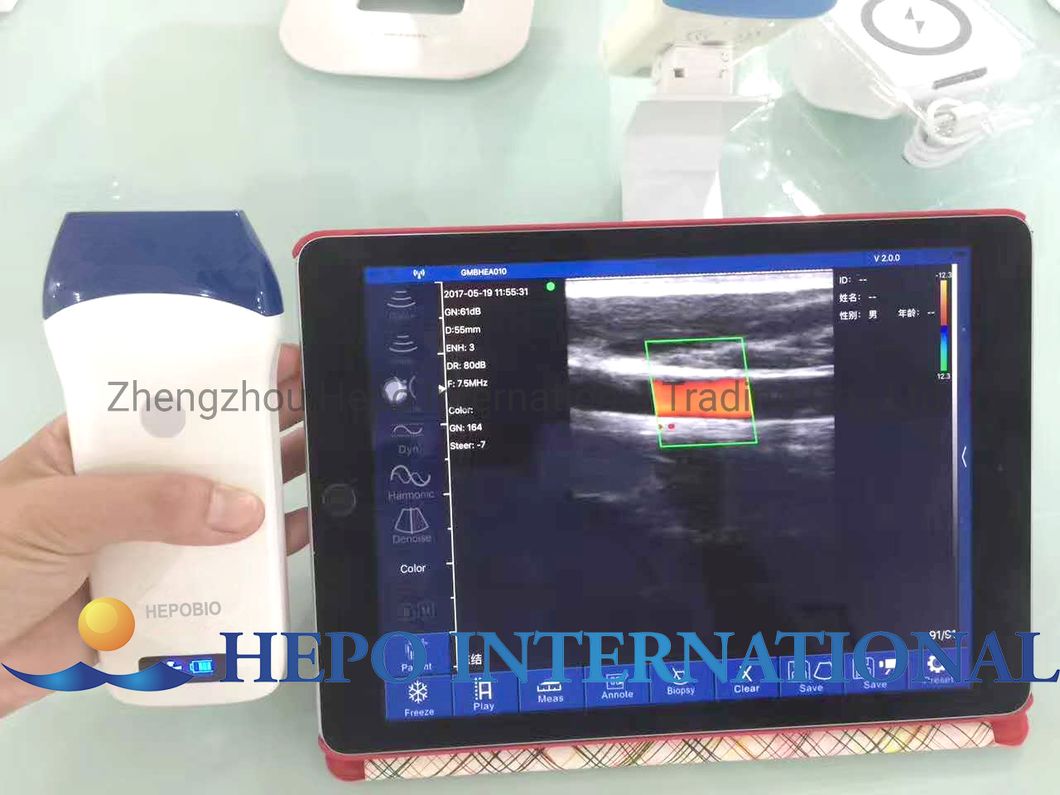

Wireless Probe Ultrasound Machine for Mobile and PC usage
