Hospital Used 3D Laptop Color Doppler Ultrasound Machine

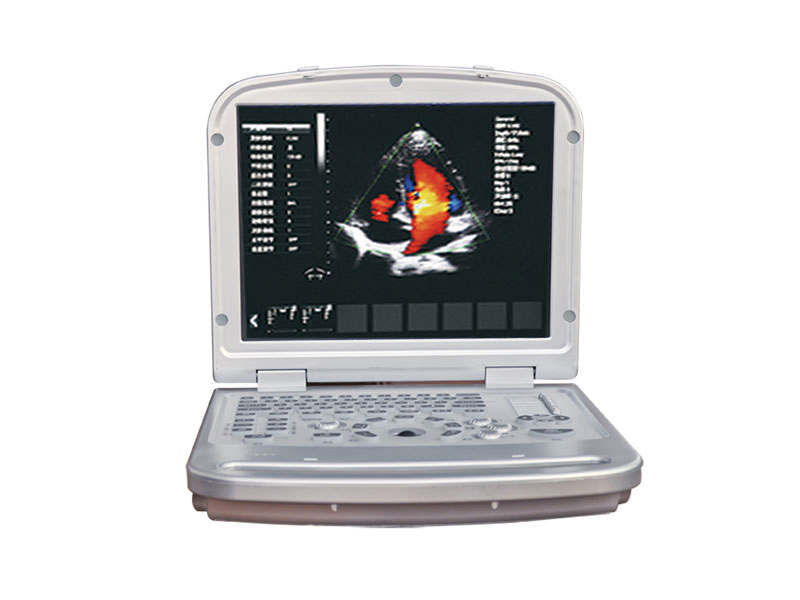

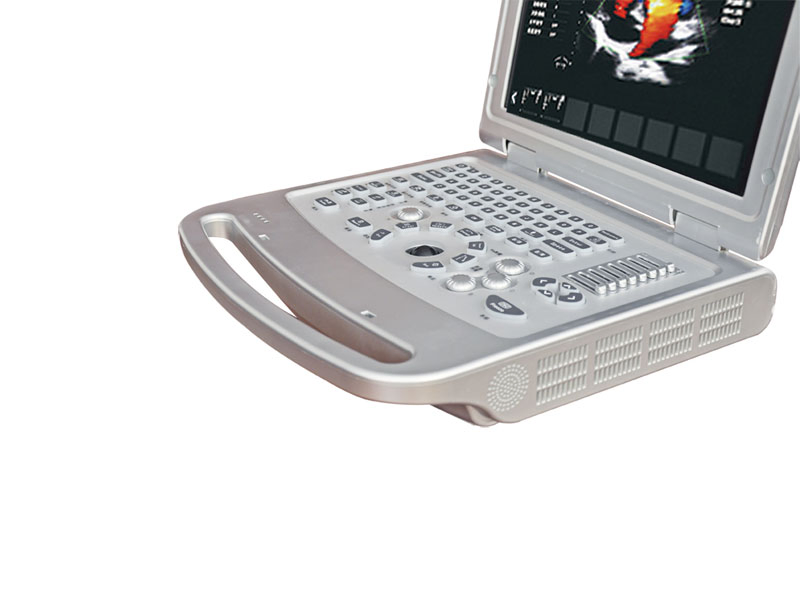

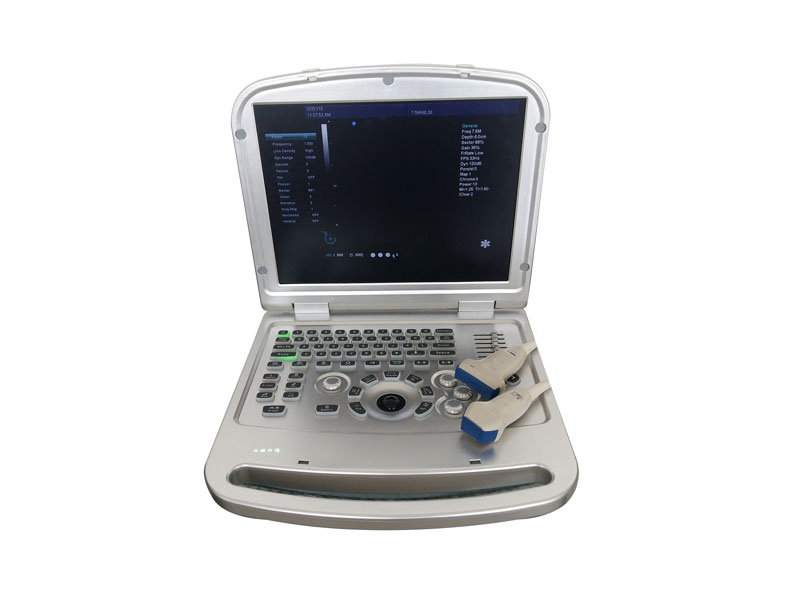

               PL-6018L Laptop Color Doppler

The system mainly applies in diagnosis of liver, gallbladder, spleen, kidney, pancreatic gland, heart and other organs, as well as obstetrics and gynecology examinations, blood vessel and tumor inspection.

General Information:

Display: 15" LCD monitor
Display Mode: B, B/B, 4B, B/M, M, B+C, B+D, B+C+D, PDI, CF, PWD
Gray Scale: 256
Dyn Range: 0dB-160dB
Depth: ≥330mm
Blind Area: ≤5 mm
Channels: 64
Probe elements: 128
Cine-loop: ≥1000.
Lateral Resolution: ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm)
Axial Resolution: ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm)
Geometry Position Precision: horizontal≤10%, vertical≤10%
Storage Media: 64G massive image-storage capacity
Measurement and Calculation:
Basic measurement, abdomen, early/later obstetric, pelvis, urology, vascular , cardiac, small organs and etc.
B-mode Basic Measurements: distance, angle, perimeter and area, volume histograms, cross section
M-mode Basic Measurements: heart rate, time, distance, speed.


Imaging Pre-processing:

8-segment TGC
Preset
Gain (B&W, Color, Doppler)
Audio
PRF
Dynamic Range
Image Enhancement
Acoustic Power

Imaging Post-processing:
Gray Map
Black/White Reverse
Left/Right Reverse
Up/Down Reverse

Others:

USB Port: 2
Probe Connector: 2
Power Supply: (AC)220V±22V 50Hz±1Hz
Continuous Working Hours: ≥8h
External Display: PAL, VGA


Standard Configuration:


Optional:

3.5Mhz Phased Array Probe
6.5Mhz Trans-virginal Probe

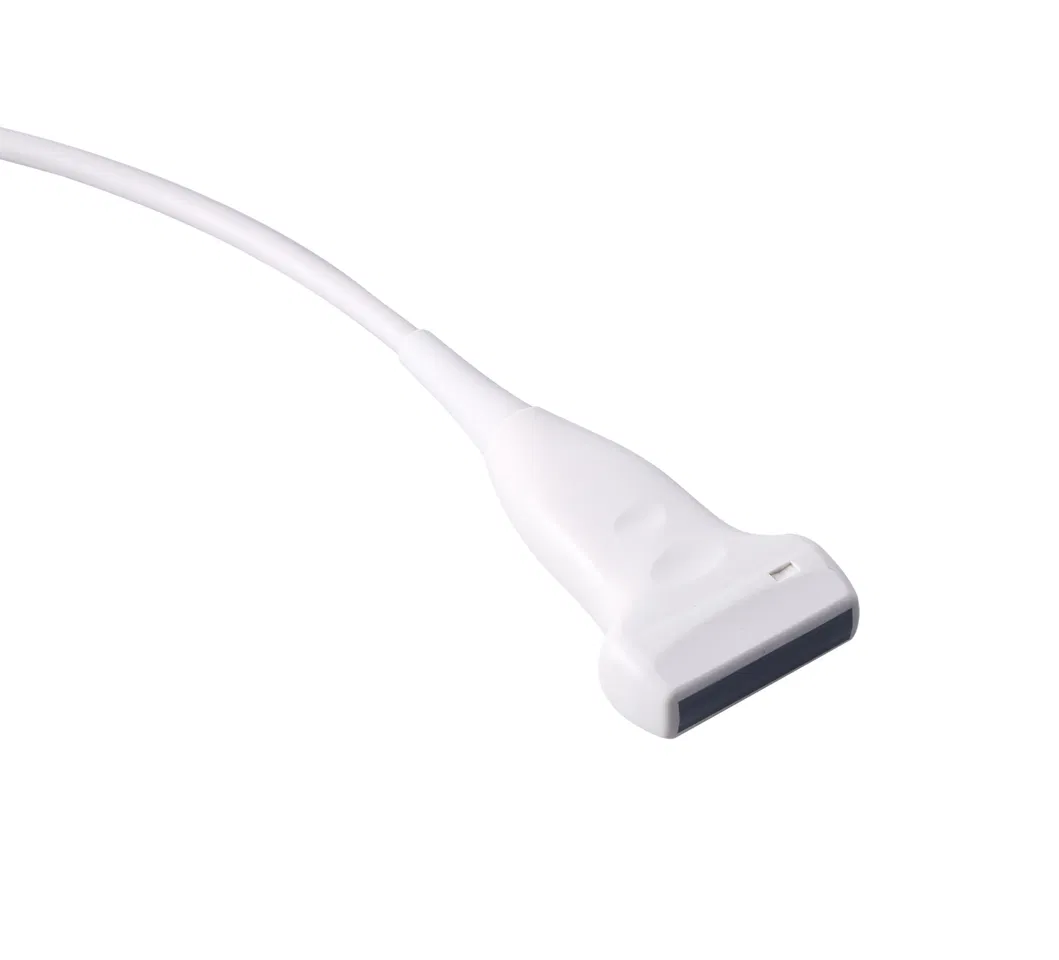

7.5Mhz Linear Probe
