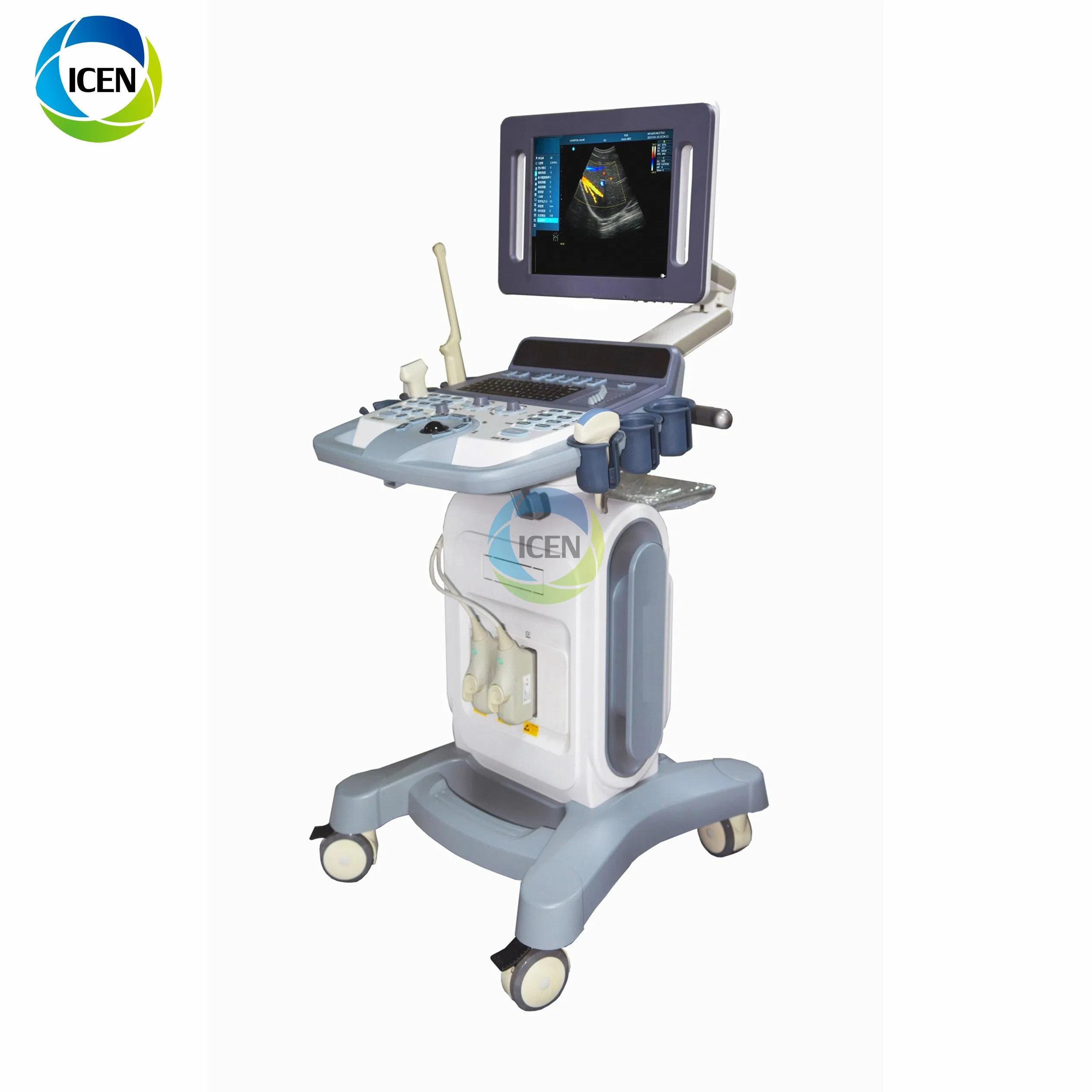

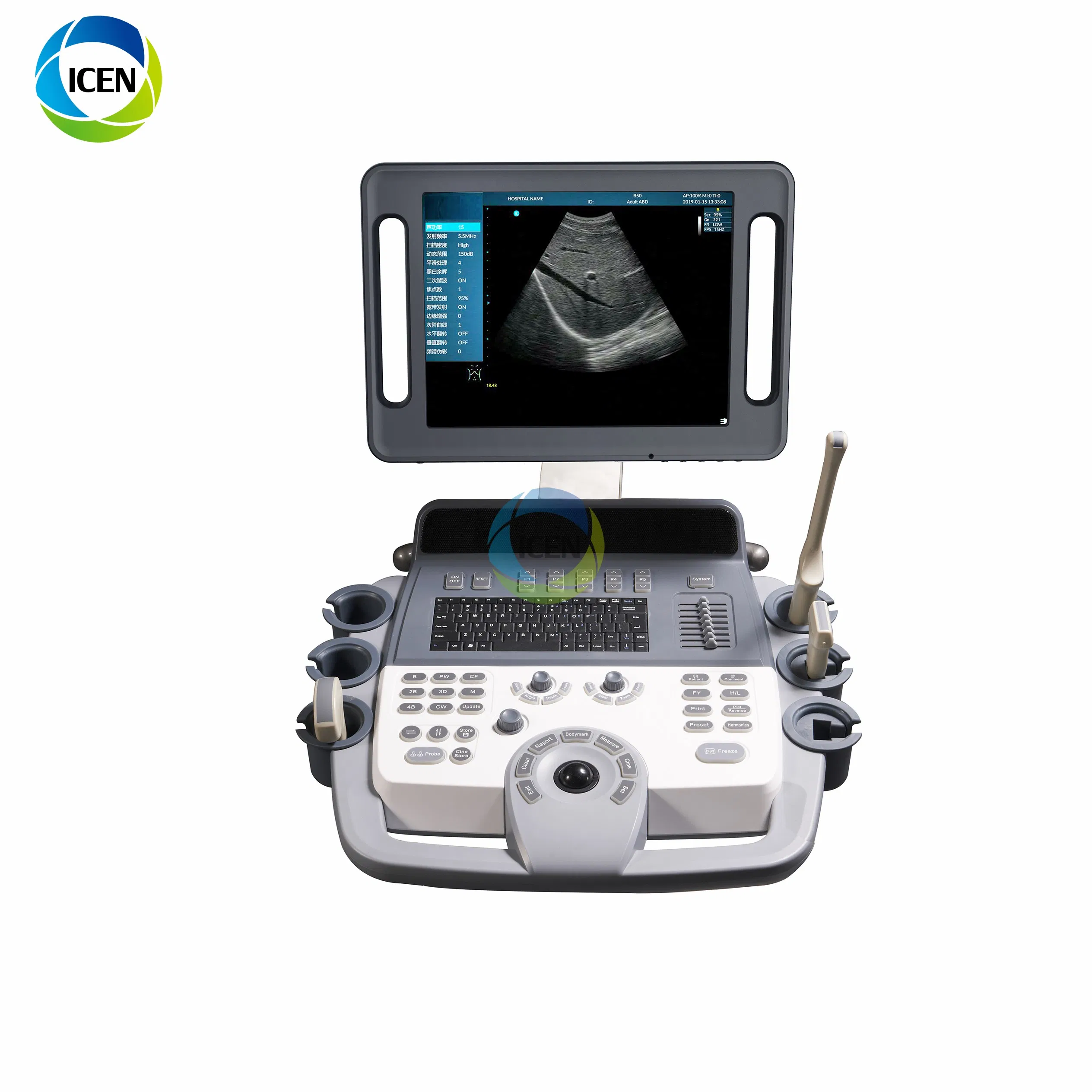

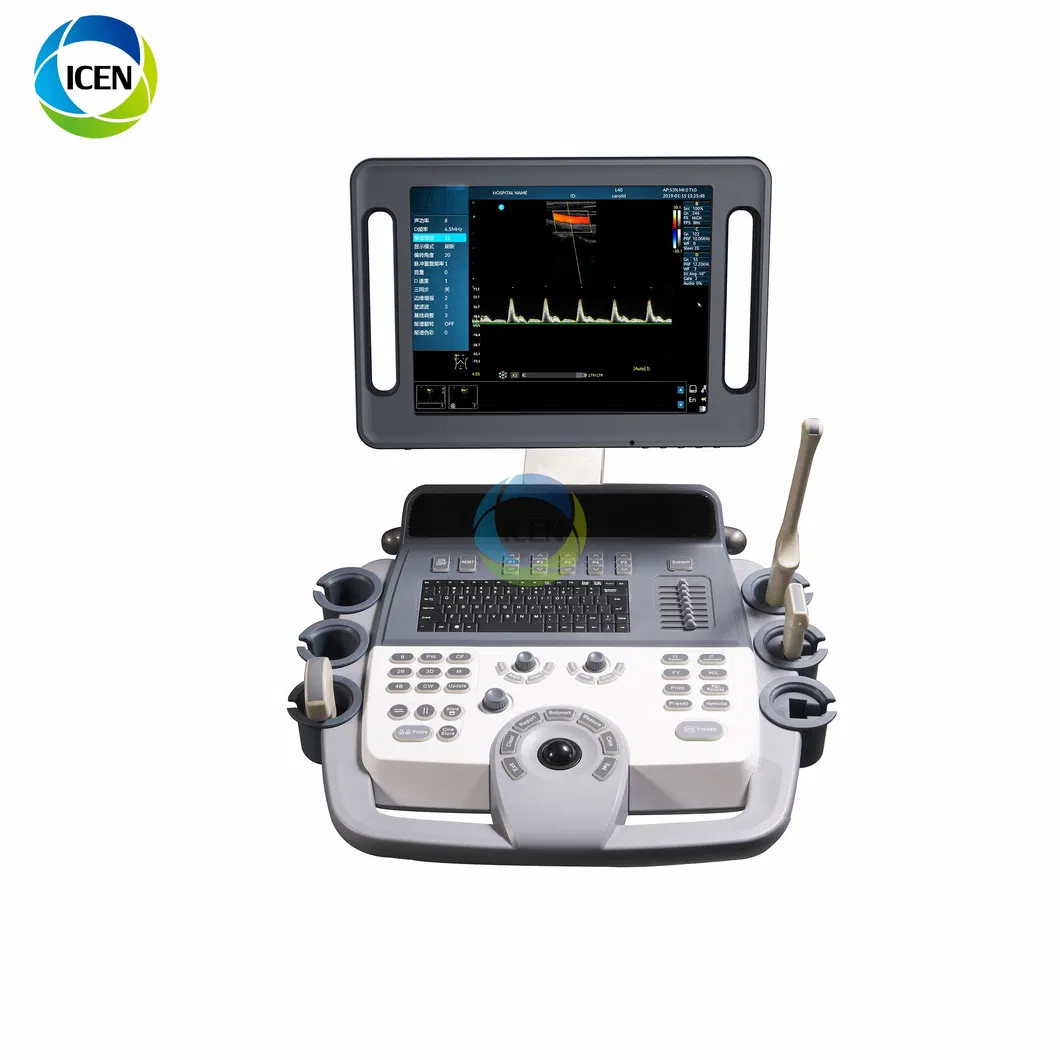

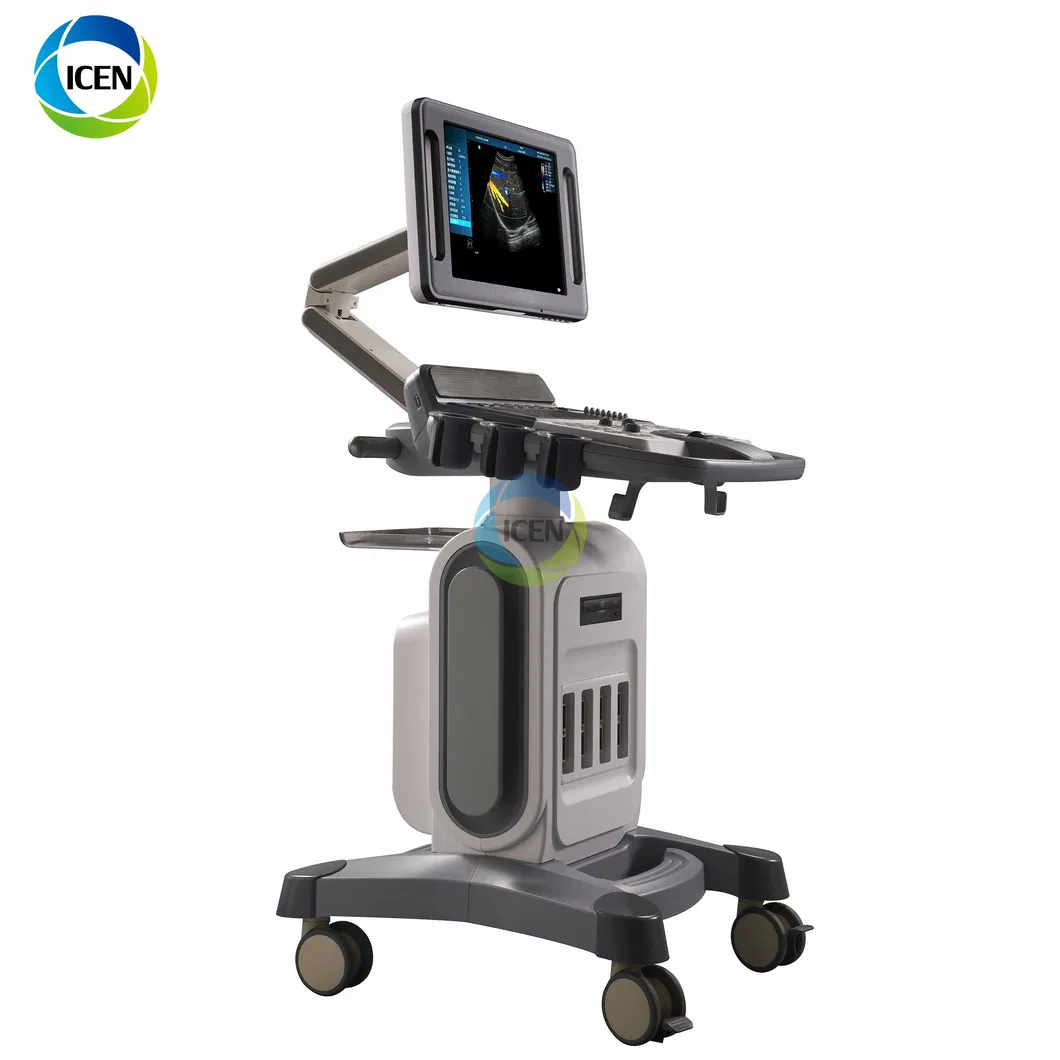

in-Ak12 16g 15 Inch Automatical/Manual Color Doppler Ultrasound Machine

Product Description

IN-AK12 16G 15 inch Automatical/Manual Color Doppler Ultrasound Machine

Specification

1.Humanized design
High Resolution Imaging System, 15 inch LED monito
Ergonomic & Rotatable design operation pane
Free arm with 360 degree rotatio
Better Optimize Image Quality

2.Probes information

Probes	5 Steps Multi-frequency
3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz

3.Technical specifications

Image processing:
THI
TSF
HPRF
Storage: 16 G
Speckle-reduction
Power adjustable
Smoothing function
Image optimization
Speckled Reduction
Tissue Harmonic imaging
Pseudo Color Processing
Dynamic apodization
Dynamic aperture
Directional Doppler Flow Imaging
Pulse Wave Doppler
Edge enhancement
Image conversion
Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable

Product Description

Displaying mode	B, 2B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, PW
Signal processing:	Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
General measurement	Normal, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular, MSK
Normal measurement	Distance,Cubage,V3L, STD_S, Area Trace, Area, Angle, CrossLine, STD D, ParalleLine
ABD packages	ABD, Aorta, Rt_Kidney & Lt_Kidney, Bladder, Prostate
OB Packages	Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI
Pelvic Packages	Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle,
Urology packages	Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle
Small Parts	Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast
Vascular	Stenosis D, senosis A, Intima, Arterial, Venous
MSK	Distance, Area, Hip_Angle
Scanning depth	≥250mm
Probe elements	128
Cine loop	Automatically & manually
Image storage format	BMP, JPEG, PNG, DICOM(Option)
Input/output ports	USB Ports,Video Port, LAN Port
Standard Configuration	Main unit, 15 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe sockets, User's Manual
Options	6.5Mhz Transvaginal Probe, Printers
Applicable Printers	EPSON-L130-Series HP-Laser Jet-1020 HP-Laser Jet-P2035 SONY_UP-D897 SONY_UP-D898MD_X898MD

in-Ak12 16g 15 Inch Automatical/Manual Color Doppler Ultrasound Machine

Company Profile
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience. Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients. Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
in-Ak12 16g 15 Inch Automatical/Manual Color Doppler Ultrasound Machine

Our Services

Top Quality: We have strict quality control system and enjoy good reputation in the market.
Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
OEM Accepted : We Can print your own logo on the products.
Unbeatable Price: We always ensure high price performance to benefit our customers.
Timely Delivery: Your order shall be shipped once finished .
After-Sale Service:All Products Have One Year Warranty.

FAQ

How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.

What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
