Kaixin Kx5200 Veterinary Ultrasound Scanner

Product Description

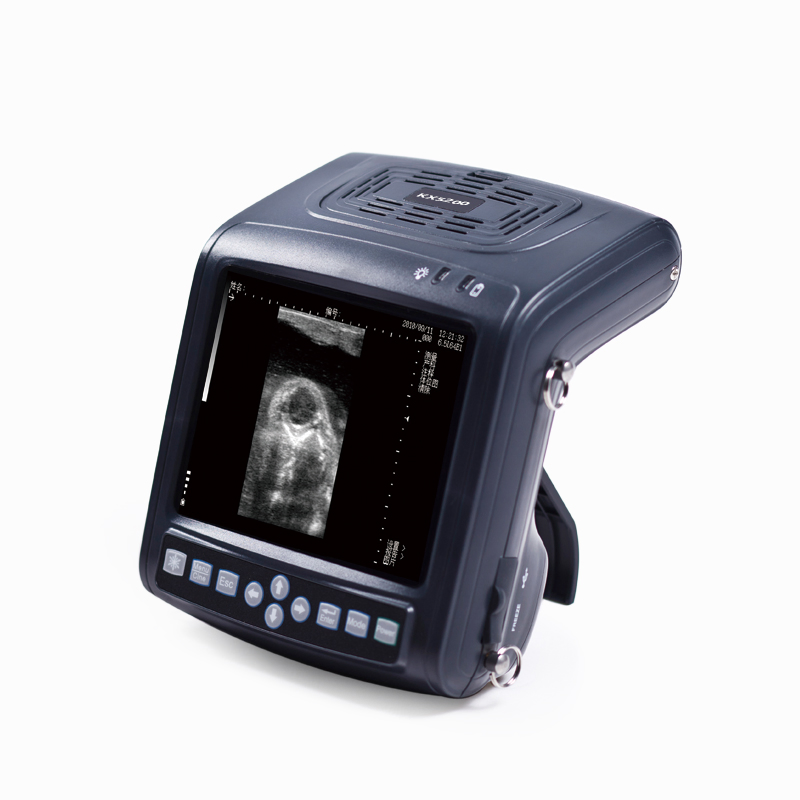

KX5200 Veterinary Ultrasound Scanner

Target customer:
Breeder, farmer (not veterinary). They mainly see pregnancy, low budget.

Animal: Pig, cattle, sheep, dog, cat, ect.

Features:

Economic price.

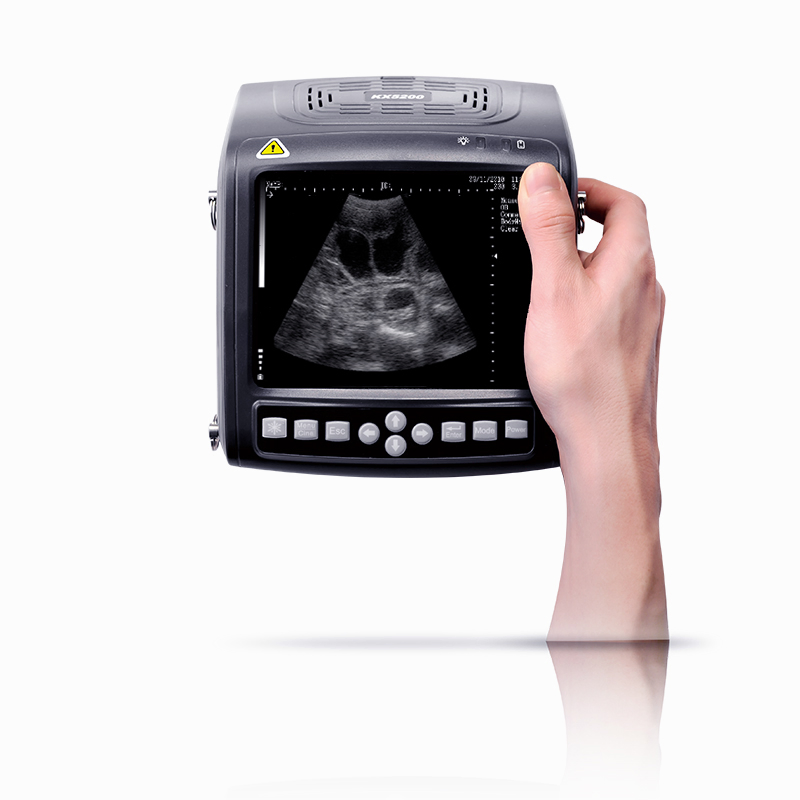

Wrist design: truely innovative.
Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
Menu operation. Very easy.
2 pcs Internal li-battery: work for 5 hours.
USB port: directly store image to U disk.
Splash-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.

Technical Specification:

Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
Language: Chinese/English switchable.
Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
Display mode:B,2B,4B ,B/M,M, total 5 kinds.
5 kinds of Magnification, maximum display depth is 200mm.
Gain range:0~127dB
Dynamic range:27~90dB
Gray:256
Frame frequency:30 frames/second.

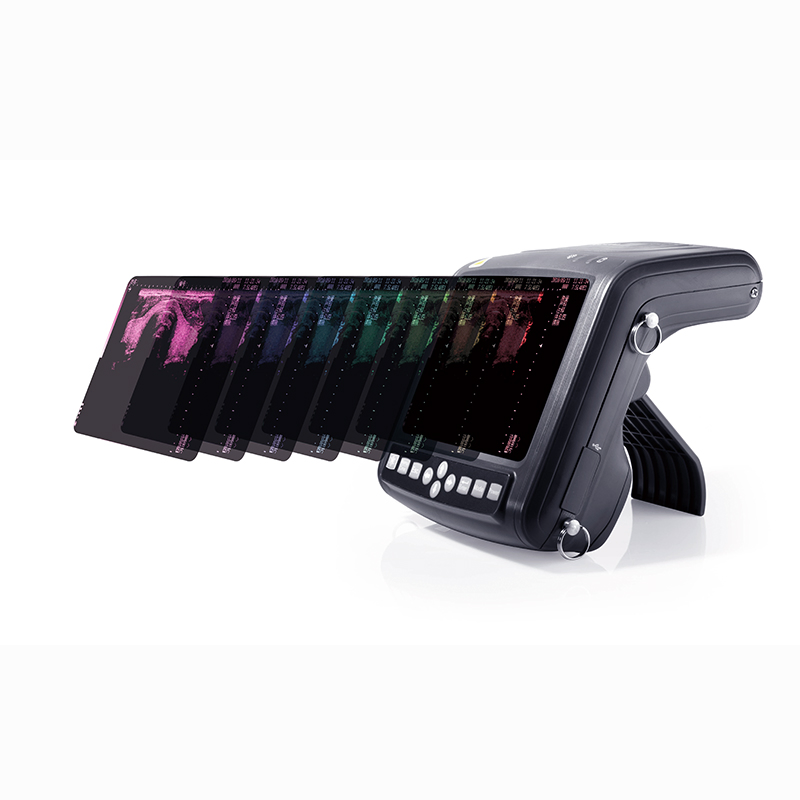

Pseudo-color: 8 kinds (incl. B/W).
Local zoom and coloring.
Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
Net weight:1.0kg.
Main unit size:155x180x80mm(length x width x height).

Measurement and analysis:

Puncture guiding function,( 2 guiding lines, angel and position adjustable)
General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
Cardiac measurement: depth, slope, heart rate, time.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
OB report function

Standard configuration:

1	Main unit: 1 pc
2	3.5MHz waterproof mechanical sector probe : 1 pc.
3	Power adapter: 1 pc
4	Internal battery : 2 pcs
5	leather case: 1 pc
6	Base Charger, belt, bracket, shutter release: 1 pc for each.
