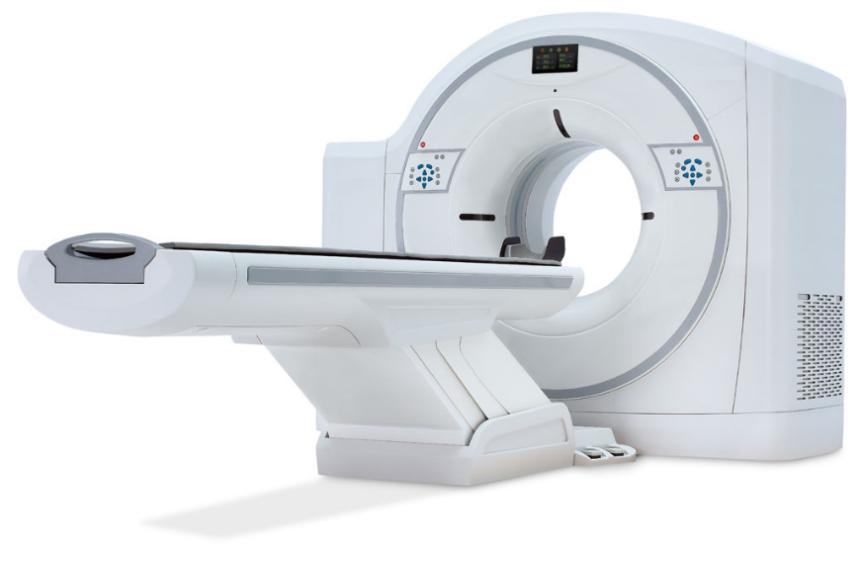

Medical equipment CT X ray machine CT scaner
Model : YSCT-16
YSCT-16 Description
Gantry
Aperture: 70 cm
Tilt range: ±30°
Manual Control from POD at Console
Gantry Cooling: Air
Gantry Rotation: Belt-Driven
Slip Ring Type: Low Voltage
Focus - ISO Distance 558 mm, short geometric design
Positioning System: 3D Lasers
The gantry construction is made up of a very solid and sturdy aluminum casting for both stator and rotor. Moreover, the gantry rotate bearing and rotate drive components are integrated in a way to ensure the scanner's rigidness and stability. During rotation, the stator and rotor has minimum vibration, deformation and jitter in all directions. Therefore, the stability of the scanner allows the X-Ray tube focal spot to be accurately aligned to the center of the detector which accurately locates the X-Ray beam distribution across the detector to guarantee the image quality.
Zero Deformation: Virtually no deformation is occurring with the Detector Channels during rotation due to the rigidity of the rotor. The stability of the detector subsystem allows for stable, consistent and accurate image generation.
Zero Vibration: The vibration measured at a rotational speed of 0.5 s/360°, is less than 0.3 mm/s. This is achieved by the rigidity of the stator and rotor designs.
YSCT-16 is equipped with a custom made Slip Ring manufactured by MOOG USA for the transmission of power, control signals and data. MOOG is a global company that specializes in designing and manufacturing precision slip rings. MOOG is the world's leader in slip ring manufacturing and offers more than 10,000 slip ring designs that are used in medical equipment ranging from large CT Scanners to smaller camera systems as well as rugged space and aircraft vehicles.
YSCT-16 uses a highly precision gantry rotary bearing that is manufactured by Franke GmbH located in Germany. Franke bearing designs are able to meet the rigorous requirements of military and aerospace applications.
Zero Tolerance: The design and integration of the rotate bearing, rotor casting and the rotor motor control subsystem are designed to have very tight tolerances and very smooth and repeatable operation that allows the system to produce superb image quality.
Zero Jitter: The rotate bearing implements a preload design that effectively eliminates any axial and radial run outs which effectively eliminates any jitter or vibrations.
The system has multiple temperature sensors that are monitored in real time to ensure that the gantry and detector cooling is working within the specified ranges and to eliminate any possible image artifacts that would be caused by having an unstable operating temperature or temperature drift.
YSCT-16 System controls were designed and packaged to be in a single location on the gantry. This optimizes the cooling that is required for the components and provides a platform for meeting all of the shielding requirements for EMC. In addition the system controls packaging design allows for minimum space being needed for maintenance.
YSCT-16 has the fastest scanning speed among all the 16-slice CT systems with a scan speed of 0.5 s/360°. This not only gives you quicker patient throughput but also reduces any motion artifacts that would be due to any respiratory motion.
1. HV Generator
The YSCT-16 High Voltage Generator is manufactured by Spellman High Voltage Electronics Corporation. Spellman is the world's leader and producer of high voltage power supplies and X-Ray generators.
YSCT-16 has a 50 kW High Voltage Generator which can produce a maximum current of 420 mA and a maximum voltage of 140 kV. This meets the scanning requirements for larger patients. The minimum current is 10 mA which can be used for low dose scans when scanning children or regular health check-up. Tube voltage: 80 kV, 100 kV, 120 kV, 140 kV.
2. Tube
YSCT-16 uses an X-Ray tube that is manufactured by DUNLEE, USA. The X-ray tube is a very mature design and widely used which brings stability and long tube life. The tube has an anode heat storage of 5.3 MHU and an anode a cooling rate of 815 KHU/min which allows longer scan times and high patient throughput. The tube current range is 10~420 mA. The tube voltage range is 80~140 kV. The tube focal spot sizes are 0.7*1.2 mm for the small and 1.2*1.2 mm for the large.
3. Detector
The detector module design is non-isometric which consists of 16 slices by 24 rows. A detector row consists of 912 channels by 24 rows for a total of 21888 channels for the entire detector.
The detector design fully meets all of the EMC/EMI shielding requirements. The detector is also designed to prevent any light leaks. Meeting these requirements reduces the risk of having any noise that could introduce image artifacts. The detector mechanical design is very precise and robust and will ensure reliability during high-speed rotations of the gantry.
The detector design uses an optimized ultra-high speed rare earth ceramic scintillating material that increases the quantum efficiency detection. The material also has a very quick decay time and is less susceptible to radiation damage. This design ensures longer life and stability of the detector and can produce good image quality at a lower dose.
The unique compact ASIC chip allows the detector module to have a smaller overall package size. The ASIC has lower electronic noise, high sampling rates and has better detection performance at low contrast levels.
An innovative anti-scatter grid (ASG) with optimized tungsten plates are used in the YSCT16 system. The ASG design fully meets the Scatter to Primary Ratio(SPR). The ASG design implements a special process to maintain its stability and interface to the detector modules.
The detector is segregated from the heat generating sources in the gantry to reduce any temperature variations that the detector would be exposed to. This greatly improves the thermal stability and operating environment for the detector.
YSCT16 produces excellent image quality. Measuring the systems image quality using the industry standard CT CATPHAN Phantom the contrast resolution is 21.8 lp/cm at MTF 0%, 14 lp/cm at MTF 10% and a low contrast resolution of 3mm at 0.3%.
Table
Maximum motion range: 1900 mm
Maximum scanning coverage: 1700 mm
Motion tolerance in horizontal direction (200 kg): ± 0.25 mm
Table elevation range: 560 mm
Max weight load: 450lb (205kg)
Foot pedal control, table horizontal motion.
Console
The GUI or operator interface was designed with the end user in mind. The operator interface is simple and allows easy operation of the system while being fully functional and meeting the functionality requirements of the end user.
Uninterrupted power supply UPS (3KVA) to prevent sudden power outages and ensure the system stability.
Memory: 24G
Hard disk: 1 TB
Frequency: 2.93 GHz
Raw data hard disk capacity: 500 G
Image storage (not compressed 512 x 512 frames): 1,000,000
Liquid crystal display of high resolution, displaying matrix (M * M): 1280 x 1024
Progressive scan display
DICOM 3.0 network interface
Burn mode: DVD
DICOM3.0 print interface
DICOM3.0 output and input interface
Auto-film
Auto-voice and integrated intercom for communication between operator and patient
Parallel image processing
Simultaneous Reconstruction: Can reconstruct and reorganize the images simultaneously with a variety of options. Different reconstruction options are available within the scan protocol.
Nominal slice thickness for axial scan: 0.6 mm,1.2 mm, 2.4 mm, 4.8 mm, 9.6 mm.
Nominal slice thickness for helical scan: 0.6 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 9.0 mm, 10.0 mm.
Optional SFOV: 25 cm, 50 cm
Image reconstruction matrix: 512×512
Image reconstruction speed: 6 FPS, 512 × 512 matrix
Image display matrix: 512×512
Longest scanning time: 100 s
Longest scanning range: 1700 mm
Scout scan direction: anteroposterior, lateral
Maximum scout coverage: 1700 mm
Pitch range: 0.25-2.0
Maximum number of slices per rotation: 16
Thinnest image slice thickness in 16-slice mode: 0.6 mm
Thinnest reconstructed slice thickness in 16-slice mode: 0.6 mm
Include DICOM PRINT, DICOM STORE, DIOCM QUERY, DICOM RETRIVE, WORKLIST.
Include HIS & RIS interface
Raw data can be reconstructed on the workstation.
PDU
Independent power distribution unit which includes a large power isolation transformer, safety circuit breakers, temperature protection, etc. The PDU is compact and is easy to install. The PDU is low noise and has a low power consumption with a wide range of input voltage capability.
Input voltage: 3-phase 380/400/420/440/460/480V, 50/60Hz;
Power: 90KVA (instantaneous), 20KVA (continuous).
System Software
Beam hardening artifact correction software
Beam hardening correction technology is able to reduce the artifacts in the transition region between the bone and the soft tissue. It is also suitable for pelvis scanning.
Posterior cranial fossa optimization
Equipped with the abundant reconstruction filter functions, different reconstruction methods are applied to different scanning positions in order to gain high quality images.
Metal artifacts correction
This technology can reduce the artifacts impact on the organizational structure, thus to show the corresponding organizational structure more clearly, and accurately display the anatomical relationship between the internal metal and the corresponding organizational structure.
Motion correction reduces motion artifact
Advanced artifact suppression technology is applied to chest and abdomen scanning, thus to reduce the artifact caused by the patient voluntary or involuntary motion. The strip artifact suppression technology is applied to shoulder joint and hip joint scanning to reduce the artifacts in these regions.
Pediatric protocol
Pediatric patient body parts are smaller and more sensitive than adults. Specialized scanning protocols have been developed to minimize the radiation dose to the smaller and more sensitive pediatric patients.
Accessory KIT
Patient Table Pad, Head Holder, Head Holder Cushion, Phantom, etc.
Workstation
International standard professional image processing workstation: Chinese and English systems are available to choose from; Strong database management; Strong review function and corresponding tools. Full compatibility DVD writing; Strong external data entry function; via internet and data transfer.
Image quad core processor 3.5G; image memory 16G; professional graphics card 2G; display 24"; 1TB large capacity hard disk;
DVD writer; 1000M/100M adaptive network card; documents in simplified Chinese; 220V power cord, China; quick user guide
WINDOWS7 (Simplified Chinese); workstation software
3D image reconstruction
Including VR, MPR, CPR, surface reconstruction, scalpel simulation, virtual endoscopy, CTA boneless, CTA subtraction etc.
Standard diagnosis report system module
The diagnostic report template is capable of meeting the standard requirements for generating the required reports.
Laser printer interface
Personalized film printing: the same film printing for the different patients' images, cost saving; support regular and irregular divisions.
CT Vessel Analysis
CTA subtraction, CTA after bone removal or any interesting vessel regions could be straightened and then analyze the stenosis, do virtual endoscopy, analyze the plaque, simulate the stent implantation etc, which could cover the head and neck, the chest and the abdomen, the extremities and other parts.
Model : YSCT-16
YSCT-16 Description
Gantry
Aperture: 70 cm
Tilt range: ±30°
Manual Control from POD at Console
Gantry Cooling: Air
Gantry Rotation: Belt-Driven
Slip Ring Type: Low Voltage
Focus - ISO Distance 558 mm, short geometric design
Positioning System: 3D Lasers
The gantry construction is made up of a very solid and sturdy aluminum casting for both stator and rotor. Moreover, the gantry rotate bearing and rotate drive components are integrated in a way to ensure the scanner's rigidness and stability. During rotation, the stator and rotor has minimum vibration, deformation and jitter in all directions. Therefore, the stability of the scanner allows the X-Ray tube focal spot to be accurately aligned to the center of the detector which accurately locates the X-Ray beam distribution across the detector to guarantee the image quality.
Zero Deformation: Virtually no deformation is occurring with the Detector Channels during rotation due to the rigidity of the rotor. The stability of the detector subsystem allows for stable, consistent and accurate image generation.
Zero Vibration: The vibration measured at a rotational speed of 0.5 s/360°, is less than 0.3 mm/s. This is achieved by the rigidity of the stator and rotor designs.
YSCT-16 is equipped with a custom made Slip Ring manufactured by MOOG USA for the transmission of power, control signals and data. MOOG is a global company that specializes in designing and manufacturing precision slip rings. MOOG is the world's leader in slip ring manufacturing and offers more than 10,000 slip ring designs that are used in medical equipment ranging from large CT Scanners to smaller camera systems as well as rugged space and aircraft vehicles.
YSCT-16 uses a highly precision gantry rotary bearing that is manufactured by Franke GmbH located in Germany. Franke bearing designs are able to meet the rigorous requirements of military and aerospace applications.
Zero Tolerance: The design and integration of the rotate bearing, rotor casting and the rotor motor control subsystem are designed to have very tight tolerances and very smooth and repeatable operation that allows the system to produce superb image quality.
Zero Jitter: The rotate bearing implements a preload design that effectively eliminates any axial and radial run outs which effectively eliminates any jitter or vibrations.
The system has multiple temperature sensors that are monitored in real time to ensure that the gantry and detector cooling is working within the specified ranges and to eliminate any possible image artifacts that would be caused by having an unstable operating temperature or temperature drift.
YSCT-16 System controls were designed and packaged to be in a single location on the gantry. This optimizes the cooling that is required for the components and provides a platform for meeting all of the shielding requirements for EMC. In addition the system controls packaging design allows for minimum space being needed for maintenance.
YSCT-16 has the fastest scanning speed among all the 16-slice CT systems with a scan speed of 0.5 s/360°. This not only gives you quicker patient throughput but also reduces any motion artifacts that would be due to any respiratory motion.
1. HV Generator
The YSCT-16 High Voltage Generator is manufactured by Spellman High Voltage Electronics Corporation. Spellman is the world's leader and producer of high voltage power supplies and X-Ray generators.
YSCT-16 has a 50 kW High Voltage Generator which can produce a maximum current of 420 mA and a maximum voltage of 140 kV. This meets the scanning requirements for larger patients. The minimum current is 10 mA which can be used for low dose scans when scanning children or regular health check-up. Tube voltage: 80 kV, 100 kV, 120 kV, 140 kV.
2. Tube
YSCT-16 uses an X-Ray tube that is manufactured by DUNLEE, USA. The X-ray tube is a very mature design and widely used which brings stability and long tube life. The tube has an anode heat storage of 5.3 MHU and an anode a cooling rate of 815 KHU/min which allows longer scan times and high patient throughput. The tube current range is 10~420 mA. The tube voltage range is 80~140 kV. The tube focal spot sizes are 0.7*1.2 mm for the small and 1.2*1.2 mm for the large.
3. Detector
The detector module design is non-isometric which consists of 16 slices by 24 rows. A detector row consists of 912 channels by 24 rows for a total of 21888 channels for the entire detector.
The detector design fully meets all of the EMC/EMI shielding requirements. The detector is also designed to prevent any light leaks. Meeting these requirements reduces the risk of having any noise that could introduce image artifacts. The detector mechanical design is very precise and robust and will ensure reliability during high-speed rotations of the gantry.
The detector design uses an optimized ultra-high speed rare earth ceramic scintillating material that increases the quantum efficiency detection. The material also has a very quick decay time and is less susceptible to radiation damage. This design ensures longer life and stability of the detector and can produce good image quality at a lower dose.
The unique compact ASIC chip allows the detector module to have a smaller overall package size. The ASIC has lower electronic noise, high sampling rates and has better detection performance at low contrast levels.
An innovative anti-scatter grid (ASG) with optimized tungsten plates are used in the YSCT16 system. The ASG design fully meets the Scatter to Primary Ratio(SPR). The ASG design implements a special process to maintain its stability and interface to the detector modules.
The detector is segregated from the heat generating sources in the gantry to reduce any temperature variations that the detector would be exposed to. This greatly improves the thermal stability and operating environment for the detector.
YSCT16 produces excellent image quality. Measuring the systems image quality using the industry standard CT CATPHAN Phantom the contrast resolution is 21.8 lp/cm at MTF 0%, 14 lp/cm at MTF 10% and a low contrast resolution of 3mm at 0.3%.
Table
Maximum motion range: 1900 mm
Maximum scanning coverage: 1700 mm
Motion tolerance in horizontal direction (200 kg): ± 0.25 mm
Table elevation range: 560 mm
Max weight load: 450lb (205kg)
Foot pedal control, table horizontal motion.
Console
The GUI or operator interface was designed with the end user in mind. The operator interface is simple and allows easy operation of the system while being fully functional and meeting the functionality requirements of the end user.
Uninterrupted power supply UPS (3KVA) to prevent sudden power outages and ensure the system stability.
Memory: 24G
Hard disk: 1 TB
Frequency: 2.93 GHz
Raw data hard disk capacity: 500 G
Image storage (not compressed 512 x 512 frames): 1,000,000
Liquid crystal display of high resolution, displaying matrix (M * M): 1280 x 1024
Progressive scan display
DICOM 3.0 network interface
Burn mode: DVD
DICOM3.0 print interface
DICOM3.0 output and input interface
Auto-film
Auto-voice and integrated intercom for communication between operator and patient
Parallel image processing
Simultaneous Reconstruction: Can reconstruct and reorganize the images simultaneously with a variety of options. Different reconstruction options are available within the scan protocol.
Nominal slice thickness for axial scan: 0.6 mm,1.2 mm, 2.4 mm, 4.8 mm, 9.6 mm.
Nominal slice thickness for helical scan: 0.6 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 9.0 mm, 10.0 mm.
Optional SFOV: 25 cm, 50 cm
Image reconstruction matrix: 512×512
Image reconstruction speed: 6 FPS, 512 × 512 matrix
Image display matrix: 512×512
Longest scanning time: 100 s
Longest scanning range: 1700 mm
Scout scan direction: anteroposterior, lateral
Maximum scout coverage: 1700 mm
Pitch range: 0.25-2.0
Maximum number of slices per rotation: 16
Thinnest image slice thickness in 16-slice mode: 0.6 mm
Thinnest reconstructed slice thickness in 16-slice mode: 0.6 mm
Include DICOM PRINT, DICOM STORE, DIOCM QUERY, DICOM RETRIVE, WORKLIST.
Include HIS & RIS interface
Raw data can be reconstructed on the workstation.
PDU
Independent power distribution unit which includes a large power isolation transformer, safety circuit breakers, temperature protection, etc. The PDU is compact and is easy to install. The PDU is low noise and has a low power consumption with a wide range of input voltage capability.
Input voltage: 3-phase 380/400/420/440/460/480V, 50/60Hz;
Power: 90KVA (instantaneous), 20KVA (continuous).
System Software
Beam hardening artifact correction software
Beam hardening correction technology is able to reduce the artifacts in the transition region between the bone and the soft tissue. It is also suitable for pelvis scanning.
Posterior cranial fossa optimization
Equipped with the abundant reconstruction filter functions, different reconstruction methods are applied to different scanning positions in order to gain high quality images.
Metal artifacts correction
This technology can reduce the artifacts impact on the organizational structure, thus to show the corresponding organizational structure more clearly, and accurately display the anatomical relationship between the internal metal and the corresponding organizational structure.
Motion correction reduces motion artifact
Advanced artifact suppression technology is applied to chest and abdomen scanning, thus to reduce the artifact caused by the patient voluntary or involuntary motion. The strip artifact suppression technology is applied to shoulder joint and hip joint scanning to reduce the artifacts in these regions.
Pediatric protocol
Pediatric patient body parts are smaller and more sensitive than adults. Specialized scanning protocols have been developed to minimize the radiation dose to the smaller and more sensitive pediatric patients.
Accessory KIT
Patient Table Pad, Head Holder, Head Holder Cushion, Phantom, etc.
Workstation
International standard professional image processing workstation: Chinese and English systems are available to choose from; Strong database management; Strong review function and corresponding tools. Full compatibility DVD writing; Strong external data entry function; via internet and data transfer.
Image quad core processor 3.5G; image memory 16G; professional graphics card 2G; display 24"; 1TB large capacity hard disk;
DVD writer; 1000M/100M adaptive network card; documents in simplified Chinese; 220V power cord, China; quick user guide
WINDOWS7 (Simplified Chinese); workstation software
3D image reconstruction
Including VR, MPR, CPR, surface reconstruction, scalpel simulation, virtual endoscopy, CTA boneless, CTA subtraction etc.
Standard diagnosis report system module
The diagnostic report template is capable of meeting the standard requirements for generating the required reports.
Laser printer interface
Personalized film printing: the same film printing for the different patients' images, cost saving; support regular and irregular divisions.
CT Vessel Analysis
CTA subtraction, CTA after bone removal or any interesting vessel regions could be straightened and then analyze the stenosis, do virtual endoscopy, analyze the plaque, simulate the stent implantation etc, which could cover the head and neck, the chest and the abdomen, the extremities and other parts.
