Medical Lab Urine Analyzer Fully Automatic Urine Analyzer
Medical Lab Urine Analyzer Fully Automatic Urine AnalyzerDescription YSU-1800 full automatic urine analyzer is a high accuracy instrument for clinical detection of urine which uses micro professor technology, photoelectric technology research. It is operated by color touch screen which has high int......
Send Inquiry
Product Description

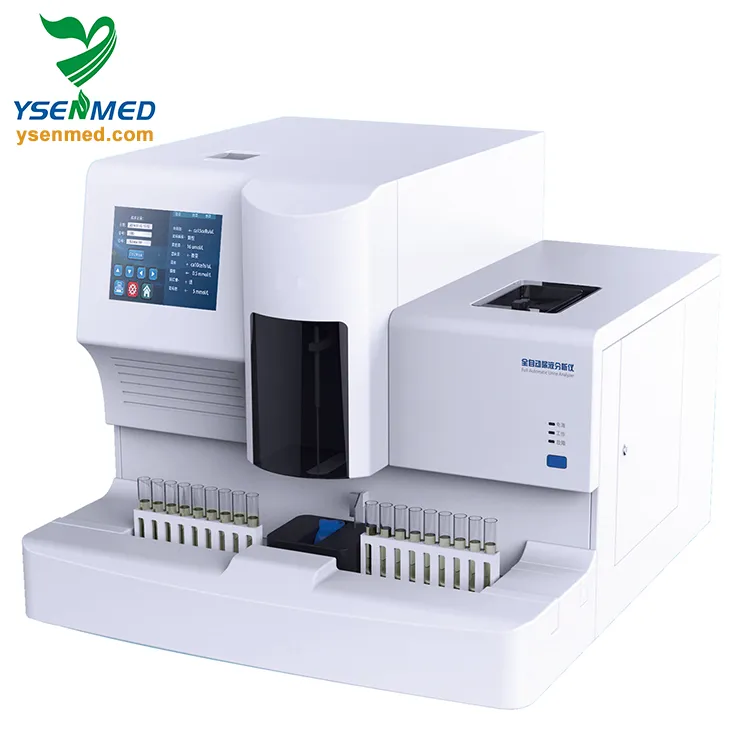

Medical Lab Urine Analyzer Fully Automatic Urine Analyzer
Description
YSU-1800 full automatic urine analyzer is a high accuracy instrument for clinical detection of urine which uses micro professor technology, photoelectric technology research. It is operated by color touch screen which has high intelligent degree and accurate result.
Specifications
1. Test speed : 240 strips/hour
2. The data store capacity: 10000 test records
3. Language : English and Chinese, others can also be added.
4. The operating environment: Altitude ≤2000 m , temperature 15 ºC ~ 35 ºC, temperature 20 ºC to 25 ºC, relative humidity ≤80%
5. External output : RS - 232 serial interface, parallel interface printing
6. Bar code link: bar code reader
7. Transfer rate: 14400 BPS, 9600 BPS, 4800 BPS, 9600 BPS
8. Power: AC 220/110 v + 22 v, 50 hz + 1 hz
9. Fuse specification: 250 v 1 a fuse specifications
10. Work rate: 250 va
11. Weight : 60 Kg
12. Overall dimensions : 697mm * 557 mm * 752mm
13. Printer : Built-in thermal printer, can be connected the external stylus printer.
14. Test strip: 8A,10A,11A,12A,13A,14A urine test strip.
Supply Ability:
100 sets urine analyzer YSU-1800 per month
Packaging & Delivery:
Packaging Details: 1 Sets/carton,697*557*752mm, about 60 kg, the volume weight is 66kg.
Nearest Port: Qingdao port
Lead Time: Shipped in 3-15 days depending on order size.
Product features
1. Color touch screen display,menu operation interface,convenient operation.
2. New cold light sourcing testing technology,strong anti-interference,high sensitivity,good stability.
3. The instrument includes 8-inch color touch LCD screen,built-in printer and built-in bar-code scanner(optional),it could identify sample position and information automatically which could improve efficiency.It could accommodate more than 200pcs urine strips at one time.
4. Automatic sampling device is compatible with automated assembly line,it could be connected with automatic urine sediment analyzer to form pipeline system.
5. The sample do not need centrifugation or pretreatment.The instrument would test automatically if put the sample rack inside.
6. Emergency insertion function,the instrument would give priority to deal with the emergency sample without stopping the routine detection.
7. The instrument could add sample intelligently according to the urine strip reaction block which ensure the uniformity and sufficiency of reaction.
8. Accurate quantitative sampling technology,which avoids cross pollution between projects.
9. The instrument can do quantitative analysis to SG,it could test the sample color and turbidity.
10. The instrument can accommodate 120 samples.
11. A complete alarm system.
12. A function of calibration and quality controls.
13. The standard RS-232 interface with function of being connected to the LIS and HIS system.
14. Adopts 32-bit RISC micro-controller to minimize extra components and maximize reliability.
15. Adopts bipolar high performance bipolar stepper motor.
16. Adopts the newest high flux white LED for high system signal to noise ratio and longer life.
17. Adopts power adapter of professional manufacturer for safety and adaptability.
18. Uses flash memory. Data is saved simultaneously as testing progresses. No data is lost after shutting down or power out.
19.Stores up to 10000 results. Sorts by dates and categories for convenient management.
20. Software upgrade can be done by connecting the analyzer to a computer through the parallel ports on the rear side.
21. Infrared sensor detects the motion of operator placing a prepared strip on the feed table to start the test.
22. Equipped with waste box to collect and store used strips.
23. Waste plate collects and stores extra liquid to minimize the pollution to the machine
Detailed Description
Yuesenmed provides various equipment for medical lab. We guarantee high quality, reasonable prices and fast delivery.
We are a company aiming to make one stop shopping for our customers. We equiped medical lab with many kind of items like chemistry analyzer, blood analyzer, centrifuge and so on.
We listed some medical lab basic items for your reference as below:
For more lab equipment, please go to our homepage and search by catagories. Thanks for your interest!
Description
YSU-1800 full automatic urine analyzer is a high accuracy instrument for clinical detection of urine which uses micro professor technology, photoelectric technology research. It is operated by color touch screen which has high intelligent degree and accurate result.
Specifications
1. Test speed : 240 strips/hour
2. The data store capacity: 10000 test records
3. Language : English and Chinese, others can also be added.
4. The operating environment: Altitude ≤2000 m , temperature 15 ºC ~ 35 ºC, temperature 20 ºC to 25 ºC, relative humidity ≤80%
5. External output : RS - 232 serial interface, parallel interface printing
6. Bar code link: bar code reader
7. Transfer rate: 14400 BPS, 9600 BPS, 4800 BPS, 9600 BPS
8. Power: AC 220/110 v + 22 v, 50 hz + 1 hz
9. Fuse specification: 250 v 1 a fuse specifications
10. Work rate: 250 va
11. Weight : 60 Kg
12. Overall dimensions : 697mm * 557 mm * 752mm
13. Printer : Built-in thermal printer, can be connected the external stylus printer.
14. Test strip: 8A,10A,11A,12A,13A,14A urine test strip.
Supply Ability:
100 sets urine analyzer YSU-1800 per month
Packaging & Delivery:
Packaging Details: 1 Sets/carton,697*557*752mm, about 60 kg, the volume weight is 66kg.
Nearest Port: Qingdao port
Lead Time: Shipped in 3-15 days depending on order size.
Product features
1. Color touch screen display,menu operation interface,convenient operation.
2. New cold light sourcing testing technology,strong anti-interference,high sensitivity,good stability.
3. The instrument includes 8-inch color touch LCD screen,built-in printer and built-in bar-code scanner(optional),it could identify sample position and information automatically which could improve efficiency.It could accommodate more than 200pcs urine strips at one time.
4. Automatic sampling device is compatible with automated assembly line,it could be connected with automatic urine sediment analyzer to form pipeline system.
5. The sample do not need centrifugation or pretreatment.The instrument would test automatically if put the sample rack inside.
6. Emergency insertion function,the instrument would give priority to deal with the emergency sample without stopping the routine detection.
7. The instrument could add sample intelligently according to the urine strip reaction block which ensure the uniformity and sufficiency of reaction.
8. Accurate quantitative sampling technology,which avoids cross pollution between projects.
9. The instrument can do quantitative analysis to SG,it could test the sample color and turbidity.
10. The instrument can accommodate 120 samples.
11. A complete alarm system.
12. A function of calibration and quality controls.
13. The standard RS-232 interface with function of being connected to the LIS and HIS system.
14. Adopts 32-bit RISC micro-controller to minimize extra components and maximize reliability.
15. Adopts bipolar high performance bipolar stepper motor.
16. Adopts the newest high flux white LED for high system signal to noise ratio and longer life.
17. Adopts power adapter of professional manufacturer for safety and adaptability.
18. Uses flash memory. Data is saved simultaneously as testing progresses. No data is lost after shutting down or power out.
19.Stores up to 10000 results. Sorts by dates and categories for convenient management.
20. Software upgrade can be done by connecting the analyzer to a computer through the parallel ports on the rear side.
21. Infrared sensor detects the motion of operator placing a prepared strip on the feed table to start the test.
22. Equipped with waste box to collect and store used strips.
23. Waste plate collects and stores extra liquid to minimize the pollution to the machine
Detailed Description
| Item | Technical Standard |
| Principle | reflection photometer determine the color changes of urine strip and calculate related concentration values,then output semi-quantitative results |
| Wavelength | 520nm/565nm/620nm/670nm |
| Reaction time | 60 seconds |
| Processing speed | 240 reports/hour |
| Capacity of strips | 200 pieces |
| Required sample volume | 2ml |
| Used sample volume | 0.9ml |
| Report | LCD,serial output,built-in 57mm thermal printer,English and Chinese,external parallel port printer |
| Liquid crystal display | 8 inch color touch screen |
| Output type | touch screen |
| Data storage | save 10000 test reports |
| External interface | standard RS-232 serial port,can be connected to computer,25 pin parallel port driver external printer |
| Voltages | AC100-240V 50/60Hz |
| Power | 250VA |
| Size | 697*557*752nm |
| Weight | 60KGS |
| Brand | YSENMED |
Yuesenmed provides various equipment for medical lab. We guarantee high quality, reasonable prices and fast delivery.
We are a company aiming to make one stop shopping for our customers. We equiped medical lab with many kind of items like chemistry analyzer, blood analyzer, centrifuge and so on.
We listed some medical lab basic items for your reference as below:
One-stop shopping for laboratory room | chemistry analyzer (auto and semi auto models) |
| notebook computer for the automatic chemistry analyzer. | |
| water bath for Semi-auto chemistry analyzer. | |
| hematology analyzer. | |
| blood gas analyzer. | |
| urine analyzer. | |
| coagulation analyzer. | |
| immunochramato reader. | |
| blood bank refrigerator. | |
| pharmaceutical refrigerator. | |
| microplate elisa reader. | |
| microplate washer. | |
| centrifuge. | |
| pipette. | |
| rotator. | |
| autoclave sterilizer. |
For more lab equipment, please go to our homepage and search by catagories. Thanks for your interest!
