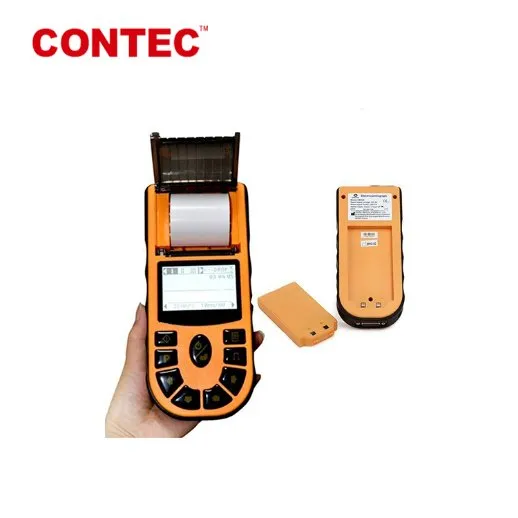

Multi- Language Emergency ECG Rebound Tonometer Medical Instrument

Introduction

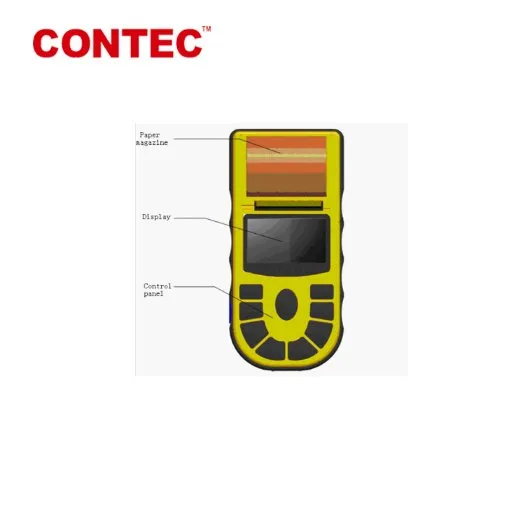

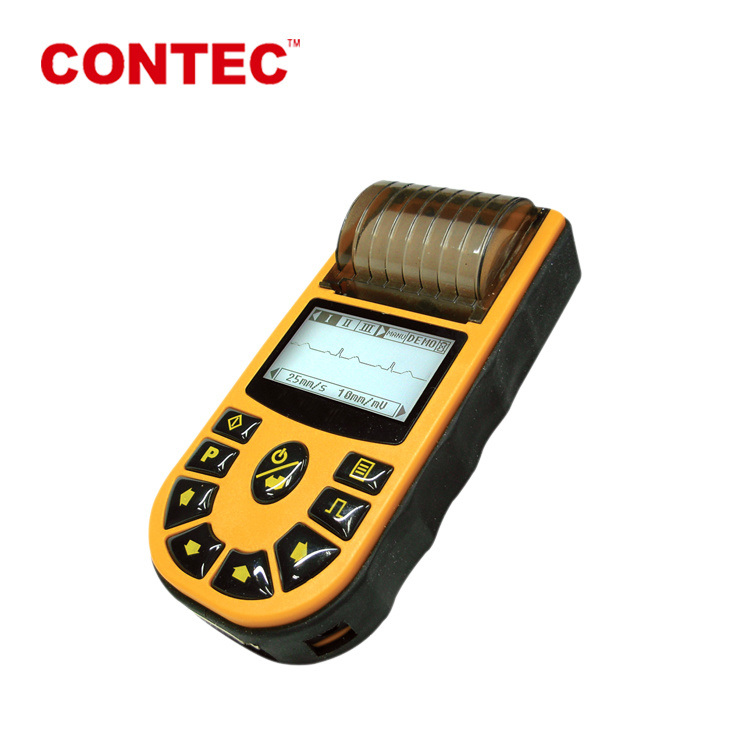

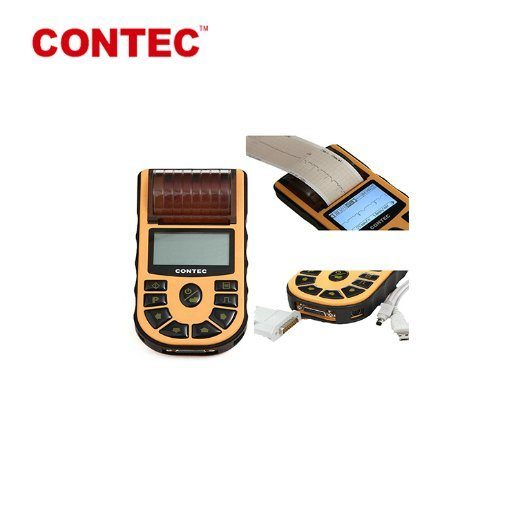

•   2.7" STN-LCD, accurate and clear ECG waveform and working state display, economical to save recording paper.
•   Touch keyboard, simple and convenient to operate.
•   Compact, delicate and portable design.

•   Adopt digital signal processing technology to get high-quality ECG waveforms via AC filter, baseline filter and EMG filter of ECG signal.
•   Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
•   Real-time record single-channel ECG waveform and annotation(including lead mark, sensitivity, paper speed and filter state, etc.).
•   In AUTO mode, finish all operation by pressing the button once, which improves work efficiency.
•   Multi-language (Chinese, English, French, Italian, German and Turkish, Spanish) interface and report.

•   Detachable lithium battery, convenient to use and replace.
•   In optimal DC state, up to 8h standby time, continuous print up to 4h, record up to 150 ECG waveform.

•   Working environment

•   Transport and storage environment

•   Input mode: floating and defibrillation protection
•   Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
•   CMRR: >60dB, >100dB(add filter)
•   Time constant:≥ 3.2s
•   Patient leak current: <10µA Calibration voltage: 1mV
•   Sensitivity: 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
•   Noise level: ≤15µVp-p
•   Input circuit current: ≤50nA
•   Input impedance: ≥50MΩ
•   Sampling accuracy: 12-bit
•   Safety classification: internally powered equipment, type CF and defibrillation-proof applied part
•   Recording mode: thermal printing system
•   Paper size: 50mm(W)×20m(L)
•   Sampling frequency: 800Hz
•   Polarizing voltage: ±300mV
•   EMG interference filter: 35Hz(-3dB)
•   AC filter: 50Hz/60Hz(-20dB)
•   Paper speed: 25, 50mm/s, ±5%
•   Power supply: DC: 9V adapter, 7.4V/2000mAh rechargeable lithium battery
•   Waterproof degree: IPX0
•   Working mode: continuous working
•   Dimension: 190mm(L)×90mm(W)×40mm(H)
•   Weigh: 0.45Kg

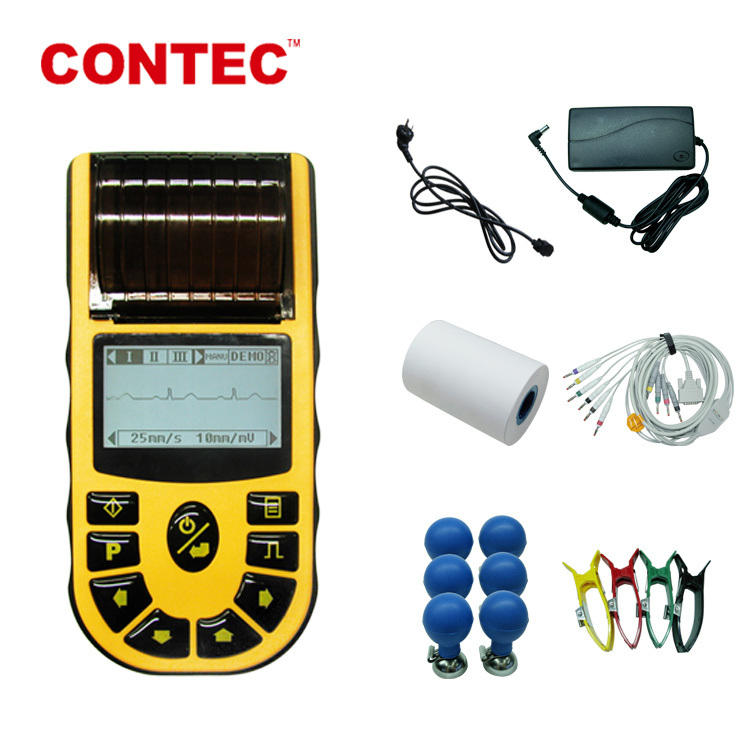

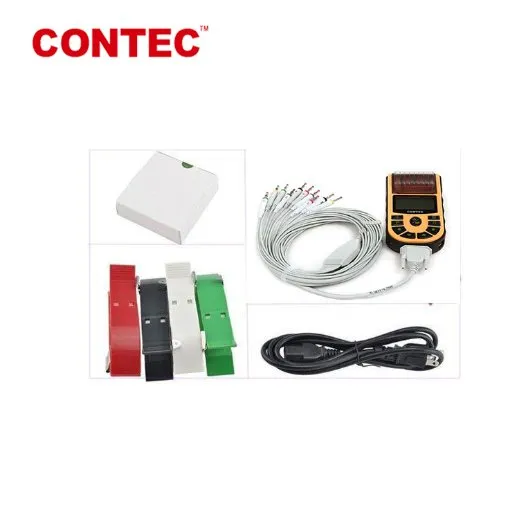

•   A lead cable
•   A limb electrode
•   A chest electrode
•   A thermal recording paper
•   A power cord
•   A user manual
•   A power adapter

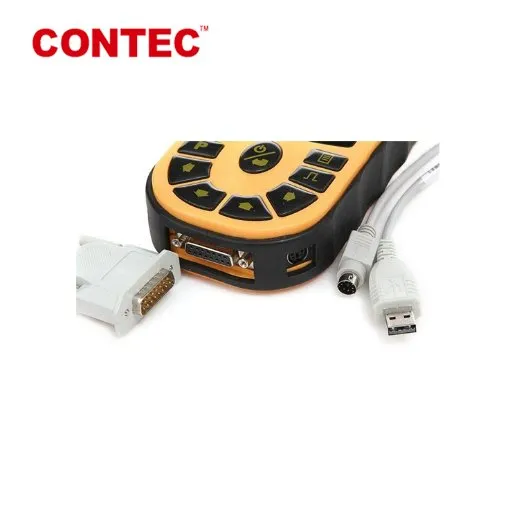

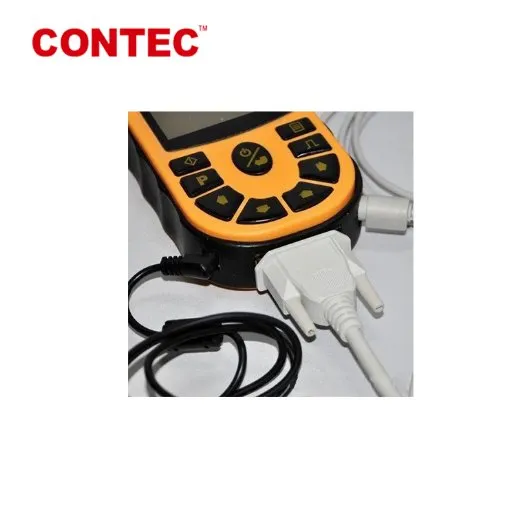

•   ECG-Sync software+USB cable
•   Disposable ECG electrode
•   Bag
•   Conductive gel
