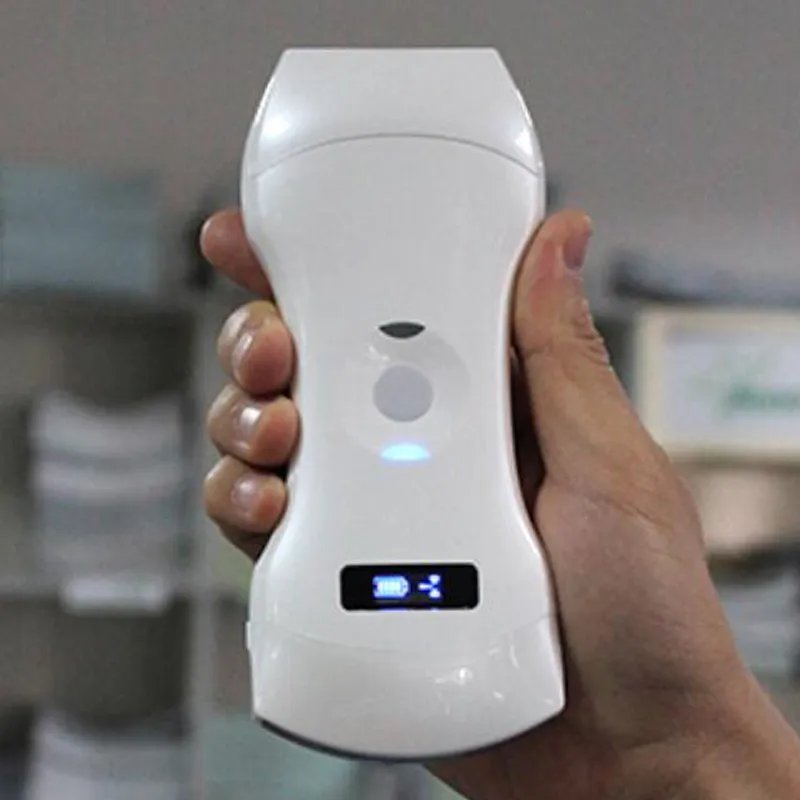

My-A023h Medical Products Handheld Portable Ultrasound Wireless Probe

MY-A023H electronic array color doppler portable ultrasound scanner wifi wireless ultrasound probe

Scanning mode: Electronic array

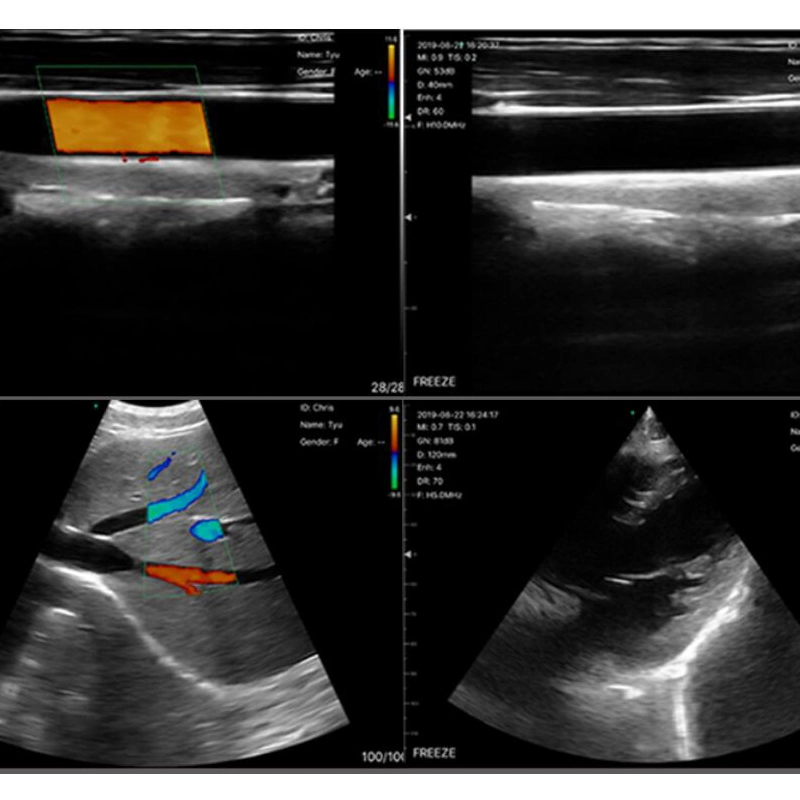

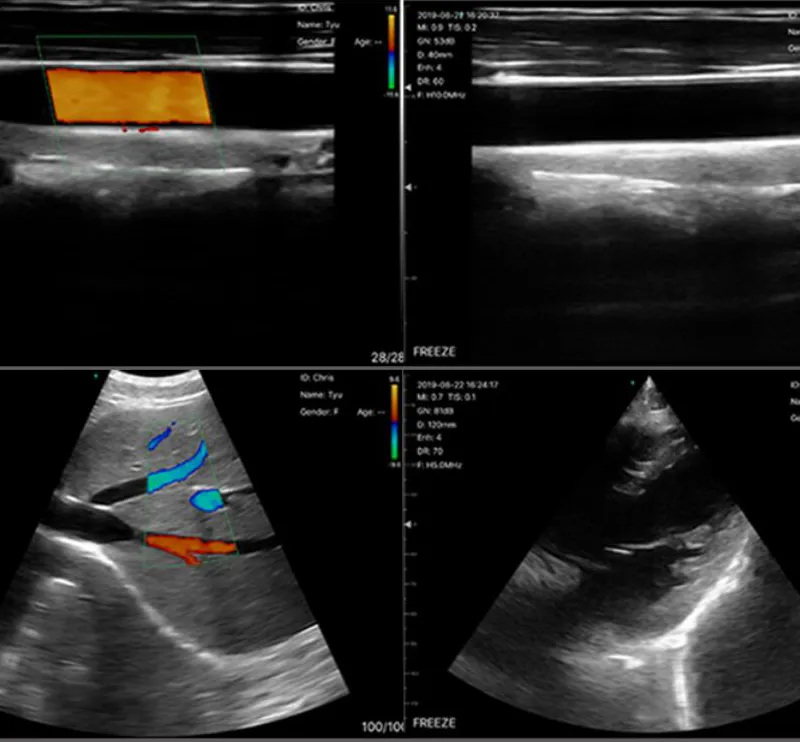

Display mode: B, B/M, and Color, PW, PDI
Frequency: Convex/Phasedarray probe 3.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz
Display Depth: Convex 90/160/220/305mm. Linear 20/40/60/100mm
Sean angle and width: Convex 50°,Phasedarray 80°,linear 40mm
Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function: The function of in-piane puncture guide line, out-of-plane puncture guide line,automatic blood vessel measurement, and the enhancement function of needle point development.
Measurement : Length, Area, Angle, Obstetrics
Image frame rate: 18 frames/second
Battery working time: 3 hours Charge: by wireless charger, 2 hours
Dimension: 156 x 60 * 20mm
Weight: 220g
Wifi type: 802.11g/20MHz/5G/450Mbps

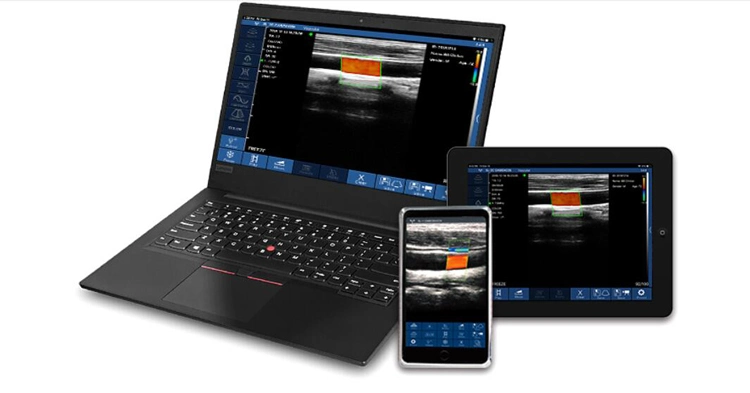

Working system: Apple IOS and Android Windows
