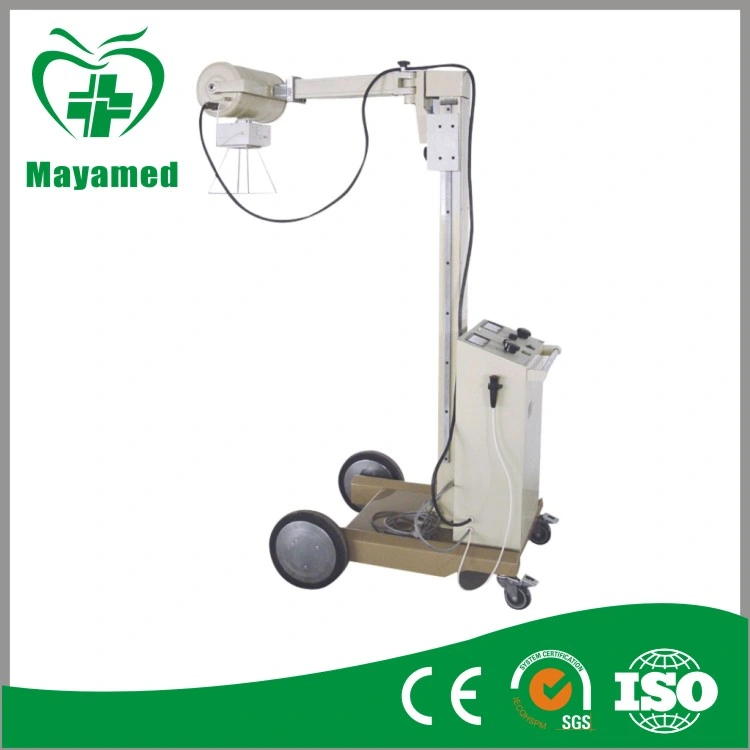

My-D007 50mA Endurance Medical X-ray Machine

Product Description

My-D007 50mA Endurance Medical X-ray Machine

50ma Movable Medical X-Ray System (F50-100)

1, 50mA Movable Medical X-ray System(F50-100)), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, X-ray radiography for hospital wards and emergency room. Combined with X-ray device, single-focus, full-wave rectification. Designed sophisticated, safe, reliable, flexible and radio-controlled device.
(remote area ≥ 5 m)

GENERAL

Can be used in ward and emergency treatment room

X-ray generator is combined

Single focus, bridge rectification.

It is precise, safe, reliable and flexible

A wireless remote control device (control range≥ 5 m) is used

MAIN TECHNICAL PARAMETER
X-ray generator	Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
Max rated capability	Current	50mA	30mA
	Voltage	90kVp	90kVp
	Time	2s	6.3 s
Power supply	Voltage	180~240V
	Frequency	50Hz
	Power	not lower than 5kVA
	Resistance	not larger than 1Ω
Voltage adjustment range of x-ray tube	45~90kVp (divided into 10 steps)
Range of the timer	0.08~6.3 s
Distance between the focus to the ground	600~1630 mm
X-ray tube	Longitudinal movement			240mm
	Transverse rotation			± 60°
Specification of X-ray tube	Stationary anode, single focus
Transport dimension, Weight	103× 76× 204(cm), NET 150kg/GROSS 220kg
