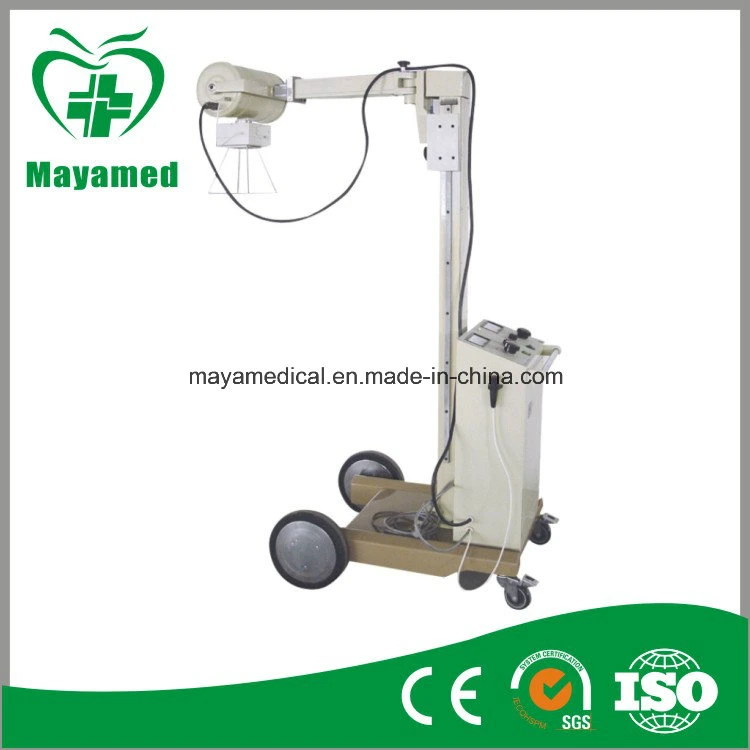

My-D007 X-ray Chest Stand Medical Equipment 100mA Mobile X-ray Machine
My-D007 X-ray Chest Stand Medical Equipment 100mA Mobile X-ray Machine1, 50mA Movable Medical X-ray System(F50-100)), mobile X-ray equipment for hospitals, x ray unit -MAYA2, X-ray radiography for hospital wards and emergency room. Combined with X-ray device, single-focus, full-wave rectification. D......
Send Inquiry
Product Description
My-D007 X-ray Chest Stand Medical Equipment 100mA Mobile X-ray Machine
1, 50mA Movable Medical X-ray System(F50-100)), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, X-ray radiography for hospital wards and emergency room. Combined with X-ray device, single-focus, full-wave rectification. Designed sophisticated, safe, reliable, flexible and radio-controlled device. (remote area ≥ 5 m)
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
FAQ
Q: How to buy your products ?
A: For some products we have on stock , you can take away the products after you arrange the payment ; If we don't have stock ,we will start the production once getting the payment .
Q: What's the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified .
Q: Can we visit your factory ?
A: Of course , welcome to visit our factory if you come to China .
Q: How long is the validity of quotation ?
A: Generally , our price is valid within one month from the date of quotation . The price will be adjusted appropriately as the price fluctuation of raw material in the market .
Q: What's the production date after we confirm the order ?
A: This depend on the quantity . Normally , for the mass production ,we need about one week to finish the production . Please contact us for more detail information .
Packaging & Shipping
1, 50mA Movable Medical X-ray System(F50-100)), mobile X-ray equipment for hospitals, x ray unit -MAYA
2, X-ray radiography for hospital wards and emergency room. Combined with X-ray device, single-focus, full-wave rectification. Designed sophisticated, safe, reliable, flexible and radio-controlled device. (remote area ≥ 5 m)
| GENERAL |
| Can be used in ward and emergency treatment room |
| X-ray generator is combined |
| Single focus, bridge rectification. |
| It is precise, safe, reliable and flexible |
| A wireless remote control device (control range≥ 5 m) is used |
| MAIN TECHNICAL PARAMETER | |||||
| X-ray generator | Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. | ||||
| Max rated capability | Current | 50mA | 30mA | ||
| Voltage | 90kVp | 90kVp | |||
| Time | 2s | 6.3 s | |||
| Power supply | Voltage | 180~240V | |||
| Frequency | 50Hz | ||||
| Power | not lower than 5kVA | ||||
| Resistance | not larger than 1Ω | ||||
| Voltage adjustment range of x-ray tube | 45~90kVp (divided into 10 steps) | ||||
| Range of the timer | 0.08~6.3 s | ||||
| Distance between the focus to the ground | 600~1630 mm | ||||
| X-ray tube | Longitudinal movement | 240mm | |||
| Transverse rotation | ± 60° | ||||
| Specification of X-ray tube | Stationary anode, single focus | ||||
| Transport dimension, Weight | 103× 76× 204(cm), NET 150kg/GROSS 220kg | ||||
