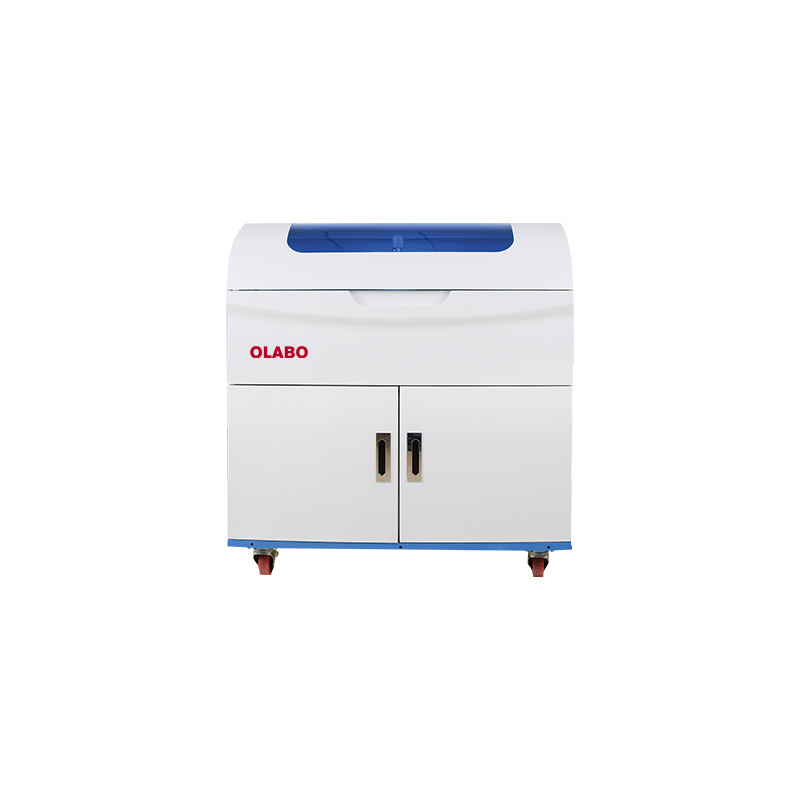

China OLABO Mini Fully Automatic Clinical Chemistry Analyzer Biochemical Analyzer

Product Description

It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and

other samples. Do not use for other purposes.

Features

-49 Sample positions.

-56 Reagent positions.

-120 Reaction cuvettes.

-200 tests per hour.

-Probe with anti-collision function, liquid level dectection function.

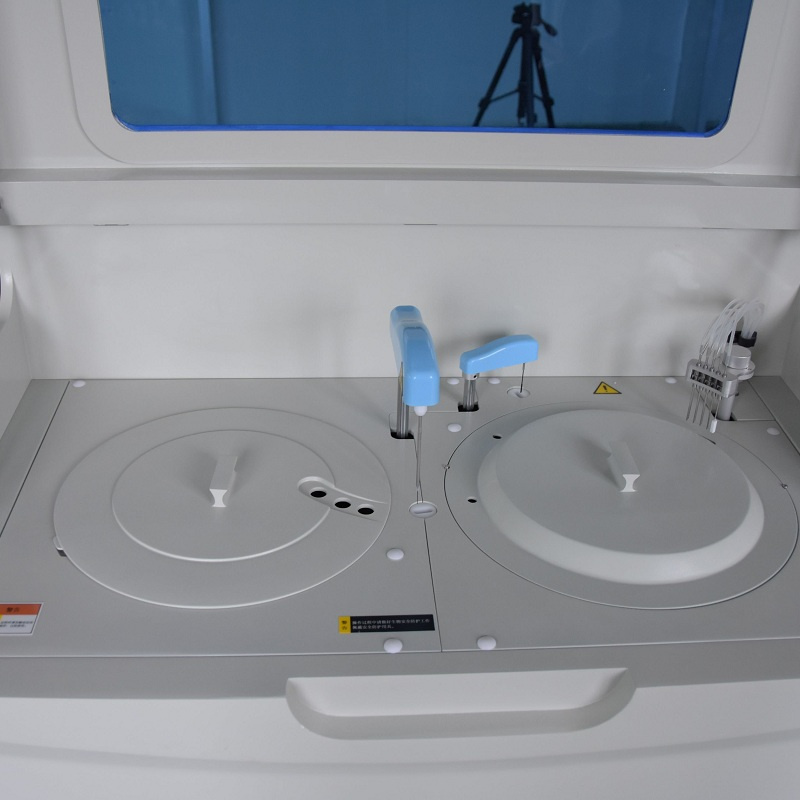

OLABO Mini Fully Automatic Clinical Chemistry Analyzer Biochemical Analyzer
1. Reaction System
37±0.1ºC, real-time monitor.

2. Mixer Probe
Teflon coating to avoid cross contamination

3. Reagent Tray
2-8ºC cooling for 24 hours

4. Sample Needle
Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.

5. Software
User-friendly software.

6. Washing Probe
Independent 4-step washing system

Model	BK-280
Throughput	200Tests/Hour
Analysis Method	End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Sample Positions	49 sample positions
Reagent Positions	56 reagent positions
Probewashing	Automaticwashing interior and exterior
ReagentCooling	Refrigerated tray with independent switch
Temperature Control	37±0.1ºC, real-time monitor
Cuvettes	120 reusable cuvettes,optical length 6mm
MixerProbe	Independent stirring
Washing	Automatic cuvettes washing
STAT function	YES
Light Source	12V/30W halogen lamp
Spectrophotometry	Post-spectral spectrophotometry
Wavelength	340,405,450,510,546,578,630,700nm
Absorbance	0~3.0Abs
Calibration	Linear: K factor, 1-point, 2-point and multipoint linear
Calibration	Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P,Logit-5P
Quality Control	Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D)
Software	Windows 7/8/10, LIS system available
LIS System	Bi-direction, support HL7 protocol
Interface	LAN port access
Printer	External, multiple reporting mode available
Power Supply	AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
Temperature	10~30ºC
WaterConsumption	Deionized water:5L/H
Humidity	30-80%
External Size (WDH)	950612510mm
Net Weight	75kg
Package Size(WDH)	11187281151mm
Gross Weight	130kg

OLABO Mini Fully Automatic Clinical Chemistry Analyzer Biochemical Analyzer

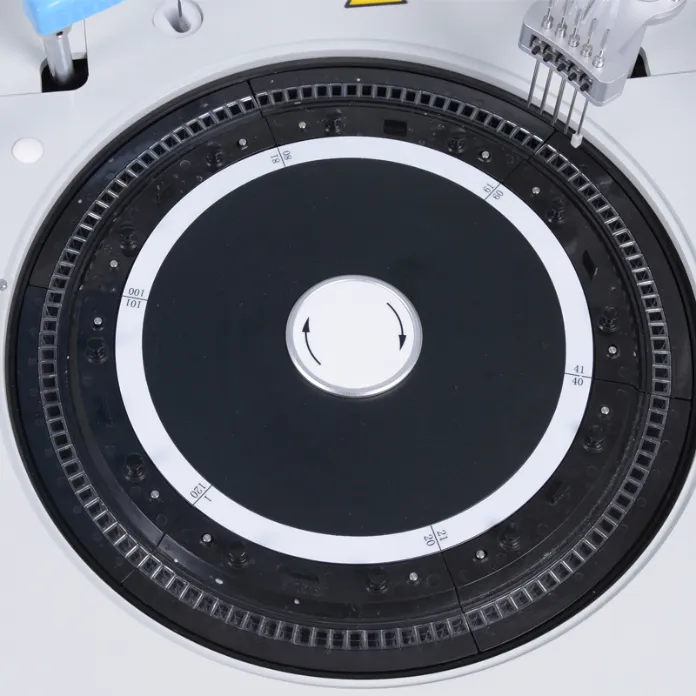

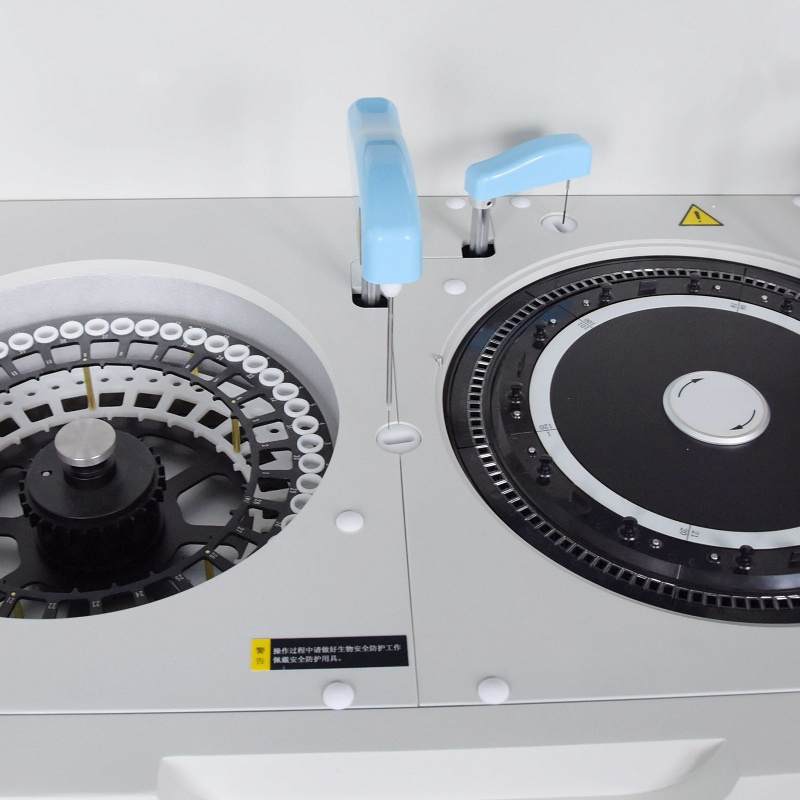

Reaction tray
37ºC±0.1ºC, real-time monitor.

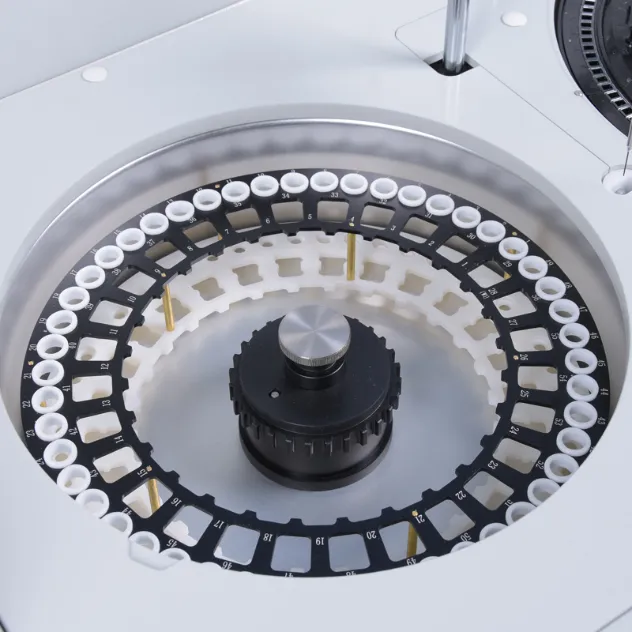

Reagent Tray
Refrigerated tray with independent switch.

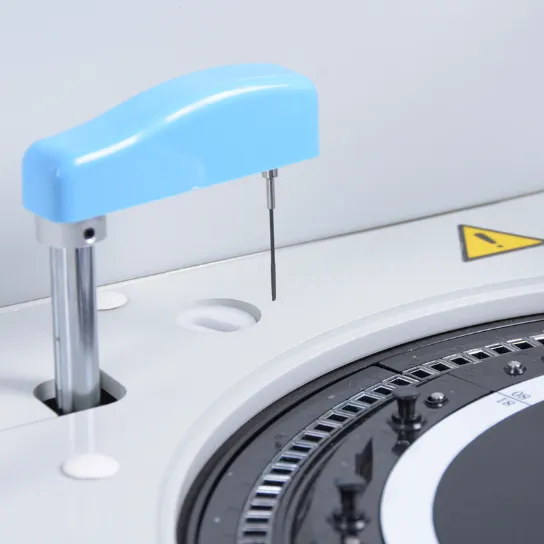

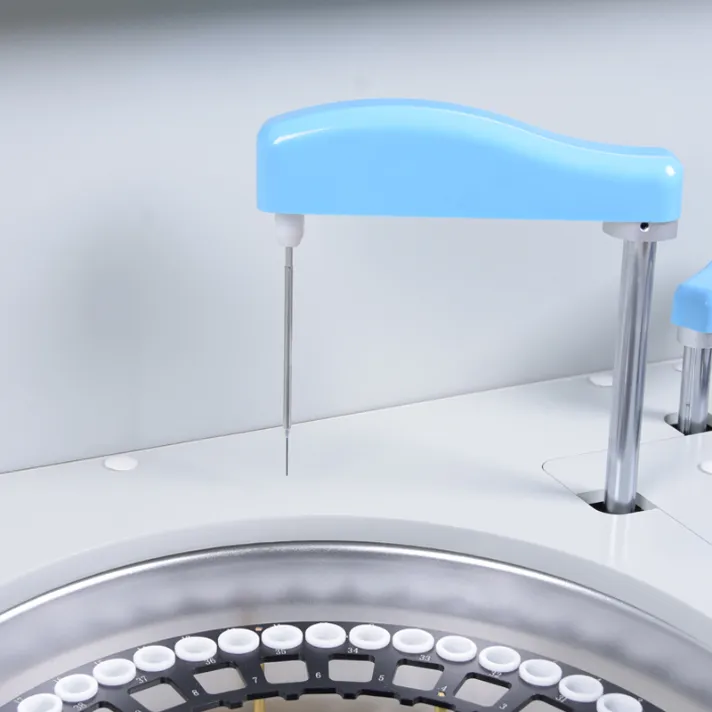

Sample needle Mixer Probe
Liquid level sensor function. Anti-collision function.Reagent volume real-time detection.

OLABO Mini Fully Automatic Clinical Chemistry Analyzer Biochemical Analyzer
