Portable Oxygen Concentrator Diagnosis Oximeter Electroencephalo-Graph
Portable Oxygen Concentrator Diagnosis Oximeter Electroencephalo-Graph Product DescriptionPerformance Parameter1.Channel: 16 channels of EEG + 2 channels of ECG(ECG is optional)2.Sampling rate: 100 Hz3.A/D transformation: 12 bits5.4.Input impedance: ≥ 10MΩ6.Patient leak current: <......
Send Inquiry
Product Description
Portable Oxygen Concentrator Diagnosis Oximeter Electroencephalo-Graph
Performance Parameter
1.Channel: 16 channels of EEG + 2 channels of ECG(ECG is optional)
2.Sampling rate: 100 Hz
3.A/D transformation: 12 bits
5.4.Input impedance: ≥ 10MΩ
6.Patient leak current: < 10µ A
7.Noise level: ≤ 5µ Vp-p
8.CMRR: ≥ 90dB
9.Magnification multiple: 10000
10.Filter constant: All digital and free enactment
11.Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s
12.Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µ V
13.Playback speed: 1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times
14.50Hz interference suppression: ≥ 30dB
15.Safety type: Class II, type BF applied part
Function Features

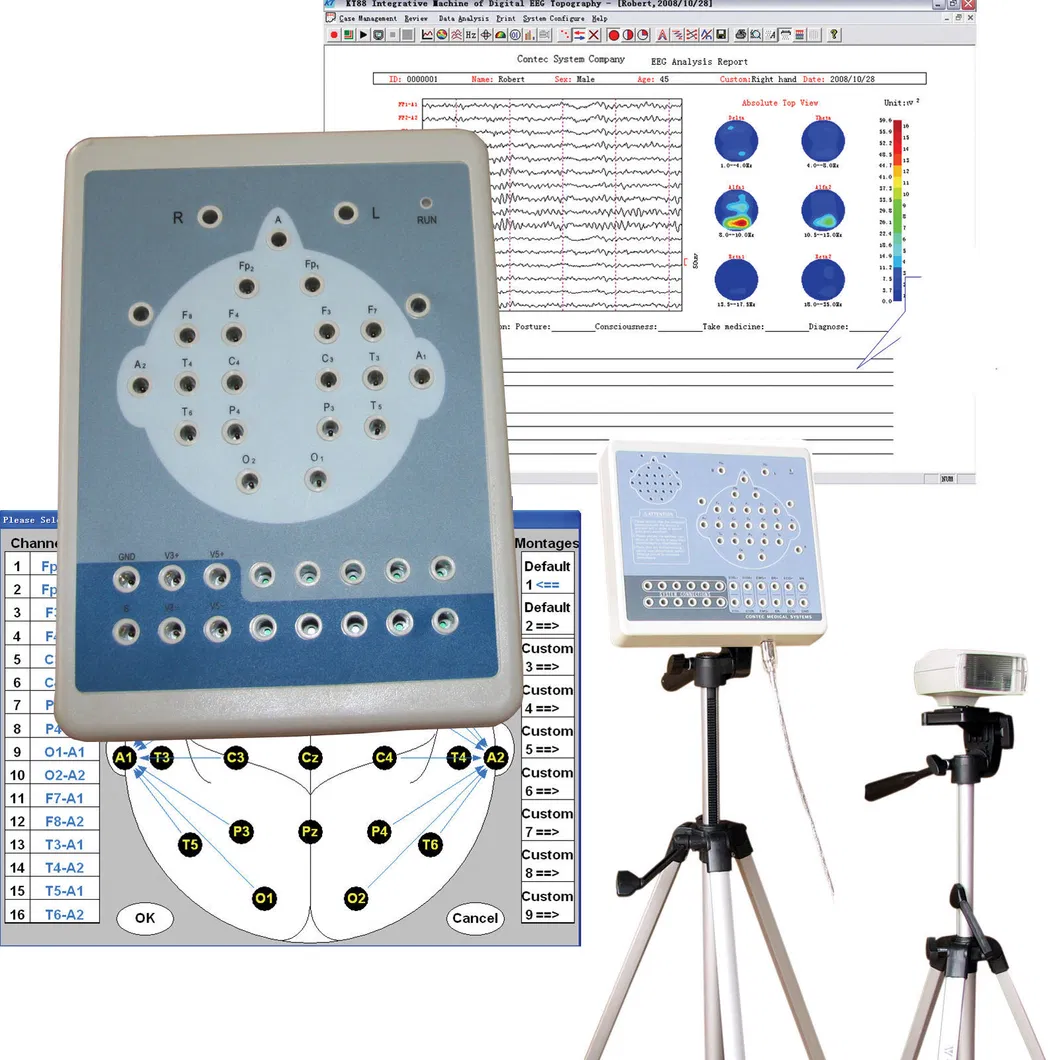

1.Standard 16 channels of EEG, compatible with 16 channels and 8 channels function. Method of 10/20 electrodes
placement under international standard system, montages can be changed during replaying(such as monopolar,
bipolar or user-defined montages).
2.Adopt bioelectricity amplifier for distilling brainwave, continuous record time can be up to 24 hours, integrated
full-automatic calibration system.
3.Powerful playback function: Two playback modes(continuous and rolling) are optional, amplitude and display speed
are adjustable. The special subdividing time line divides the waveform in one second into 5 parts, which is easy for
doctors to look over the waveform.
4.Multifunctional digital filter system provide different filter methods and window types, and user can freely set low-pass,
high-pass, band pass and band stop filter.
5.EEG signal clipping function, analyze and store any section of EEG wave, and select several segments waveforms
for automatically analyzing and distilling to different parameters.
6.Electronic frequency ruler, convenient to measure the basic information of any appointed EEG waveforms. With
partial enlarging window, to accurately measure EEG period, amplitude and frequency, and which can be adjusted
according to personnel judgment.
7.Mark EEG wave under the events of opening eyes, closing eyes and flashing with different colors, and user-defined
events can be added, waveform color for evoked event can also be set freely, ensures that the waveform in
corresponding time can be rapidly found by event name during case playback.
8.Powerful automatic analysis function, can carry through the power spectrum analysis and pathologic wave detection
for appointed waveform. Many graphs can be displayed in the same screen, including kinds of BEAM, numerical BEAM,
compressed spectrum graph, trend graph, and so on.
9.Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure
security. Use USB interface to transmit data which just need to be inserted.
1.Multifunctional flash stimulator of USB interface, and frequency can be controlled manually or automatically. A flash
stimulation scheme can be set and performed in the process of collection.
11.Perfect case management function, provides many means for research and quick statistic information; Convenient
case export and import function, and stores with CD-RW disk, which is easy for data research.
12.Integrative image and character report, report can be edited in mode and switched to Word document.
Case files can be transformed into EDF and BDF data format, convenient for data exchange, academic exchange
and further analysis.
13.System parameters and display modes can be set as required, which meets different user's requirements.
14.Add marks and annotations to the waveform designated, which can rapidly find the waveform in that time by marks.
15.Optional video function: USB camera is easy to install, convenient to use and exact to record. With flexible playback
function, which can browse the waveform of any time along with the corresponding isochronous collected image.
16.SpO2 function which can view SpO2 value, pulse rate and SpO2 trend graph is optional.
