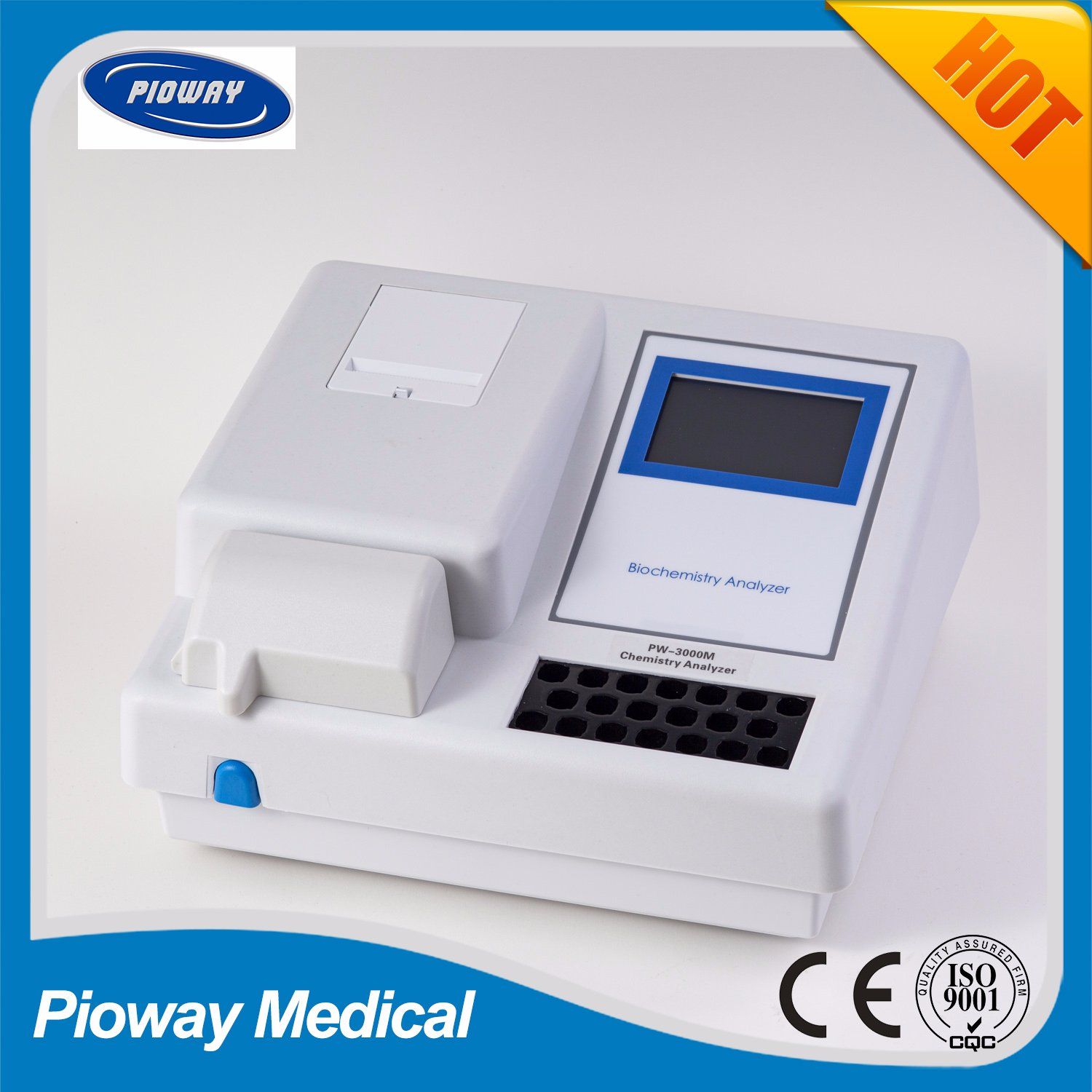

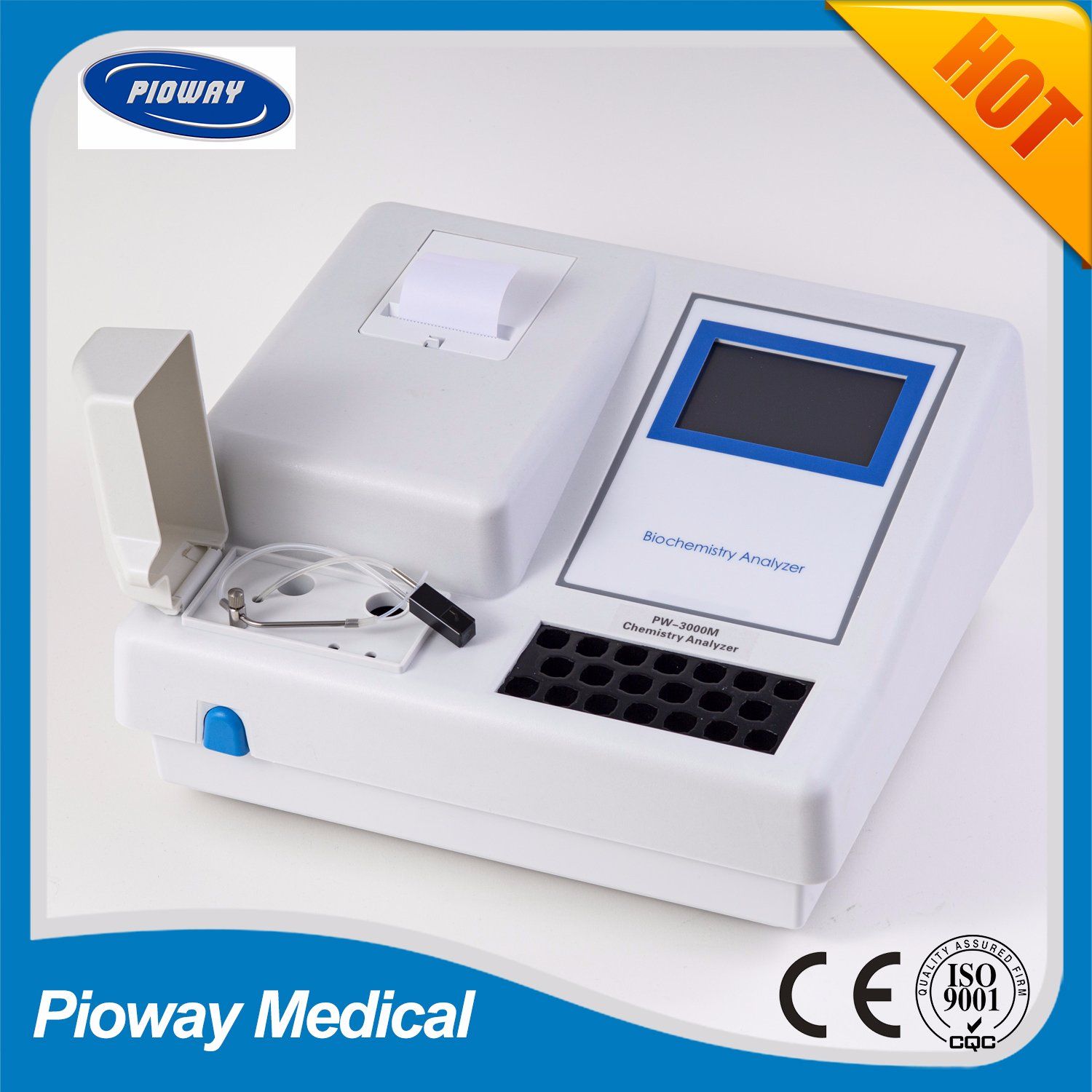

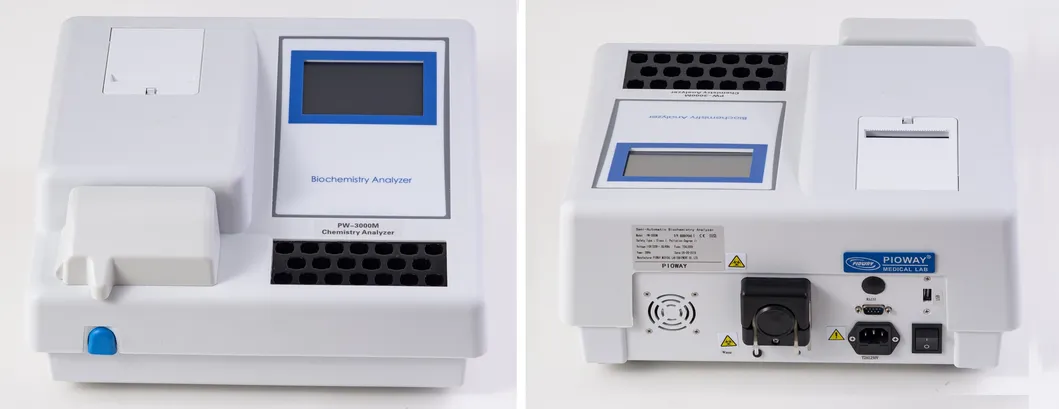

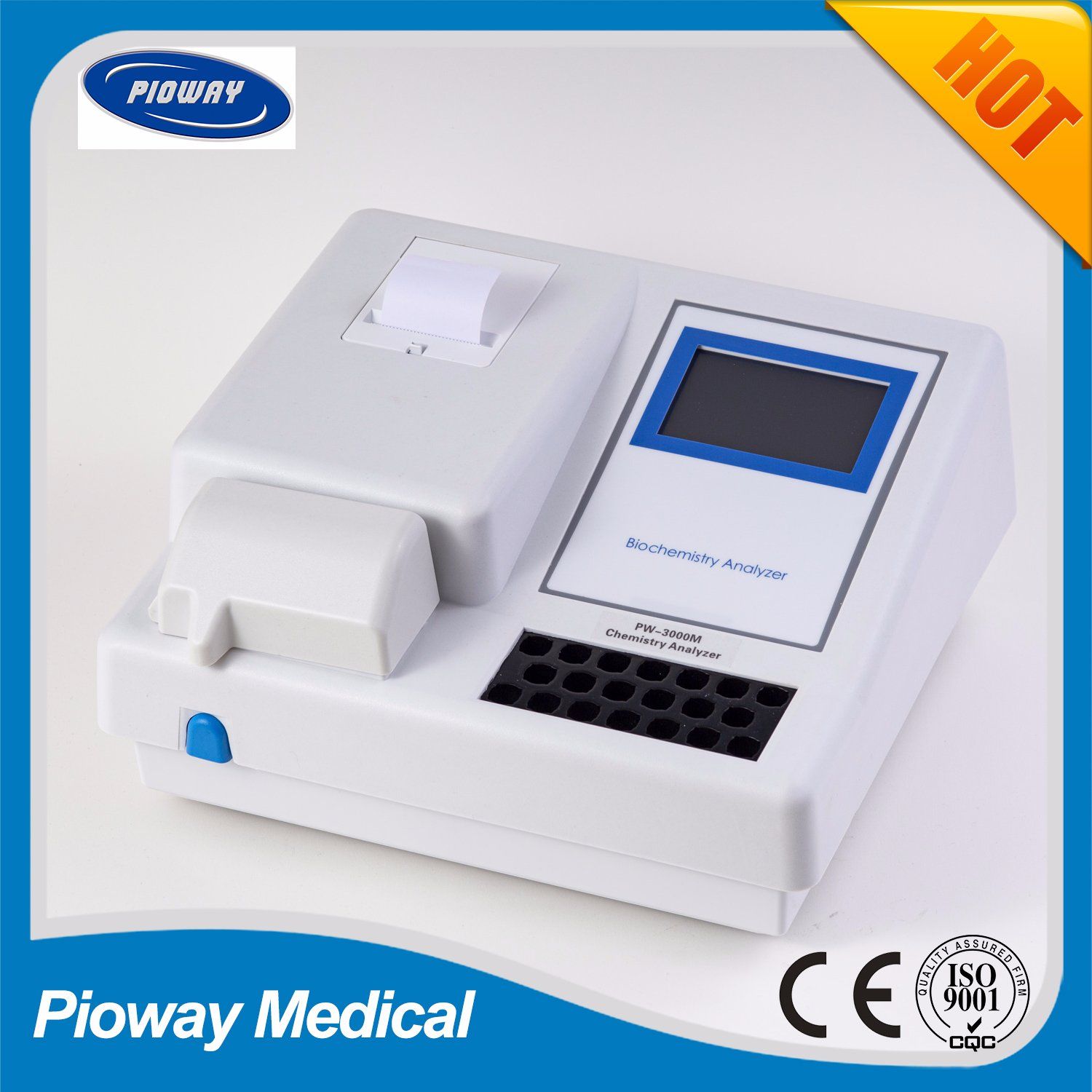

Semi Auto Chemistry Analyzer, Touch Screen, Open System (PW-3000B)

Model

PW-3000B

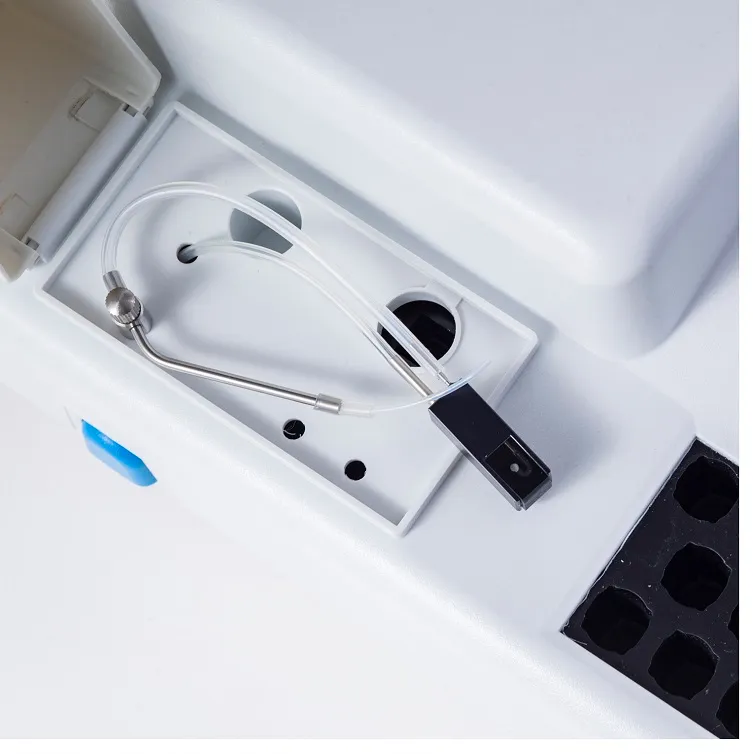

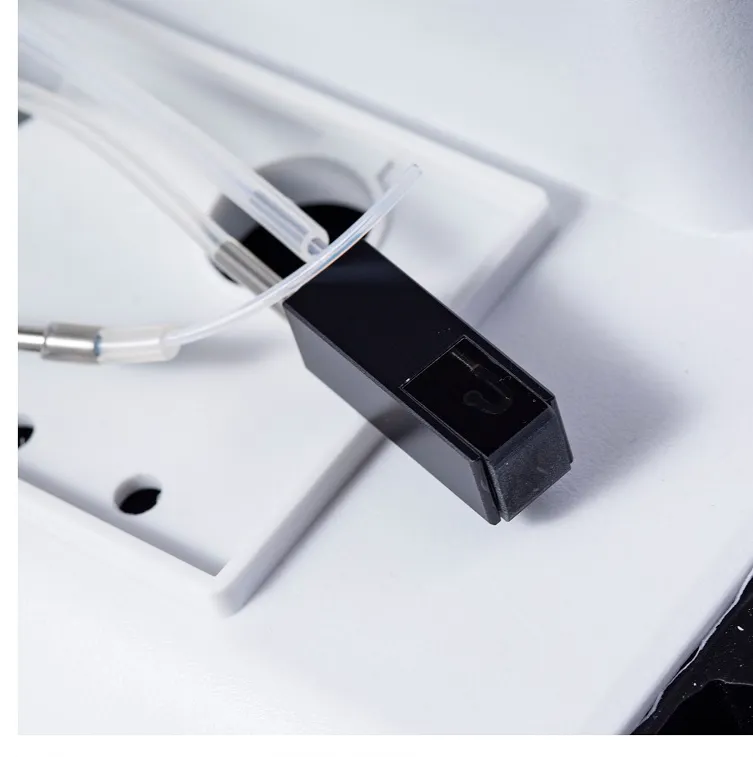

Reading Cuvette

Flow cell and Direct reading cuvette

Aspiration Volume

500µL

Incubator

20 incubation positions

Photometric System

Light Source: 6V/10W halogen lamp

Wavelength:
340,405,492,510,546,578,620nm (450, 670nm on request)

Thermostatic Control

Temperature: 25, 30, 37°C

Measuring System

Method: End point, Fixed time, Multistandard, Differential, Bichromatic and Immunoturbidimetric, etc

Mearsuring Range: 0-3.000 O.D

Photometric Linearity: 0.2A-0.5A ±5%; 0.5A-1.0A ±4%; 1.0A-1.5A ±2%

Photometric Accuracy: ±1% (0-3.000 O.D)

Drift

<0.005 O.D in 20 minutes

Test Item

T.BILI

r-GT/GGT

CHO

Ca

APOB-1/B

CHE

D.BILI

ALP/AKP

TG

Cl

APOB

CREA

TP

UREA

CK

P

CK-MB

Mg

ALB

CREA

LDH

C

ASO

AFU

Lactic Acid

ALT/GPT

UA

a-HBDH

CO2

FMN

LP(a)

AST/GOT

GLU

AMY

LDL-C

HDL-C

CHE

LA

TBA

ADA

HS-CRP

PA

Fe

Cu

Zn

C3

C4

IgG

IgM

IgA

drug and toxicity, etc

Quality Control

Excellent Q.C function, Q.C chart can be displayed and printed

Dispaly

7 inch Touch Screen

Storage

Over 200 programs, 1000 test results

Printer

Built-in thremal printer

Software

Windows XP/2000 on request

Interface

USB Port for external printer, keyboard, software update(optional)

Power Supply

AC 110V/60Hz or 220V/50Hz

Dimension

34cm x 38cm x 18cm

Weight

8.0 Kg
