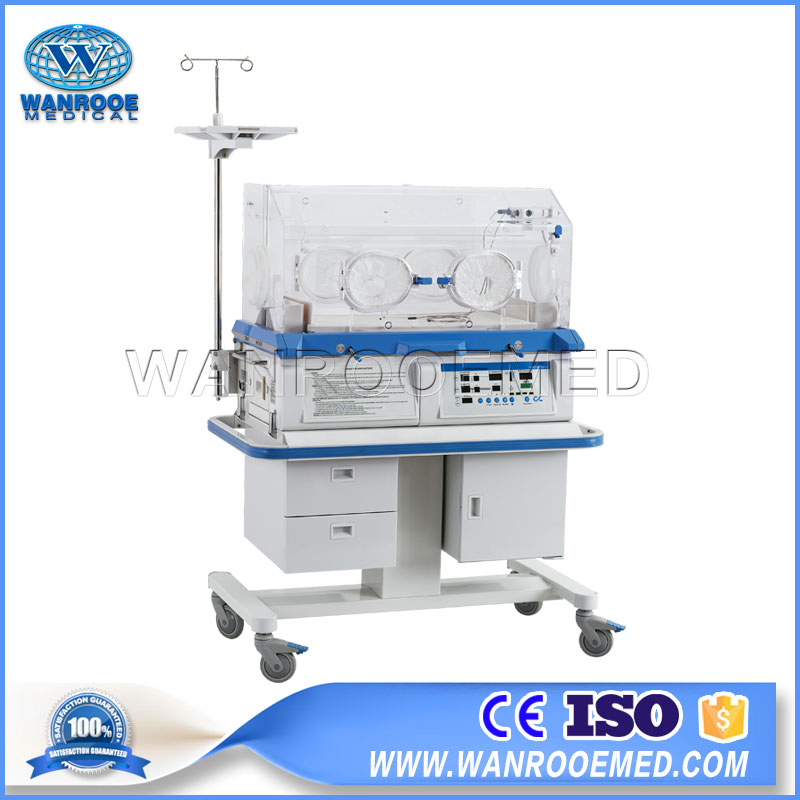

Hb-Yp970 Medical Nicu Infant Incubator for Newborn

Hb-Yp970 Medical Nicu Infant Incubator for Newborn

Features:
Two control modes: Air mode and baby mode controlled by micro-computer;  Humidity control system;
Oxygen concentration display system(for HB-YP930);
Oxygen concentration control system (for HB-YP970);
Set temperature, air temperature, baby temperature, humidity and oxygen are displayed separately;
>37°C temperature set function;
Failure alarm indication;
Embedded integrated sensor box;
Integrated water reservoir in the shape of drawer;
Double wall hood, automatic air circulation device;
Inclination of bassinet is adjustable;
RS-232 connector;
DC motor.

Standard Configuration:
HB-YP930: The hood, the base, the mobile cabinet, the controller, I.V pole, tray; HB-YP970: Based on HB-YP930, with Oxygen concentration control system.

Optional Configuration:
Fixed neonate bilirubin phototherapy equipment model: HBXHZ-90 (with blue fluorescent lamps)
Fixed neonate bilirubin phototherapy equipment model: HBXHZ-90L (with LED blue lights)

Vertical height adjustment stand (VHA stand) Weighing system, Disposable skin temperature sensor and SP02.

Specification:
Power requirement: AC220V-230V/50Hz or AC110-120V/50-60Hz, 1000VA
Mode of control: Air mode and baby mode controlled by micro-computer
Air temperature control range: 25°C -37°C (override mode 37-39°C )
Baby temperature control range: 34-37°C (override mode 37-38°C )
Accuracy of skin temperature sensor: ±0.2°C
The temperature difference between incubator temperature and average incubator temperature(under steady temperature condition)≤0.5°C
Temperature uniformity: 0.8°C (mattress is on the horizontal position)
Inclination of the bassinet: ±12°
Noise inside hood: 45dB(A)
Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, sensor box position alarm , low water alarm , tank position alarm and system alarm.
Humidity display range: 0%RH-99%RH
 Humidity control range: 0%RH-90%RH
Accuracy of humidity display: ±5%RH(environment temperature is 25°C , environment humidity is 45%RH±5%RH)
Indication range of oxygen concentration: 0%-99%
Control range of oxygen concentration: 20%-60% ( for HB-YP970 )
Accuracy of oxygen display concentration: ±2%(oxygen concentration sets 25%) ±3%(oxygen concentration sets >25%)
Accuracy of oxygen control concentration: ±4% (for HB-YP970 )

Environmental temperature:
Operating range: 20 °C -30°C (Set temperature should be higher 3°C than the environment temperature)
Ambient air movement rate: <0.3m/s

Product Packaging:
Package: each unit is packed into two cartons
Dimension (Main body): 1085mm x 640mm x 915mm
             (Cabinet): 1125mm x 665mm x 730mm
Gross Weight (Main body):66Kg (for HB-YP930)
                        68Kg (for HB-YP970)
                        (Cabinet): 60Kg
