Medical Grade UV Disinfection System 60W 253.7nm UV Lamp Sterilizer
Medical Grade UV Disinfection System 60W 253.7nm UV Lamp SterilizerTechnical parametersTechnical ParametersZXCTube Power≥30W × 2Number of tubes2Applicable static area≥30 Square meterVoltage: / Frequency220V ± 10%, 50Hz ± 10%Input power180VAUV wavelength2......
Send Inquiry
Product Description
Medical Grade UV Disinfection System 60W 253.7nm UV Lamp Sterilizer
Technical parameters
Functions
UV Sterilizer For Operating Room is mainly used in the medical and hygienic units as well as the industrial section of food and medicines for the air sterilization. It can killed MRSA, E.coli, germs and microorganism, etc.
Method of Usage
1.Install the base with body.
2.Open the protection door.

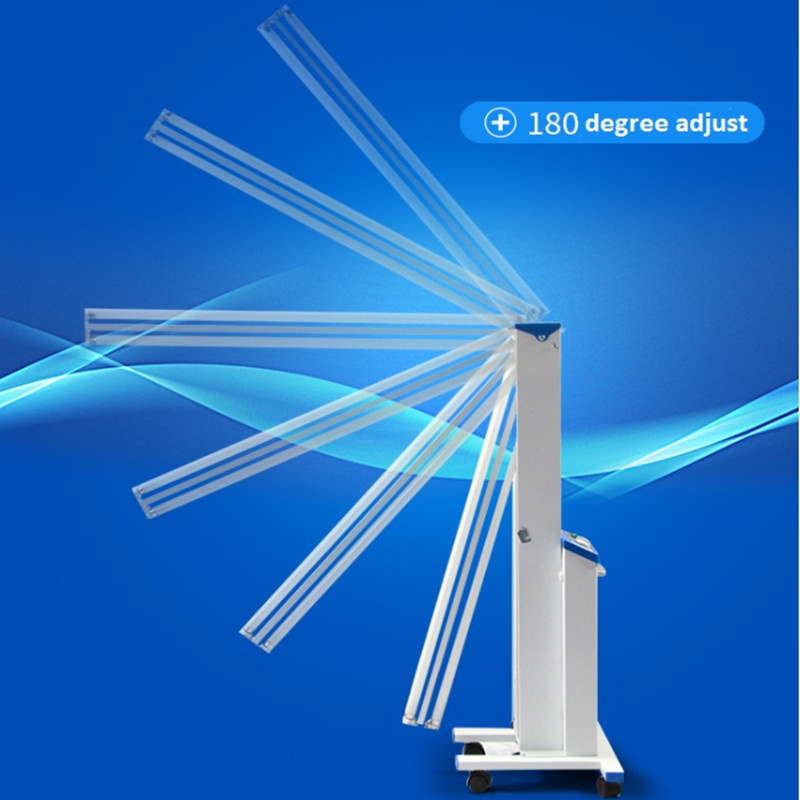

3.Lift the lamp arm and adjust to 90,135,180 degrees.
4.Insert the plug and press 'ON' button, adjust 0-120mins timer.
5.Leave the room right now.
6.After finishing sterilization, press 'OFF' button.
7.Adjust timer to 'stop'.
8.Hold down the 'adjustable button' to adjust lamp arm to the box.
9.Close the protection door.
10.Pull out the plug.
Caution
---Do n't look directly at the ultraviolet light source, should be used in unmanned circumstances.
---Ensure the surface clean of UV lamp, or will affect the performance.
---Keep in the dry and clean room. Should Extend the exposure time if the room temperature is below 20 degrees Celsius or above 40 degrees Celsius.
---When sterilizing the surface of object, should illuminate directly within 1m between the ultraviolet light and surface.
---When sterilizing pet or animal room, please make sure pets do n't touch the ultraviolet sterilizer. Please protect the eyes and skins of pets with shading cloth.
---Open the window and ventilation for 10 minutes after sterilization.
The UV Germicidal Lamp trolley is mainly applied in sterilization and disinfection of the air in operating room, ICU, treatment room and ward, it could be also be applied in sterilization and disinfection of other rooms of which the air is required being sterilized.
Hospital: operating room, manufacturing laboratory, ward, treatment room, toilet
Blood station: blood sampling room, bioclean room, blood bank
Food and beverage: manufacturing shop, changing room, laboratory
Advantages
---CE certificate and ISO 9001 certification
---26 years 'OEM experience, 7years' exported experience
---We are manufacturer
---We have own export license
---Short Lead Time, fast delivery
Packing picture
Related Products
Technical parameters
| Technical Parameters | ZXC |
| Tube Power | ≥30W × 2 |
| Number of tubes | 2 |
| Applicable static area | ≥30 Square meter |
| Voltage: / Frequency | 220V ± 10%, 50Hz ± 10% |
| Input power | 180VA |
| UV wavelength | 253.7nm |
| Irradiance | ≥214uw / cm2 |
| Movable and foldable, the tube could be Concealed inside, can be adjusted to various angles | 30 °, 60 °, 90 °, 135 °, 180 ° |
| A timer equipment with the time limitation | 0-120 mins |
Functions
UV Sterilizer For Operating Room is mainly used in the medical and hygienic units as well as the industrial section of food and medicines for the air sterilization. It can killed MRSA, E.coli, germs and microorganism, etc.
Method of Usage
1.Install the base with body.
2.Open the protection door.
3.Lift the lamp arm and adjust to 90,135,180 degrees.
4.Insert the plug and press 'ON' button, adjust 0-120mins timer.
5.Leave the room right now.
6.After finishing sterilization, press 'OFF' button.
7.Adjust timer to 'stop'.
8.Hold down the 'adjustable button' to adjust lamp arm to the box.
9.Close the protection door.
10.Pull out the plug.
Caution
---Do n't look directly at the ultraviolet light source, should be used in unmanned circumstances.
---Ensure the surface clean of UV lamp, or will affect the performance.
---Keep in the dry and clean room. Should Extend the exposure time if the room temperature is below 20 degrees Celsius or above 40 degrees Celsius.
---When sterilizing the surface of object, should illuminate directly within 1m between the ultraviolet light and surface.
---When sterilizing pet or animal room, please make sure pets do n't touch the ultraviolet sterilizer. Please protect the eyes and skins of pets with shading cloth.
---Open the window and ventilation for 10 minutes after sterilization.
The UV Germicidal Lamp trolley is mainly applied in sterilization and disinfection of the air in operating room, ICU, treatment room and ward, it could be also be applied in sterilization and disinfection of other rooms of which the air is required being sterilized.
Hospital: operating room, manufacturing laboratory, ward, treatment room, toilet
Blood station: blood sampling room, bioclean room, blood bank
Food and beverage: manufacturing shop, changing room, laboratory
Advantages
---CE certificate and ISO 9001 certification
---26 years 'OEM experience, 7years' exported experience
---We are manufacturer
---We have own export license
---Short Lead Time, fast delivery
Packing picture
